EDGE-SB10P21
CEDGESB10P21
Available

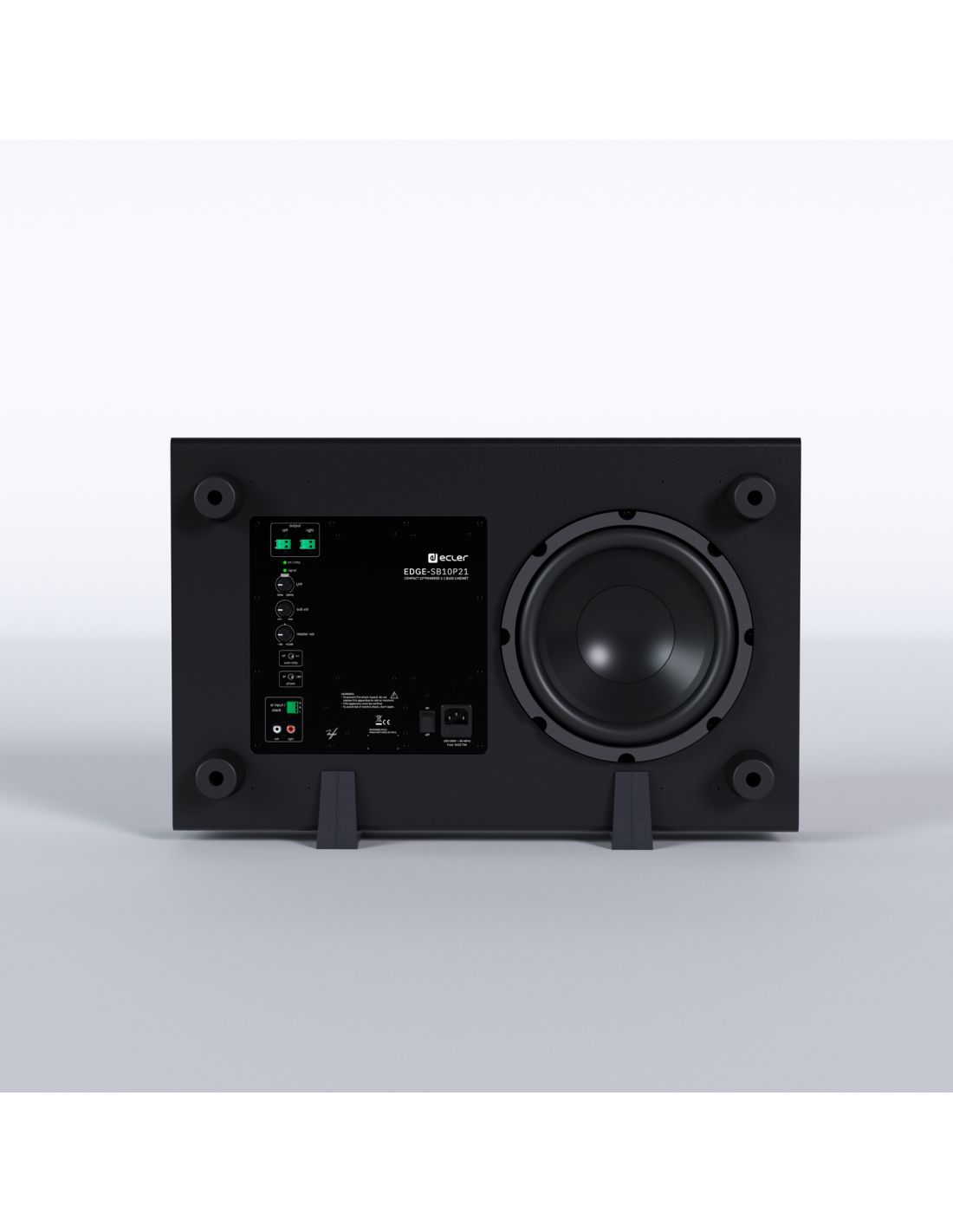

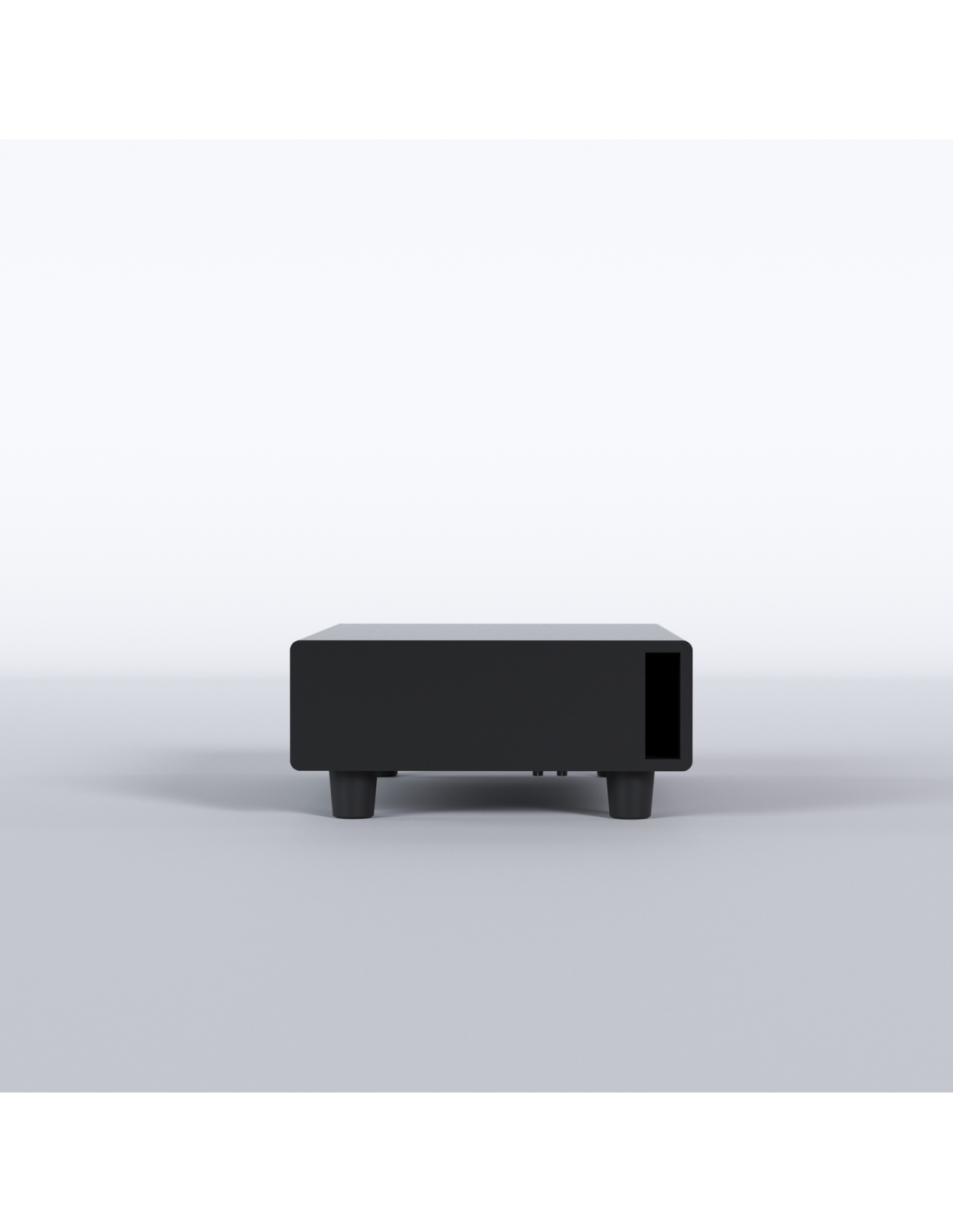

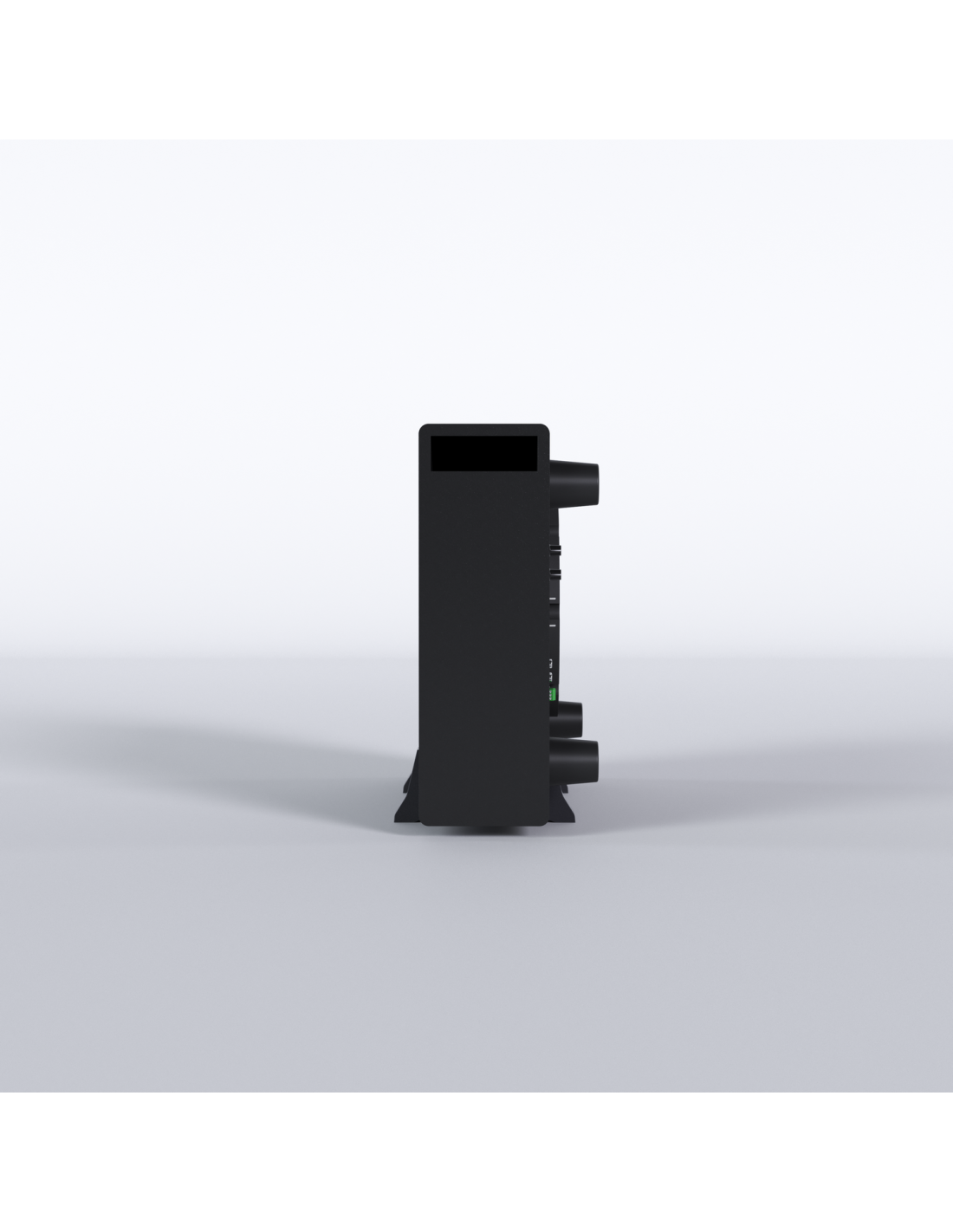

Compact Powered 2.1 Subwoofer

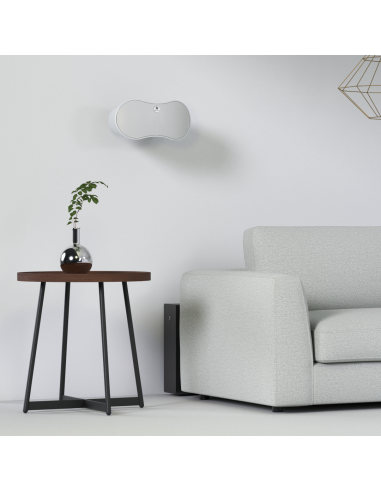

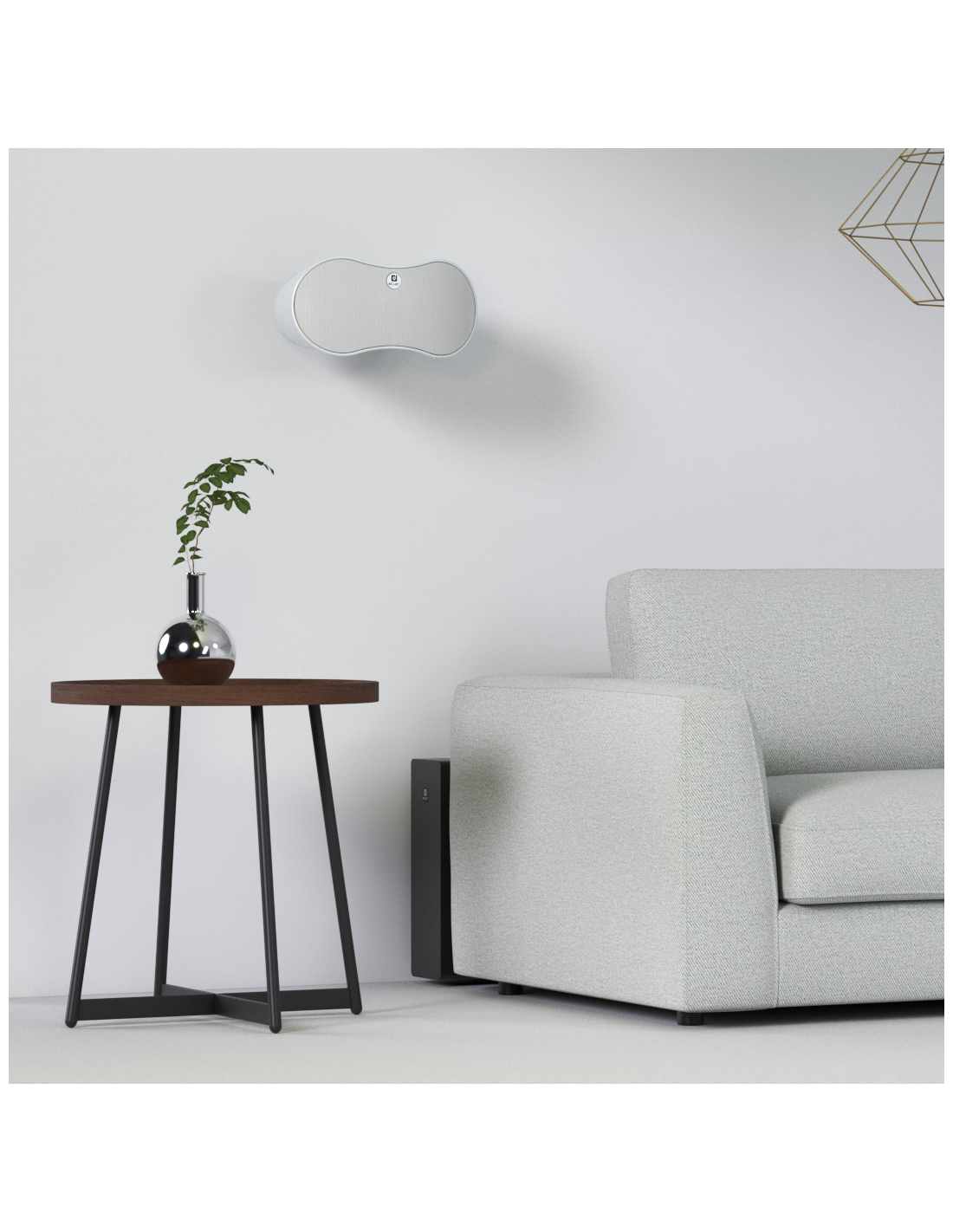

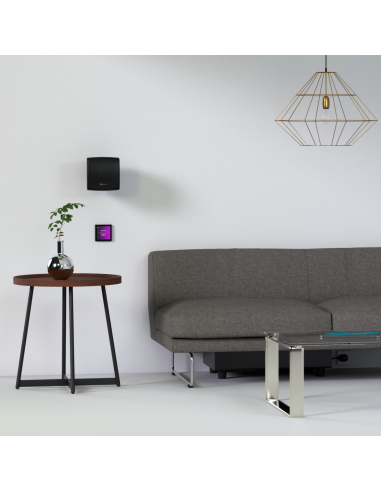

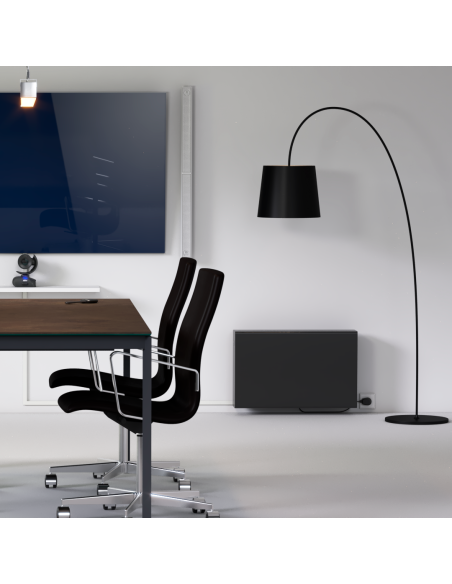

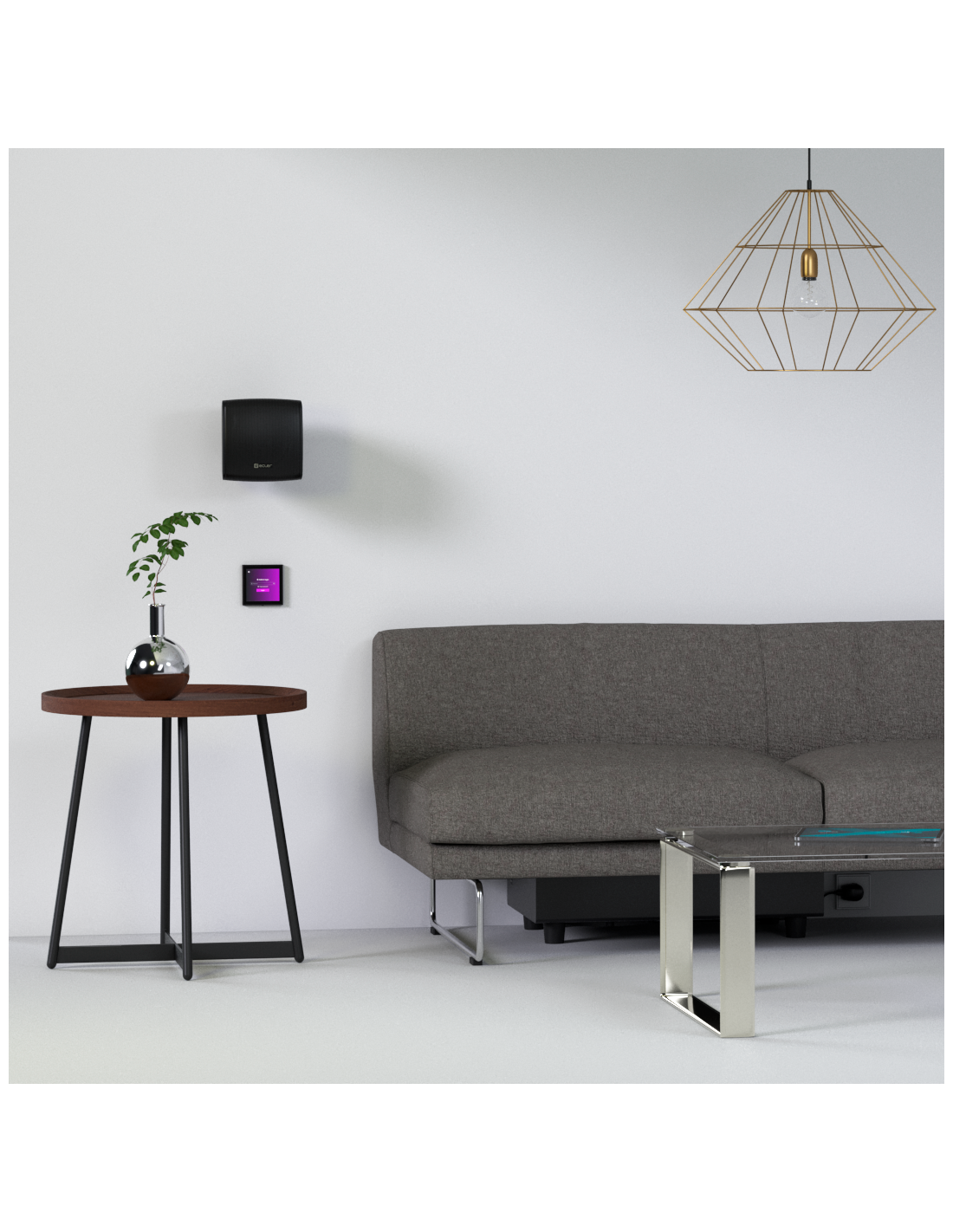

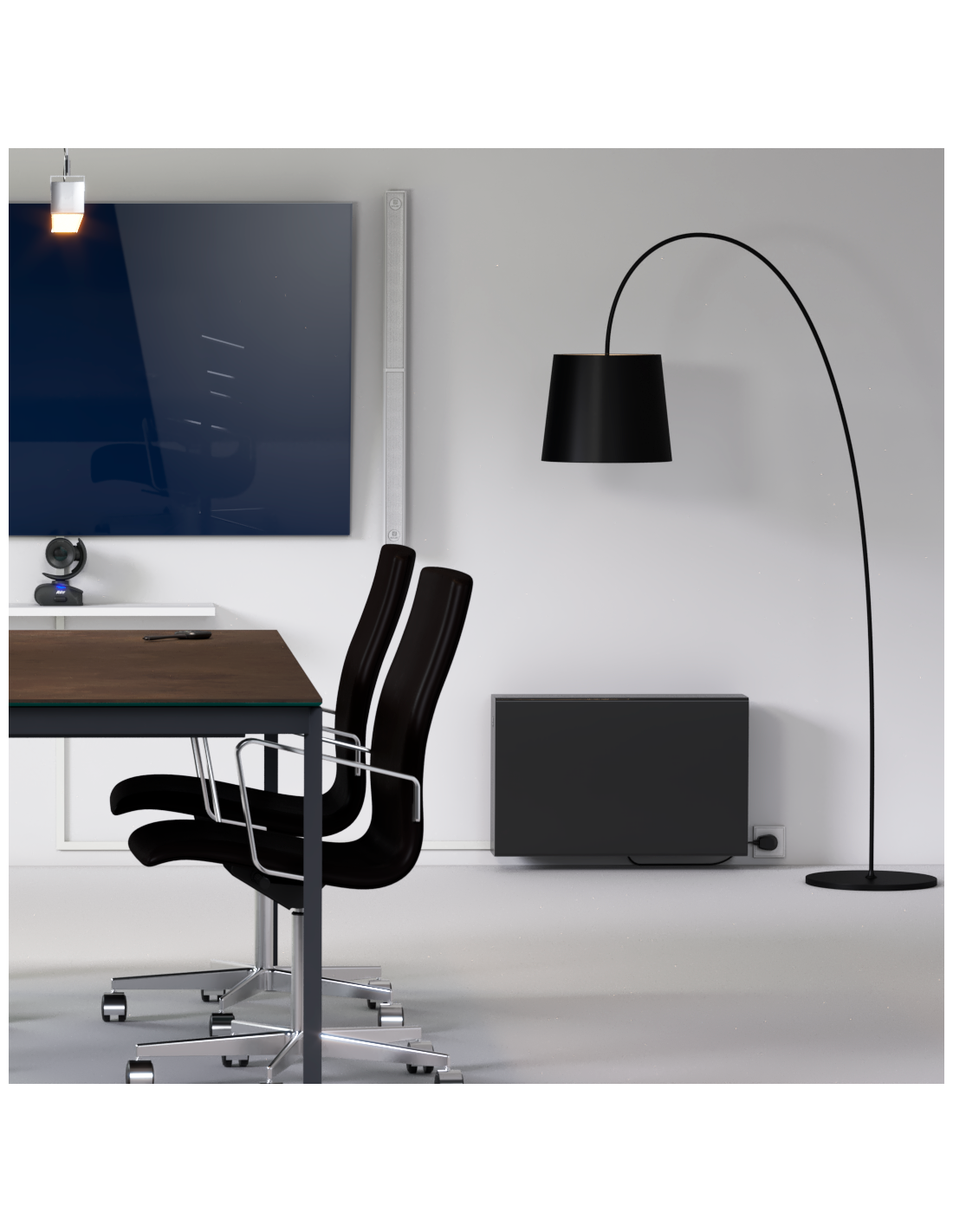

EDGE-SB10P21 is an ultra-compact, powered 2.1 device that combines a powered subwoofer and a stereo amplifier for full-range external speakers or "satellites" within a single enclosure. It also includes several additional components to control and process the audio signal. This device delivers powerful bass sound in a compact size, making it ideal for small spaces such as underneath restaurant seats or wall-mounted in a corner using the included bracket.
- Effective Freq. Range
- 23Hz-465Hz (-10dB)
- Power handling
- 120W RMS / 480W Peak
EXT.OUT: 4 Ohm: 2*100W RMS, 8 Ohm: 2*50W RMS - Sensitivity
- 95dB (1W/1m)
- Maximum SPL
- 116dB continuous / 122dB peak
- Ways
- Subwoofer
- Nominal impedance
- 4Ω-8Ω
- Crossover filter
- NO
- Connection type
- RCA & Euro Terminal Block
- Installation options
- Surface, Wall mounting
- Enclosure material
- MDF
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
- Included accessories
- Wall support system / Supports-legs / RCA cables / Euroblocks
- Finished colour
- Black (RAL 9005)
- Dimensions
- 635 x 181 x 414 mm / 25 x 7.13 x 16.30 in. (WxHxD)
- Weight
- 10.35 Kg / 22.82 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 760 x 260 x 525 mm / 29.92 x 10.24 x 20.67 in. (WxHxD)
- Shipping weight
- 12.9 Kg / 28.44 lb
- Input sensitivity
- -10dB
- CMRR
- Line
- Power consumption
- 0.6 kWh
- Mounting system
- Wall support system & Supports-legs
- Power handling per way
- Driver
- 10" woofer
- Low-Pass filter selector
- 50Hz to 250Hz variable low pass filter
- Power
- 120W RMS / 480W Peak
- Audio inputs
- RCA
- Audio outputs
- Euro Terminal Block
- LED Indicators
- ON/STBY: Green on working status, Orange on Standby status
SIGNAL: Green when signal is received
- Mains
- 110-240VAC 50/60Hz
- THD + Noise
- ≦0.1%
- Tone control
- 50Hz-250Hz
- Volume control
- -∞-+10dB
- Cable length
- 1.5m
- Signal Noise Ratio
- 80dB
- Power consumption standby
- 13W
- Auto standby time
- 180 seg
- Auto standby threshold
- -45dB
- Powered outputs
- 4 Ohm: 2*100W RMS, 8 Ohm: 2*50W RMS
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
23Hz-465Hz (-10dB) |
|---|---|
| Power handling |
120W RMS / 480W Peak
EXT.OUT: 4 Ohm: 2*100W RMS, 8 Ohm: 2*50W RMS |
| Sensitivity |
95dB (1W/1m) |
| Maximum SPL |
116dB continuous / 122dB peak |
| Power handling per way |
|
TRANSDUCERS
| Ways |
Subwoofer |
|---|---|
| Nominal impedance |
4Ω-8Ω |
| Driver |
10" woofer |
FILTERS
| Crossover filter |
NO |
|---|---|
| Low-Pass filter selector |
50Hz to 250Hz variable low pass filter |
PHYSICAL
| Connection type |
RCA & Euro Terminal Block |
|---|---|
| Installation options |
Surface, Wall mounting
|
| Enclosure material |
MDF |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F
|
| Operating humidity |
85% HR
|
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F
|
| Storage humidity |
90% HR
|
| Included accessories |
Wall support system / Supports-legs / RCA cables / Euroblocks
|
| Finished colour |
Black (RAL 9005)
|
| Dimensions |
635 x 181 x 414 mm / 25 x 7.13 x 16.30 in. (WxHxD)
|
| Weight |
10.35 Kg / 22.82 lb
|
| Pieces per box |
1 piece
|
| Shipping dimensions |
760 x 260 x 525 mm / 29.92 x 10.24 x 20.67 in. (WxHxD)
|
| Shipping weight |
12.9 Kg / 28.44 lb
|
| Mounting system |
Wall support system & Supports-legs
|
| Cable length |
1.5m |
POWERED
| Power |
120W RMS / 480W Peak
|
|---|---|
| Audio inputs |
RCA
|
| Audio outputs |
Euro Terminal Block
|
| Mains |
110-240VAC 50/60Hz
|
| Signal Noise Ratio |
80dB
|
| Powered outputs |
4 Ohm: 2*100W RMS, 8 Ohm: 2*50W RMS
|
ELECTRICAL
| Power consumption |
0.6 kWh
|
|---|---|
| Power consumption standby |
13W
|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-10dB
|
|---|
MONITORING AND CONTROL
| LED Indicators |
ON/STBY: Green on working status, Orange on Standby status
SIGNAL: Green when signal is received
|
|---|---|
| Tone control |
50Hz-250Hz
|
| Volume control |
-∞-+10dB
|
| Auto standby time |
180 seg |
| Auto standby threshold |
-45dB
|
LINE INPUTS
| CMRR |
Line
|
|---|
LINE OUTPUTS
| THD + Noise |
≦0.1%
|
|---|
