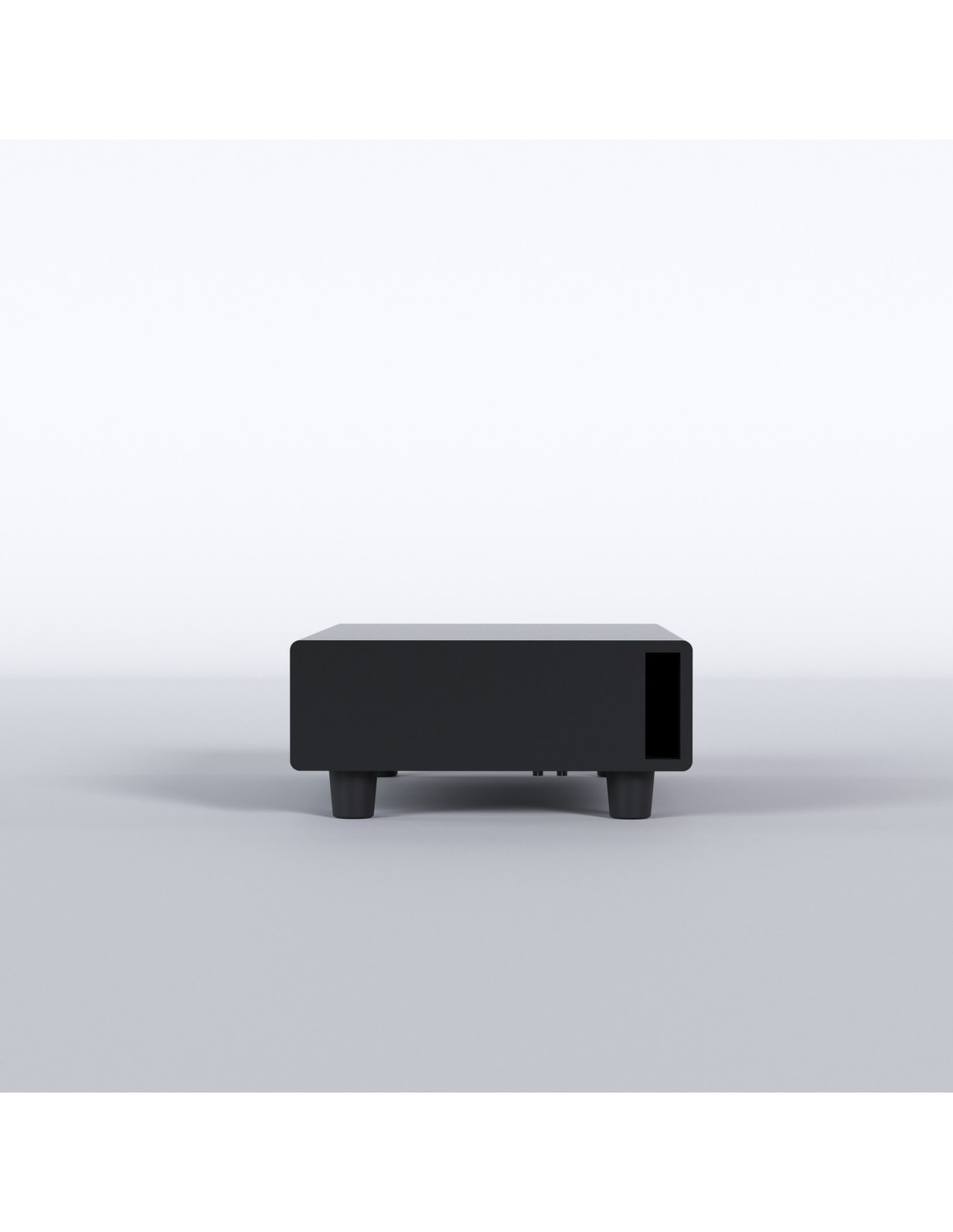

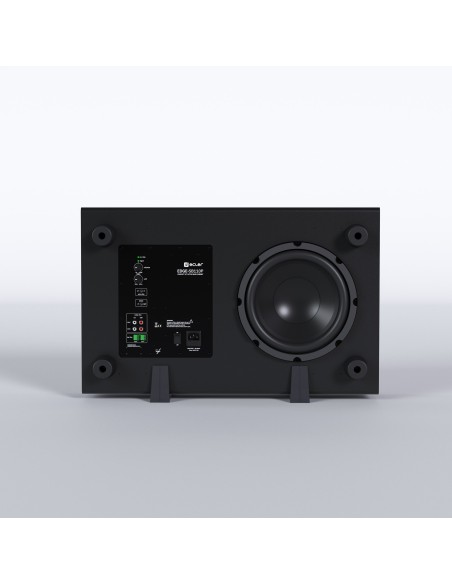

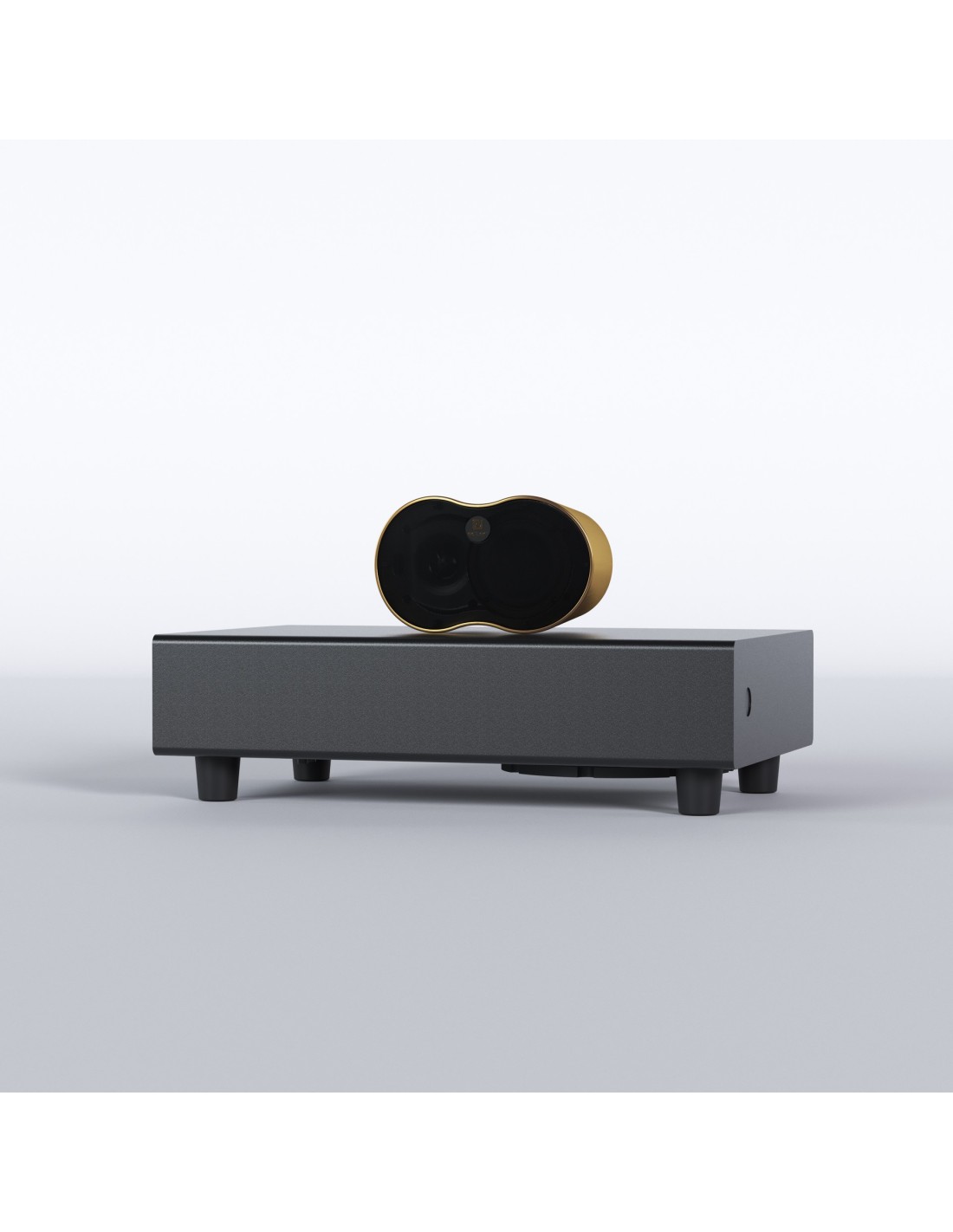

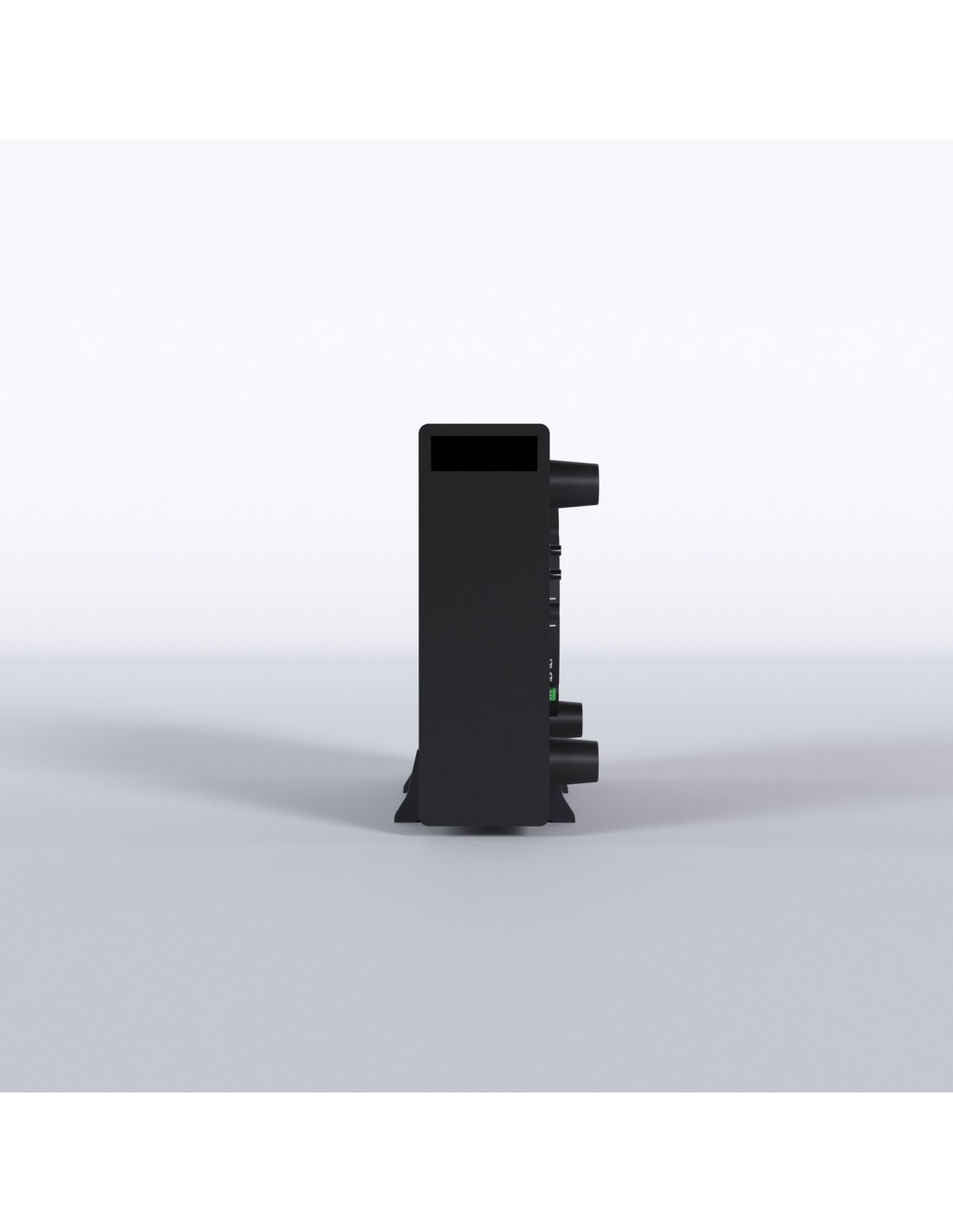

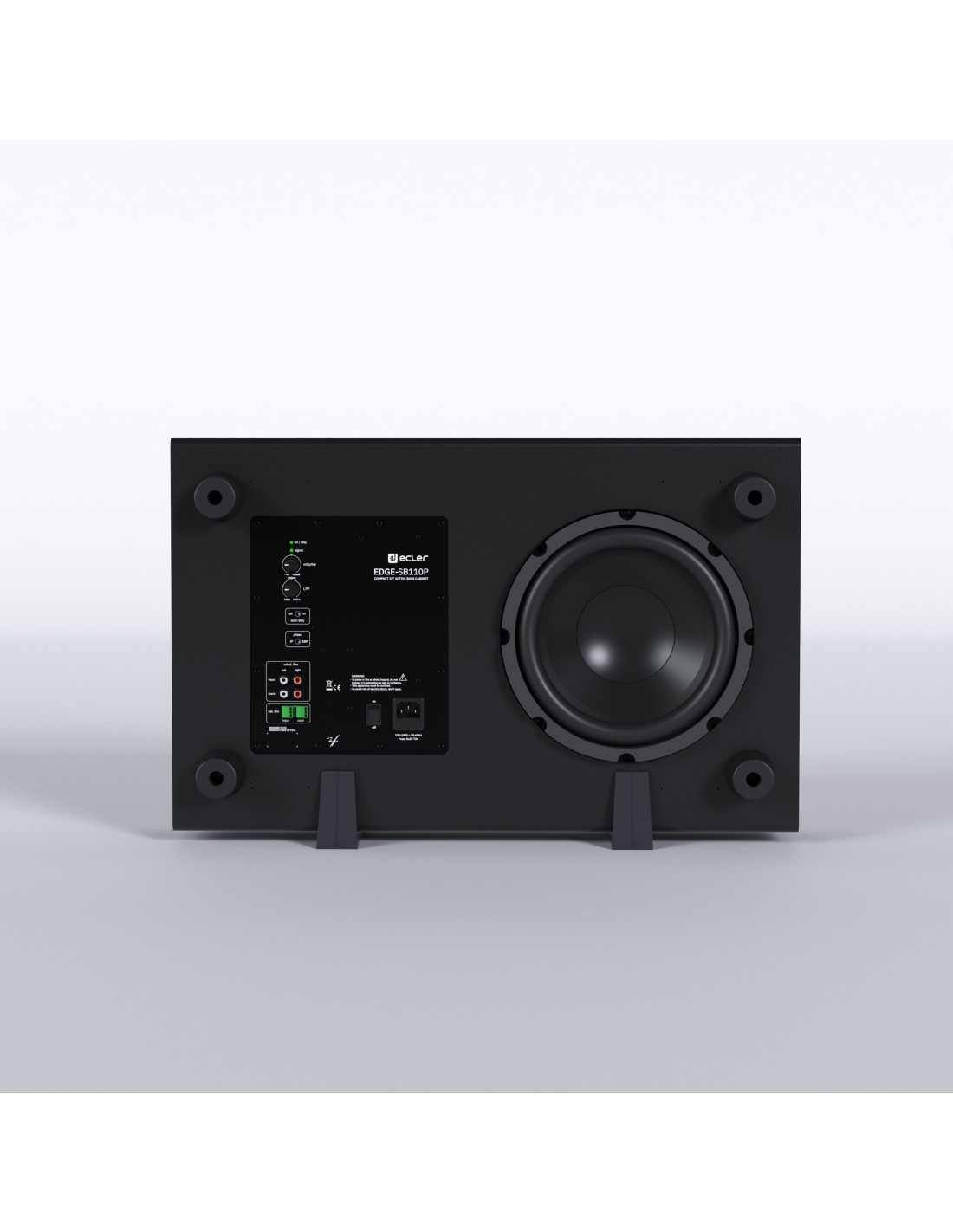

EDGE-SB110P GD
CEDGESB110P
Available
Compact 10” active bass cabinet
EDGE-SB110P delivers powerful bass sound in a compact size. EDGE subwoofer is perfectly designed for small available spaces like underneath restaurant seats or wall-mounted in a corner with the included bracket. This powered subwoofer of 181 mm high incorporates a 10” driver, 50Hz to 250Hz variable low pass filter, phase inverter and an amplified power output of 120W.
- Effective Freq. Range
- 23Hz - 465Hz
23Hz - 465Hz (-10dB) - Power handling
- 120W RMS / 480W Peak
- Sensitivity
- 97 dB
97 dB (1W/1m) - Maximum SPL
- 118 dB continuous / 124 dB peak
- Ways
- Subwoofer
- Low frequency driver
- 10" woofer
- Nominal impedance
- 8Ω
- Crossover filter
- NO
- Connection type
- RCA & Euro Terminal Block
- Installation options
- Surface, Wall mounting
- Enclosure material
- MDF
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
- Included accessories
- Wall support system / Supports-legs / RCA cables
- Finished colour
- Black (RAL 9005)
- Dimensions
- 635 x 181 x 414 mm / 25 x 7.13 x 16.30 in. (WxHxD)
- Weight
- 10.35 Kg / 22.82 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 758 x 268 x 515 mm / 29.84 x 10.55 x 20.28 in. (WxHxD)
- Shipping weight
- 12,9 Kg / 28.44 lb
- Mounting system
- Wall support system & Supports-legs
- Low-Pass filter selector
- 50Hz to 250Hz variable low pass filter
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
23Hz - 465Hz 23Hz - 465Hz (-10dB) |
|---|---|
| Power handling |
120W RMS / 480W Peak |
| Sensitivity |
97 dB (1W/1m) 97 dB |
| Maximum SPL |
118 dB continuous / 124 dB peak |
TRANSDUCERS
| Ways |
Subwoofer |
|---|---|
| Low frequency driver |
10" woofer |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
NO |
|---|---|
| Low-Pass filter selector |
50Hz to 250Hz variable low pass filter |
PHYSICAL
| Connection type |
RCA & Euro Terminal Block |
|---|---|
| Installation options |
Surface, Wall mounting |
| Enclosure material |
MDF |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Wall support system / Supports-legs / RCA cables |
| Finished colour |
Black (RAL 9005) |
| Dimensions |
635 x 181 x 414 mm / 25 x 7.13 x 16.30 in. (WxHxD) |
| Weight |
10.35 Kg / 22.82 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
758 x 268 x 515 mm / 29.84 x 10.55 x 20.28 in. (WxHxD) |
| Shipping weight |
12,9 Kg / 28.44 lb |
| Mounting system |
Wall support system & Supports-legs |
