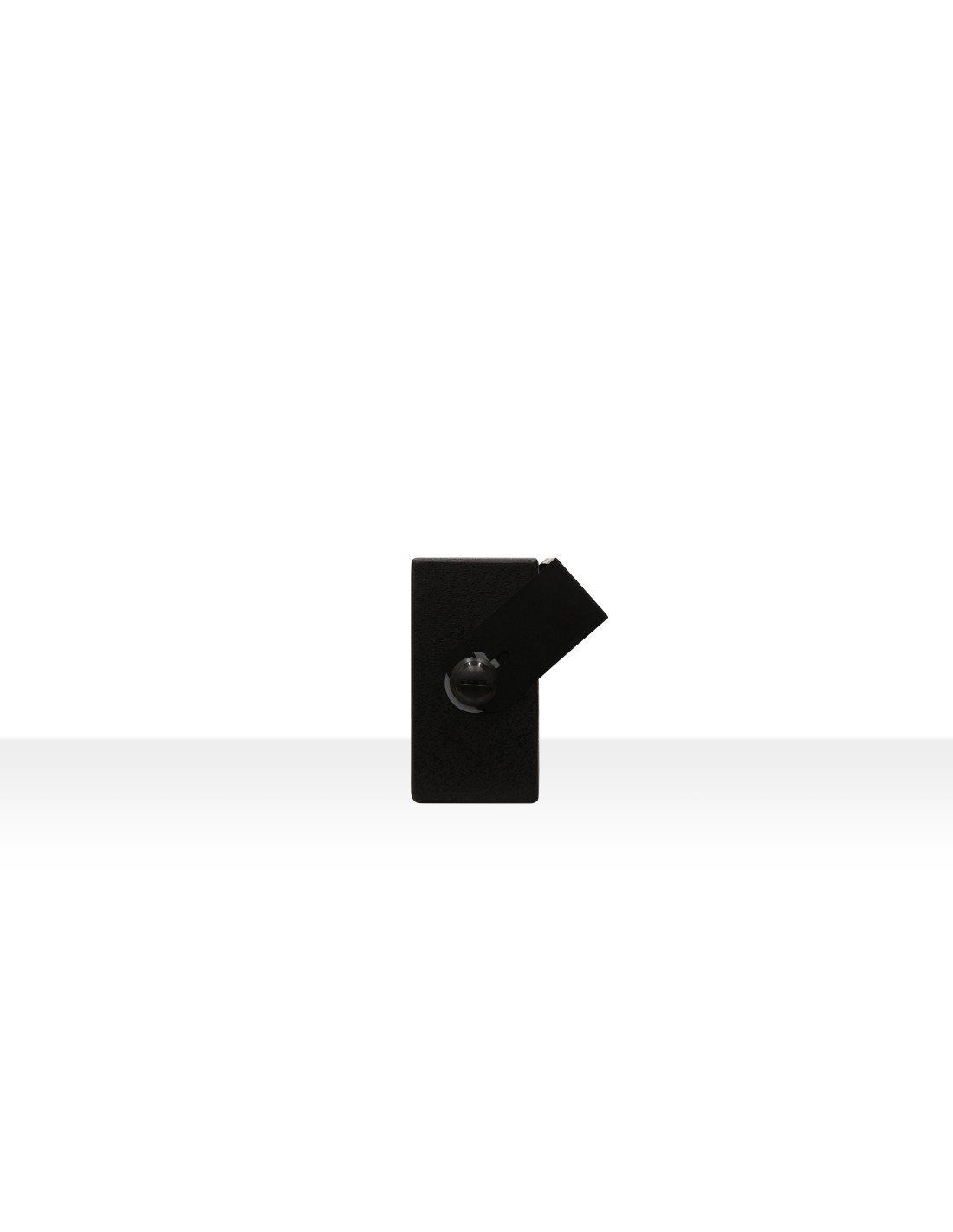

ARQISSB6Ti WH
CARQISSB6TIW
Only a few left
2x6.5" | 1-way | 120 WRMS | wooden sub-woofer

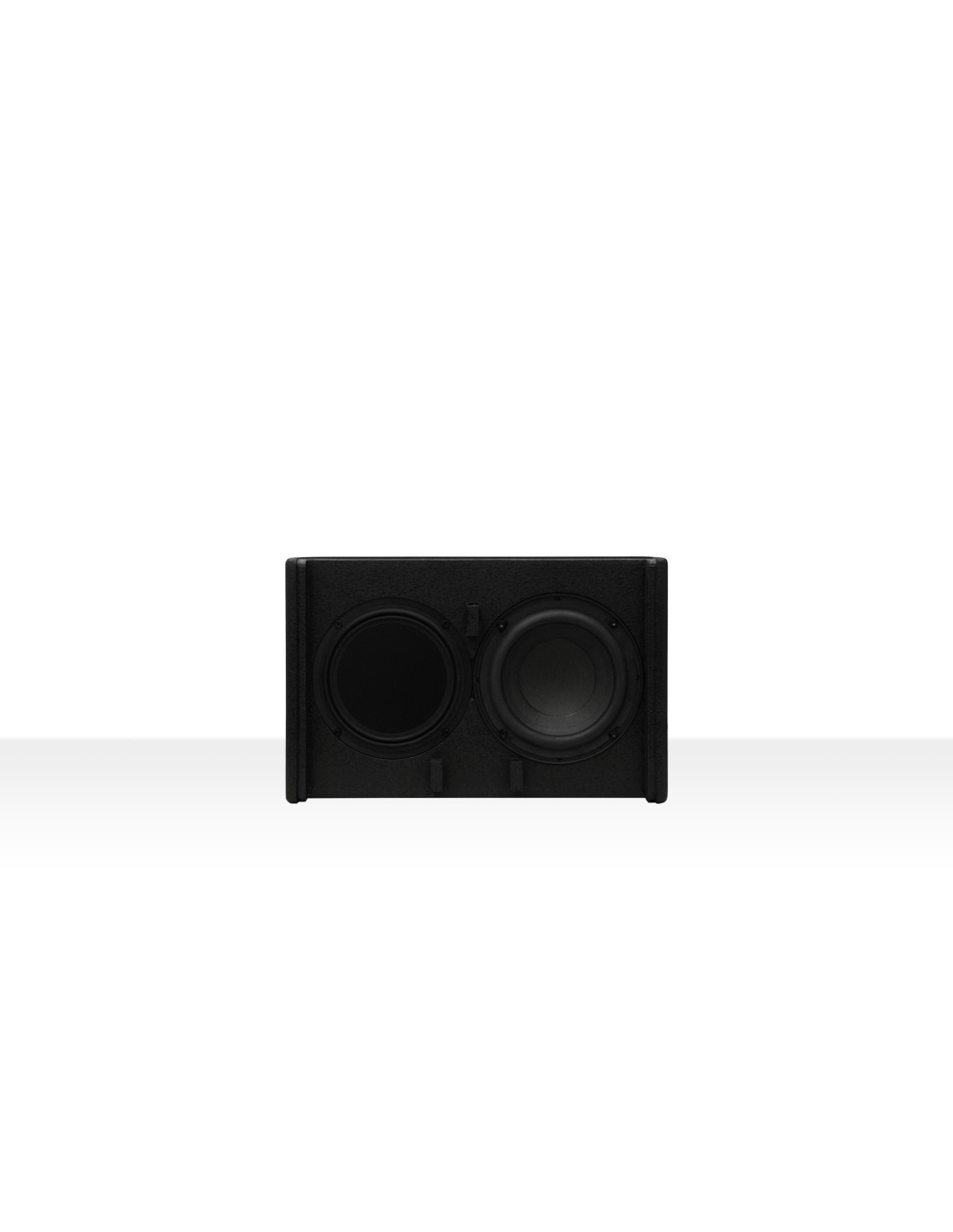

ARQISSB6Ti is a wooden wall-mount subwoofer reinforcement cabinet with a slim and compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring a 6.5" driver and a passive 6.5" radiator. 120 WRMS power @ 8 Ω and integrated 70/100V line transformer with 60 and 120W taps. Internal LPF with OFF, 120HZ and 150 HZ cut-off frequency selections. Installation U-bracket included. Available in white and black finish.
ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.
- Effective Freq. Range
- 50 Hz–1,5 kHz (-10dB)
- Power handling
- 120 W RMS / 480 W Peak
- Sensitivity
- 86 dB (1W/1m)
- Maximum SPL
- 107 dB RMS / 113 dB peak
- Recommended amplifier power
- 250 W RMS
- Ways
- 1-way subwoofer
- Nominal impedance
- 8Ω
- Recommended High-Pass protection filter
- 55 Hz with minimum 12 dB / octave filter
- Connection type
- Euroblock + spring loaded input terminals
- Installation options
- Surface, wall, desktop
- Environmental
- IP31
- Enclosure material
- MDF
- Grille material
- Steel
- Grille fixing system
- Screw fixation
- Flying points
- 2 x M8
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- U Bracket / 5mm Allen Key / 6mm Allen Key
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 390 x 250 x 130 mm / 15.35 x 9.84 x 5.12 in. (WxHxD)
- Weight
- 8.2 kg / 18.07 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 535 x 535 x 470 mm / 21.06 x 21.06 x 18.50 in. (WxHxD)
- Shipping weight
- 10.2 kg / 22.48 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071313643
WH: 8435071313650 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 24.00
- Height (cm)
- 45.30
- Depth (cm)
- 32.00
- Vol. (dm3)
- 34.79
- Gross Weight (kg)
- 10.20
- Net Weight (kg)
- 8.20
- Format
- Unit
- Warranty (months)
- 36 months
- Driver
- 6,5" subwoofer + 6,5" passive radiator
- Low-Pass filter selector
- OFF/ 120Hz / 150Hz
- Power options (Hi Z Multi-tap)
- 70V/100V line transformer: 120W / 60W / 8Ω
- Power type selector
- TBC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
50 Hz–1,5 kHz (-10dB) |
|---|---|
| Power handling |
120 W RMS / 480 W Peak |
| Sensitivity |
86 dB (1W/1m) |
| Maximum SPL |
107 dB RMS / 113 dB peak |
| Recommended amplifier power |
250 W RMS |
| Power options (Hi Z Multi-tap) |
70V/100V line transformer: 120W / 60W / 8Ω |
TRANSDUCERS
| Ways |
1-way subwoofer |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
6,5" subwoofer + 6,5" passive radiator |
FILTERS
| Recommended High-Pass protection filter |
55 Hz with minimum 12 dB / octave filter |
|---|---|
| Low-Pass filter selector |
OFF/ 120Hz / 150Hz |
PHYSICAL
| Connection type |
Euroblock + spring loaded input terminals |
|---|---|
| Installation options |
Surface, wall, desktop |
| Environmental |
IP31 |
| Enclosure material |
MDF |
| Grille material |
Steel |
| Grille fixing system |
Screw fixation |
| Flying points |
2 x M8 |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
U Bracket / 5mm Allen Key / 6mm Allen Key
|
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
390 x 250 x 130 mm / 15.35 x 9.84 x 5.12 in. (WxHxD) |
| Weight |
8.2 kg / 18.07 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
535 x 535 x 470 mm / 21.06 x 21.06 x 18.50 in. (WxHxD) |
| Shipping weight |
10.2 kg / 22.48 lb |
| Format |
Unit |
| Power type selector |
TBC |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071313643
WH: 8435071313650 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
24.00 |
| Height (cm) |
45.30 |
| Depth (cm) |
32.00 |
| Vol. (dm3) |
34.79 |
| Gross Weight (kg) |
10.20 |
| Net Weight (kg) |
8.20 |
| Warranty (months) |
36 months |
