ARQISSB12i BK
CARQISSB12IB
Check availability
12" | 1-way | 300 WRMS | wooden sub-woofer

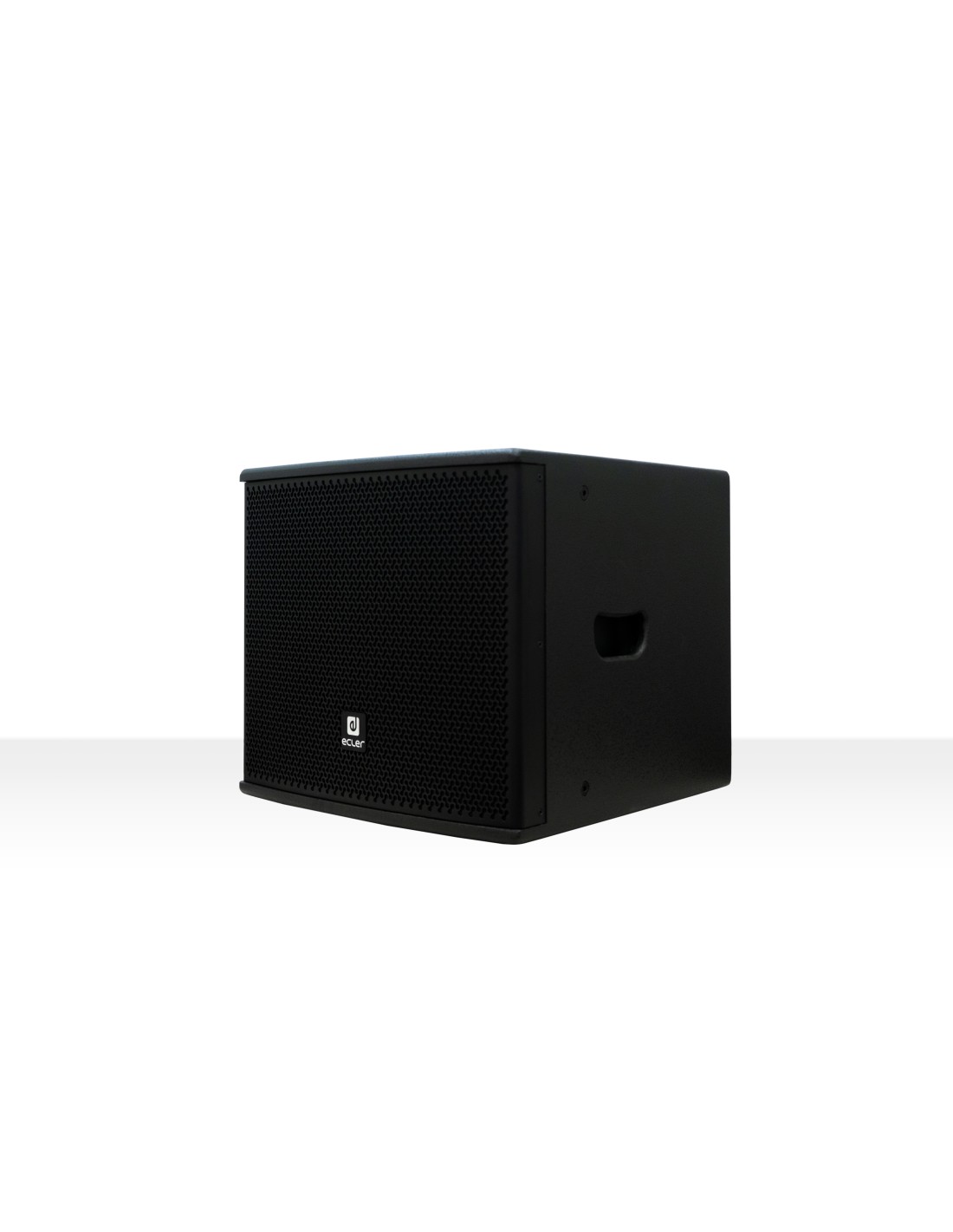

ARQISSB12i is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 300 WRMS @ 8Ω and a 12" LF driver.
ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.
- Effective Freq. Range
- 44 Hz-4 kHz
- Power handling
- 300 W RMS/1200 W Peak
- Sensitivity
- 95 dB (1W/1m)
- Maximum SPL
- 120 dB Continuous / 126 dB peak
- Recommended amplifier power
- 600 W RMS
- Ways
- 1-way subwoofer
- Nominal impedance
- 8Ω
- Recommended High-Pass protection filter
- 45 Hz with minimum 12 dB / octave filter
- Connection type
- 2x SPEAKON®
2x Speakon® (+1, -1) - Installation options
- Surface, wall, desktop
- Environmental
- IP31
- Enclosure material
- Plywooden
- Grille material
- Steel
- Grille fixing system
- Screw fixation
- Flying points
- 12 x M8
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- 4 x Rubber feet, 4 x screws
- Finished colour
- Black (RAL 9005)
- Dimensions
- 440 x 375 x 440 mm / 17.32 x 14.76 x 17.32 in. (WxHxD)
- Weight
- 19.4 kg / 42.76 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 535 x 470 x 535 mm / 21.06 x 18.50 x 21.06 in. (WxHxD)
- Shipping weight
- 21.7 kg / 47.84 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071313629
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 53.50
- Height (cm)
- 47.00
- Depth (cm)
- 53.50
- Vol. (dm3)
- 134.53
- Gross Weight (kg)
- 21.70
- Net Weight (kg)
- 19.40
- Format
- Unit
- Warranty (months)
- 36 months
- Driver
- LF 12" woofer
- Low-Pass filter selector
- TBC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
44 Hz-4 kHz |
|---|---|
| Power handling |
300 W RMS/1200 W Peak |
| Sensitivity |
95 dB (1W/1m) |
| Maximum SPL |
120 dB Continuous / 126 dB peak |
| Recommended amplifier power |
600 W RMS |
TRANSDUCERS
| Ways |
1-way subwoofer |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
LF 12" woofer |
FILTERS
| Recommended High-Pass protection filter |
45 Hz with minimum 12 dB / octave filter |
|---|---|
| Low-Pass filter selector |
TBC |
PHYSICAL
| Connection type |
2x SPEAKON® 2x Speakon® (+1, -1) |
|---|---|
| Installation options |
Surface, wall, desktop |
| Environmental |
IP31 |
| Enclosure material |
Plywooden |
| Grille material |
Steel |
| Grille fixing system |
Screw fixation |
| Flying points |
12 x M8 |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
4 x Rubber feet, 4 x screws |
| Finished colour |
Black (RAL 9005) |
| Dimensions |
440 x 375 x 440 mm / 17.32 x 14.76 x 17.32 in. (WxHxD) |
| Weight |
19.4 kg / 42.76 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
535 x 470 x 535 mm / 21.06 x 18.50 x 21.06 in. (WxHxD) |
| Shipping weight |
21.7 kg / 47.84 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071313629 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
53.50 |
| Height (cm) |
47.00 |
| Depth (cm) |
53.50 |
| Vol. (dm3) |
134.53 |
| Gross Weight (kg) |
21.70 |
| Net Weight (kg) |
19.40 |
| Warranty (months) |
36 months |
