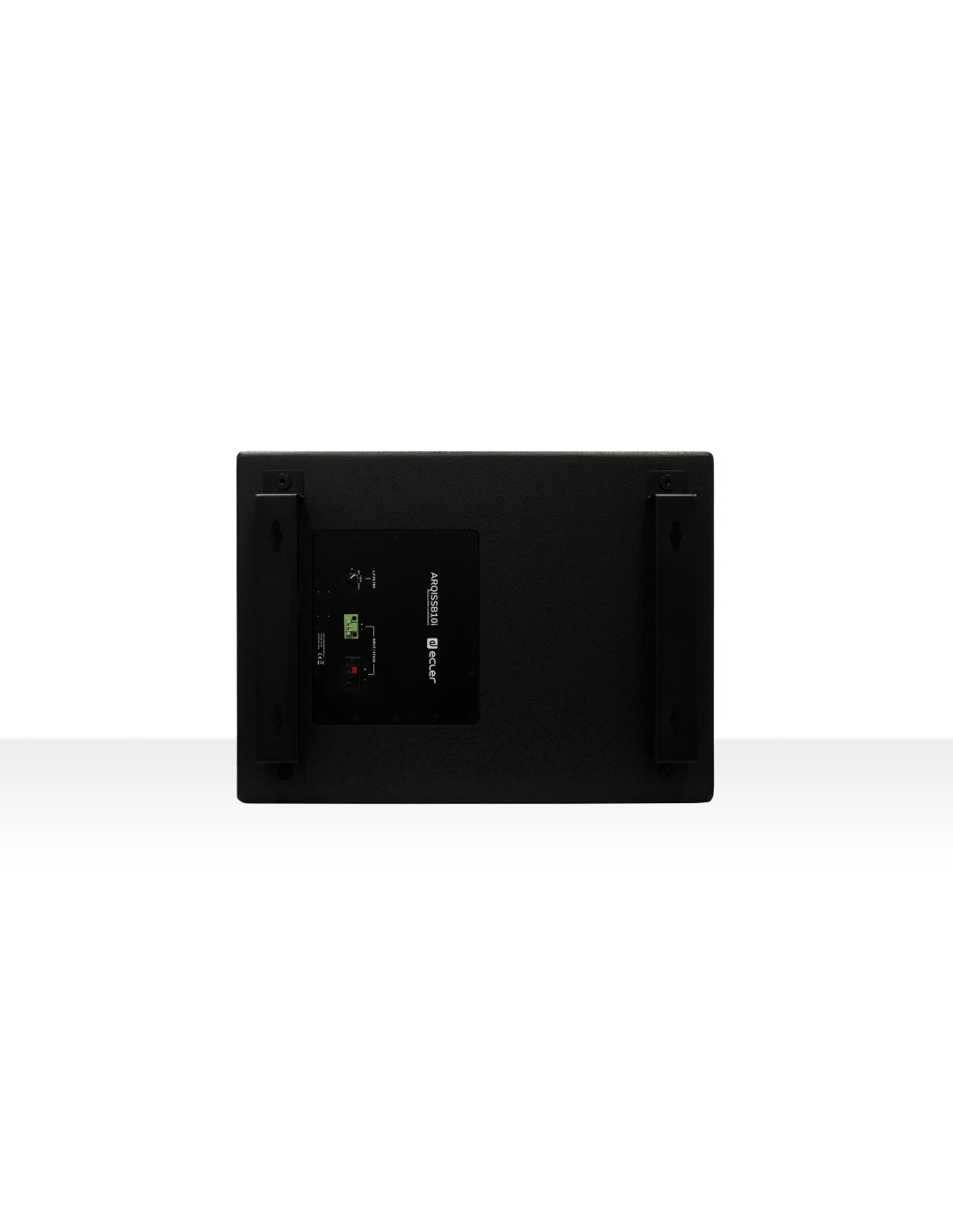

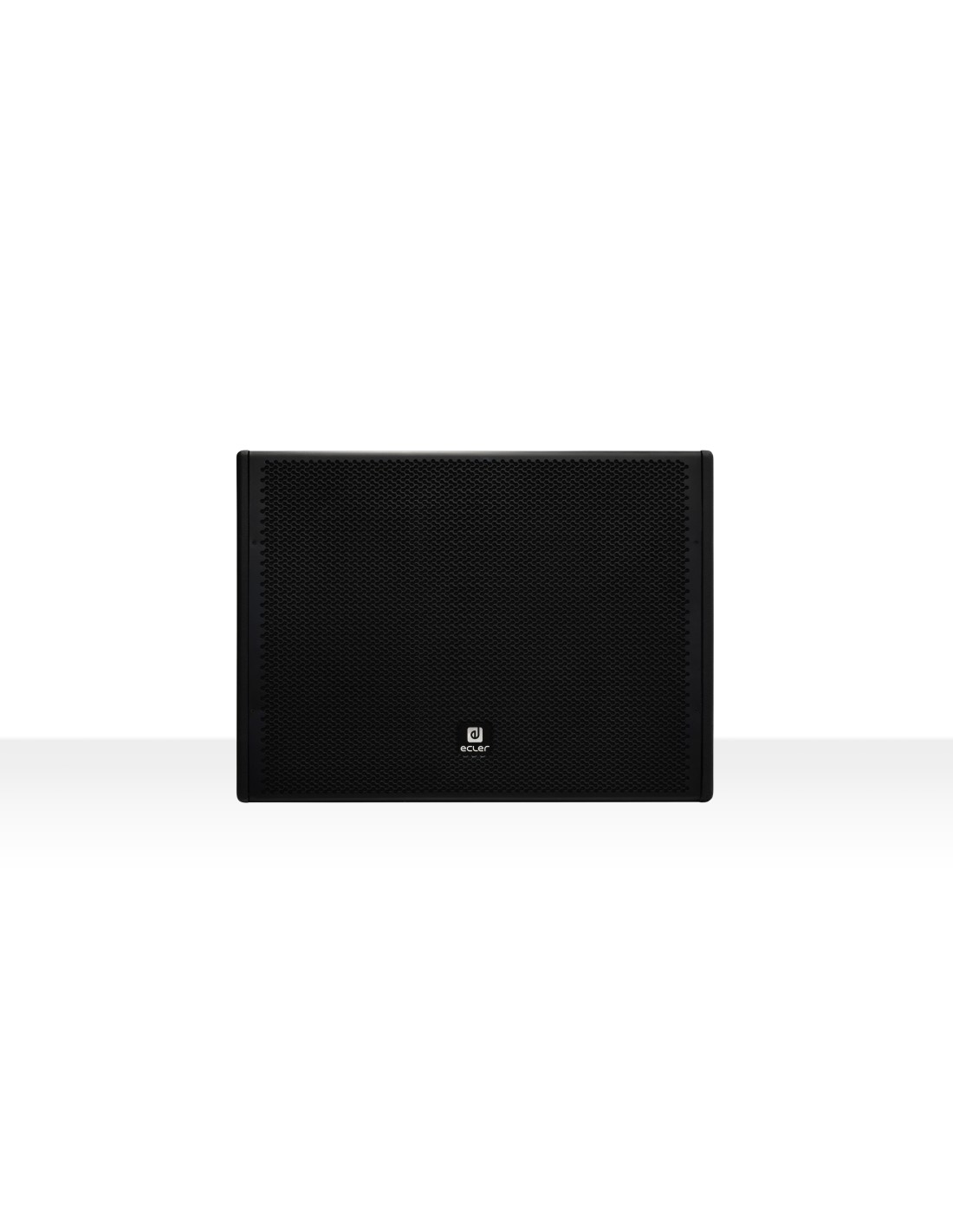

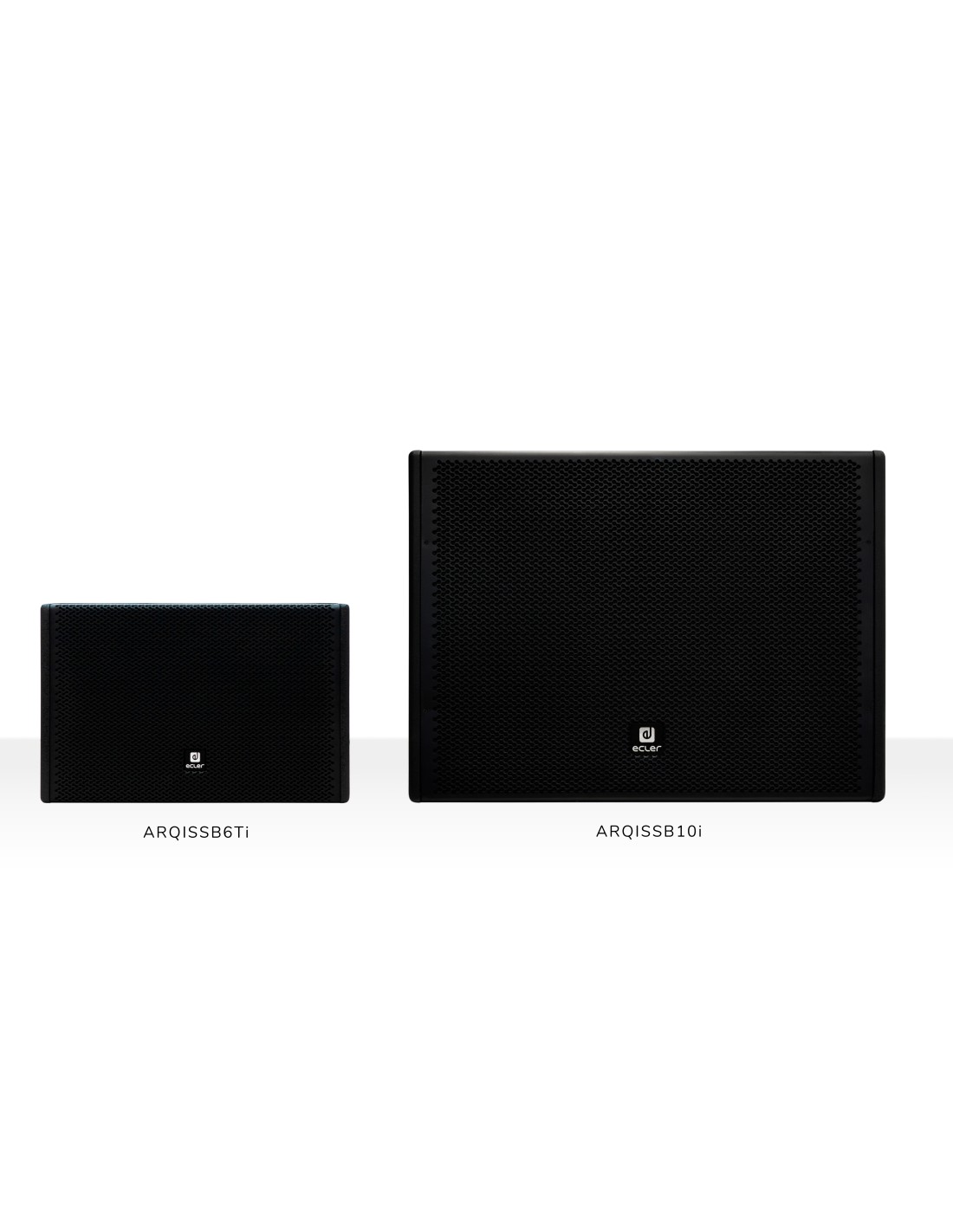

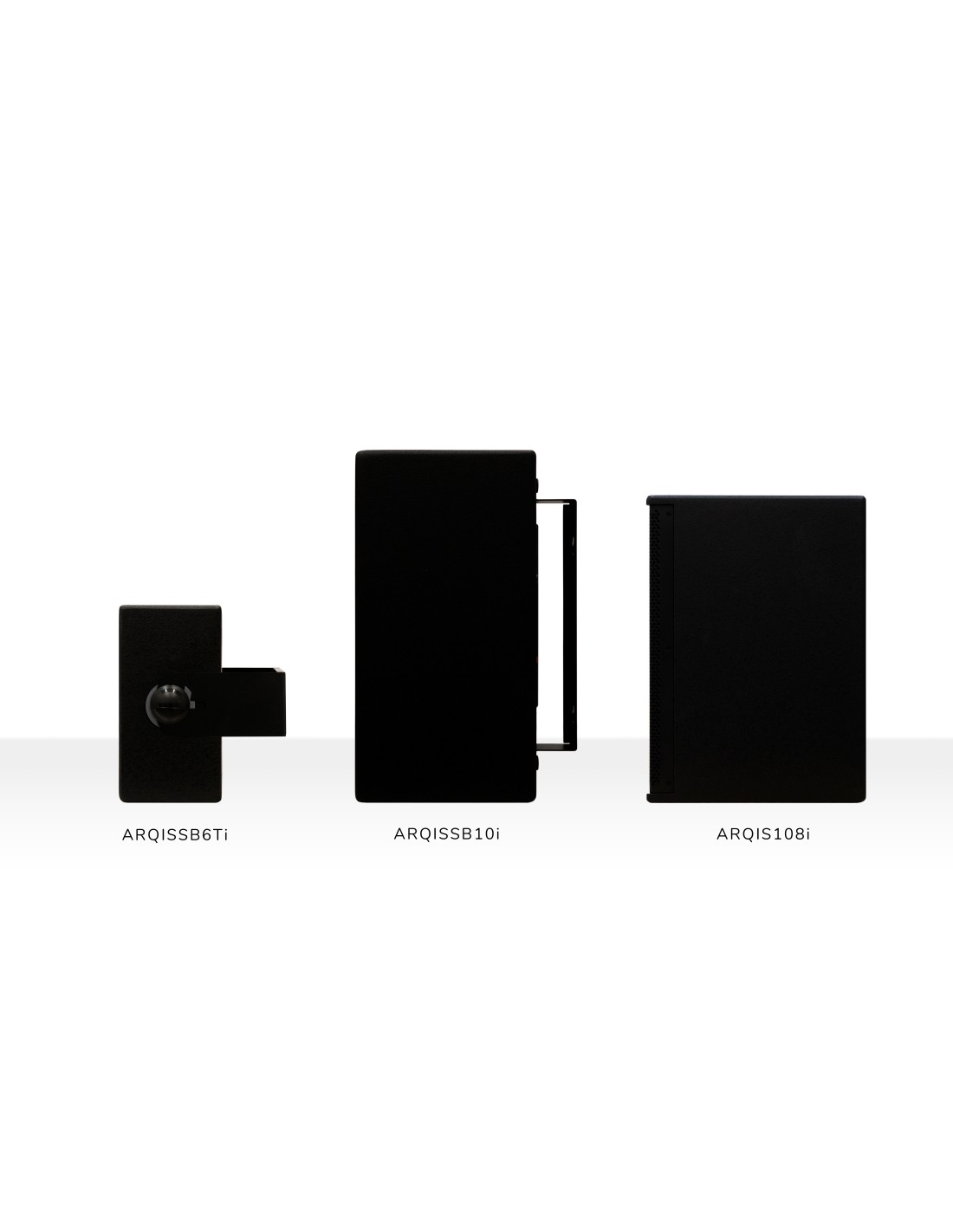

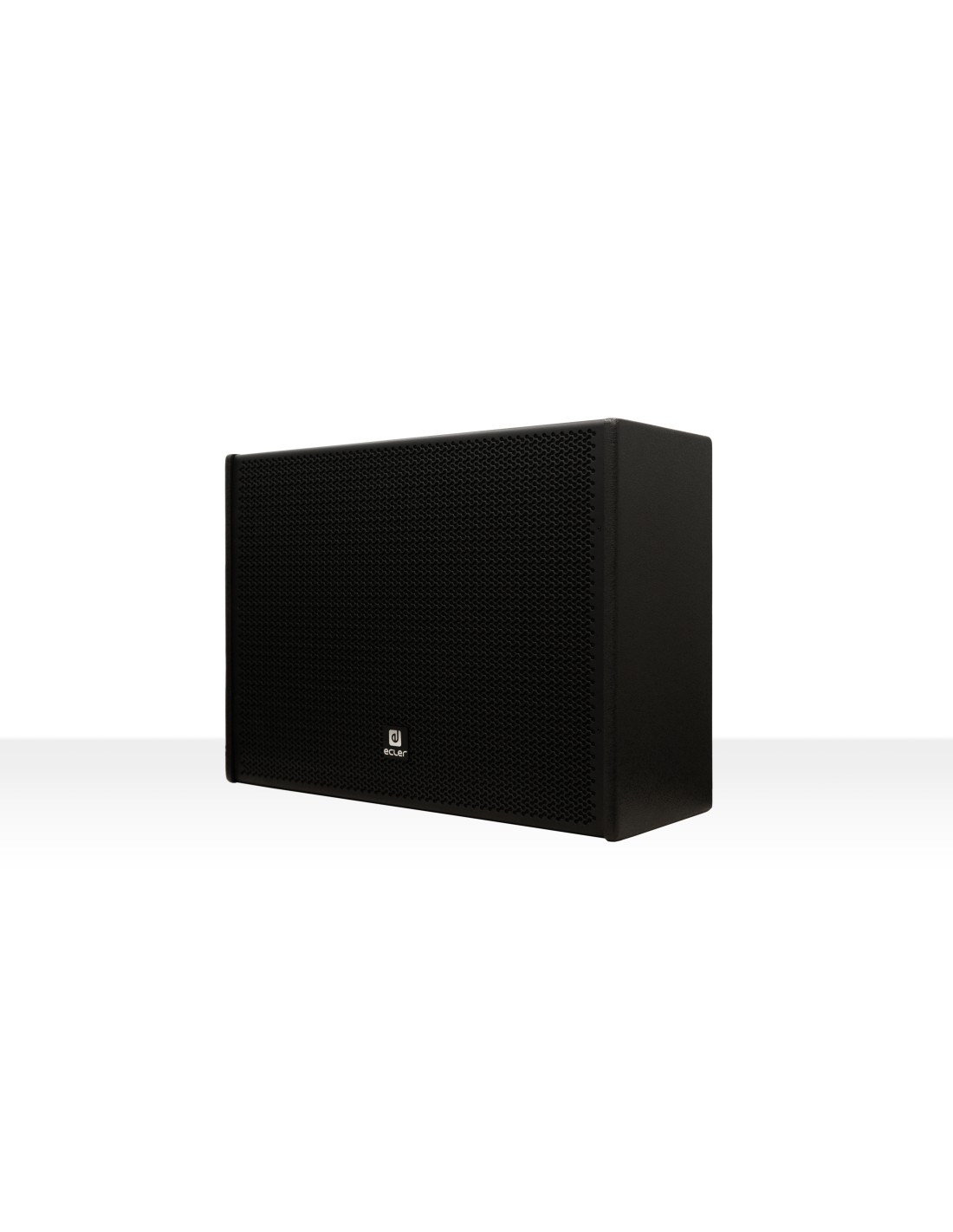

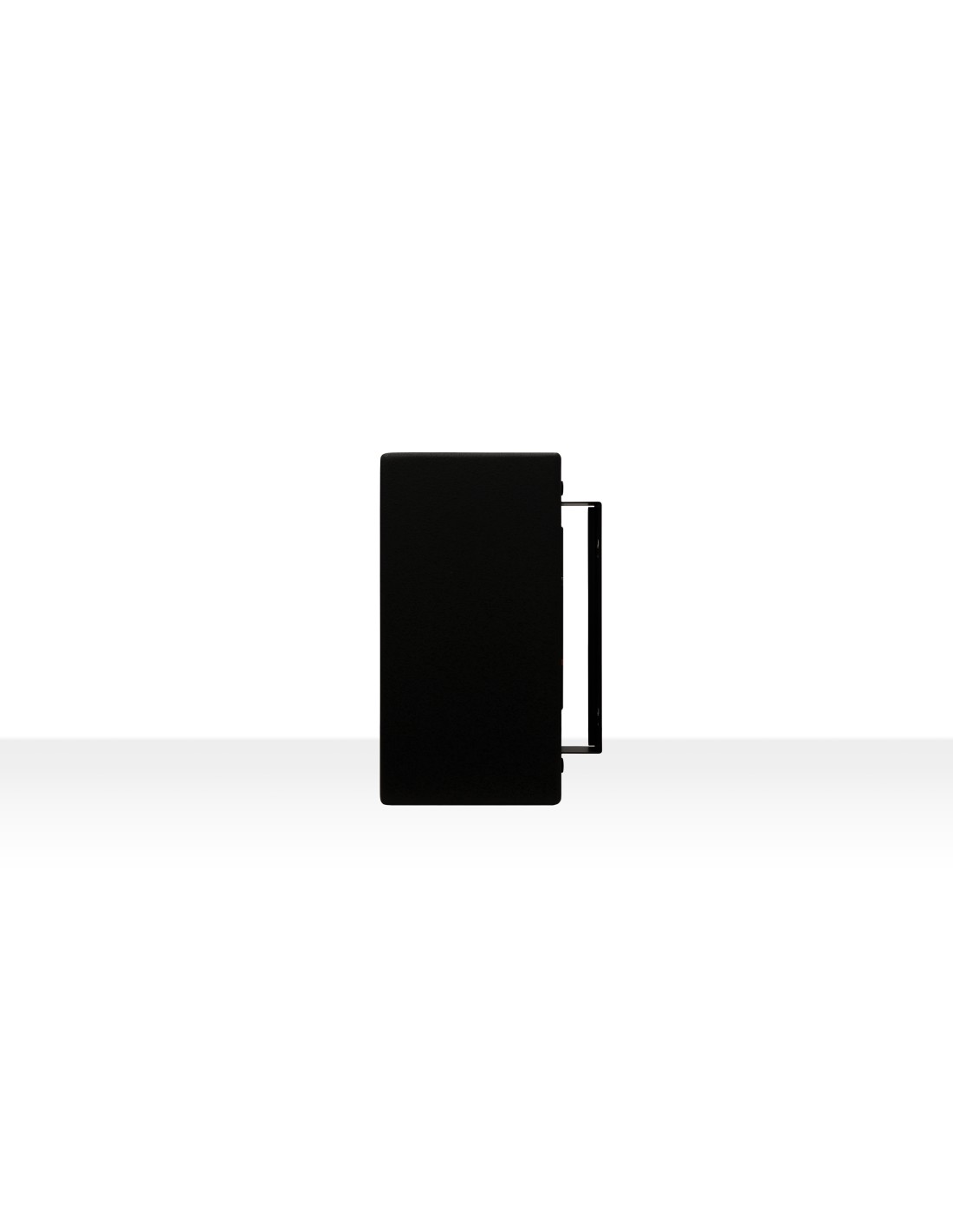

ARQISSB10i BK
CARQISSB10IB
Check availability
10" | 1-way | 150 WRMS | wooden sub-woofer
ARQISSB10i is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring a 10" LF driver (150 WRMS @ 8Ω ) and internal LPF with 2 frequency settings. 12 x M8 rigging points and wall bracket included.
ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.
- Effective Freq. Range
- 54 Hz-4 kHz (-10dB)
- Power handling
- 150 W RMS / 600 W Peak
- Sensitivity
- 92 dB (1W/1m)
- Maximum SPL
- 114 dB continuous / 120 dB peak
- Recommended amplifier power
- 300 W RMS
- Ways
- 1-way subwoofer
- Nominal impedance
- 8Ω
- Recommended High-Pass protection filter
- 60 Hz with minimum 12 dB / octave filter
- Connection type
- 1 x Euroblock & 1 x Terminal
- Installation options
- Surface, wall, desktop
- Environmental
- IP31
- Enclosure material
- MDF
- Grille material
- Steel
- Grille fixing system
- Screw fixation
- Pan and tilt wall-mount
- TBC
- Flying points
- 12 x M8
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- 4 x rubber feet, 4 x screws, 1 wall bracket
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 600 x 442 x 228 mm / 23.62 x 17.40 x 8.98 in. (WxHxD)
- Weight
- 16.5 kg / 36.37 lb
- Pieces per box
- 1 piece
- Shipping dimensions
- 690 x 537 x 355 mm / 27.17 x 21.14 x 13.98 in. (WxHxD)
- Shipping weight
- 18.7 Kg / 41.22 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071313605
WH: 8435071313612 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 35.50
- Height (cm)
- 53.70
- Depth (cm)
- 69.00
- Vol. (dm3)
- 131.54
- Gross Weight (kg)
- 18.70
- Net Weight (kg)
- 16.50
- Format
- Unit
- Warranty (months)
- 36 months
- Driver
- LF 10" woofer
- Low-Pass filter selector
- Internal LPF with 2 frequency settings
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
54 Hz-4 kHz (-10dB) |
|---|---|
| Power handling |
150 W RMS / 600 W Peak |
| Sensitivity |
92 dB (1W/1m) |
| Maximum SPL |
114 dB continuous / 120 dB peak |
| Recommended amplifier power |
300 W RMS |
TRANSDUCERS
| Ways |
1-way subwoofer |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
LF 10" woofer |
FILTERS
| Recommended High-Pass protection filter |
60 Hz with minimum 12 dB / octave filter |
|---|---|
| Low-Pass filter selector |
Internal LPF with 2 frequency settings |
PHYSICAL
| Connection type |
1 x Euroblock & 1 x Terminal |
|---|---|
| Installation options |
Surface, wall, desktop |
| Environmental |
IP31 |
| Enclosure material |
MDF |
| Grille material |
Steel |
| Grille fixing system |
Screw fixation |
| Pan and tilt wall-mount |
TBC |
| Flying points |
12 x M8 |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
4 x rubber feet, 4 x screws, 1 wall bracket |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
600 x 442 x 228 mm / 23.62 x 17.40 x 8.98 in. (WxHxD) |
| Weight |
16.5 kg / 36.37 lb |
| Pieces per box |
1 piece |
| Shipping dimensions |
690 x 537 x 355 mm / 27.17 x 21.14 x 13.98 in. (WxHxD) |
| Shipping weight |
18.7 Kg / 41.22 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071313605
WH: 8435071313612 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
35.50 |
| Height (cm) |
53.70 |
| Depth (cm) |
69.00 |
| Vol. (dm3) |
131.54 |
| Gross Weight (kg) |
18.70 |
| Net Weight (kg) |
16.50 |
| Warranty (months) |
36 months |
