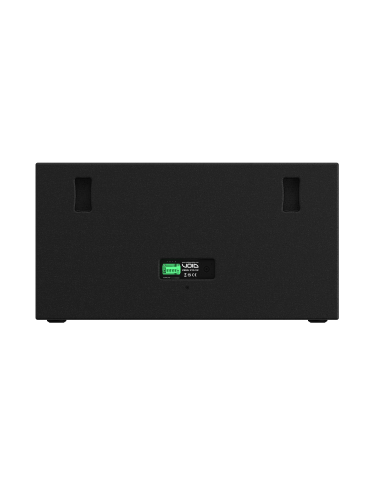

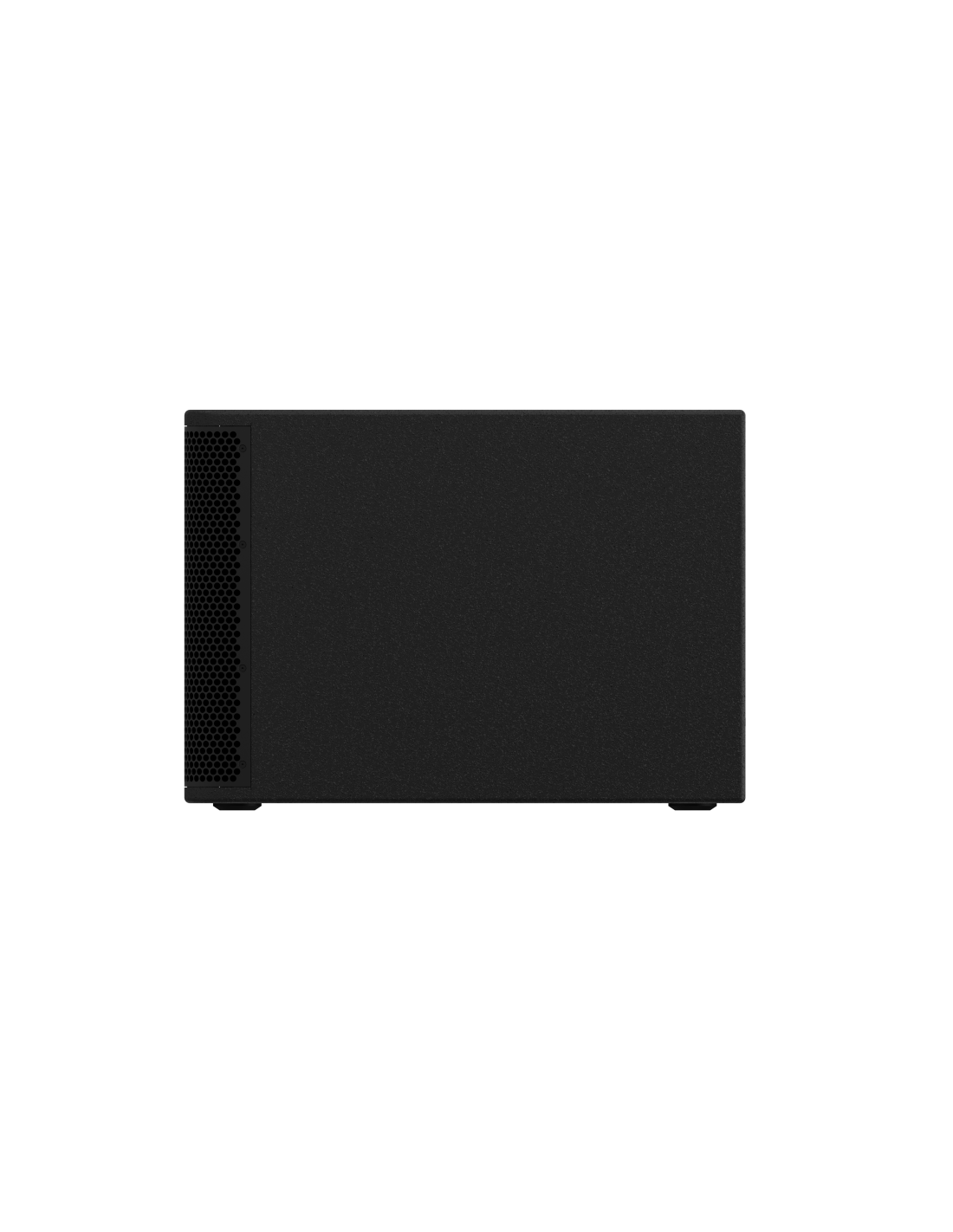

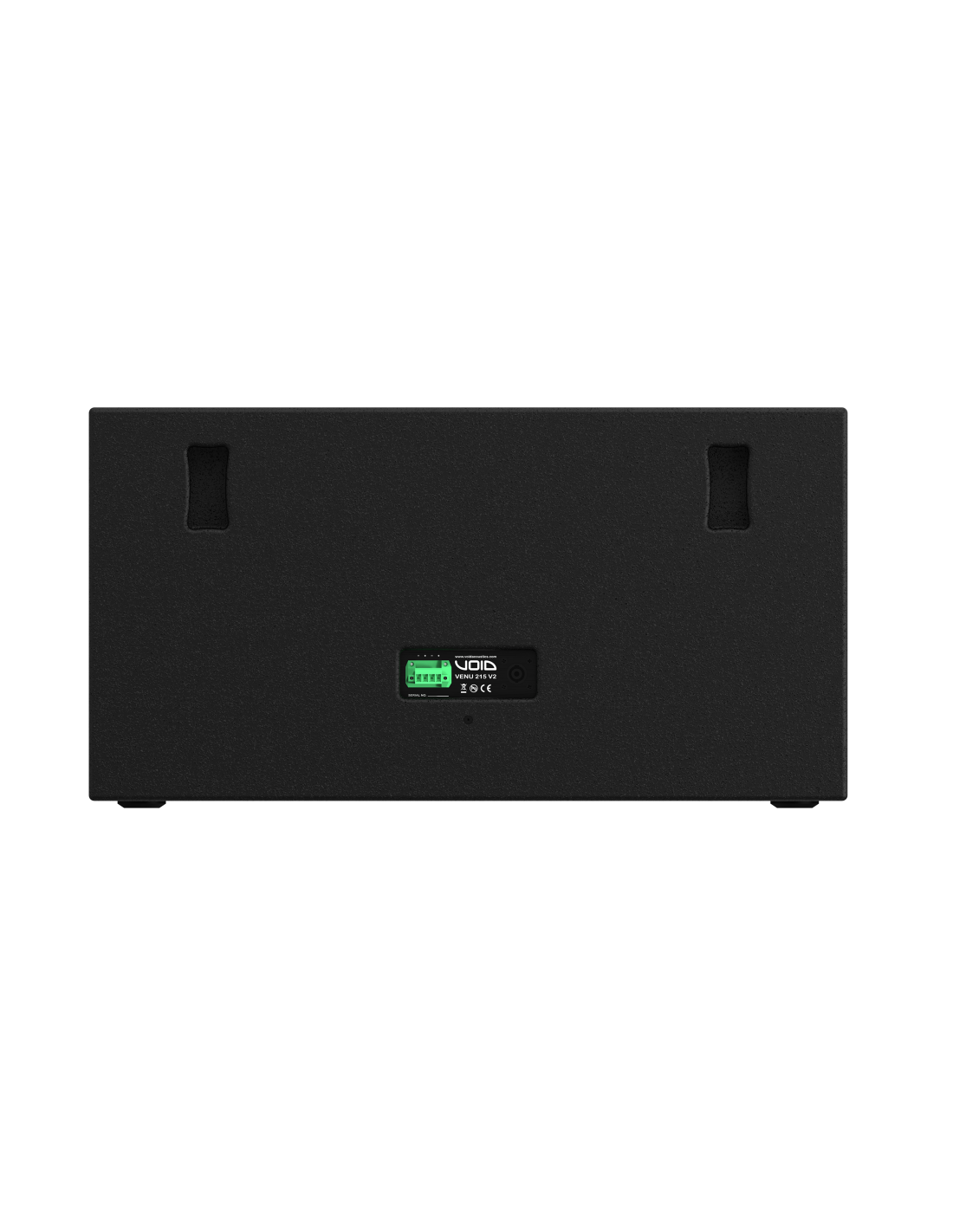

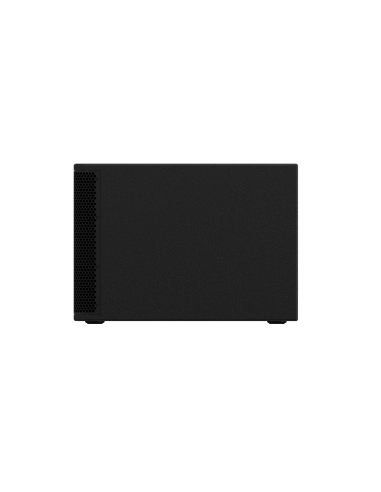

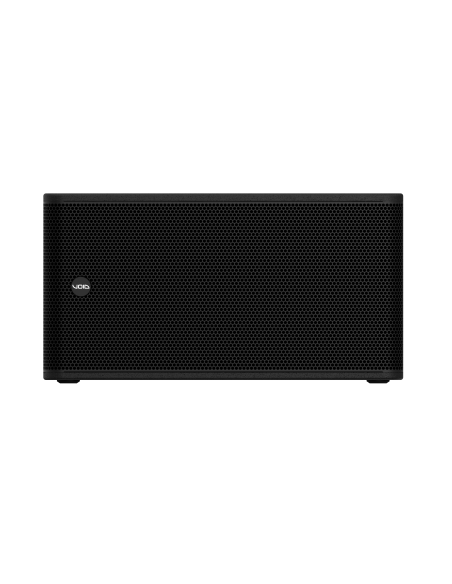

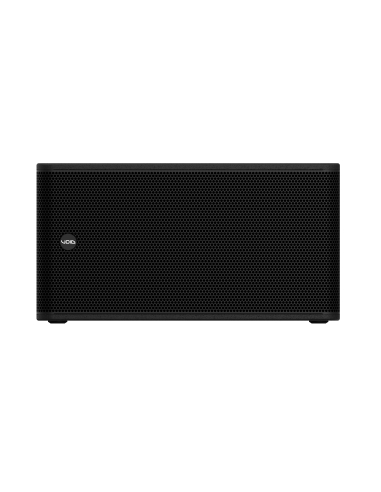

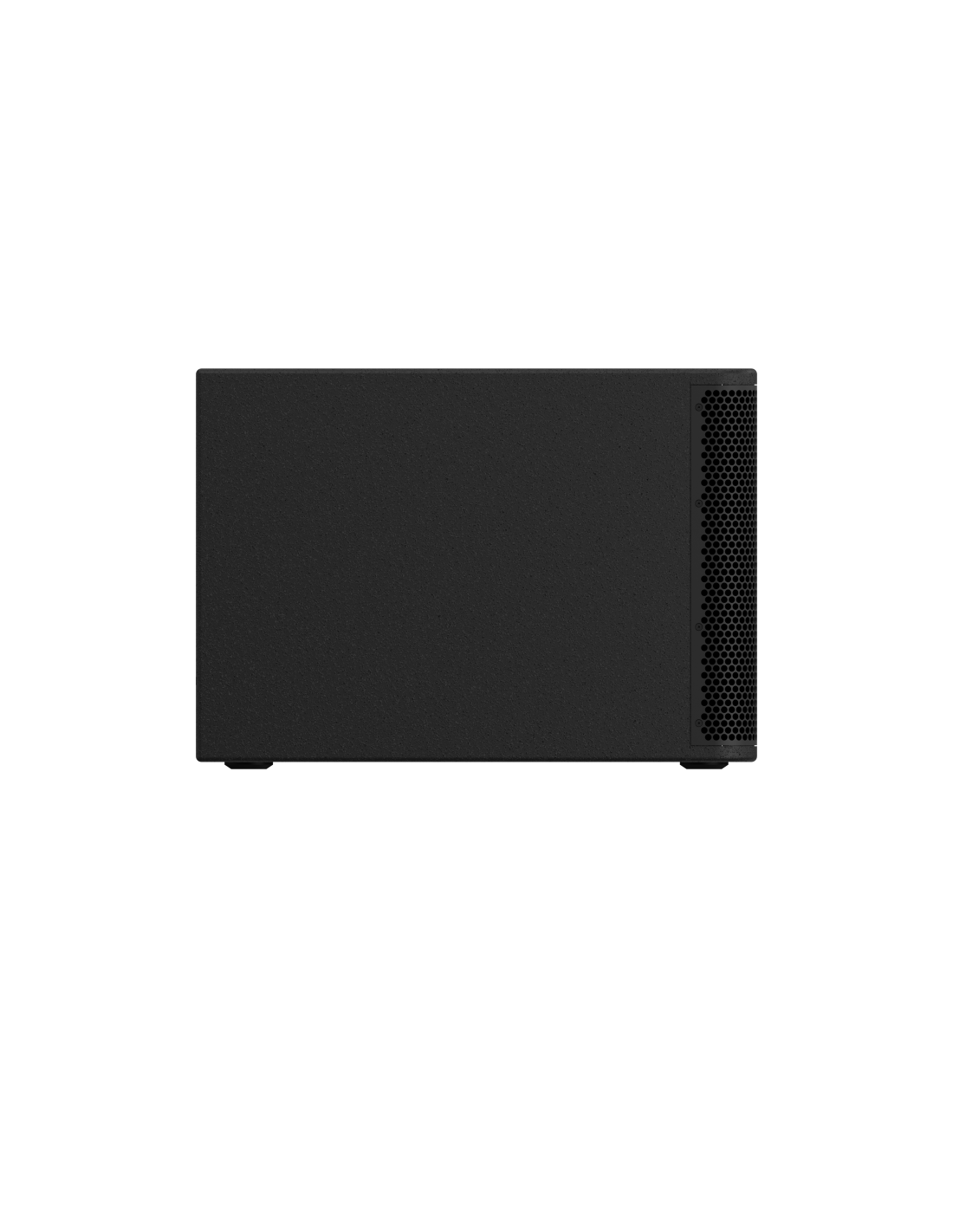

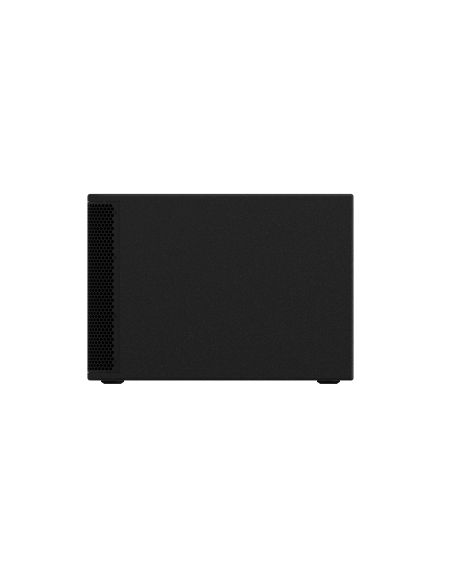

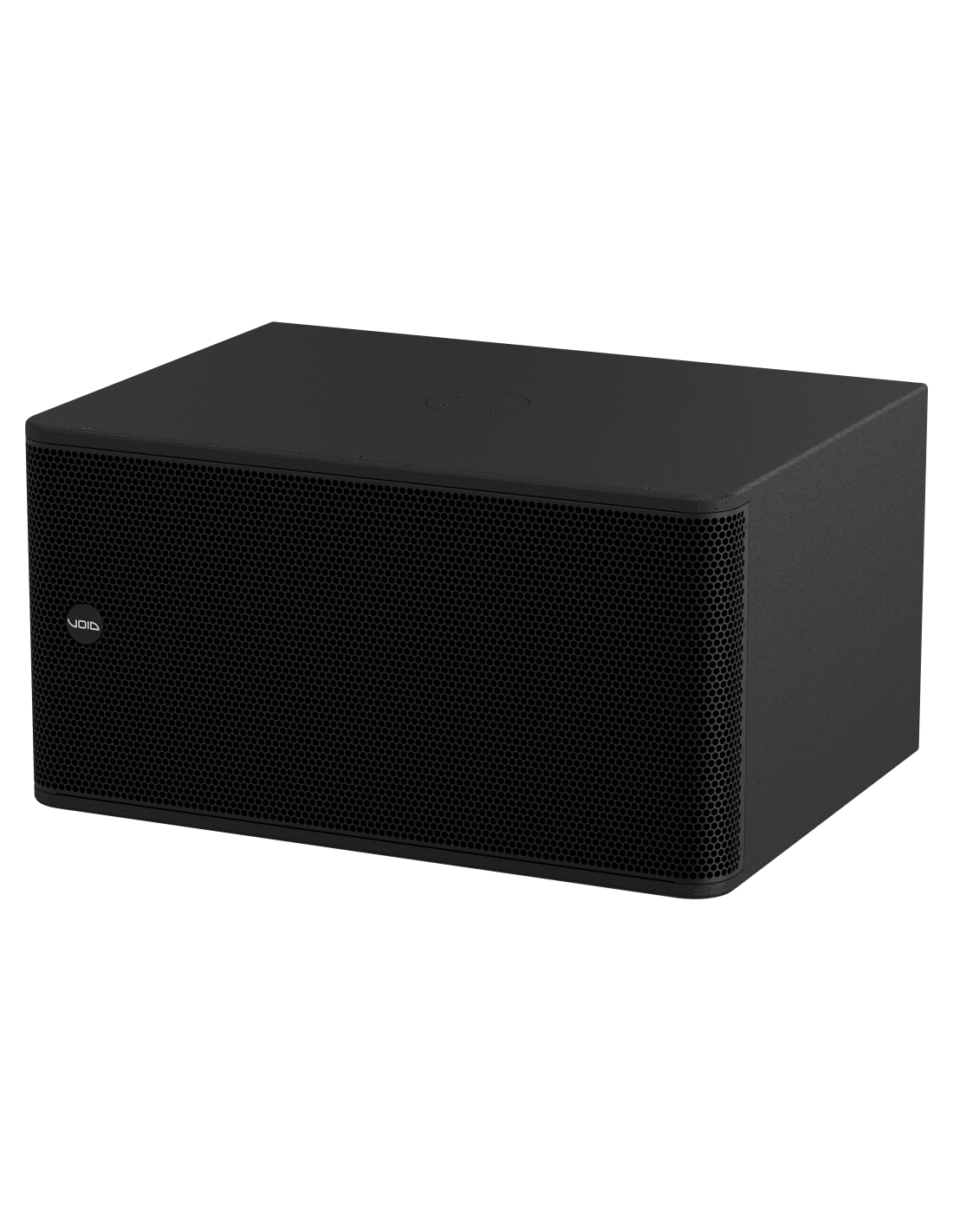

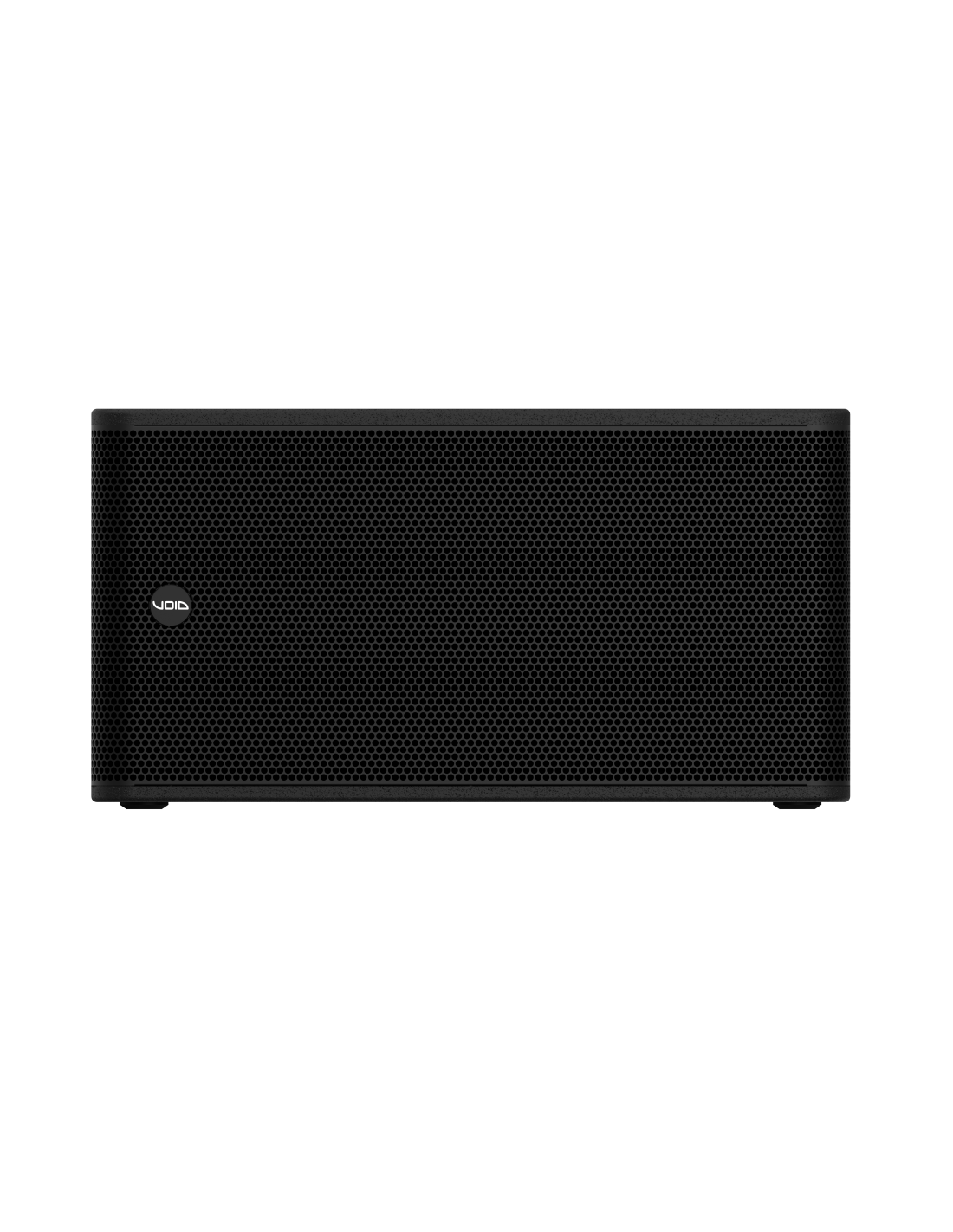

Venu 215 V2 - Negro
CVOIT2755
Check availability
Dual 15" compact reflex-loaded subwoofer for installation.
The Venu 215 V2 is a double 15” reflex-loaded low frequency enclosure, providing a frequency response of 38 Hz – 160 Hz ±3 dB and efficiency of 99 dB. Features include tough 15” high excursion transducers with 3” voice coils and a durable enclosure made entirely from 18 mm multi-laminate birch plywood.
The loudspeaker shall be comprised of two high power 15” (304.8 mm) direct radiating, reflex loaded low frequency (LF) transducers. The enclosure shall be rectangular constructed from 15 mm multi-laminated birch plywood with two handles in the rear with a wraparound grille and a rotating badge; it shall have a removable cover plate for fixing an optional M20 top hat and shall be finished in a textured polyurethane with external dimensions of (H) 454 mm x (W) 868 mm x (D) 636 mm (17.9” x 34.2” x 25”) and weigh 62.5 kg (137.8 lbs).
- Effective Freq. Range
- 38 Hz - 160 Hz ±3 dB
- Power handling
- 1000 W AES
- Sensitivity
- 101dB 1W / 1m
104 dB 1W/1m - Maximum SPL
- 134 dB cont, 140 dB peak
- Low frequency driver
- 2 x 15” LF
- Nominal impedance
- 4 Ω
- Crossover filter
- 80 Hz - 160 Hz Active
- Connection type
- 1 x Phoenix with link out and 1 x speakON™ with link out
- Enclosure material
- 15 mm birch plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 62.5 kg (137.8 lbs)
- Status
- New
- EAN code
- IT2755
IT2755
IT2854 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Optional M20 fixing point
- Finish
- Textured polyurethane
- Driver
- 2 x 15” LF
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
38 Hz - 160 Hz ±3 dB |
|---|---|
| Power handling |
1000 W AES |
| Sensitivity |
104 dB 1W/1m 101dB 1W / 1m |
| Maximum SPL |
134 dB cont, 140 dB peak |
TRANSDUCERS
| Low frequency driver |
2 x 15” LF |
|---|---|
| Nominal impedance |
4 Ω |
| Driver |
2 x 15” LF |
FILTERS
| Crossover filter |
80 Hz - 160 Hz Active |
|---|
PHYSICAL
| Connection type |
1 x Phoenix with link out and 1 x speakON™ with link out |
|---|---|
| Enclosure material |
15 mm birch plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
62.5 kg (137.8 lbs) |
| Mounting system |
Optional M20 fixing point |
| Finish |
Textured polyurethane |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2755
IT2854 IT2755 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
