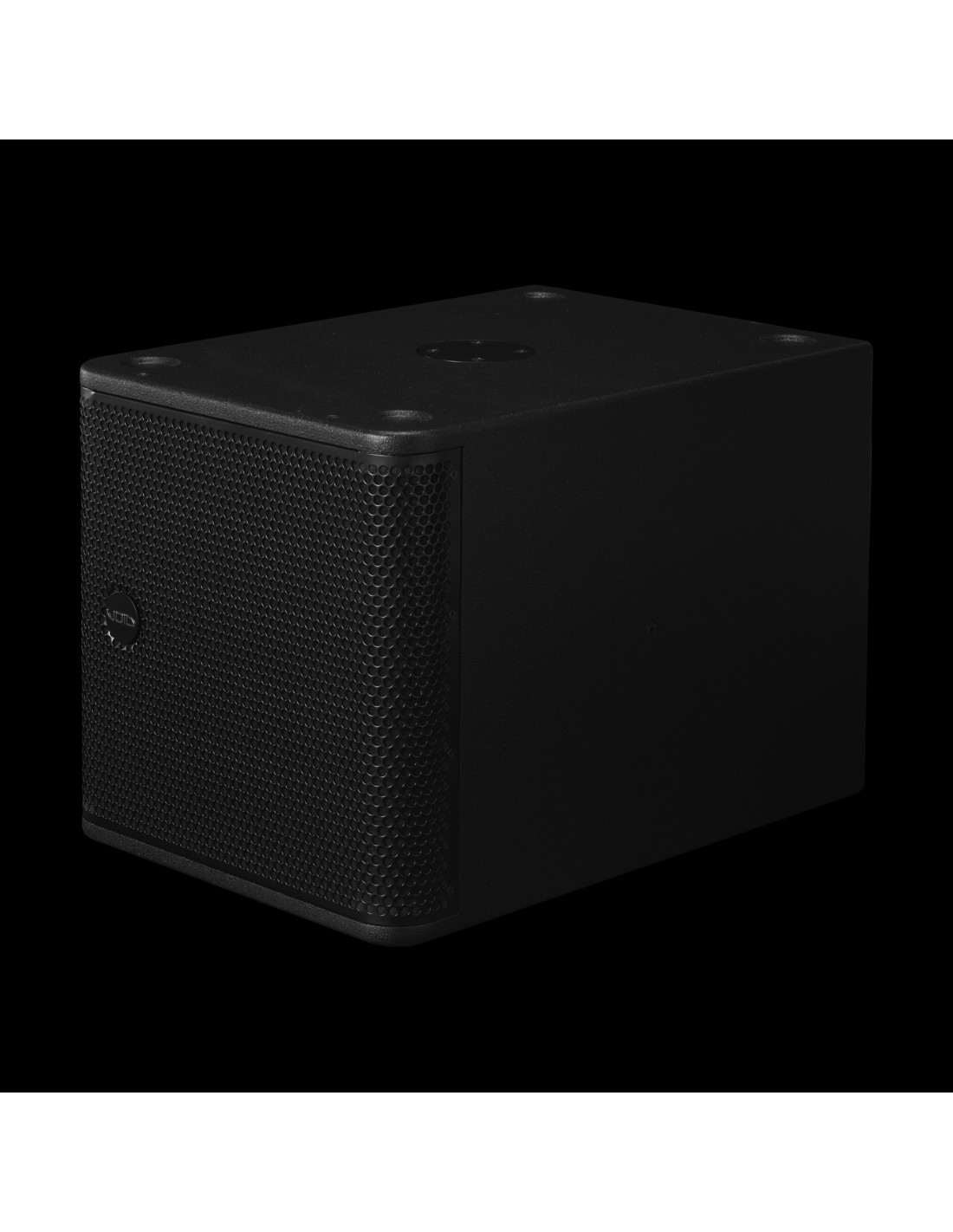

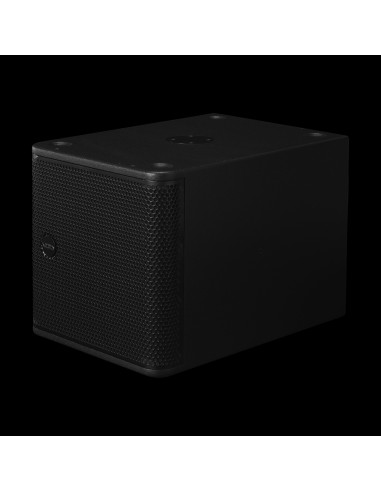

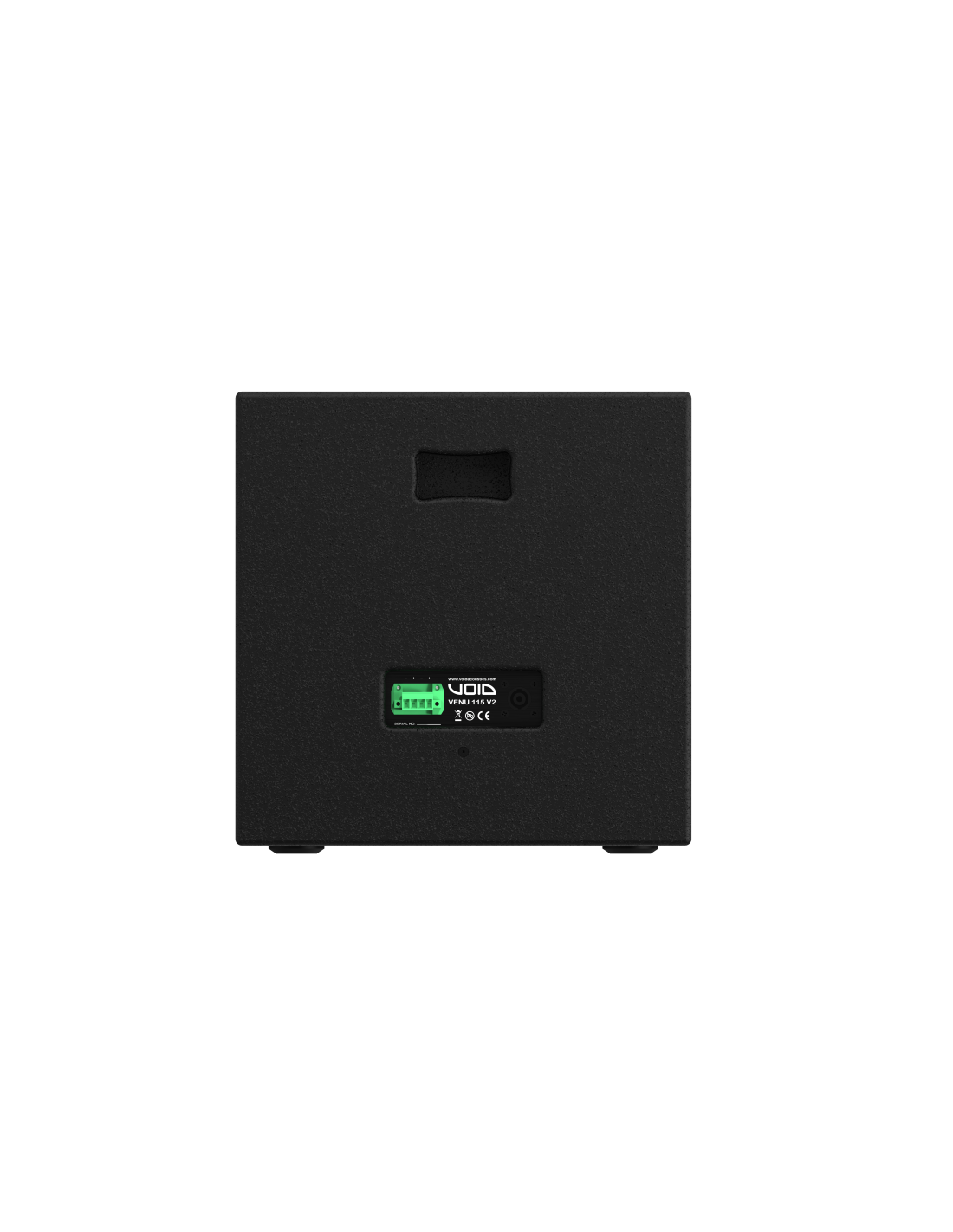

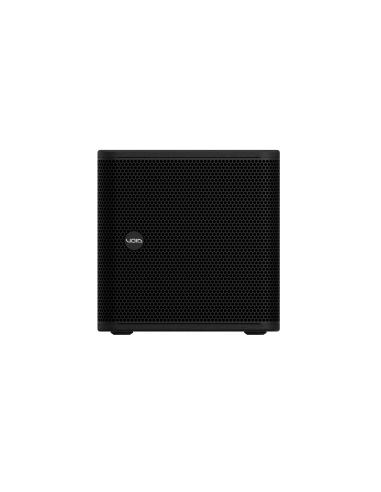

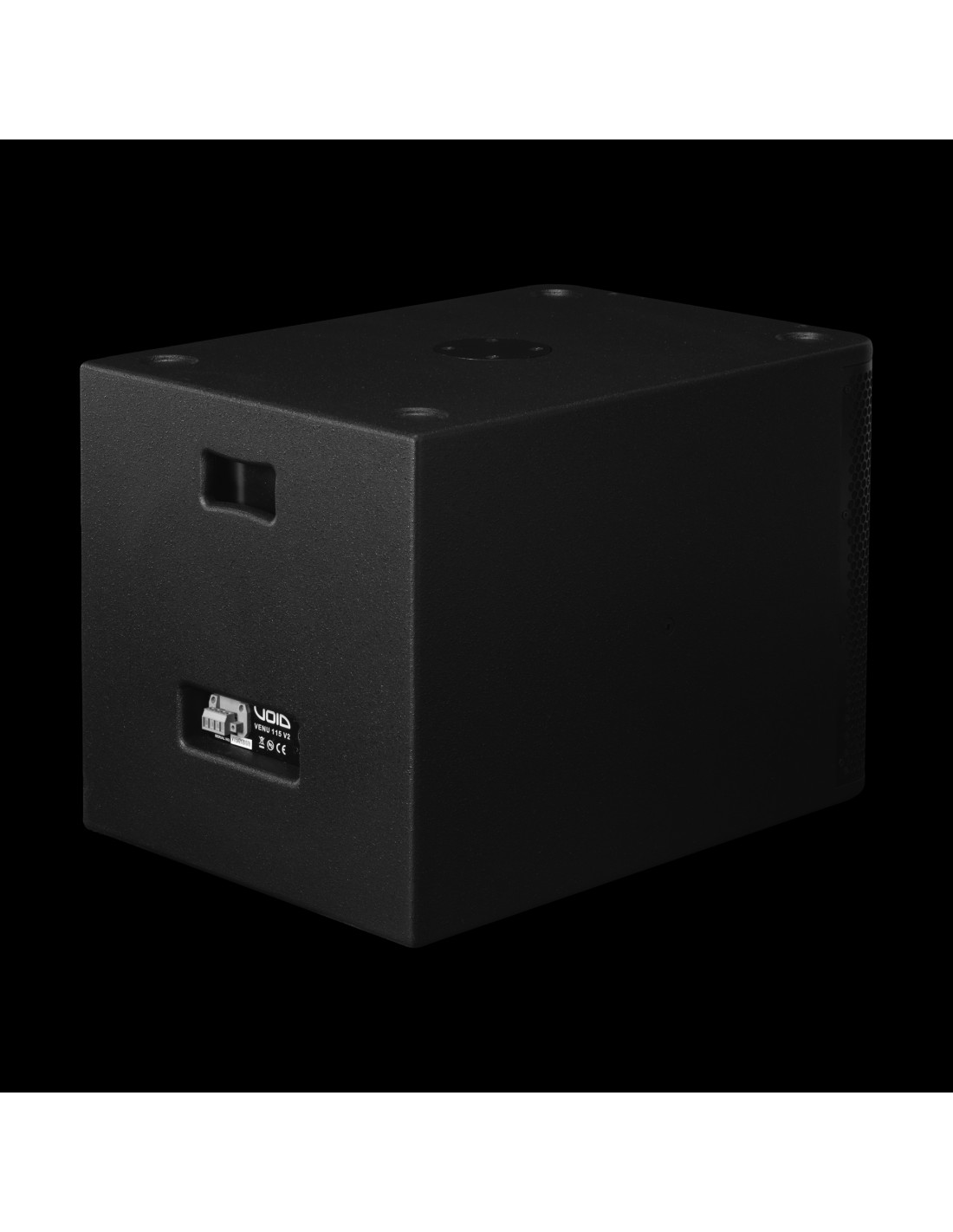

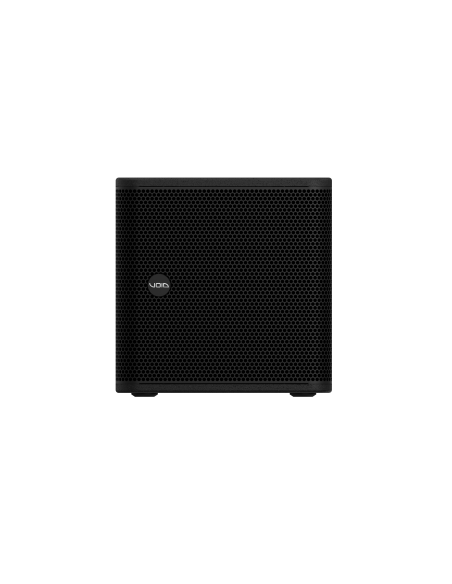

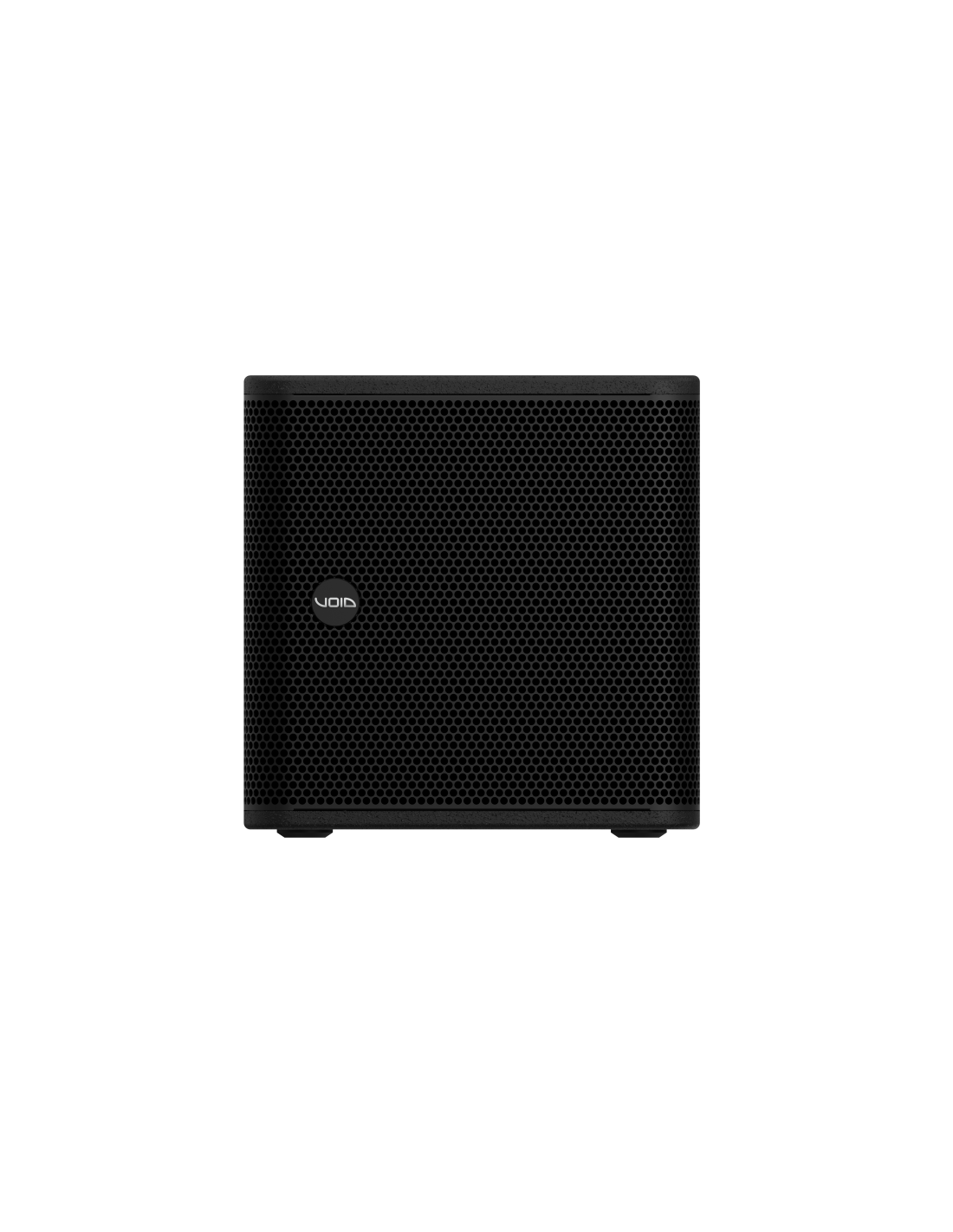

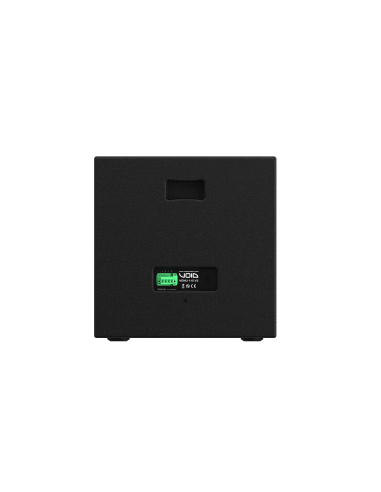

Venu 115 V2 - Negro
CVOIT2753
Check availability
Subwoofer 15" compacto reflex-loaded para instalación.
This single 15” reflex-loaded low frequency enclosure delivers a frequency response of 38 Hz – 160 kHz ±3 dB and efficiency of 97 dB. Features include a tough 15” high excursion transducer with a 4” voice coil and a strong enclosure made entirely from 18 mm multi-laminate birch plywood.
The loudspeaker shall be comprised of one high power 15” (304.8 mm) direct radiating, reflex loaded low frequency (LF) transducer. The enclosure shall be rectangular constructed from 18 mm multi-laminated birch plywood with a single handle in the rear with a wraparound grille and a rotating badge; it shall have a removable cover plate for fixing an optional M20 top hat and integral threaded inserts for the fitment of wall and ceiling mounting hardware; it shall be finished in a textured polyurethane with external dimensions of (H) 454 mm x (W) 448 mm x (D) 636 mm (17.9” x 17.6” x 25”) and weigh 31 kg (98.1 lbs).
- Effective Freq. Range
- 38 Hz - 160 Hz ±3 dB
- Power handling
- 500 W AES
- Sensitivity
- 97 dB 1W/1m
98 dB 1W/1m - Maximum SPL
- 123 dB cont, 129 dB peak
- Low frequency driver
- 1 x 15” LF
- Nominal impedance
- 8 Ω
- Crossover filter
- 80 Hz - 160 Hz Active
- Connection type
- 1 x Phoenix with link out and 1 x speakON™ with link out
- Enclosure material
- 18 mm birch plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 35 kg (77.2 lbs)
- Status
- New
- EAN code
- IT2753
IT2753
IT2852 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Optional M20 fixing point, Yoke bracket positions, type 75 plate
Optional M20 fixing point Yoke bracket positions Type 75 plate - Finish
- Textured polyurethane
- Driver
- 1 x 15” LF
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
38 Hz - 160 Hz ±3 dB |
|---|---|
| Power handling |
500 W AES |
| Sensitivity |
97 dB 1W/1m 98 dB 1W/1m |
| Maximum SPL |
123 dB cont, 129 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 15” LF |
|---|---|
| Nominal impedance |
8 Ω |
| Driver |
1 x 15” LF |
FILTERS
| Crossover filter |
80 Hz - 160 Hz Active |
|---|
PHYSICAL
| Connection type |
1 x Phoenix with link out and 1 x speakON™ with link out |
|---|---|
| Enclosure material |
18 mm birch plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
35 kg (77.2 lbs) |
| Mounting system |
Optional M20 fixing point Yoke bracket positions Type 75 plate Optional M20 fixing point, Yoke bracket positions, type 75 plate |
| Finish |
Textured polyurethane |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2753
IT2852 IT2753 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
