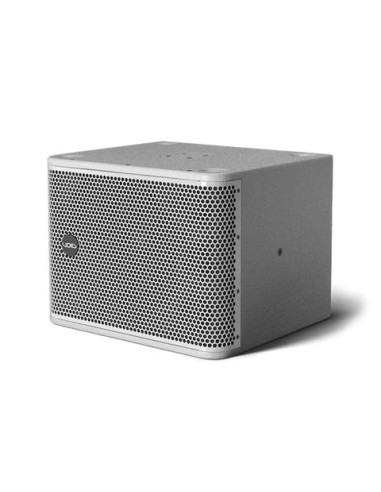

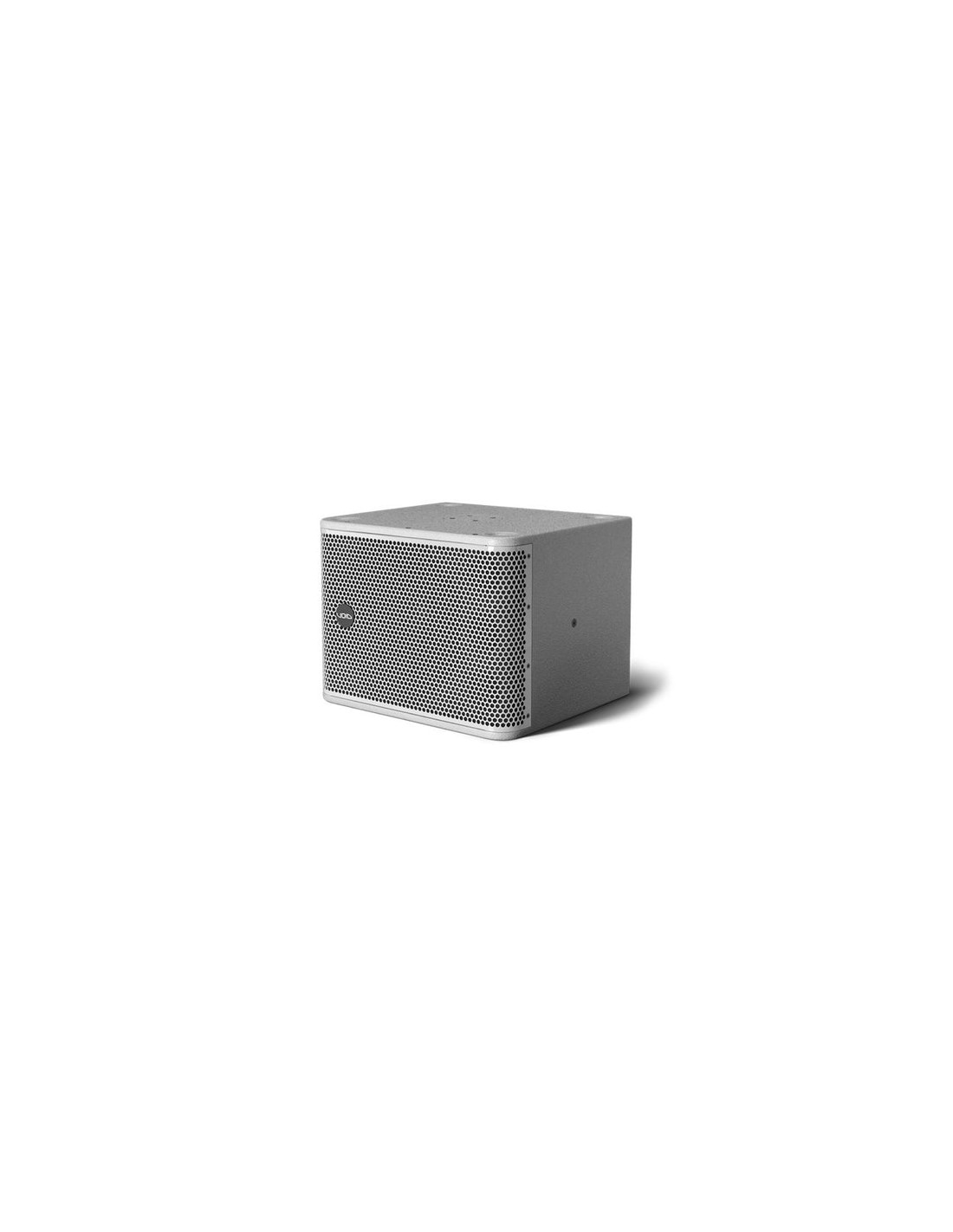

Venu 112 V2 - Blanco
CVOIT2635
Check availability
12" compact reflex-loaded subwoofer for installation.
The Venu 112 V2 is a single 12” compact low frequency enclosure, providing a frequency response of 40Hz – 160kHz ±3 dB and efficiency of 99dB1w/1m. Features include a tough 12” high excursion transducer with a 4” voice coil and a strong enclosure made entirely from 15 mm multi-laminate birch plywood.

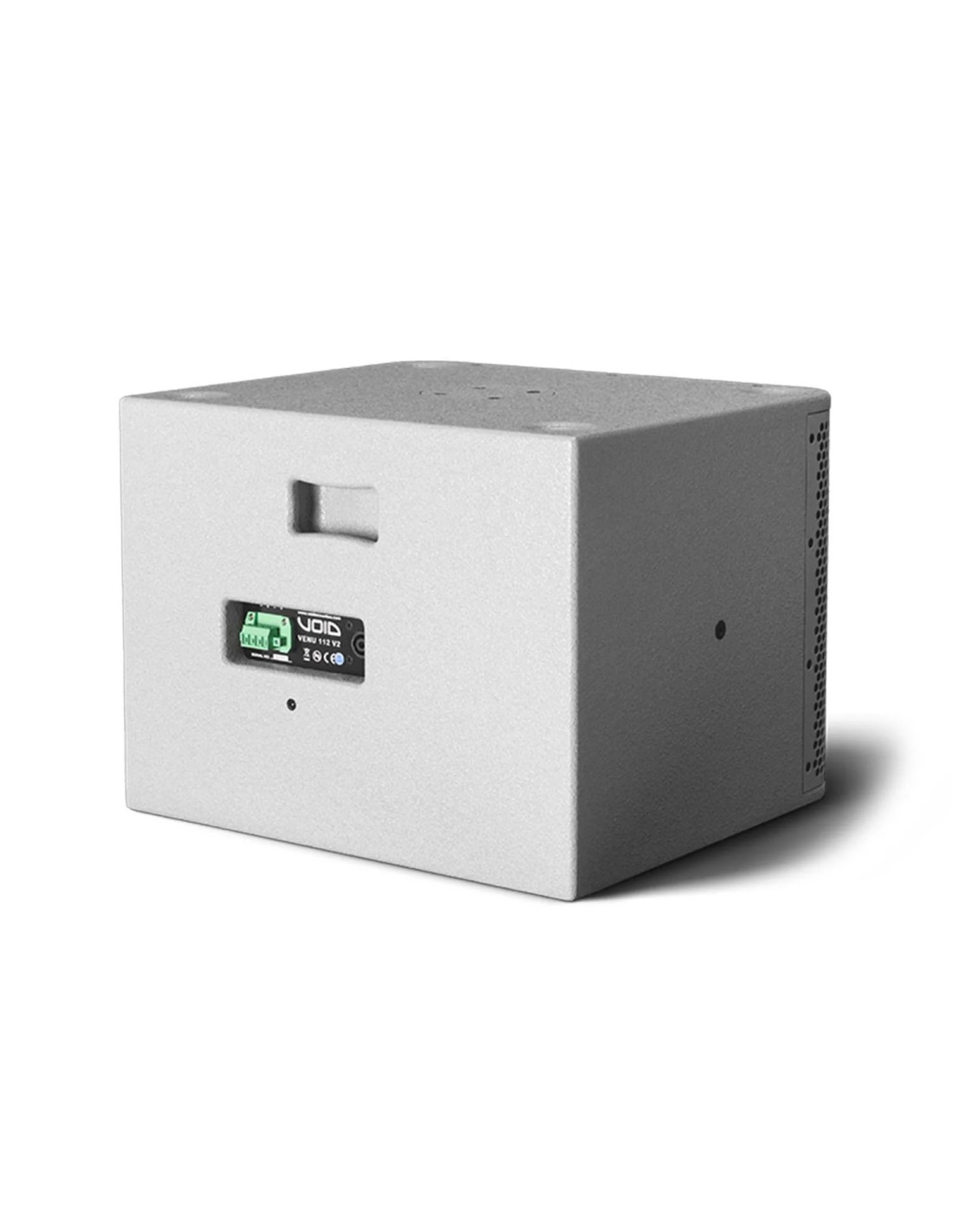

The loudspeaker shall be comprised of one high power 12” (304.8 mm) direct radiating, reflex loaded low frequency (LF) transducer. The enclosure shall be rectangular constructed from 15 mm multi-laminated birch plywood with a single handle in the rear with a wraparound grille and a rotating badge; it shall have a removable cover plate for fixing an optional M20 top hat and integral threaded inserts for the fitment of wall and ceiling mounting hardware; it shall be finished in a textured polyurethane with external dimensions of (H) 378 mm x (W) 490 mm x (D) 430 mm (14.9” x 19.3” x 16.9”) and weigh 27 kg (59.5 lbs).
- Effective Freq. Range
- 40 Hz - 160 Hz ±3 dB
- Power handling
- 600 W AES
- Sensitivity
- 99 dB 1w/1m
- Maximum SPL
- 126 dB cont, 132 dB peak
- Nominal impedance
- 8 Ω
- Crossover filter
- 80 Hz - 160 Hz Active
- Connection type
- 1 x Phoenix with link out and 1 x speakON™ with link out
- Enclosure material
- 15 mm birch plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 27 Kg (59.5 lbs)
- Status
- New
- EAN code
- IT2635
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Optional top hat, Yoke bracket positions, Type 75 plate
- Finish
- Textured polyurethane
- Driver
- 1 x 12” LF
