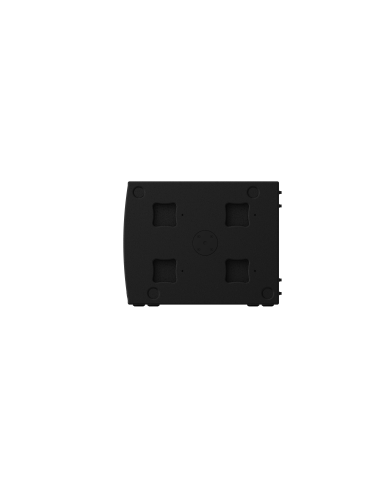

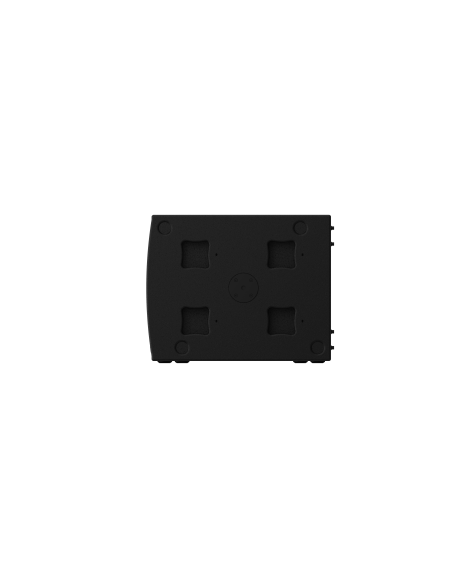

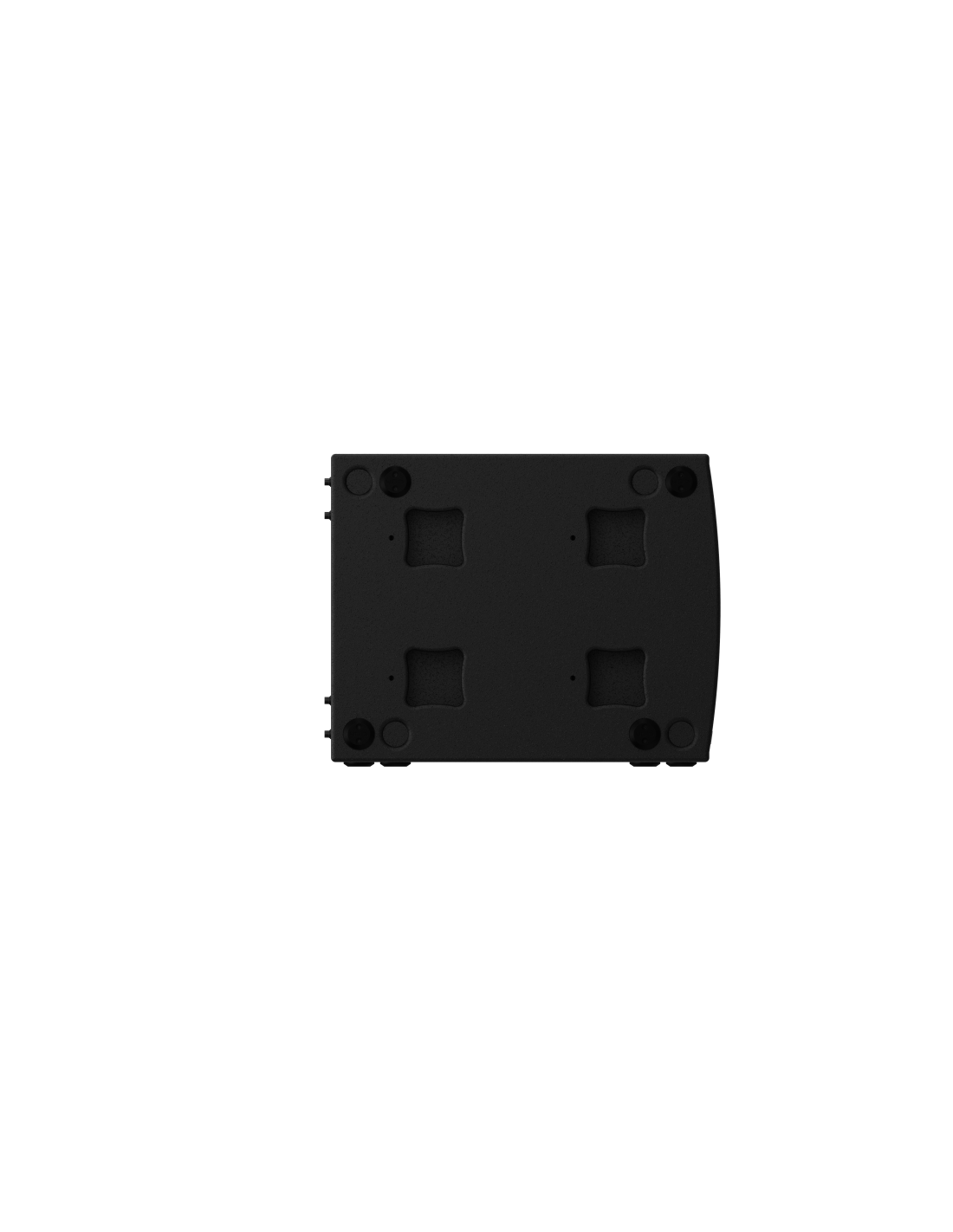

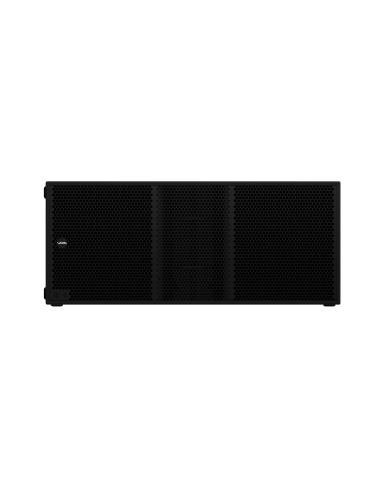

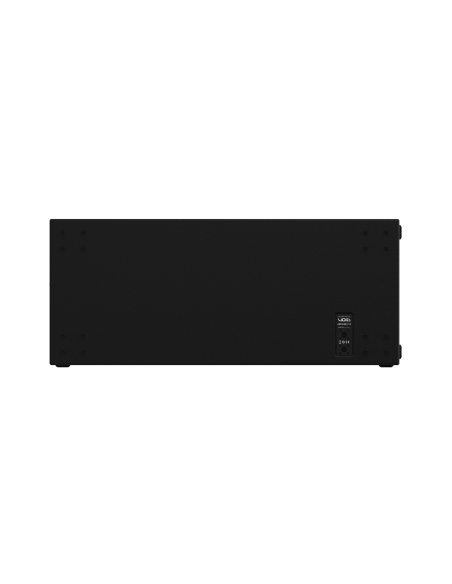

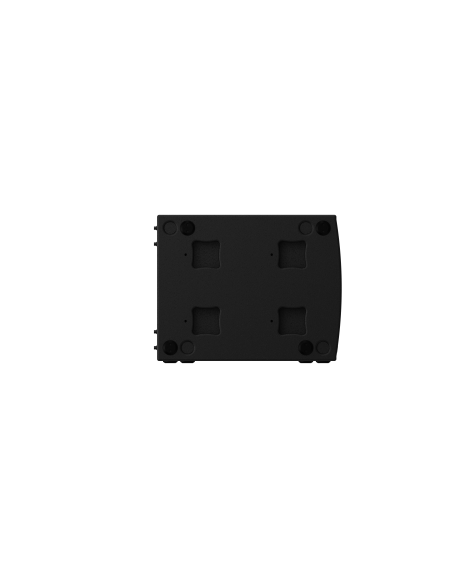

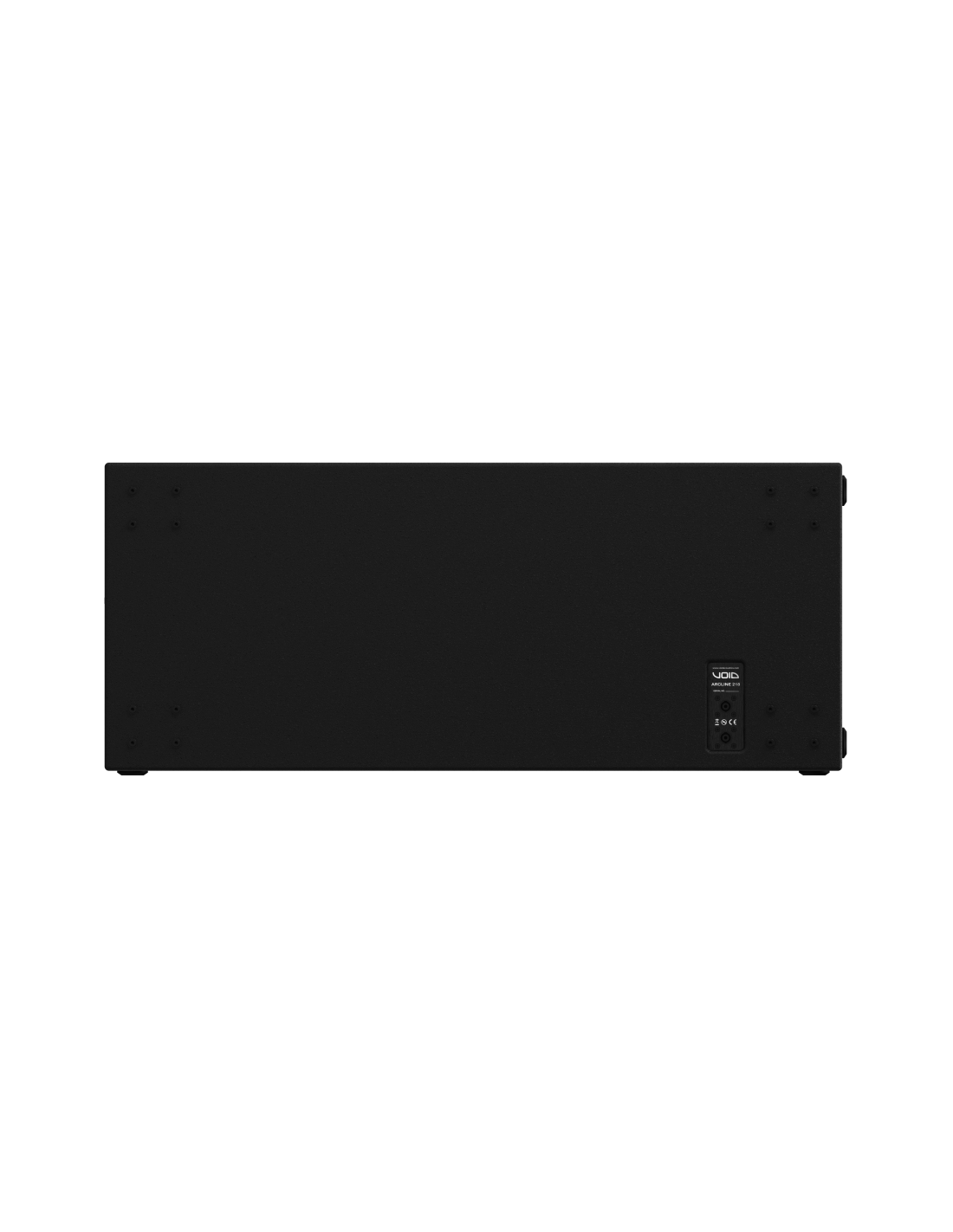

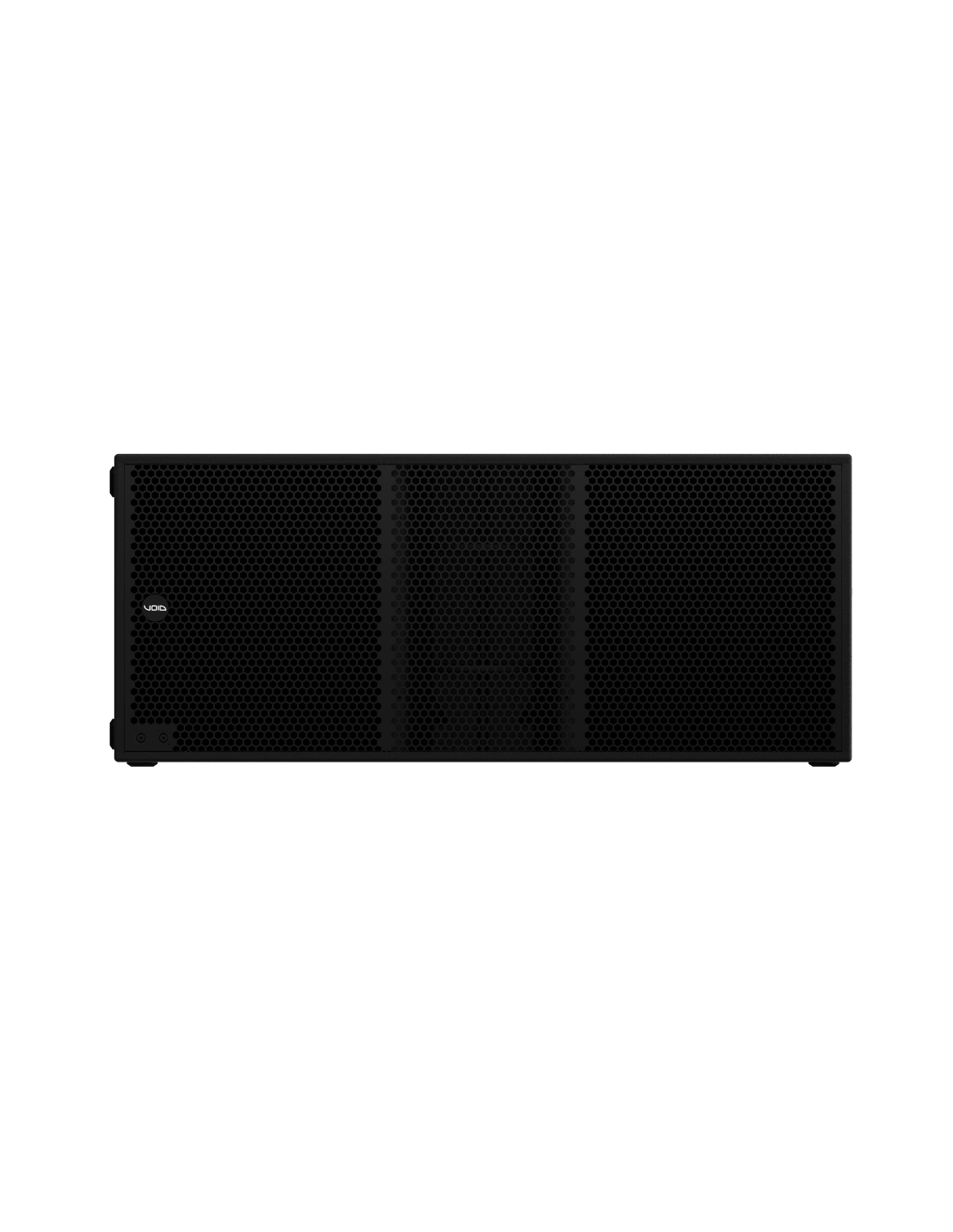

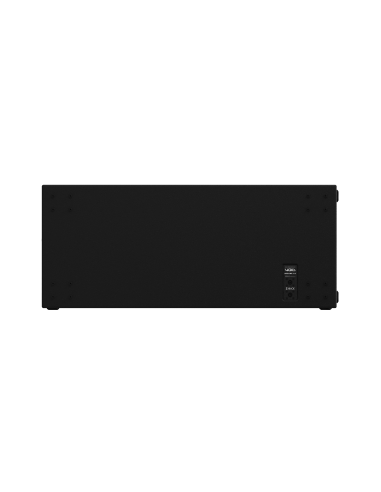

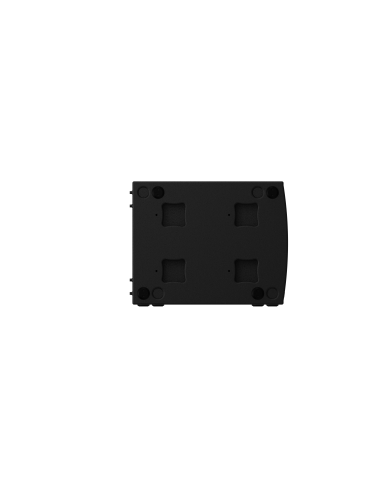

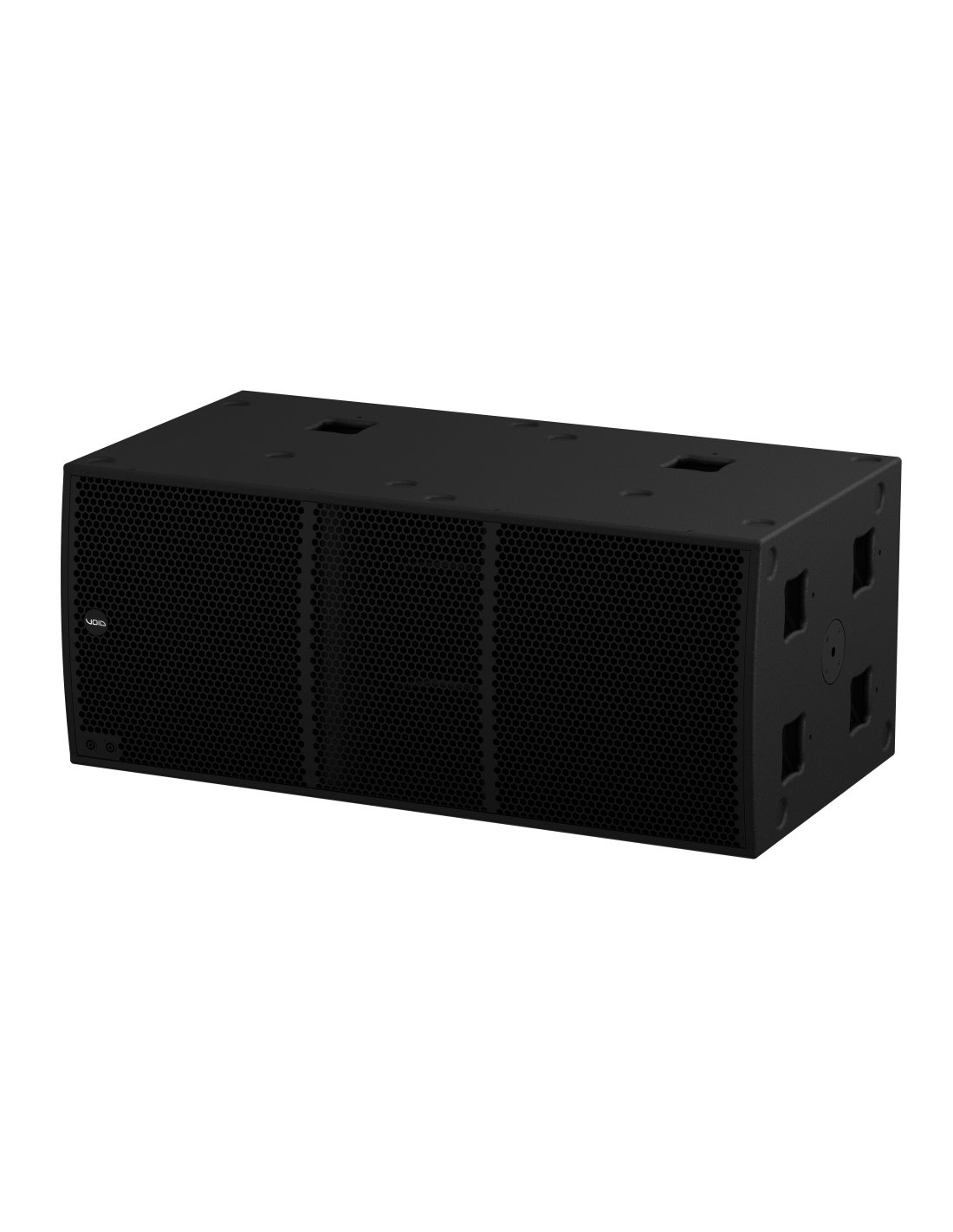

Arcline 218 - Negro
CVOIT2061
Check availability
18" double subwoofer for stack.
Optimised for use in theatres, event spaces and outdoor areas, the Arcline 218 has been developed using extensive Finite Element Analysis (FEA) modelling to offer maximum performance from the smallest footprint.
FEA-modelled hyperboloid porting significantly reduces port noise and air distortion, while the advanced internal brace design brings a noticeable weight reduction and increased cabinet rigidity.
Arrayable with the Arcline 118 in multiple configurations, including cardioid, this brings a new level of versatility to the audio arena. Aesthetically-pleasing cable management in cardioid configuration is possible via the front speakON™ chassis. Arcline systems can be arrayed by one person independently and each Arcline product can be cased and transported in multiples, radically reducing setup time.
- Effective Freq. Range
- 30 Hz - 200 Hz ±3 dB
- Coverage angle / Dispersion
- Array dependant
- Power handling
- 3000 W AES
- Sensitivity
- 100 dB 1W/1m
- Maximum SPL
- 134 dB cont, 140 dB peak
- Low frequency driver
- 2 x 18” LF neodymium
- Nominal impedance
- 2 x 8 Ω
- Connection type
- Front: 2 x 4-pole speakON™ NL4 Rear: 2 x 4-pole speakON™ NL4
Front: 2 x 4-pole speakON™ NL4; Rear: 2 x 4-pole speakON™ NL4 - Weight
- 91 kg (200.6 lbs)
- Status
- New
- EAN code
- IT2061
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- 1 x M20 top hat
- Finish
- Textured ‘TourCoat’ polyurea
- Rigging
- 1 x M20 top hat
- Driver
- 2 x 18” LF neodymium
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
30 Hz - 200 Hz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
Array dependant |
| Power handling |
3000 W AES |
| Sensitivity |
100 dB 1W/1m |
| Maximum SPL |
134 dB cont, 140 dB peak |
TRANSDUCERS
| Low frequency driver |
2 x 18” LF neodymium |
|---|---|
| Nominal impedance |
2 x 8 Ω |
| Driver |
2 x 18” LF neodymium |
PHYSICAL
| Connection type |
Front: 2 x 4-pole speakON™ NL4; Rear: 2 x 4-pole speakON™ NL4 Front: 2 x 4-pole speakON™ NL4 Rear: 2 x 4-pole speakON™ NL4 |
|---|---|
| Weight |
91 kg (200.6 lbs) |
| Mounting system |
1 x M20 top hat |
| Finish |
Textured ‘TourCoat’ polyurea |
| Rigging |
1 x M20 top hat |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2061 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
