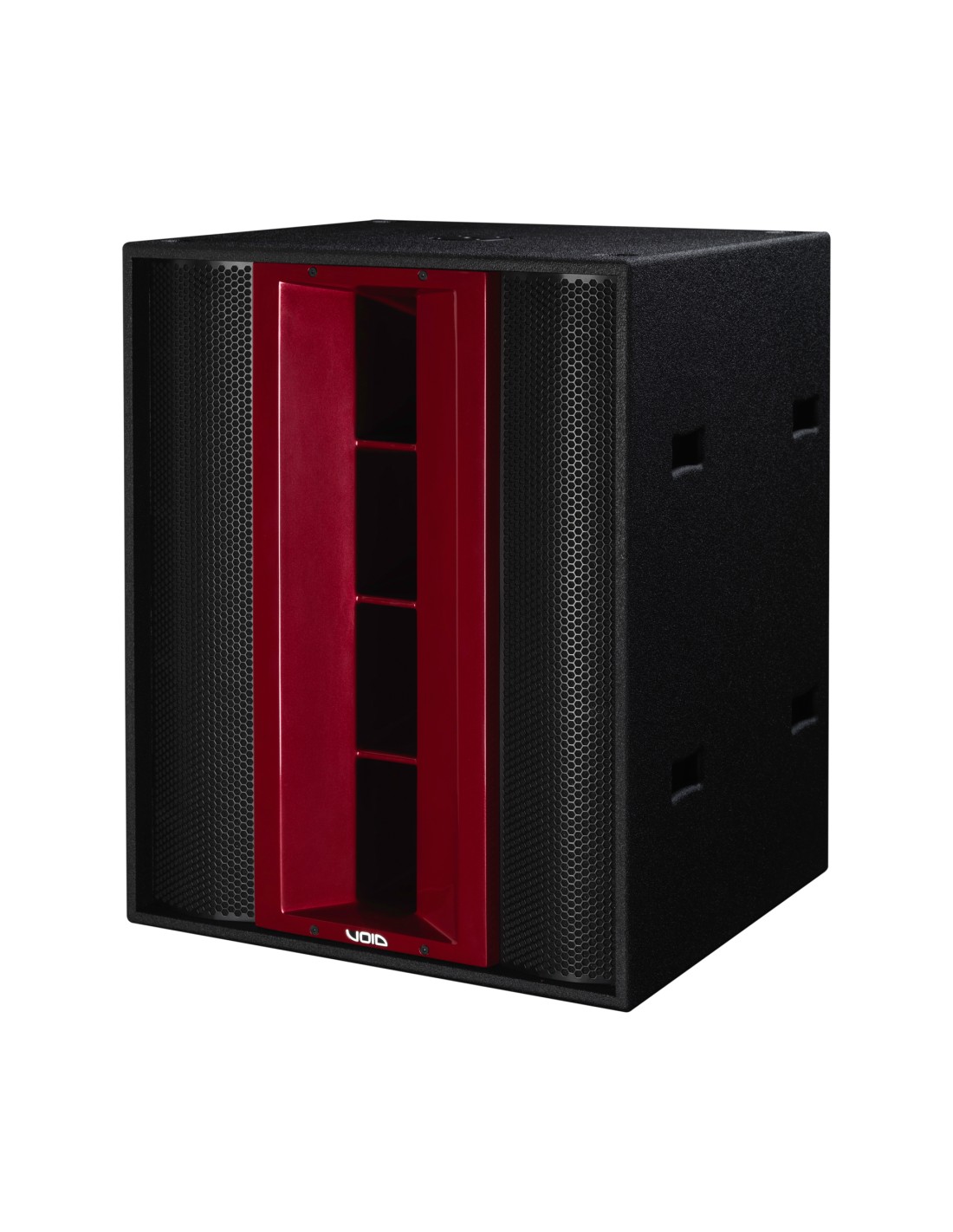

High performance subwoofer for installation.
The loudspeaker system shall be of the sub bass type consisting of four high power 15” (381 mm) direct radiating reflex loaded low frequency (LF) transducers coupled to a fibreglass reinforced plastic port in a birch plywood enclosure.
- Effective Freq. Range
- 40 Hz - 160 Hz ±3 dB
- Coverage angle / Dispersion
- Omnidirectional
- Power handling
- 2 x 1600 W AES
- Sensitivity
- 107 dB 1W/1m
- Maximum SPL
- 137 dB cont, 143 dB peak
- Low frequency driver
- 4 x 15”
- Nominal impedance
- 2 x 4 Ω
- Crossover filter
- 140 Hz
- Connection type
- 2 x 4-pole SpeakON™
- Weight
- 91.2 kg (201 lbs)
- Status
- New
- EAN code
- IT1603
- Tariff code
- 8518220000
- Shipping Location
- Spain
SYSTEM
| Effective Freq. Range |
40 Hz - 160 Hz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
Omnidirectional |
| Power handling |
2 x 1600 W AES |
| Sensitivity |
107 dB 1W/1m |
| Maximum SPL |
137 dB cont, 143 dB peak |
TRANSDUCERS
| Low frequency driver |
4 x 15” |
|---|---|
| Nominal impedance |
2 x 4 Ω |
FILTERS
| Crossover filter |
140 Hz |
|---|
PHYSICAL
| Connection type |
2 x 4-pole SpeakON™ |
|---|---|
| Weight |
91.2 kg (201 lbs) |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT1603 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
