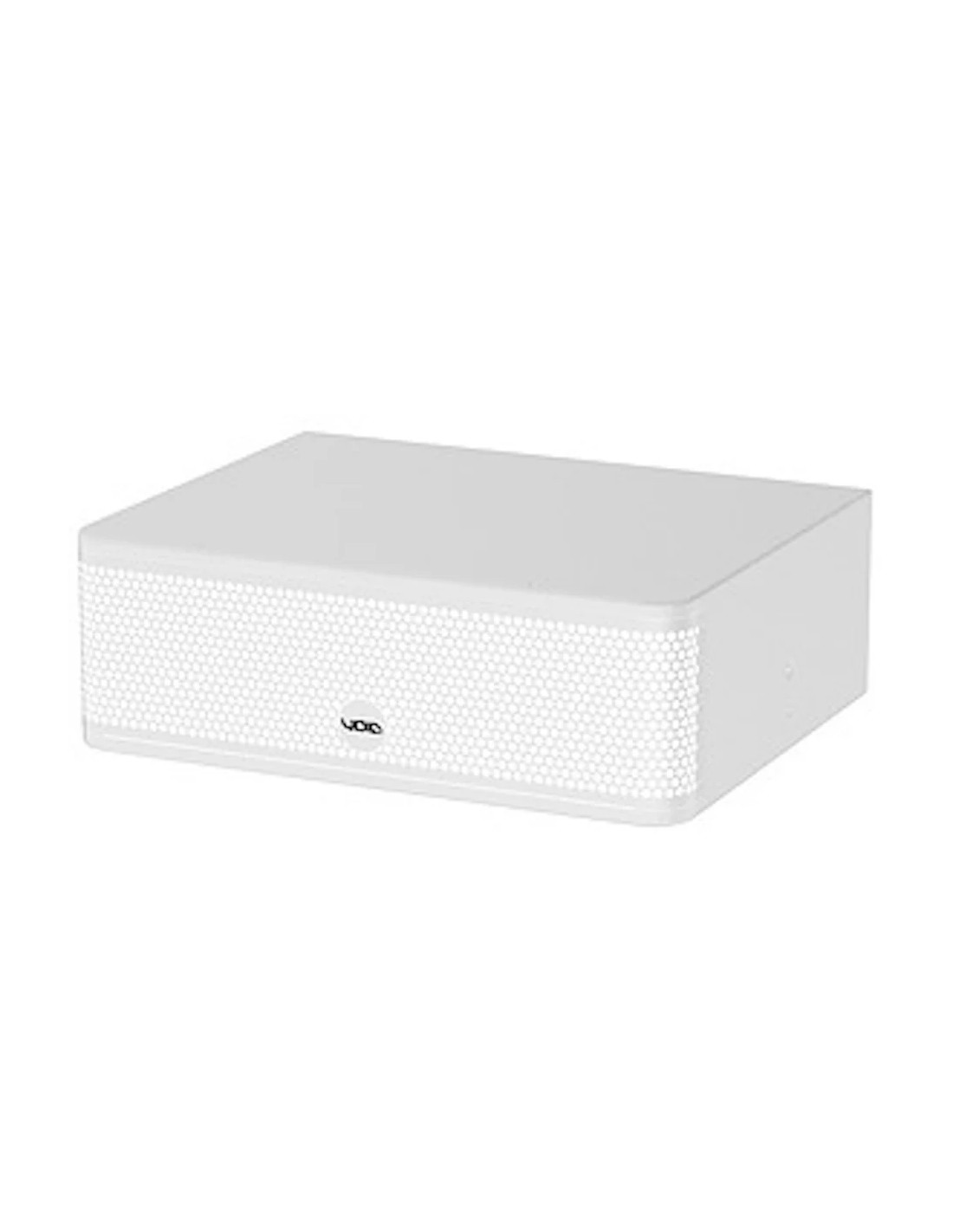

Stasys 118 - Blanco
CVOIT1596
Check availability
High performance 18" subwoofer for Touring/Installation.
The Stasys 118 is a single 18” reflex loaded low frequency enclosure built around traditional principles but designed with Stasys philosophy and attention to detail. Resonance mapping has influenced the optimal brace positioning and minimal destructive nodal conditions, creating a superior structure with minimum mass, the least possible cabinet colouration, and vastly increased output. Marrying a technologically advanced enclosure with powerful transducer results in a phenomenal package with state-of-the-art performance.
- Effective Freq. Range
- 40 Hz - 200 Hz ±3 dB
- Coverage angle / Dispersion
- Array dependent
- Power handling
- 1 200 W AES
1200 W AES - Sensitivity
- 98 dB 1W/1m
- Maximum SPL
- 128 dB cont, 134 dB peak
129 dB cont, 132 dB peak - Nominal impedance
- 8 Ω
- Crossover filter
- 70 Hz - 160 Hz, 24 dB/oct
- Connection type
- 2 x 4-pole speakON™ NL4
- Enclosure material
- 18 mm birch plywood
18 mm birch plywood - Grille material
- Perforated steel with foam filter
- Weight
- 47 Kg (103.6 lbs)
- Status
- New
- EAN code
- IT1595
IT1596
IT1596 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Finish
- Textured ‘TourCoat’ polyurea
- Driver
- 1 x 18” LF
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
40 Hz - 200 Hz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
Array dependent |
| Power handling |
1200 W AES 1 200 W AES |
| Sensitivity |
98 dB 1W/1m |
| Maximum SPL |
129 dB cont, 132 dB peak 128 dB cont, 134 dB peak |
TRANSDUCERS
| Nominal impedance |
8 Ω |
|---|---|
| Driver |
1 x 18” LF |
FILTERS
| Crossover filter |
70 Hz - 160 Hz, 24 dB/oct |
|---|
PHYSICAL
| Connection type |
2 x 4-pole speakON™ NL4 |
|---|---|
| Enclosure material |
18 mm birch plywood 18 mm birch plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
47 Kg (103.6 lbs) |
| Finish |
Textured ‘TourCoat’ polyurea |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT1595
IT1596 IT1596 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
