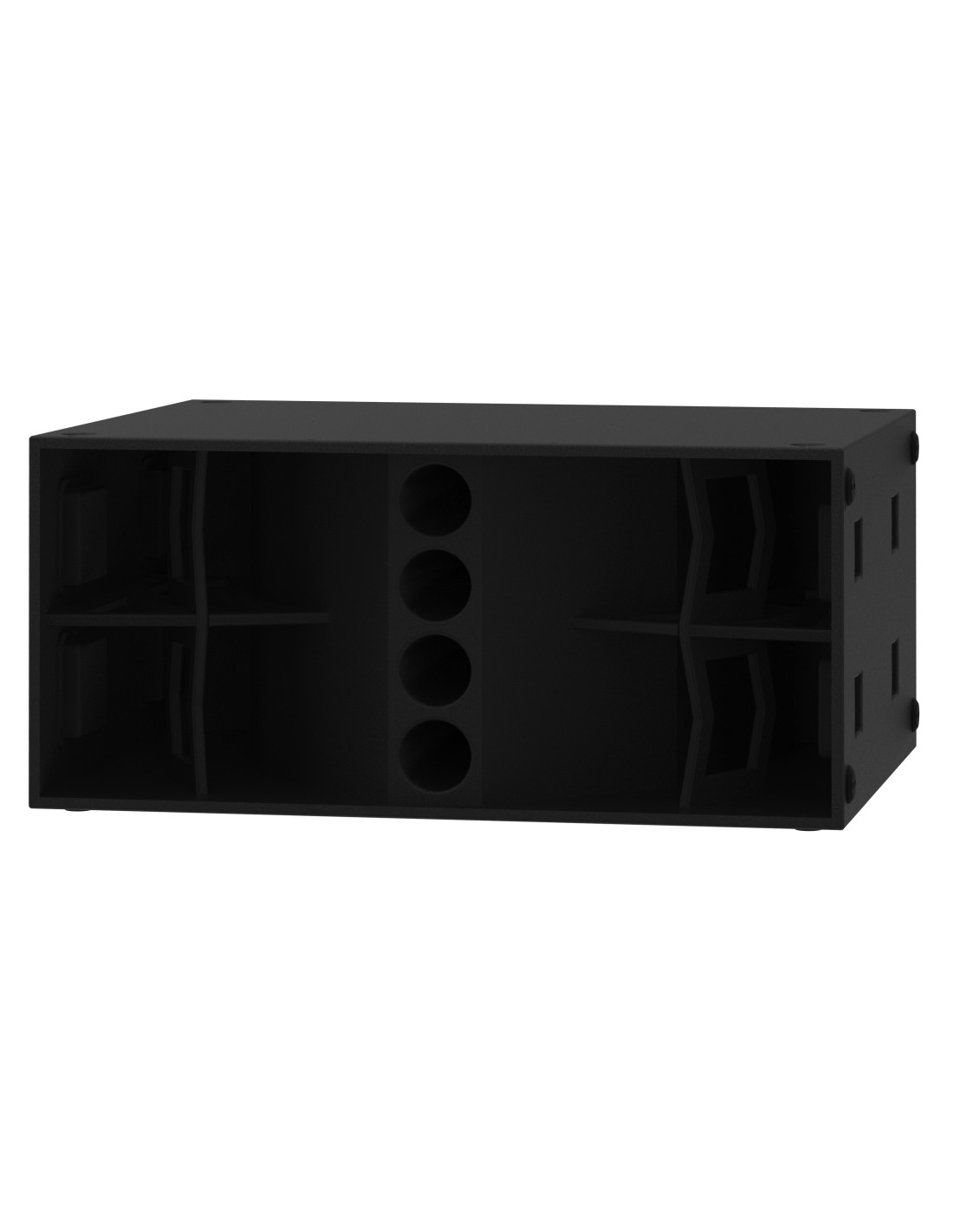

Stasys XV2 - Negro
CVOIT1593
Check availability
Subwoofer doble de 18" de alto rendimiento para Touring / Instalación.
Used on tours, in live venues and in world-class entertainment venues all around the world, the Stasys X V2 now benefits from new technologies to advance and refine the original Stasys X design. A total rearrangement of the internal resonant chambers has improved the cooling to the extent that no external heatsinks are required, significantly decreasing power compression. The system’s transient response, phase response, and overall timing capabilities have also been vastly improved by the new internal chamber layout, creating a more uniform response in relation to distance, and greater behavioural predictability when arrayed.
- Effective Freq. Range
- 30 Hz - 180 Hz ±3 dB
- Coverage angle / Dispersion
- Array dependent
- Power handling
- 3200 W AES
- Sensitivity
- 103.8 dB 1W/1m
104 dB 1W/1m - Maximum SPL
- 138 dB cont, 144 dB peak
138 dB cont., 145 dB peak - Nominal impedance
- 4 Ω
- Crossover filter
- 38 Hz Hi Pass 24 dB/oct, 100 Hz - 145 Hz, Lo Pass 24 dB/oct
38 Hz Hi Pass 24 dB/oct, 100 Hz - 145 Hz Lo Pass 24 dB/oct - Connection type
- 2 x 4-pole speakON™ NL4
- Enclosure material
- 18 mm birch plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 130 kg (286.6 lbs)
- Status
- New
- EAN code
- IT1593
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Finish
- Textured ‘TourCoat’ polyurea
Textured ‘TourCoat’ polyurea Grille Perforated steel with foam filter - Driver
- 2 x 18” LF
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
30 Hz - 180 Hz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
Array dependent |
| Power handling |
3200 W AES |
| Sensitivity |
104 dB 1W/1m 103.8 dB 1W/1m |
| Maximum SPL |
138 dB cont, 144 dB peak 138 dB cont., 145 dB peak |
TRANSDUCERS
| Nominal impedance |
4 Ω |
|---|---|
| Driver |
2 x 18” LF |
FILTERS
| Crossover filter |
38 Hz Hi Pass 24 dB/oct, 100 Hz - 145 Hz Lo Pass 24 dB/oct 38 Hz Hi Pass 24 dB/oct, 100 Hz - 145 Hz, Lo Pass 24 dB/oct |
|---|
PHYSICAL
| Connection type |
2 x 4-pole speakON™ NL4 |
|---|---|
| Enclosure material |
18 mm birch plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
130 kg (286.6 lbs) |
| Finish |
Textured ‘TourCoat’ polyurea Textured ‘TourCoat’ polyurea Grille Perforated steel with foam filter |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT1593 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
