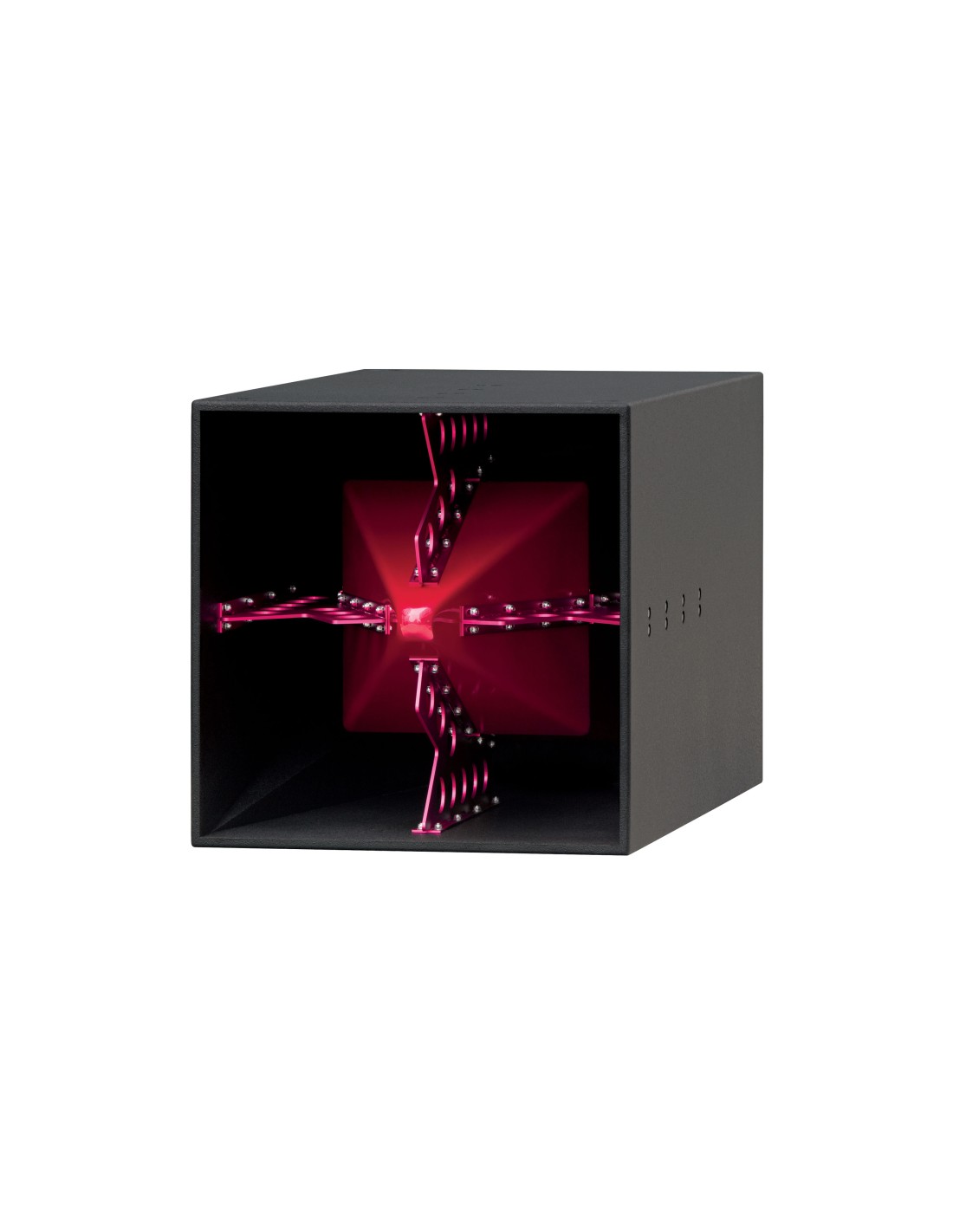

Compact subwoofer in folded Upper Bass horn for Incubus system.
The Hyperfold has multiple drivers to keep up with the extraordinary efficiency of all the other elements within the Incubus system. When arrayed, two Hyperfolds paired in the upper bass region deliver an output far beyond comparable sized enclosures, with very low distortion levels.
The loudspeaker shall be an active manifold horn loaded sub system consisting of four high power 15” (381 mm), long excursion, low frequency (LF) transducers mounted in a birch plywood enclosure.
- Effective Freq. Range
- 60 Hz - 190 Hz ±3 dB
- Power handling
- 4000 W AES
- Sensitivity
- 109.5 dB 1W/1m
110 dB 1W/1m - Maximum SPL
- 142 dB cont, 145 dB peak
146 dB cont, 152 dB peak - Low frequency driver
- 4 x 15” low frequency drivers
- Nominal impedance
- 2 x 4 Ω
- Crossover filter
- Preset via dedicated processor
- Connection type
- 2 x 4-pole speakON™ NL4
- Enclosure material
- 18 mm birch plywood
- Weight
- 150 kg (330.7 lbs)
- Status
- New
- EAN code
- IT1580
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Finish
- Textured ‘TourCoat’ polyurea, smooth cellulose
- Driver
- 4 x 15” low frequency drivers
SYSTEM
| Effective Freq. Range |
60 Hz - 190 Hz ±3 dB |
|---|---|
| Power handling |
4000 W AES |
| Sensitivity |
109.5 dB 1W/1m 110 dB 1W/1m |
| Maximum SPL |
142 dB cont, 145 dB peak 146 dB cont, 152 dB peak |
TRANSDUCERS
| Low frequency driver |
4 x 15” low frequency drivers |
|---|---|
| Nominal impedance |
2 x 4 Ω |
| Driver |
4 x 15” low frequency drivers |
FILTERS
| Crossover filter |
Preset via dedicated processor |
|---|
PHYSICAL
| Connection type |
2 x 4-pole speakON™ NL4 |
|---|---|
| Enclosure material |
18 mm birch plywood |
| Weight |
150 kg (330.7 lbs) |
| Finish |
Textured ‘TourCoat’ polyurea, smooth cellulose |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT1580 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
