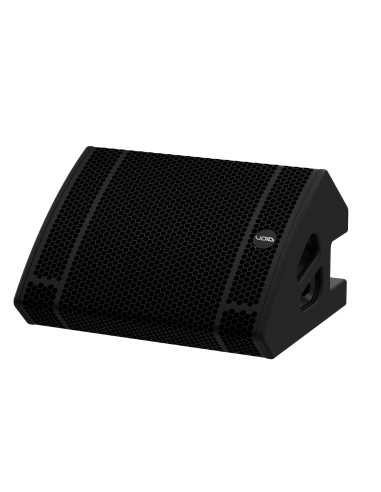

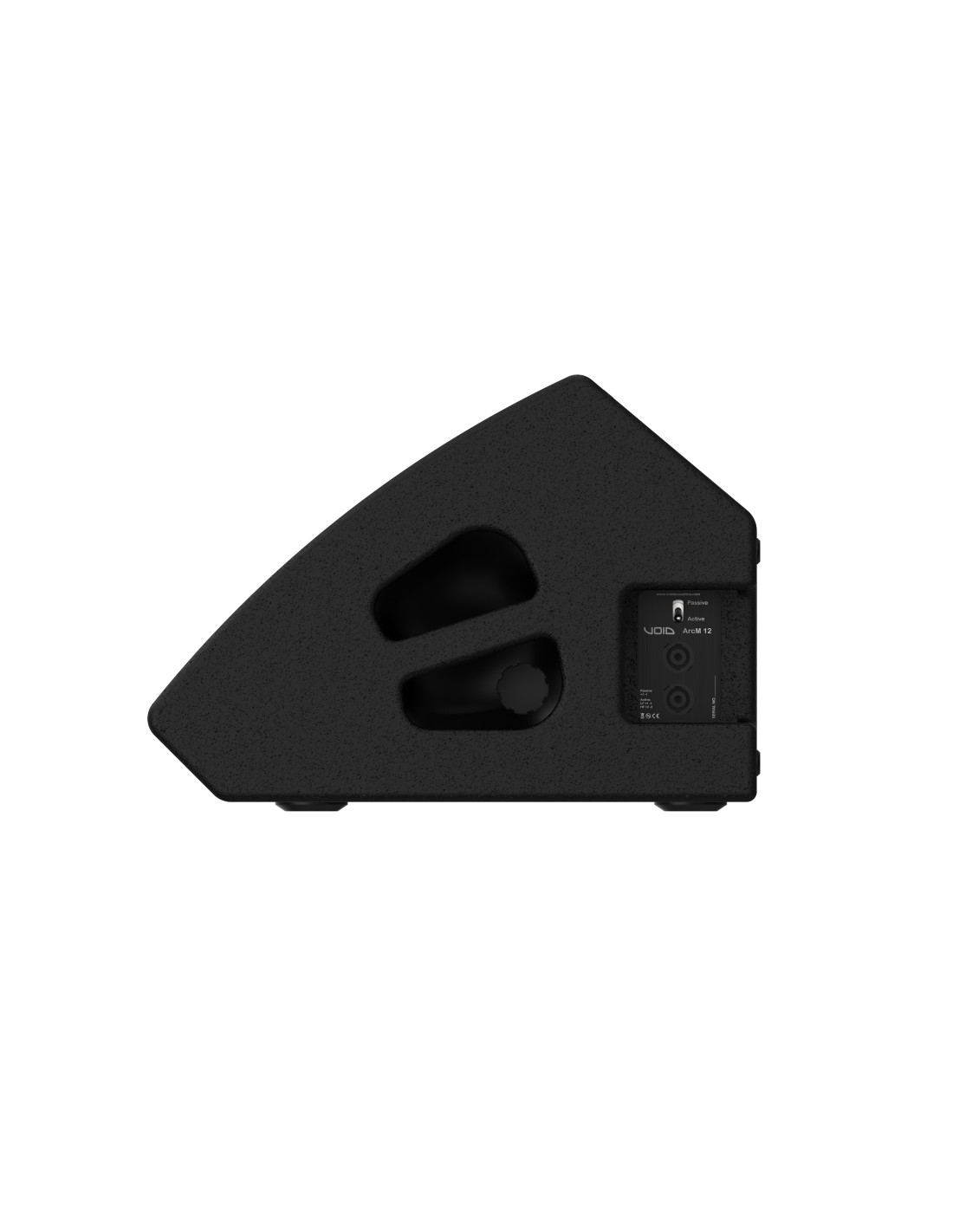

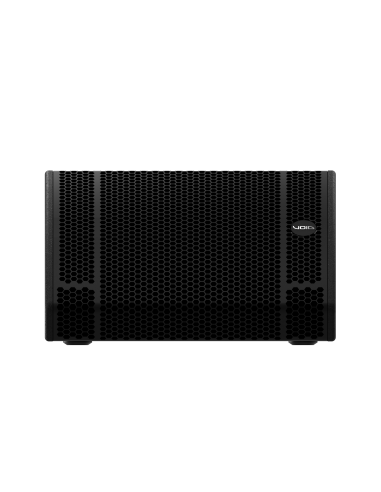

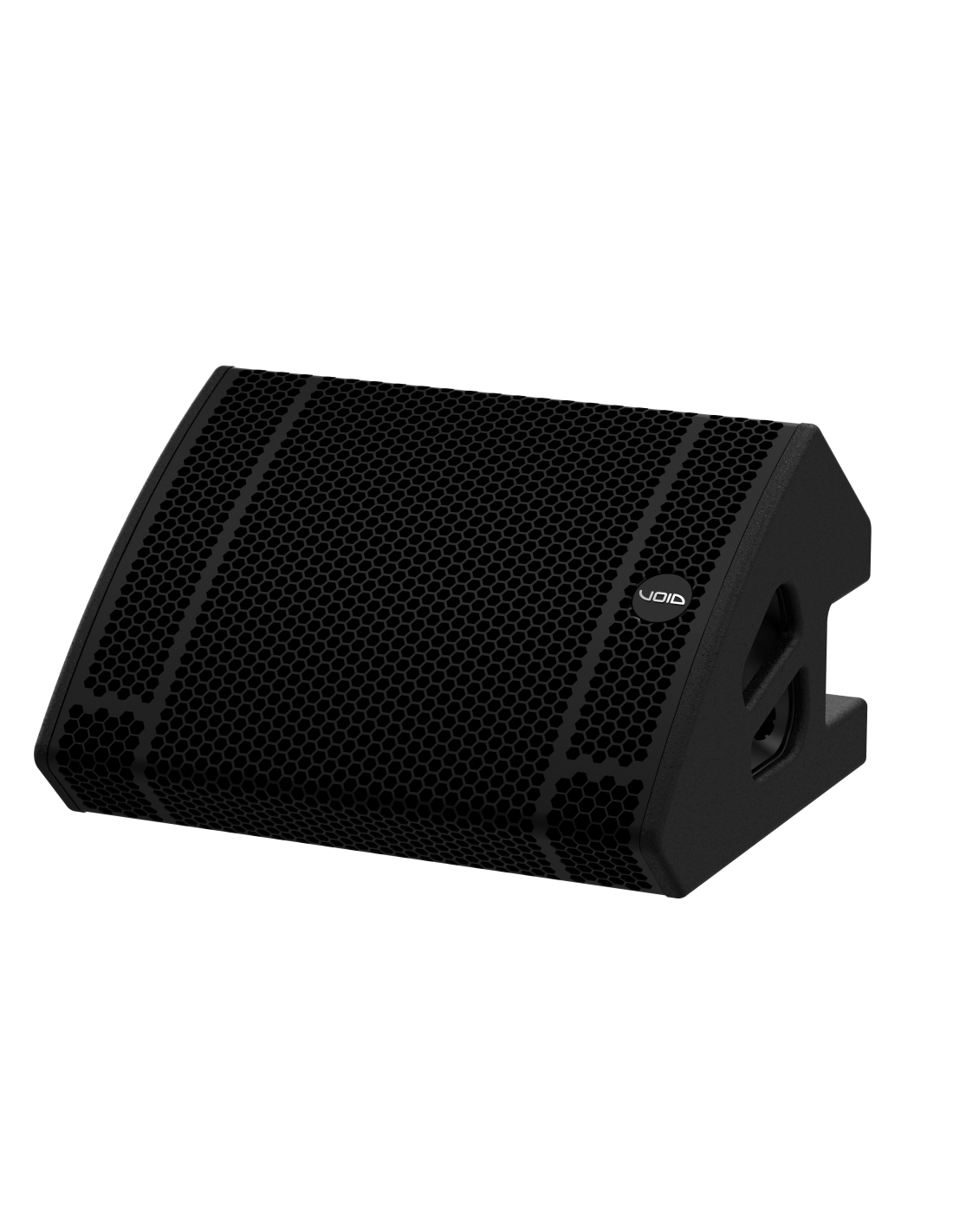

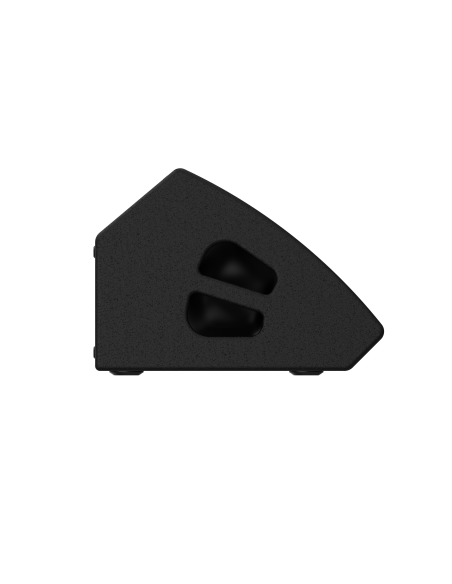

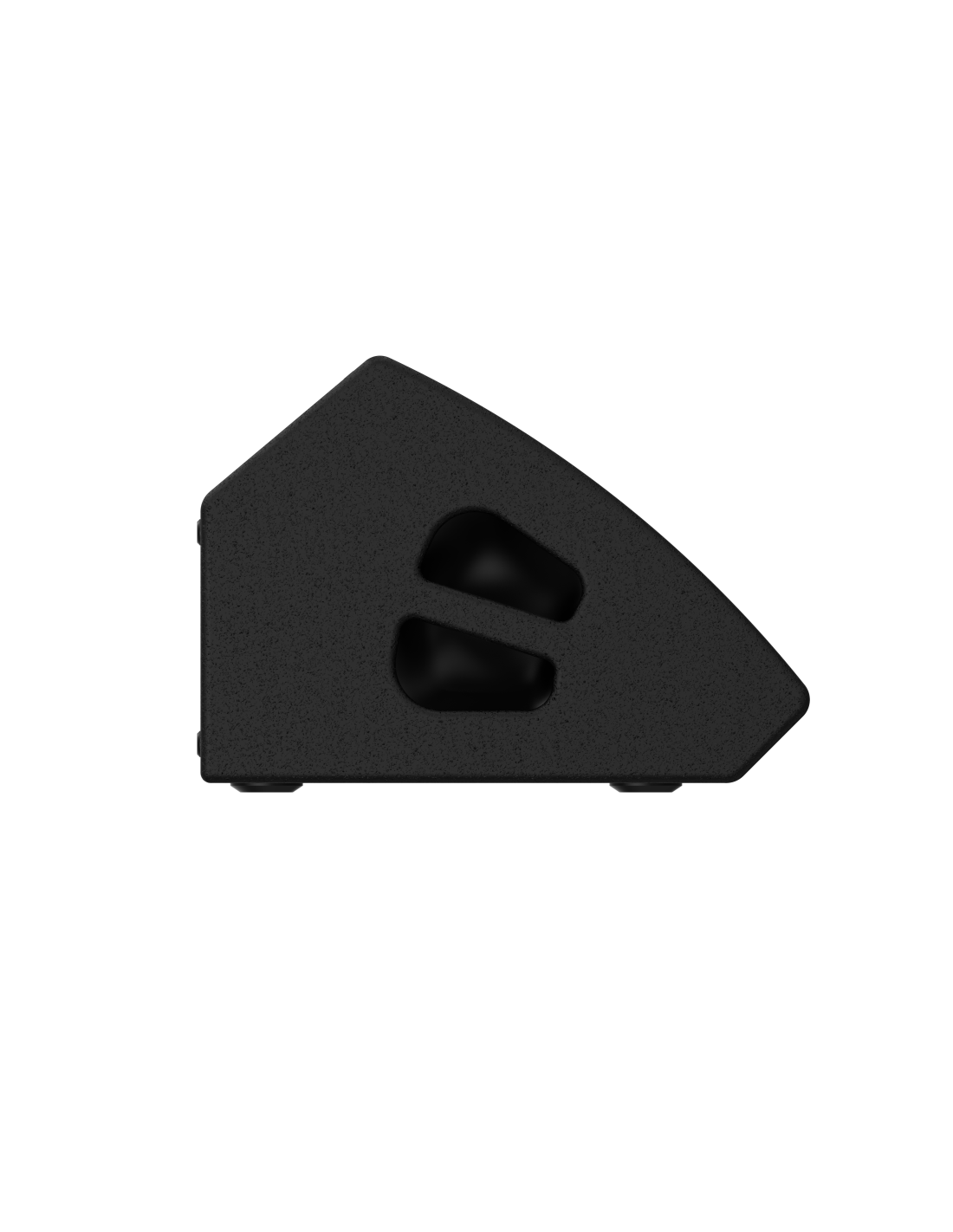

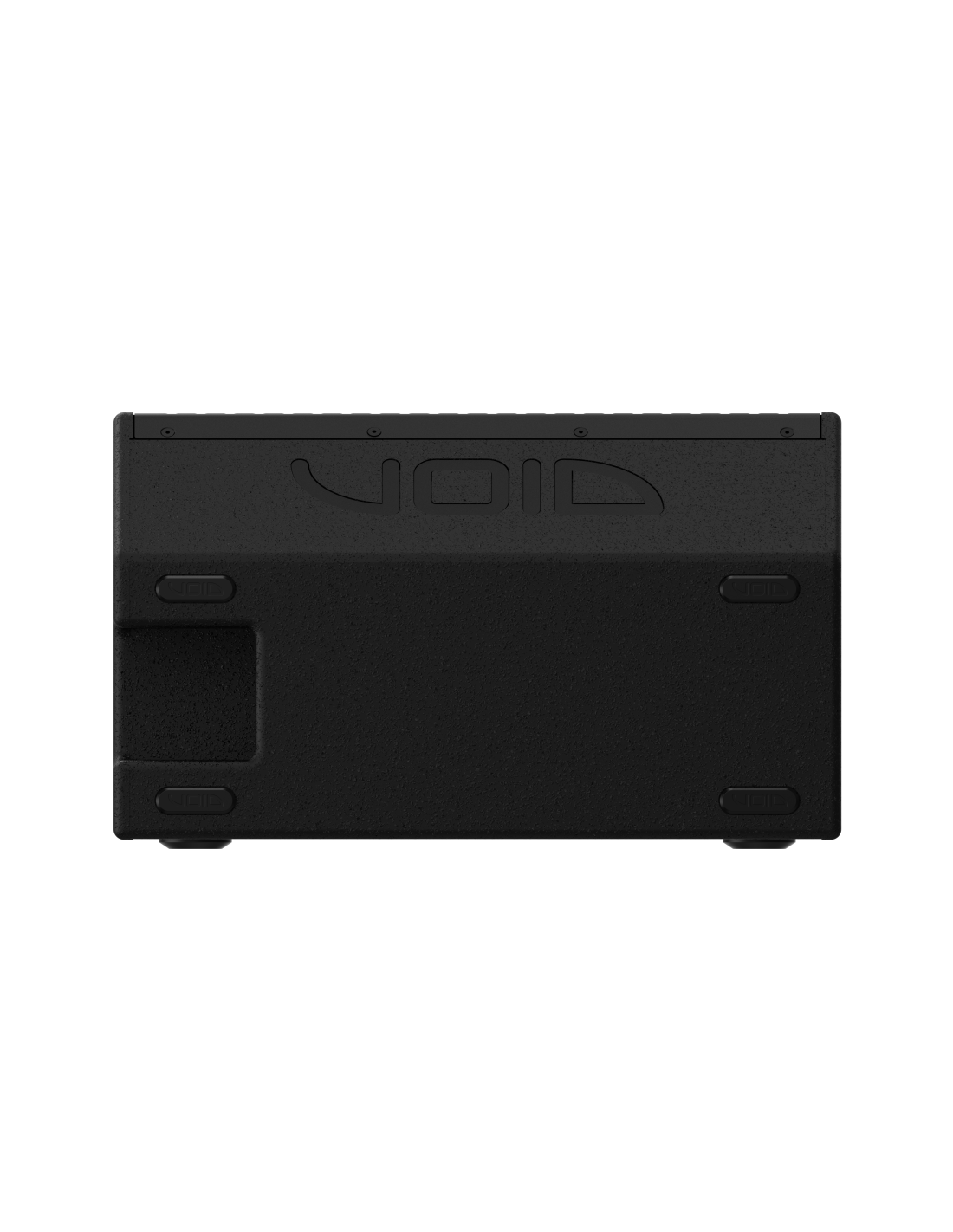

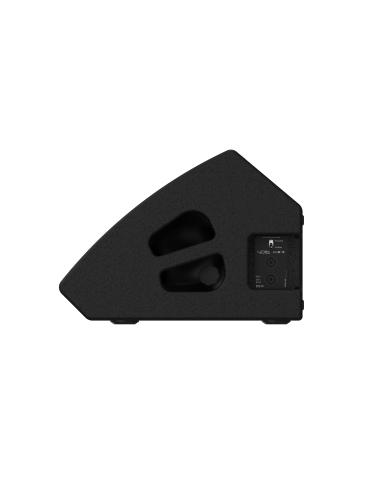

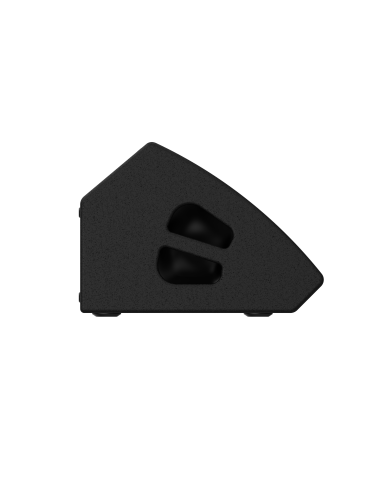

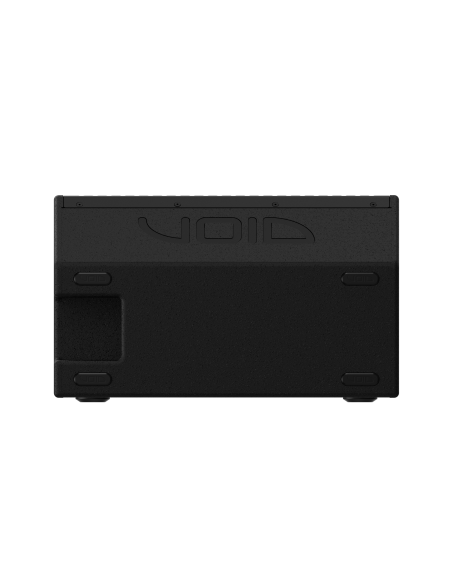

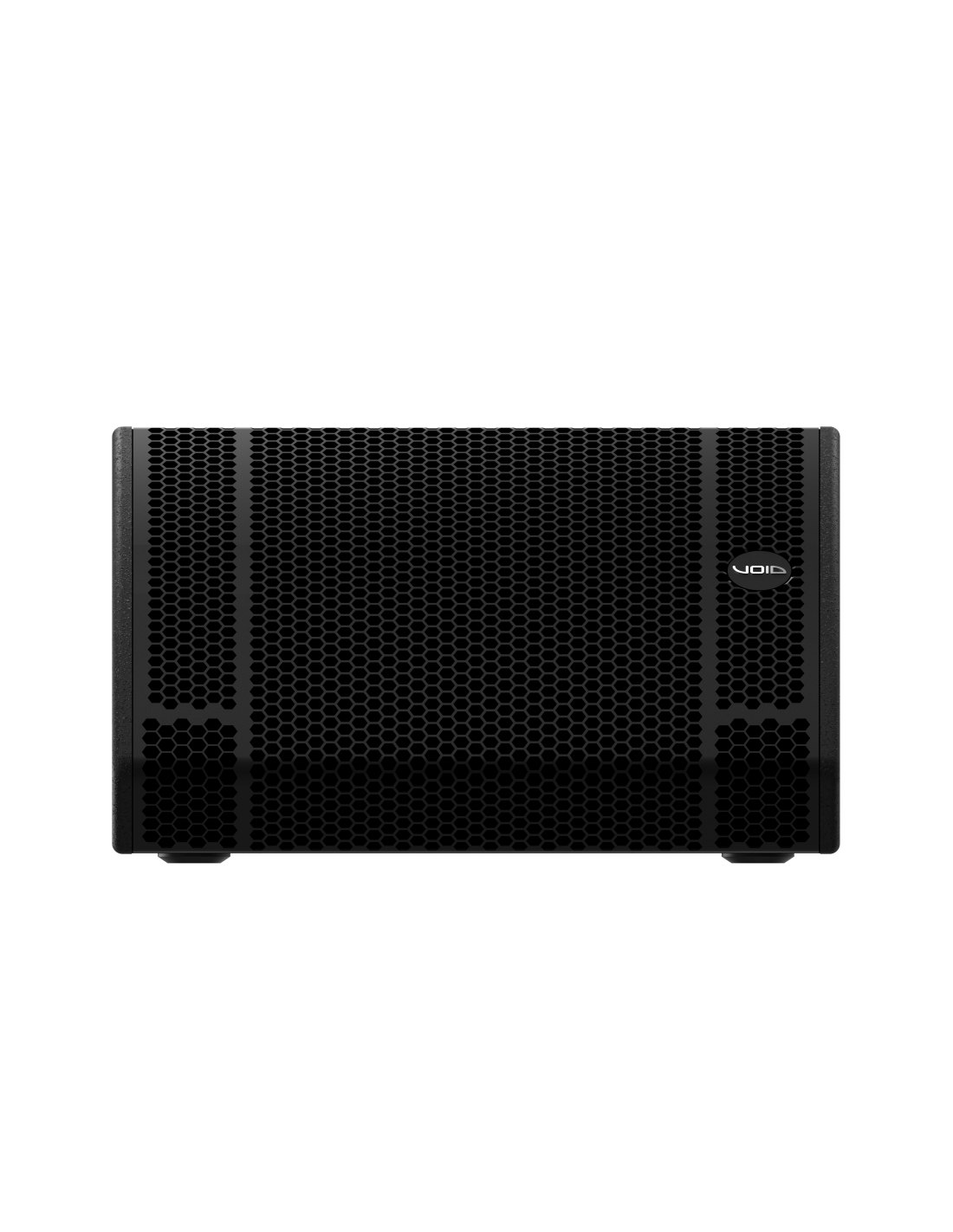

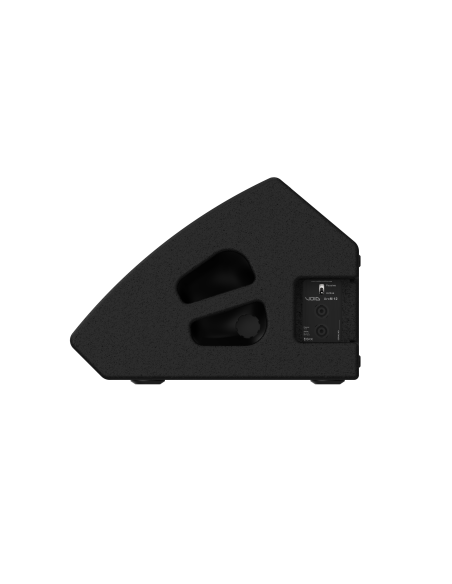

ArcM 12 - Negro
CVOIT2680
Check availability
Versatile stage monitor. Passive or bi-amplified (LF-HF) mode.
The ArcM 12 has multiple working angles, allowing it to be used as a near field booth monitor or conventional stage wedge, as well as having the ability to be pole mounted or wall mounted for front-of-house purposes.
In terms of mobility, measures have been taken to reduce weight, while maintaining an ergonomic design to appease manual handling requirements. Acoustically, FEA analysis has significantly reduced port noise and air distortion. The 12” ArcM 12 is unpowered, allowing it to integrate with touring operators’ existing infrastructure.
- Effective Freq. Range
- 60 Hz - 18 kHz ±3 dB
- Coverage angle / Dispersion
- 80°H x 80°V
80°H x 80°V - Power handling
- 500 W AES
- Sensitivity
- 100 dB 1W/1m
- Maximum SPL
- 126 dB cont, 132 dB peak
130 dB cont, 133 dB peak - Nominal impedance
- 1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
- Crossover filter
- 1.2 kHz (passive)
1k2Hz (acoustic) - Connection type
- 2 x 4-pole speakON™ NL4
- Weight
- 19 kg (41.9 lbs)
- Status
- New
- EAN code
- IT2680
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Integral top hat, type 80 mounting bracket
- Finish
- Textured polyurea
- Driver
- Coaxial 1 x 12” - 1 x 1.4” neodymium
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
60 Hz - 18 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
80°H x 80°V 80°H x 80°V |
| Power handling |
500 W AES |
| Sensitivity |
100 dB 1W/1m |
| Maximum SPL |
130 dB cont, 133 dB peak 126 dB cont, 132 dB peak |
TRANSDUCERS
| Nominal impedance |
1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active |
|---|---|
| Driver |
Coaxial 1 x 12” - 1 x 1.4” neodymium |
FILTERS
| Crossover filter |
1k2Hz (acoustic) 1.2 kHz (passive) |
|---|
PHYSICAL
| Connection type |
2 x 4-pole speakON™ NL4 |
|---|---|
| Weight |
19 kg (41.9 lbs) |
| Mounting system |
Integral top hat, type 80 mounting bracket |
| Finish |
Textured polyurea |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2680 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
