• New

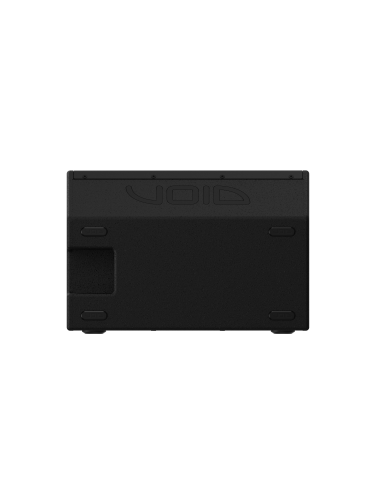

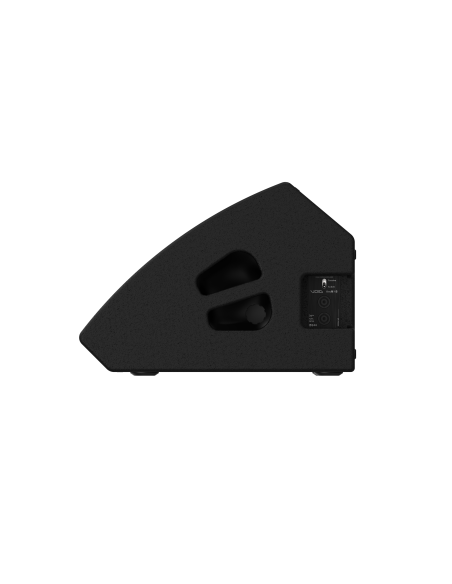

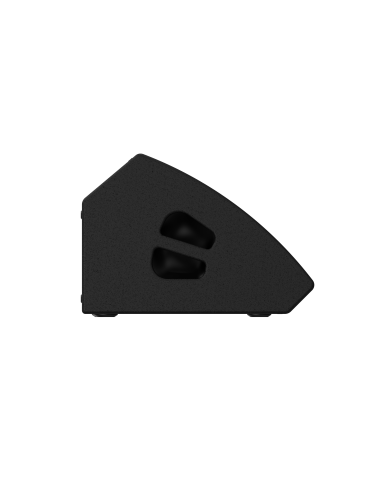

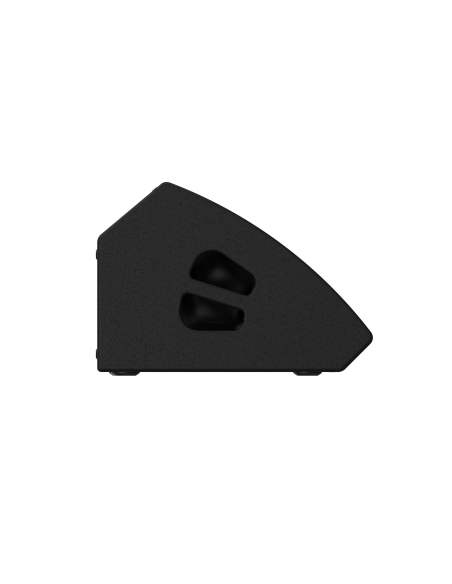

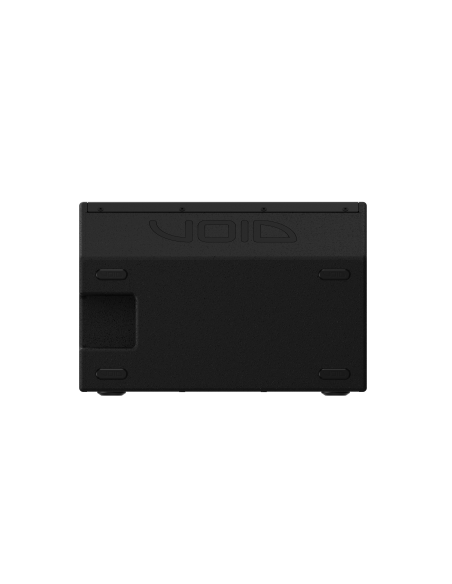

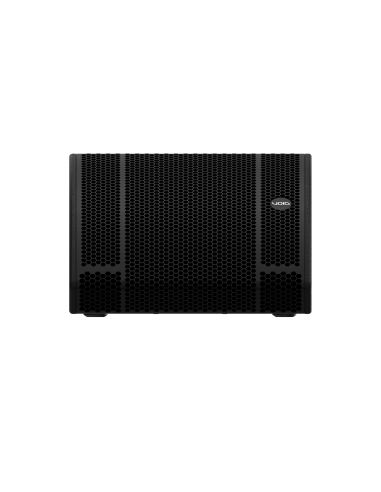

Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase
Pack 2 x ArcM 15 - Negro Flightcase

Pack 2 x ArcM 15 - Negro Flightcase

CVOIT3204
Check availability
Versatile stage monitor. Passive or bi-amplified (LF-HF) mode.
See more Features Resources

The ArcM 15 has multiple working angles, allowing it to be used as a near field booth monitor or conventional stage wedge, as well as having the ability to be pole mounted or wall mounted for front-of-house purposes. In terms of mobility, measures have been taken to reduce weight, while maintaining an ergonomic design to appease manual handling requirements. Acoustically, FEA analysis has significantly reduced port noise and air distortion. The 15” ArcM 15 is unpowered, allowing it to integrate with our touring operators’ existing infrastructure.
Effective Freq. Range
50 Hz - 18 kHz ±3 dB
Coverage angle / Dispersion
80°H x 80°V
Power handling
500 W AES
Sensitivity
100 dB 1W/1m
Maximum SPL
126 dB cont, 132 dB peak
Nominal impedance
1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
Crossover filter
1k2Hz (acoustic)
Connection type
2 x 4-pole speakON™ NL4
Weight
22.5 kg (49.6 lbs)
Finish
Textured polyurea
Rigging
Integral top hat, type 80 mounting bracket
Driver
Coaxial 1 x 15” - 1 x 1.4” neodymium
