CVEOSPS42
Available
4K 18Gbps HDMI® 1x2 Splitter with Cat Extension
See more Features

VEO-SPS42 is an 18Gbps HDMI® 1×2 splitter that allows an HDMI® source signal to be distributed and extended to two remote displays, supporting up to 4K 60Hz 4:4:4 video signals. It includes an HDMI® loop output and two main single Cat outputs, allowing for transmission distances of up to 35 meters for 4K/60Hz, 50 meters for 4K/30Hz, or 70 meters for Full HD over a single Cat 5e or higher cable. In addition, it supports one-way IR control signal pass-through, stereo unbalanced audio extraction on Euroblock connector, EDID management, and RS-232 serial control, making it a reliable and versatile solution for professional video distribution applications.
Operating temperature
Min: 0°C; 32°F
Max: 40°C; 104°F
Operating humidity
20% to 90% HR, non-condensing
Storage temperature
Min: -20°C ; -4°F
Max: 60°C ; 140°F
Storage humidity
40% to 60% HR, non-condensing
Included accessories
2 x VEO-SPS4 Receiver, 2 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 1 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears (Receiver), 2 x Mounting ears (Splitter), 12 x Mounting screw, 1 x PSU 12V/1A
Finished colour
Black
Dimensions

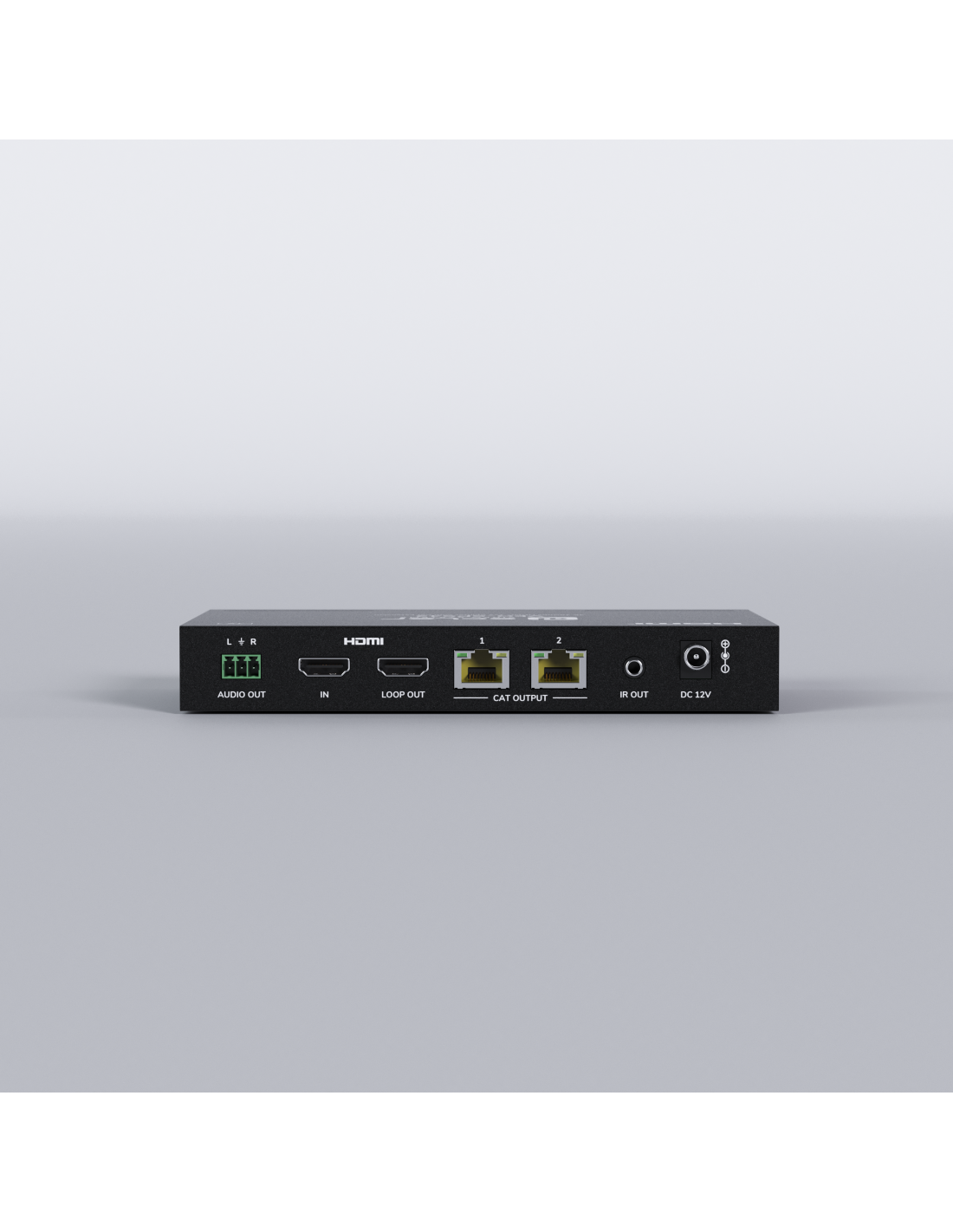

- VEO-SPS42 (Splitter TX): 175 x 25 x 100 mm / 6.89 x 0.98 x 3.94 in. (WxHxD)

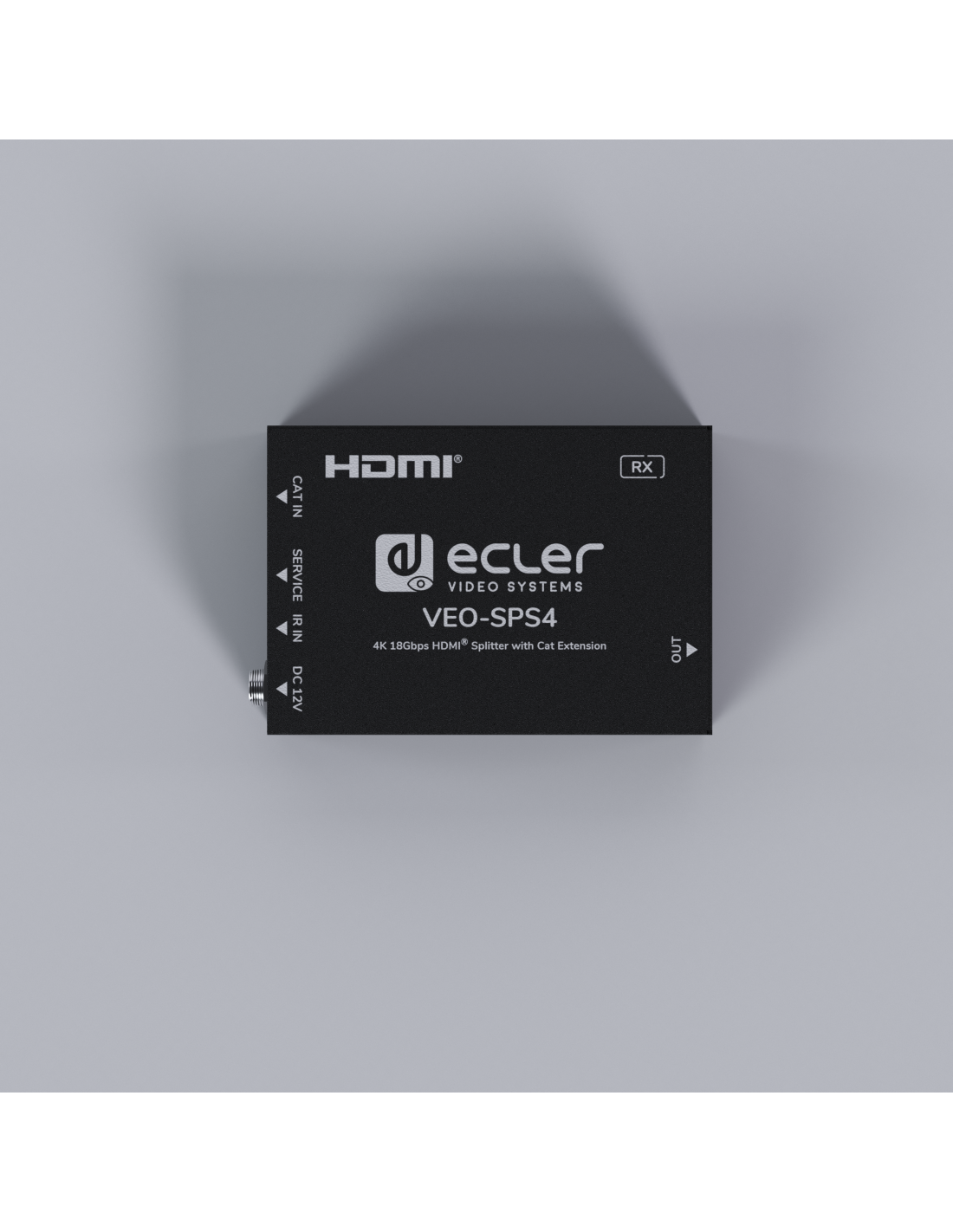

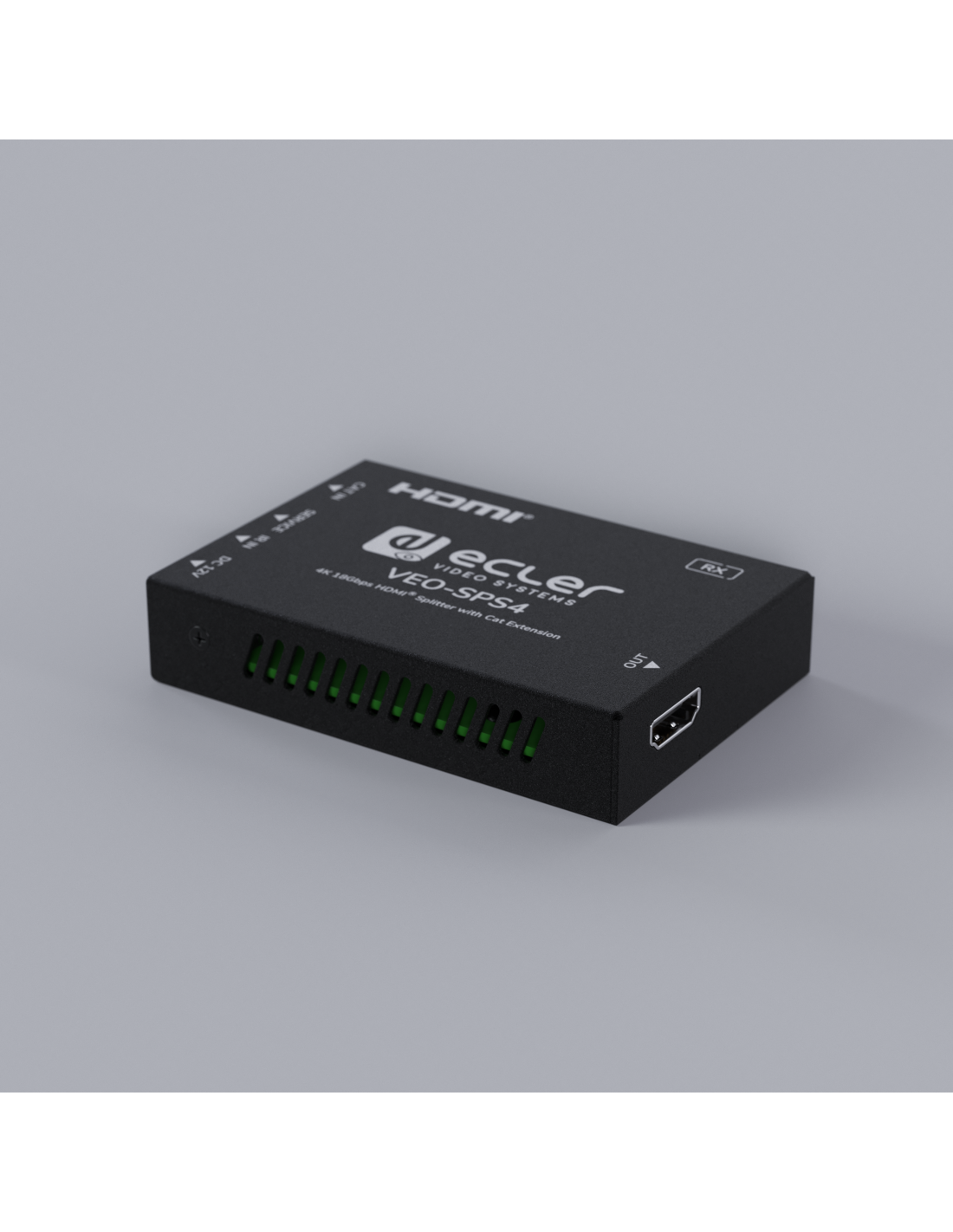

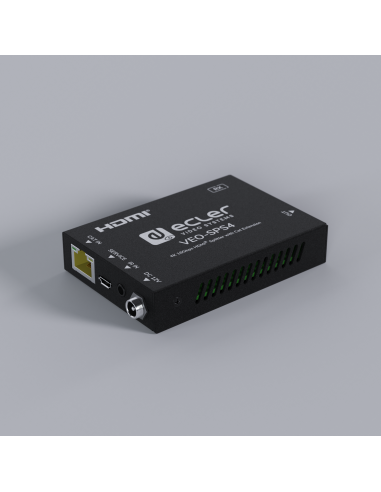

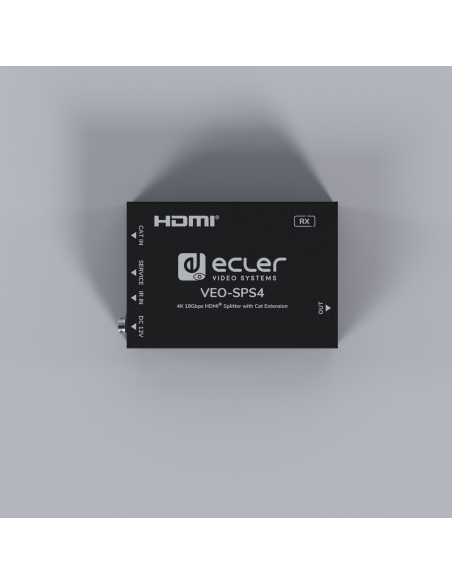

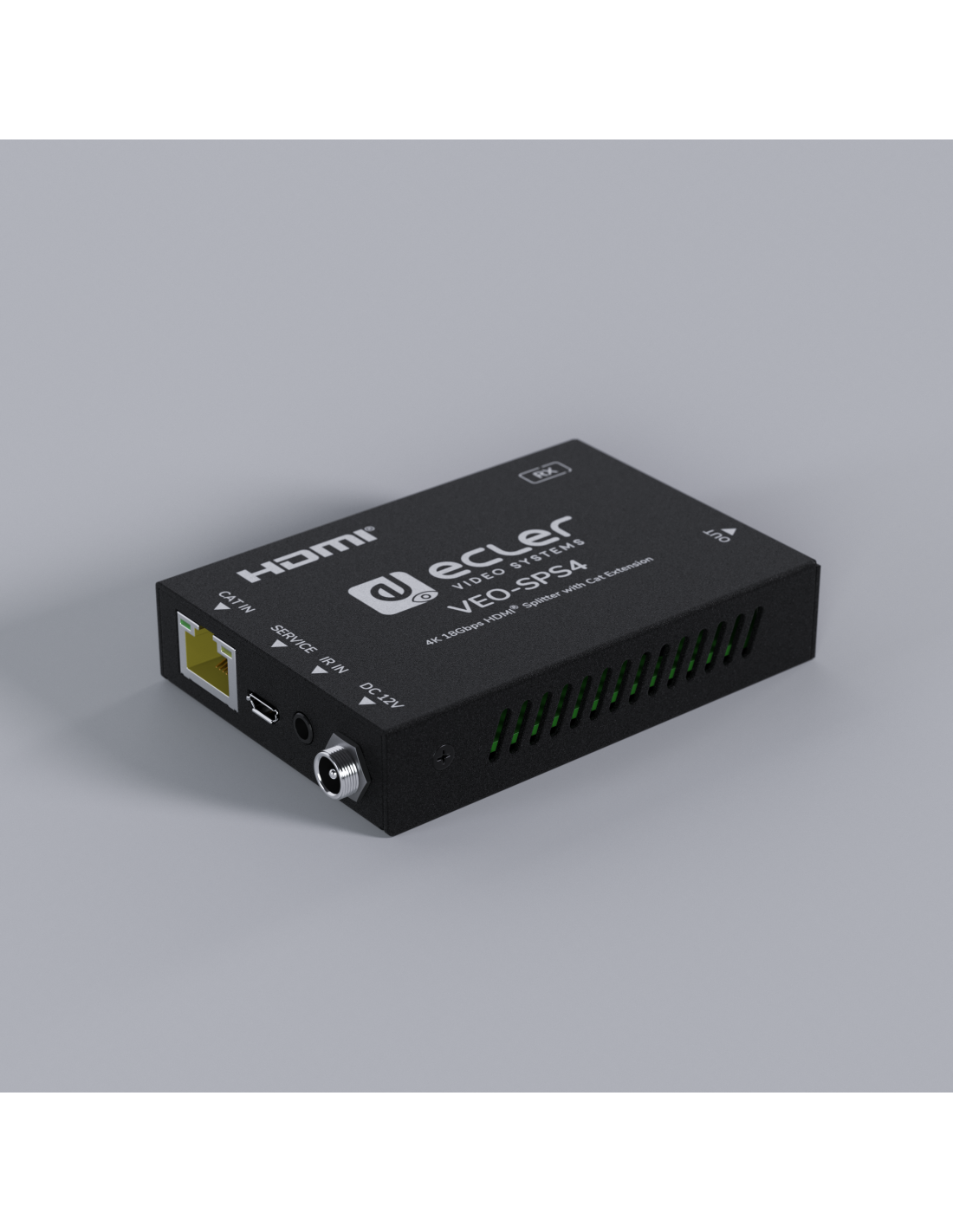

- VEO-SPS4 (Receiver RX): 88 x 18 x 61 mm / 3.46 x 0.71 x 2.4 in. (WxHxD)
Weight
- VEO-SPS42 (Splitter TX): 0.485 Kg / 1.07 lb
- VEO-SPS4 (Receiver RX): 0.155 Kg / 0.34 lb
Shipping dimensions
293 x 76 x 222 mm / 11.54 x 2.99 x 8.74 in. (WxHxD)
Shipping weight
1.278 kg / 2.82 lb
Frequency response
20Hz-20KHz (±3dB)
AC mains connector
External PSU. Included 4 region power blades (UK,US,AU,EU)
Power consumption
8.28W
Video Input Connectors
1 x HDMI® Type A Female, 2.0, 18Gbps
Video Output Connectors
1 x HDMI® Type A Female, 2.0, 18Gbps;
2 x RJ-45 Female
Video Input Resolutions
480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
Video Output Resolutions
HDMI® OUT on VEO-SPS4 RX & HDMI® Loop Out: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
Chroma Subsampling
4:4:4，4:2:2，4:2:0
Colour Depth
8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
Colour Space
RGB, YCbCr, YUV
HDCP
2.2 / 1.4
HDR
HLG，HDR 10， HDR10+，Dolby vision
Audio Output Connectors
1 x 3-pin unbalanced Euroblock
Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Sample Rate
48KHz, 96KHz, 192KHz
Bit Depth
Up to 24-bit
EDID Management
EDID Copy, Internal EDID Options
Status Indicators
Power LED, Link Status LED
Pass-through Connectors
1 x IR Jack 3,5mm
Power supply
External: Input 100-240VAC 50-60Hz 0.3A, Output 12VDC-1A
DC mains connector
DC Locking
Chassis material
Metal
Pass-through Protocols
IR
Control Protocols
RS-232
Transmission Distance
4K/60Hz up to 35m with Cat 5e or higher (600Mhz)
4K/30Hz up to 50m with Cat 5e or higher (300Mhz)
1080p/60Hz up to 70m with Cat 5e or higher (148,5Mhz)
Scaling Features
No
Control Conectors
1 x Micro USB Type B, 1 x DIP Switch

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

PHYSICAL
Operating temperature Min: 0°C; 32°F Max: 40°C; 104°F
Operating humidity 20% to 90% HR, non-condensing
Storage temperature Min: -20°C ; -4°F Max: 60°C ; 140°F
Storage humidity 40% to 60% HR, non-condensing
Included accessories 2 x VEO-SPS4 Receiver, 2 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 1 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears (Receiver), 2 x Mounting ears (Splitter), 12 x Mounting screw, 1 x PSU 12V/1A
Finished colour Black
Dimensions - VEO-SPS42 (Splitter TX): 175 x 25 x 100 mm / 6.89 x 0.98 x 3.94 in. (WxHxD) - VEO-SPS4 (Receiver RX): 88 x 18 x 61 mm / 3.46 x 0.71 x 2.4 in. (WxHxD)
Weight - VEO-SPS42 (Splitter TX): 0.485 Kg / 1.07 lb - VEO-SPS4 (Receiver RX): 0.155 Kg / 0.34 lb
Shipping dimensions 293 x 76 x 222 mm / 11.54 x 2.99 x 8.74 in. (WxHxD)
Shipping weight 1.278 kg / 2.82 lb
Chassis material Metal
ELECTRICAL
AC mains connector External PSU. Included 4 region power blades (UK,US,AU,EU)
Power consumption 8.28W
Power supply External: Input 100-240VAC 50-60Hz 0.3A, Output 12VDC-1A
DC mains connector DC Locking
DEVICE CONTROL
EDID Management EDID Copy, Internal EDID Options
Status Indicators Power LED, Link Status LED
Control Protocols RS-232
Control Conectors 1 x Micro USB Type B, 1 x DIP Switch
LINE OUTPUTS
Frequency response 20Hz-20KHz (±3dB)
VIDEO PERFOMANCES
Video Input Connectors 1 x HDMI® Type A Female, 2.0, 18Gbps
Video Output Connectors 1 x HDMI® Type A Female, 2.0, 18Gbps; 2 x RJ-45 Female
Video Input Resolutions 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
Video Output Resolutions HDMI® OUT on VEO-SPS4 RX & HDMI® Loop Out: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
Chroma Subsampling 4:4:4，4:2:2，4:2:0
Colour Depth 8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
Colour Space RGB, YCbCr, YUV
HDCP 2.2 / 1.4
HDR HLG，HDR 10， HDR10+，Dolby vision
Scaling Features No
AUDIO PERFORMANCES
Audio Output Connectors 1 x 3-pin unbalanced Euroblock
Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Sample Rate 48KHz, 96KHz, 192KHz
Bit Depth Up to 24-bit
PASS-THROUGH CONTROL
Pass-through Connectors 1 x IR Jack 3,5mm
Pass-through Protocols IR
CONNECTION SPECIFICATION
HDBaseT SPECIFICATION
Transmission Distance 4K/60Hz up to 35m with Cat 5e or higher (600Mhz) 4K/30Hz up to 50m with Cat 5e or higher (300Mhz) 1080p/60Hz up to 70m with Cat 5e or higher (148,5Mhz)
