VEO-SPH48
CVEOSPH48
Available

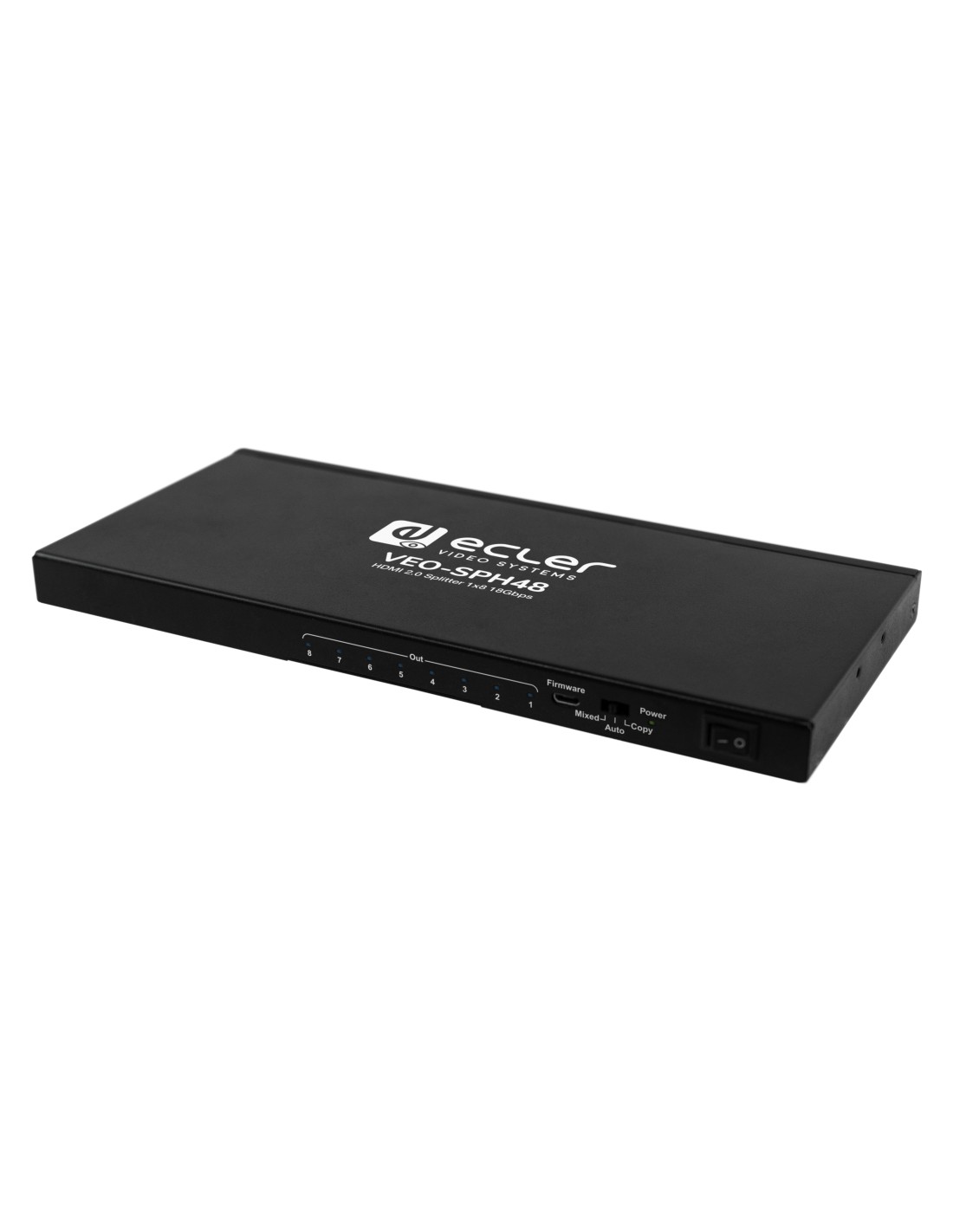

1x8 HDMI® Splitter
VEO-SPH48 is a 1×8 HDMI® splitter for high dynamic range (HDR) formats. Simultaneously displays an UItra Hi-Definition source on up to eight UItra HD displays. It includes EDID management features.
- Operating temperature
- Min: -5°C ; 41°F
Max: 40°C ; 104°F - Operating humidity
- 5 to 90% (no condensation)
- Included accessories
- 1 x 5V DC 1A International Power Supply
- Finished colour
- Black
- Dimensions
- 248 x 17 x 110 mm / 9.76 x 0.67 x 4.33 in. (WxHxD)
- Weight
- 0.610 kg / 1.34 lb
- Shipping dimensions
- 280 x 50 x 200 mm / 11 x 1.97 x 7.87 in. (WxHxD)
- Shipping weight
- 1.0 kg / 2.2 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307611
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Power consumption
- 5 W Maximum
- Video Input Connectors
- 1 HDMI Type A Female, 2.0, 18 Gbps
1 HDMI® Type A Female, 18 Gbps - Video Output Connectors
- 8 HDMI Type A Female, 2.0, 18 Gbps
8 HDMI® Type A Female, 18 Gbps - Video Input Resolutions
- Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i - Video Output Resolutions
- Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i - Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit, 10-bit, 12-bit
- Colour Space
- RGB, YCbCr
- HDCP
- 2.2/1.4 Compliant
- HDR
- HDR 10
- HDMI Distance
- up to 10 meters (33 feet) with Ecler VEO cables
- Audio Formats
- PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio
- Sample Rate
- 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Depth
- Up to 24-bit
- EDID Management
- Switch
- Status Indicators
- 8 HDMI Output link indicators, Power LED indicator
8 HDMI® Output link indicators, Power LED indicator - Power supply
- AC100V-240V @ 50-60Hz Output: DC 5V-1A
- DC mains connector
- 5V DC Power Connector
- Chassis material
- Metal
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Operating temperature |
Min: -5°C ; 41°F
Max: 40°C ; 104°F |
|---|---|
| Operating humidity |
5 to 90% (no condensation) |
| Included accessories |
1 x 5V DC 1A International Power Supply |
| Finished colour |
Black |
| Dimensions |
248 x 17 x 110 mm / 9.76 x 0.67 x 4.33 in. (WxHxD) |
| Weight |
0.610 kg / 1.34 lb |
| Shipping dimensions |
280 x 50 x 200 mm / 11 x 1.97 x 7.87 in. (WxHxD) |
| Shipping weight |
1.0 kg / 2.2 lb |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307611 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power consumption |
5 W Maximum |
|---|---|
| Power supply |
AC100V-240V @ 50-60Hz Output: DC 5V-1A |
| DC mains connector |
5V DC Power Connector |
DEVICE CONTROL
| EDID Management |
Switch |
|---|---|
| Status Indicators |
8 HDMI Output link indicators, Power LED indicator 8 HDMI® Output link indicators, Power LED indicator |
VIDEO PERFOMANCES
| Video Input Connectors |
1 HDMI Type A Female, 2.0, 18 Gbps 1 HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Output Connectors |
8 HDMI Type A Female, 2.0, 18 Gbps 8 HDMI® Type A Female, 18 Gbps |
| Video Input Resolutions |
Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i |
| Video Output Resolutions |
Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Colour Depth |
8-bit, 10-bit, 12-bit |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.2/1.4 Compliant |
| HDR |
HDR 10 |
| HDMI Distance |
up to 10 meters (33 feet) with Ecler VEO cables |
AUDIO PERFORMANCES
| Audio Formats |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio |
|---|---|
| Sample Rate |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Bit Depth |
Up to 24-bit |
