VEO-SPH42
CVEOSPH42
Available

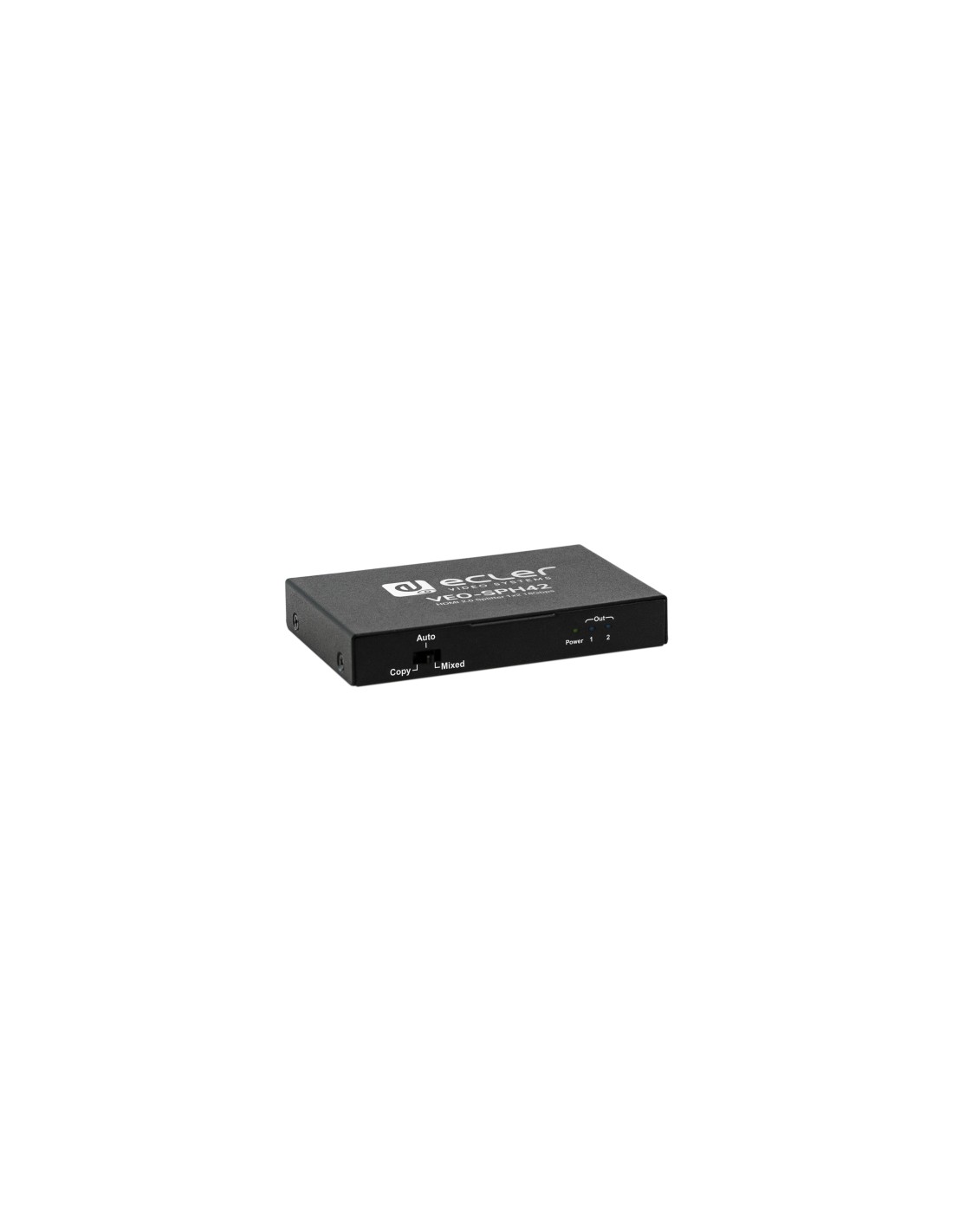

1x2 HDMI® Splitter
VEO-SPH42 is a 1×2 HDMI® splitter for high dynamic range (HDR) formats. Simultaneously displays an UItra Hi-Definition source on up to two UItra HD displays.
- Operating temperature
- Min: -5°C ; 41°F
Max: 40°C ; 104°F - Operating humidity
- 5 - 90% (no condensation)
- Included accessories
- 1 x DC 5V 1A International Power Supply
- Finished colour
- Black
- Dimensions
- 93 x 15 x 60 mm / 3.66 x 0.59 x 2.36 in. (WxHxD)
- Weight
- 0.120 kg / 0.265 lb
- Shipping dimensions
- 150 x 60 x 210 mm / 5.91 x 2.36 x 8.27 in. (WxHxD)
- Shipping weight
- 0.4 kg / 0.88 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307567
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Power consumption
- 1 W Maximum

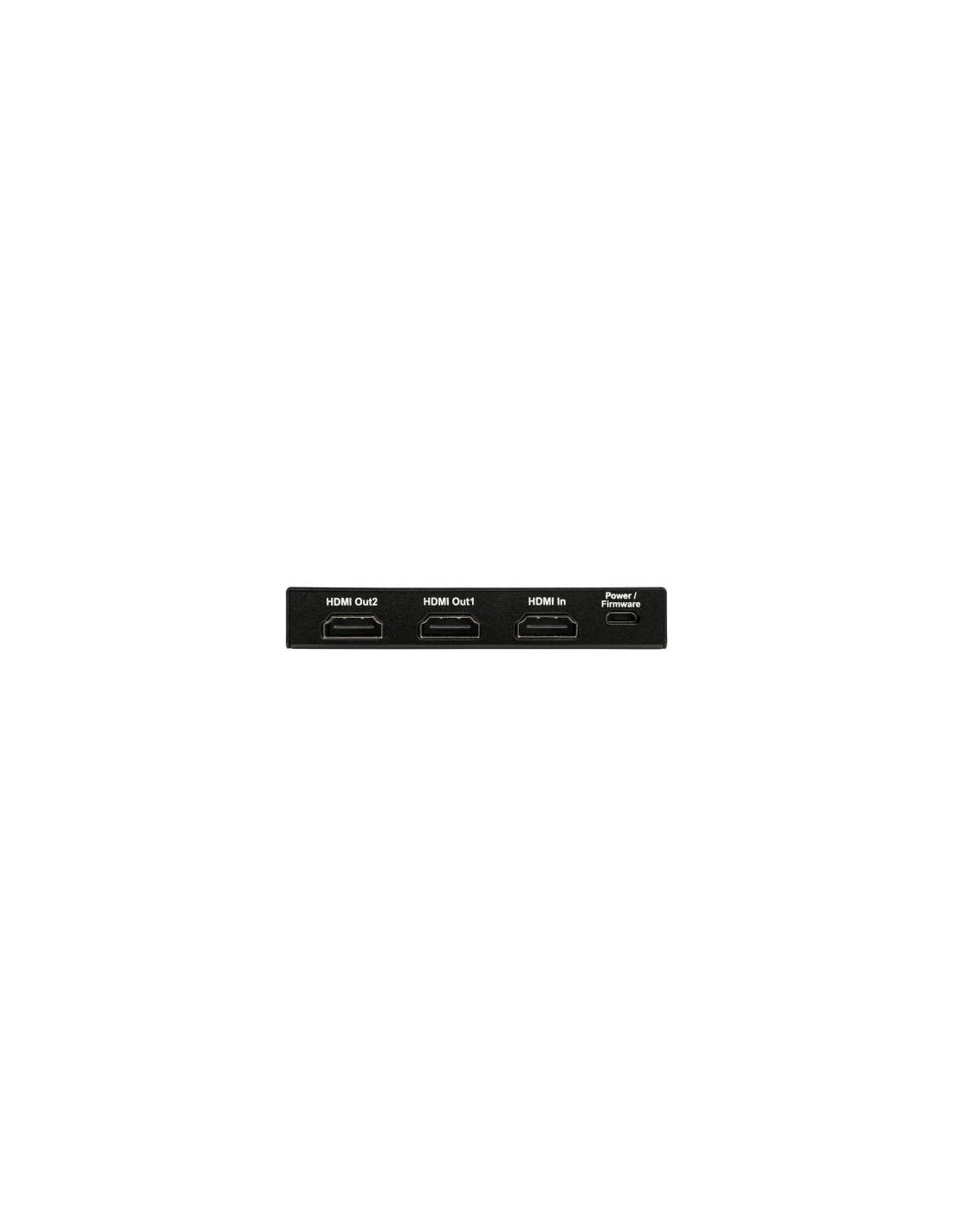

- Video Input Connectors
- 1 HDMI Type A Female, 2.0, 18 Gbps
1 HDMI® Type A Female, 2.0, 18 Gbps - Video Output Connectors
- 2 HDMI Type A Female, 2.0, 18 Gbps
2 HDMI® Type A Female, 2.0, 18 Gbps - Video Input Resolutions
- Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i - Video Output Resolutions
- Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i - Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit, 10-bit, 12-bit
- Colour Space
- RGB, YCbCr
- HDCP
- 2.2/1.4 Compliant
- HDR
- HDR10
- HDMI Distance
- up to 10 meters (33 feet) with Ecler VEO cables
- Audio Formats
- PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio
- Sample Rate
- 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Depth
- Up to 24-bit
- EDID Management
- Switch

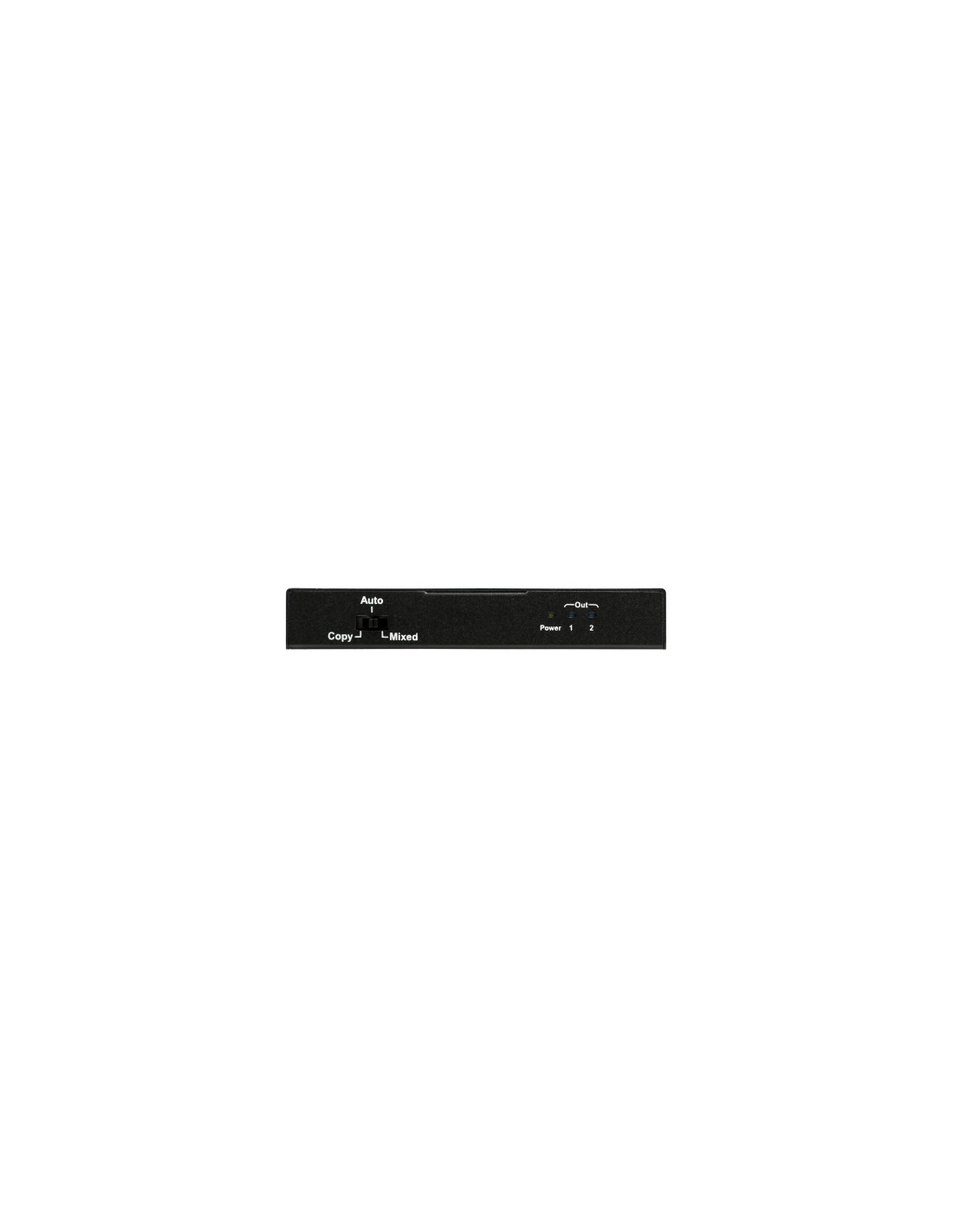

- Status Indicators
- 2 HDMI output link indicators, Power LED indicator
2 HDMI® output link indicators, Power LED indicator - Power supply
- AC100V-240V @ 50-60Hz
Output: DC 5V-1A - DC mains connector
- 5V DC Power Micro USB Connector
- Chassis material
- Metal
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Operating temperature |
Min: -5°C ; 41°F
Max: 40°C ; 104°F |
|---|---|
| Operating humidity |
5 - 90% (no condensation) |
| Included accessories |
1 x DC 5V 1A International Power Supply |
| Finished colour |
Black |
| Dimensions |
93 x 15 x 60 mm / 3.66 x 0.59 x 2.36 in. (WxHxD) |
| Weight |
0.120 kg / 0.265 lb
|
| Shipping dimensions |
150 x 60 x 210 mm / 5.91 x 2.36 x 8.27 in. (WxHxD) |
| Shipping weight |
0.4 kg / 0.88 lb |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307567 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power consumption |
1 W Maximum |
|---|---|
| Power supply |
AC100V-240V @ 50-60Hz
Output: DC 5V-1A |
| DC mains connector |
5V DC Power Micro USB Connector |
DEVICE CONTROL
| EDID Management |
Switch |
|---|---|
| Status Indicators |
2 HDMI output link indicators, Power LED indicator 2 HDMI® output link indicators, Power LED indicator |
VIDEO PERFOMANCES
| Video Input Connectors |
1 HDMI Type A Female, 2.0, 18 Gbps 1 HDMI® Type A Female, 2.0, 18 Gbps |
|---|---|
| Video Output Connectors |
2 HDMI Type A Female, 2.0, 18 Gbps 2 HDMI® Type A Female, 2.0, 18 Gbps |
| Video Input Resolutions |
Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i |
| Video Output Resolutions |
Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Colour Depth |
8-bit, 10-bit, 12-bit |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.2/1.4 Compliant |
| HDR |
HDR10 |
| HDMI Distance |
up to 10 meters (33 feet) with Ecler VEO cables |
AUDIO PERFORMANCES
| Audio Formats |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio |
|---|---|
| Sample Rate |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Bit Depth |
Up to 24-bit |
