WASH/PIXEL Team

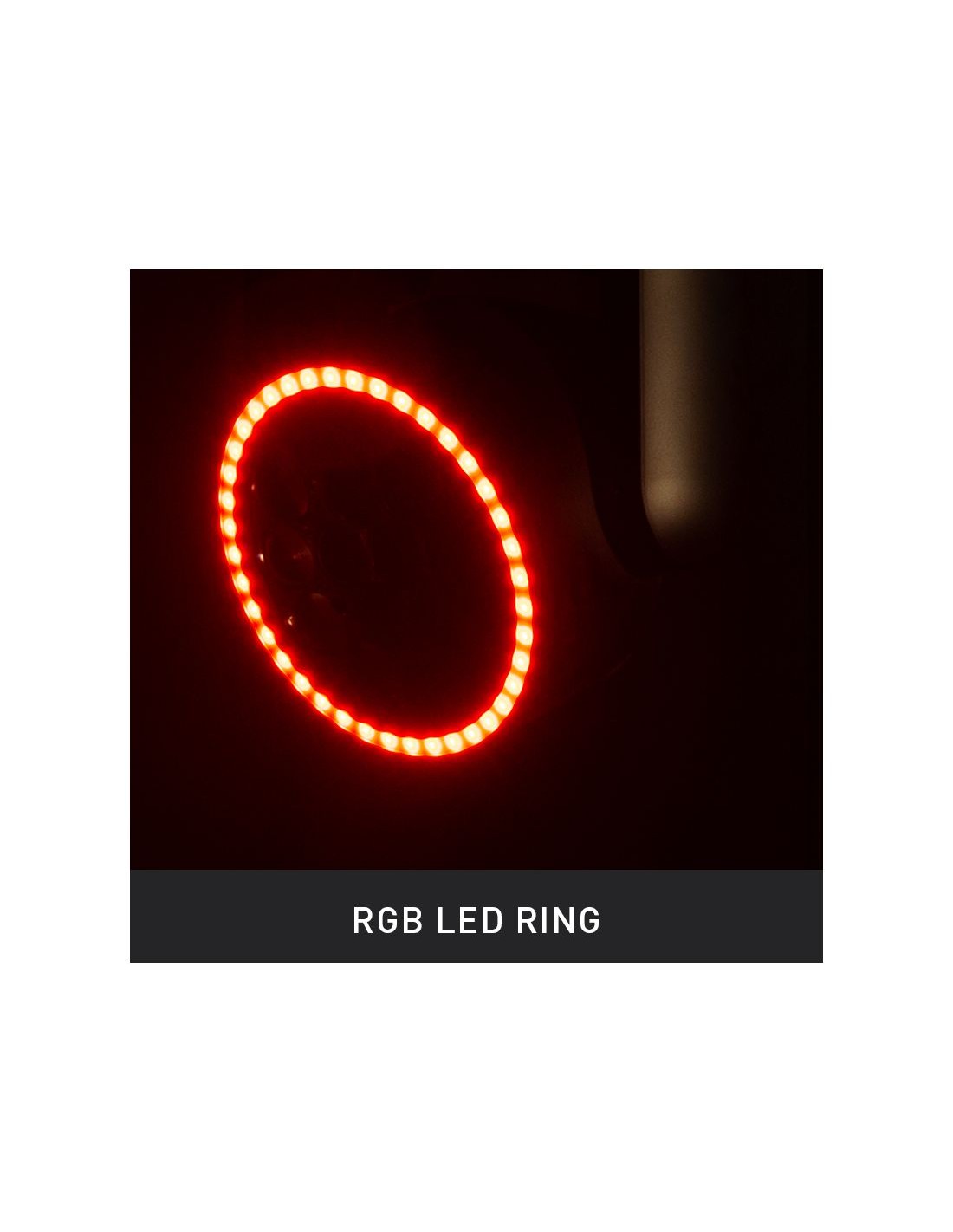

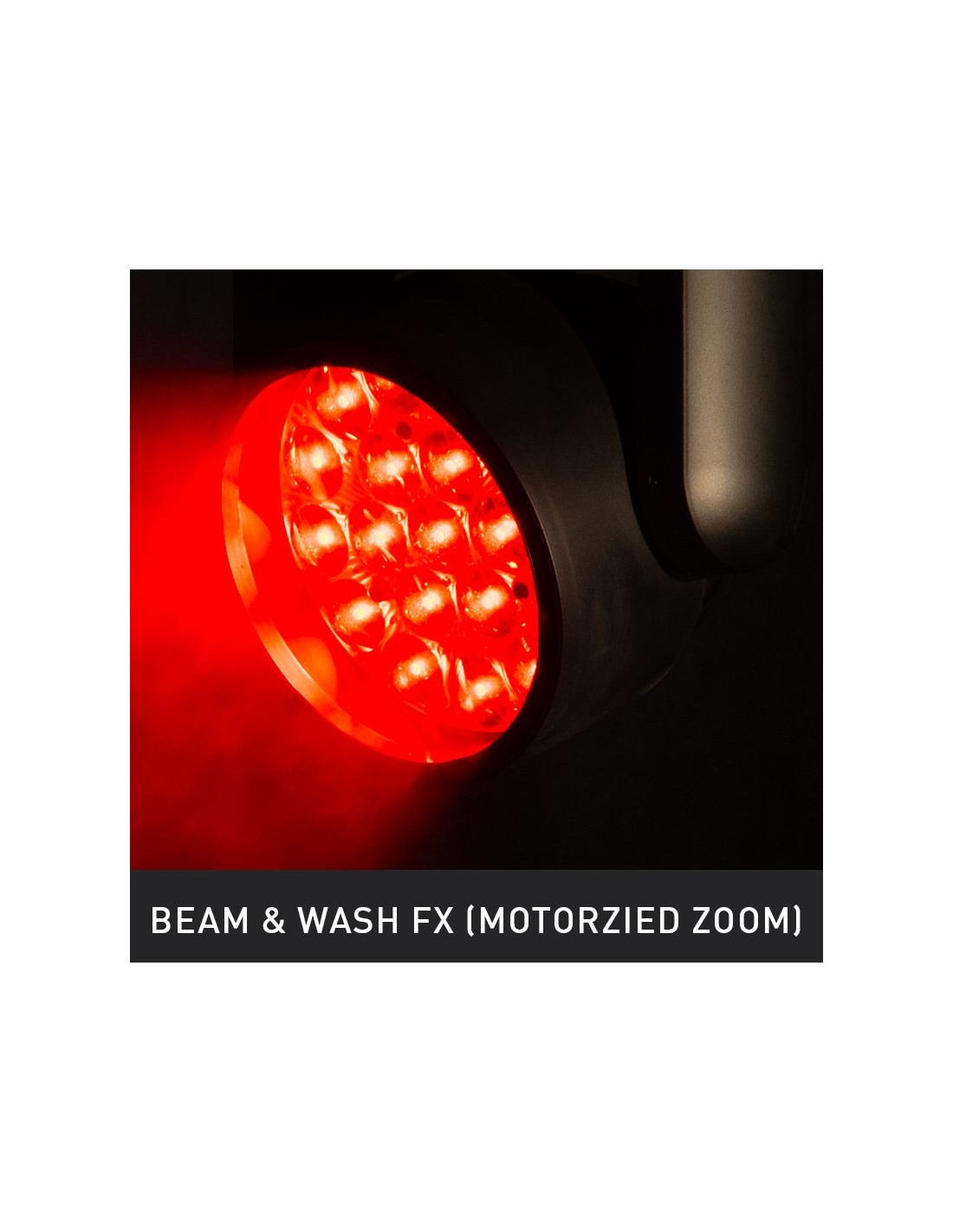

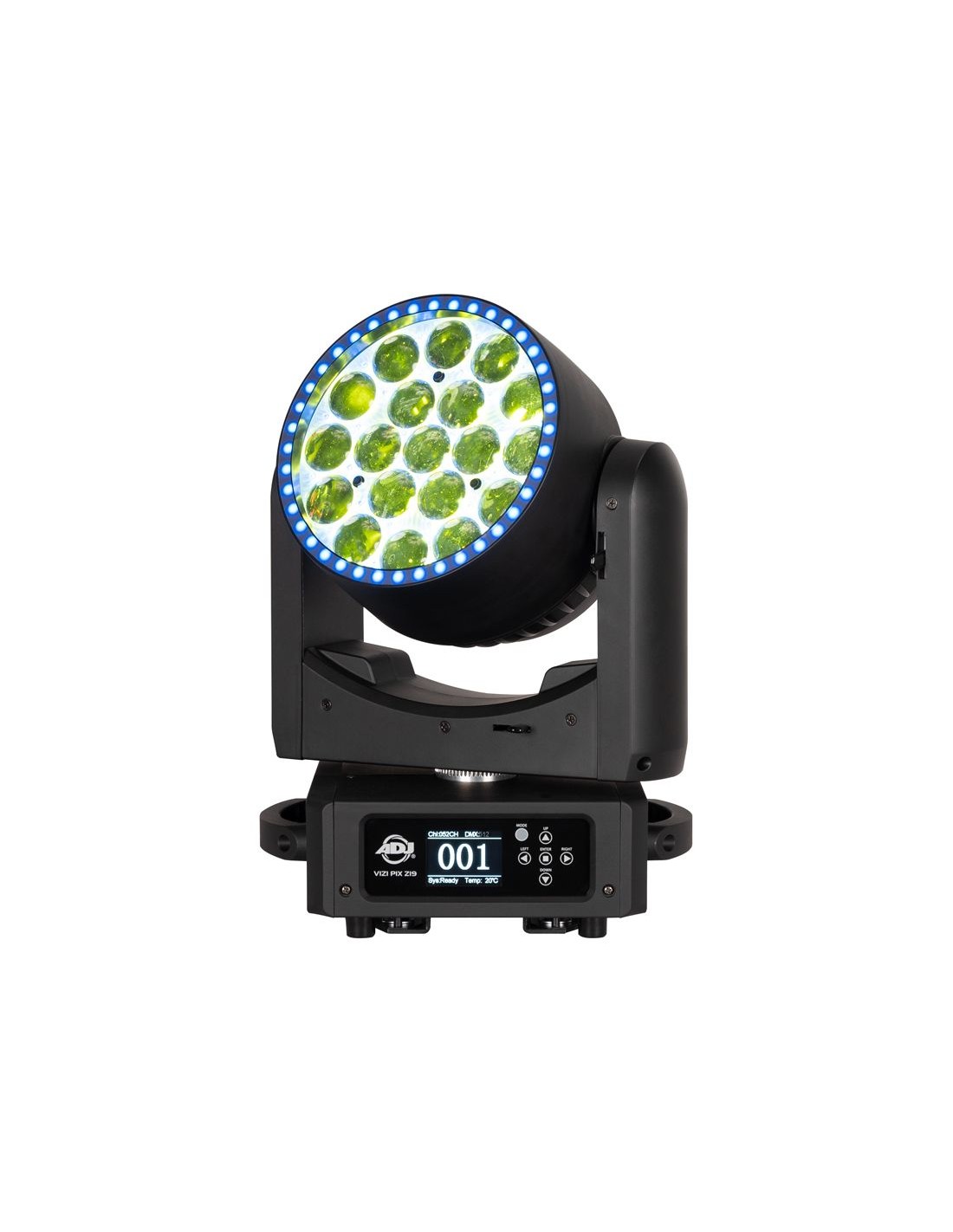

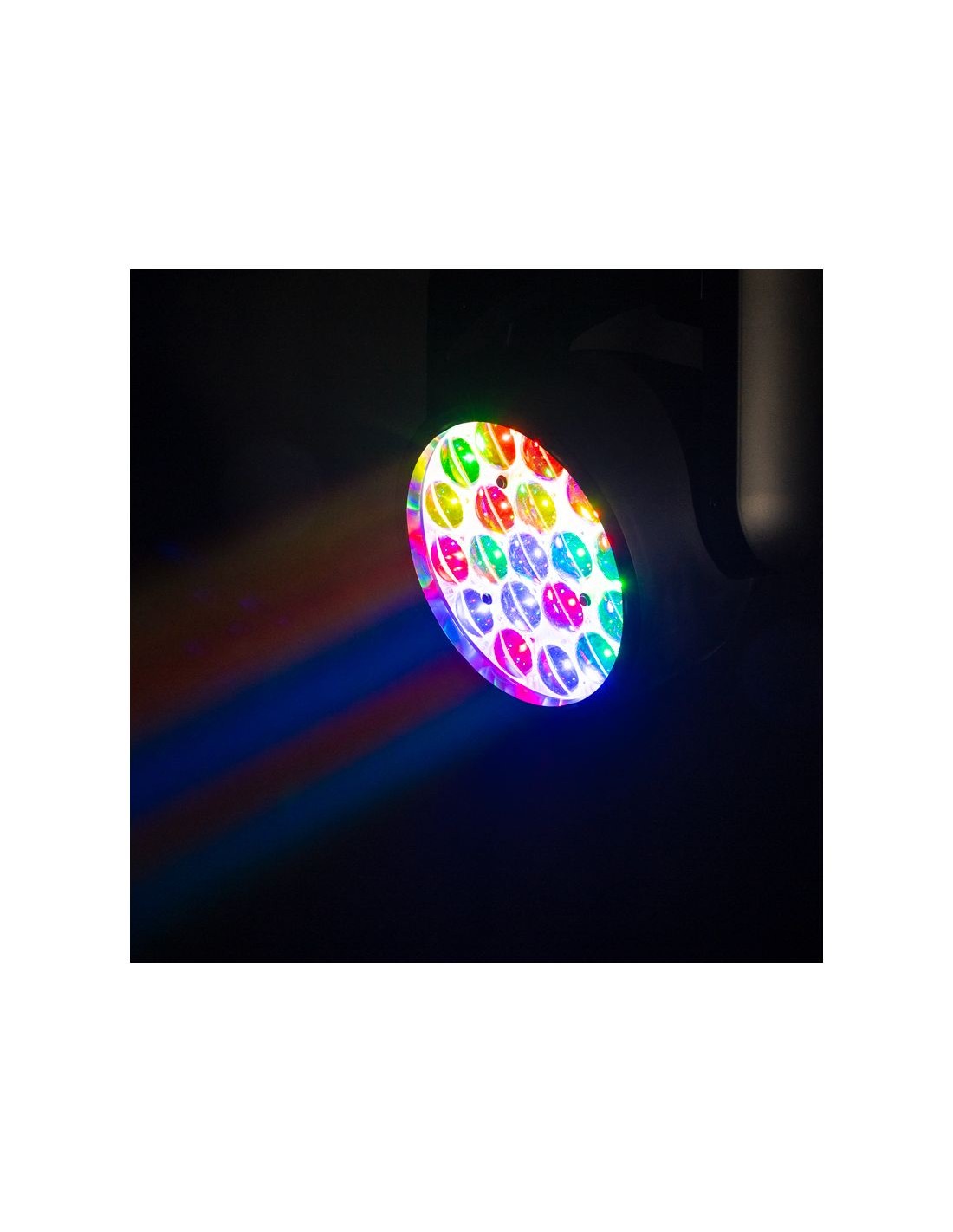

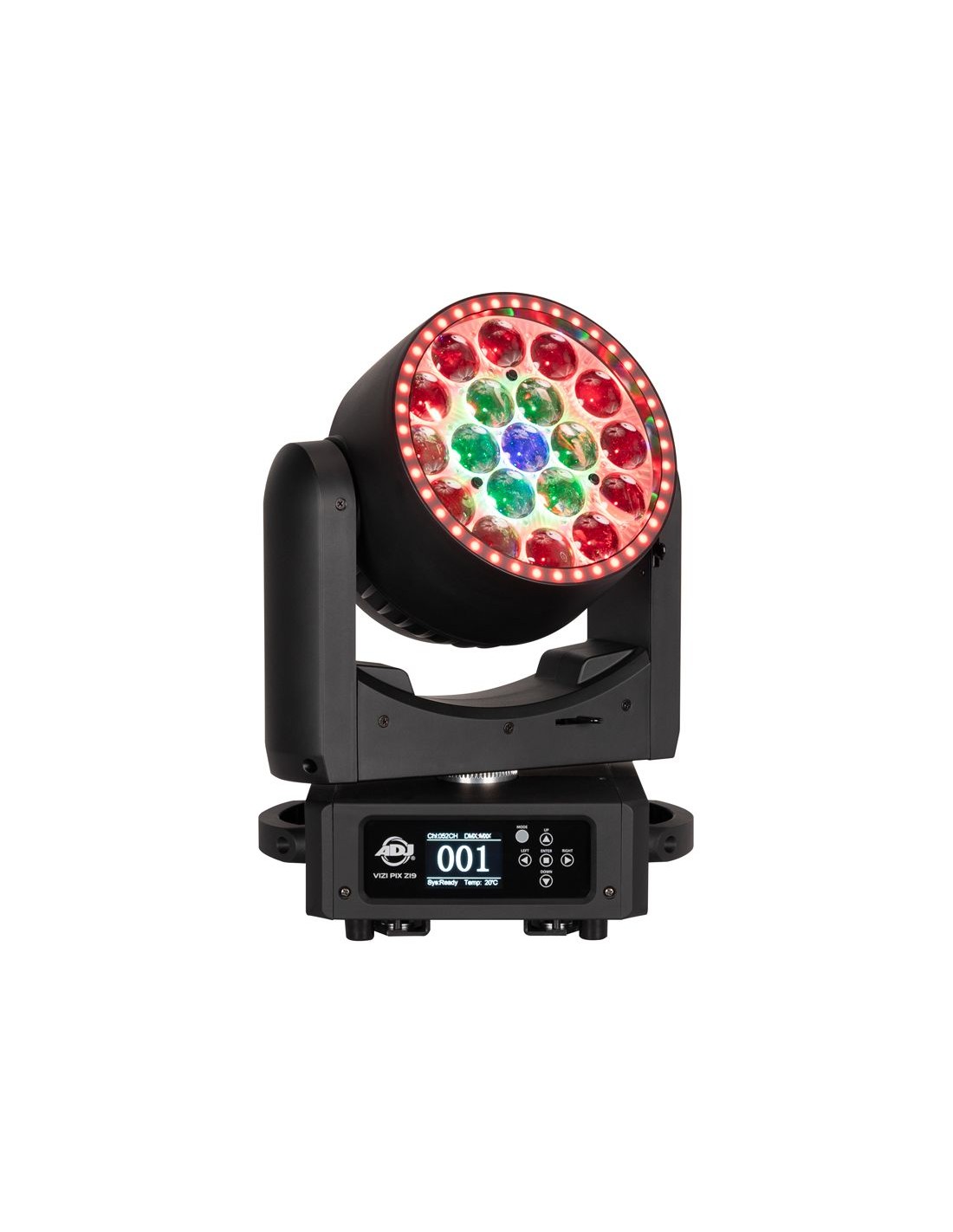

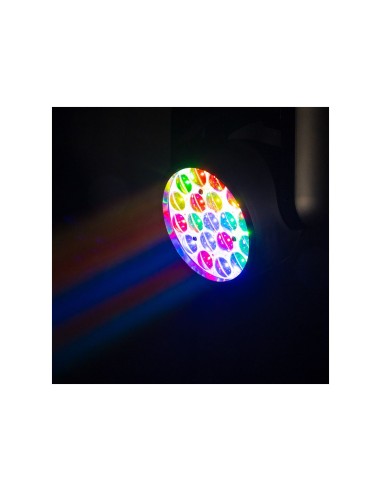

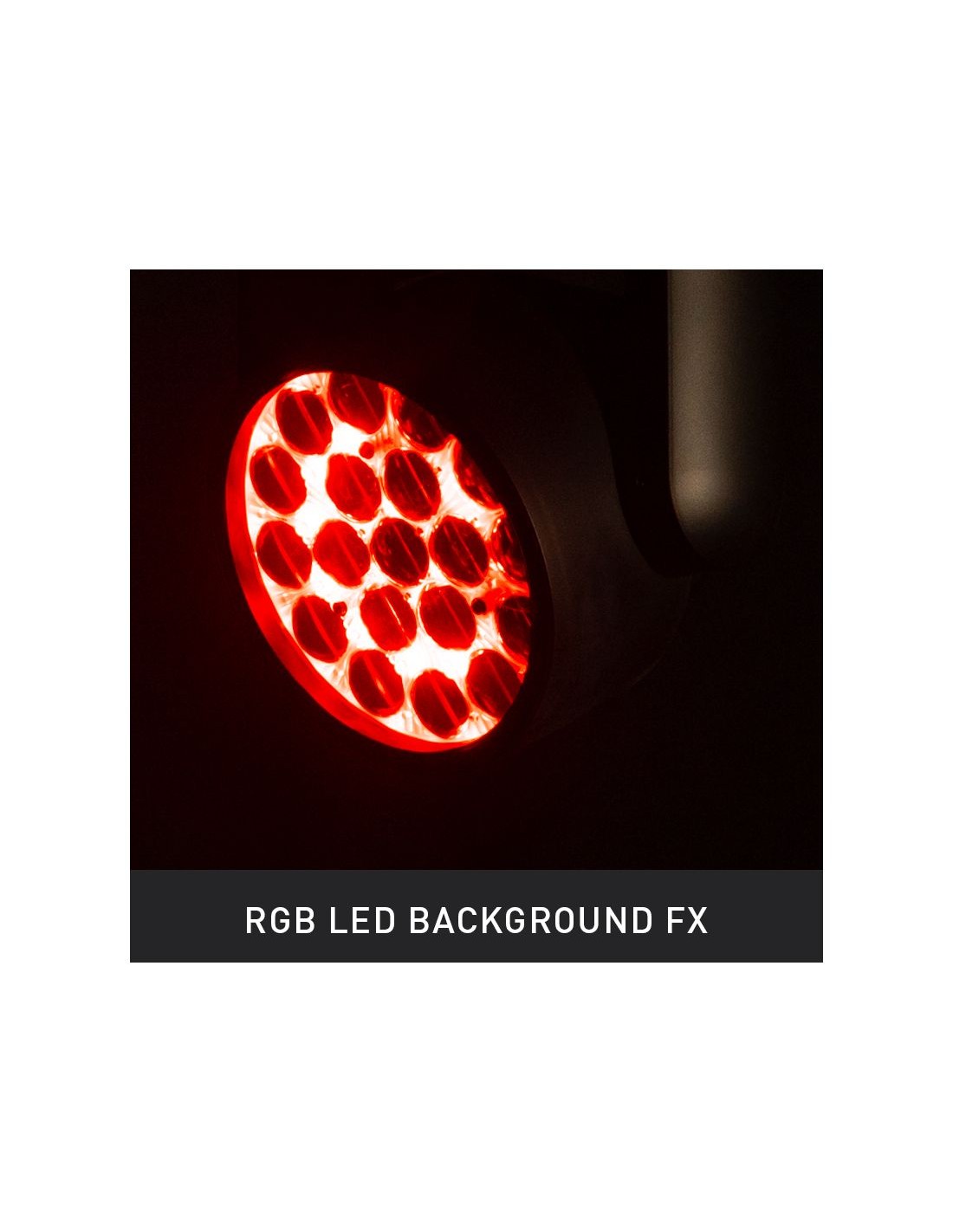

WASH/PIXEL Team Equipped with 19 RGBL 30-watt LEDs, the device offers an advanced virtual CMY color mixing, a wide motorized zoom range, and smooth electronic dimming, making it ideal for creating everything, with 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable to generate complex patterns and stunning effects. The built-in pixel effect programs and color macros further expand its creative possibilities. Control options include DMX, Artnet, sACN, RDM, and the Aria X2 wireless system for seamless integration and wireless updates. Adjustable dimming curves, selectable LED refresh rates, and a white color temperature range from 2700 K to 10,000 K ensure flexibility in various environments, from live performances to broadcasting studios.

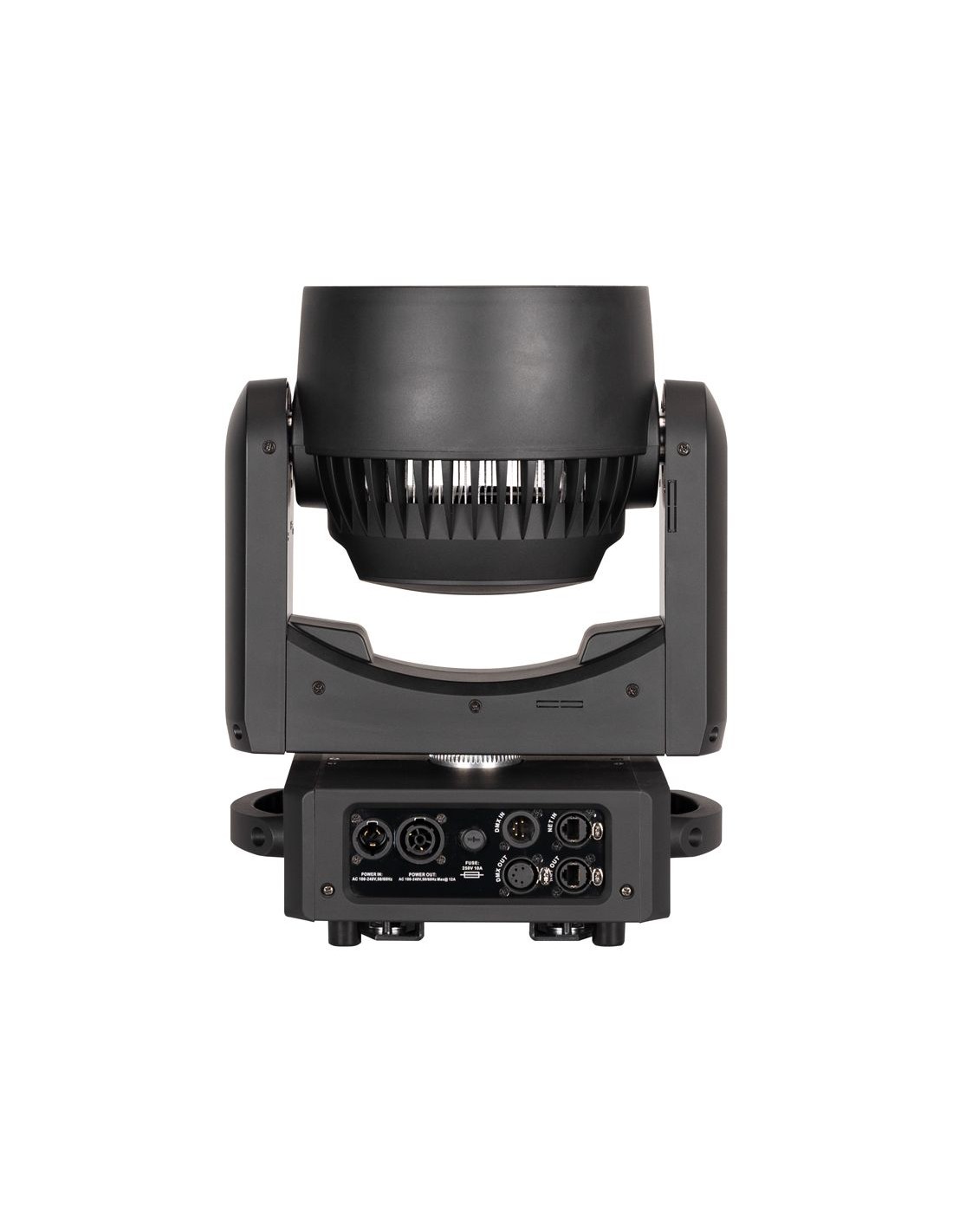

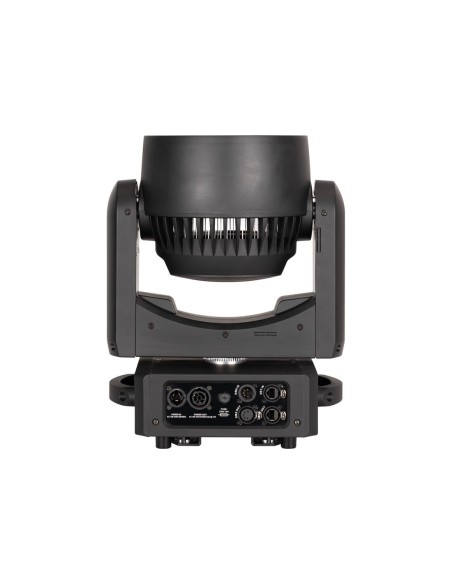

With robust tilt/pan locks, durable Seetronic power and data connections, and a lightweight, low-maintenance construction.
- Weight
- 10.1 kg
- Modos de trabajo DMX
- 7 DMX Control Modes: 28 / 37 / M1 52 / M2 52 / 119 / 127 & 197 channels
- Tensión de alimentación
- AC100-230V, 50/60Hz
- Consumo máximo
- 550W @ 230V
- Longitud
- 304mm
- Amplitud
- 230mm
- Altura vertical
- 407.9MM
- Movimiento PAN / TILT
- Pan: 630° or 540°
Tilt: 270°
16-Bit Fine Pan & Tilt
Pan & Tilt Locks
PHYSICAL
| Weight |
10.1 kg |
|---|
CONTROL
| Modos de trabajo DMX |
7 DMX Control Modes: 28 / 37 / M1 52 / M2 52 / 119 / 127 & 197 channels |
|---|---|
| Movimiento PAN / TILT |
Pan: 630° or 540°
Tilt: 270°
16-Bit Fine Pan & Tilt
Pan & Tilt Locks |
ALIMENTACION y TEMPERATURA
| Tensión de alimentación |
AC100-230V, 50/60Hz |
|---|---|
| Consumo máximo |
550W @ 230V |
DIMENSIONES Y PESO
| Longitud |
304mm |
|---|---|
| Amplitud |
230mm |
| Altura vertical |
407.9MM |
