Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12
Hydro Beam X12

Hydro Beam X12

CACMIBM0317
Check availability

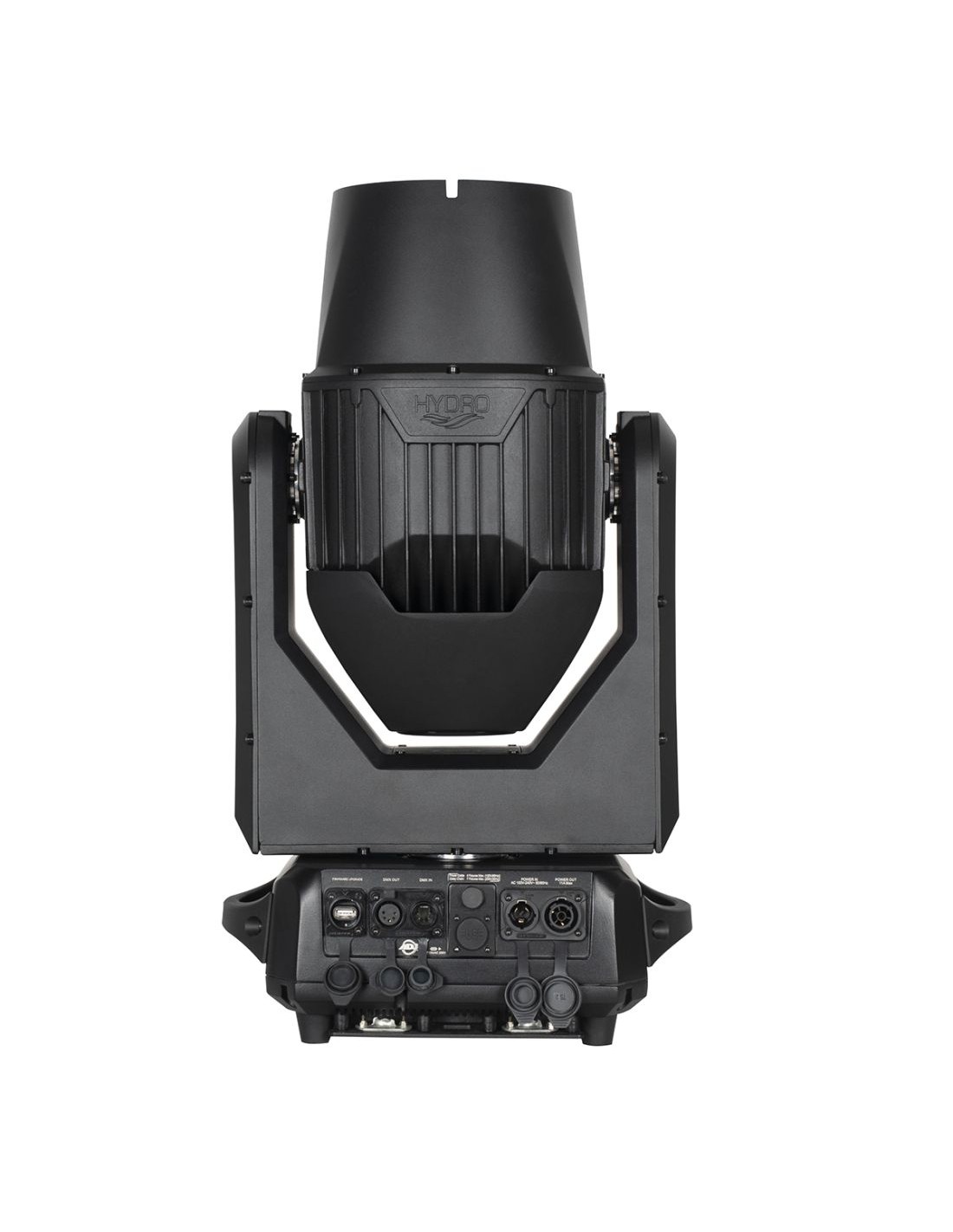

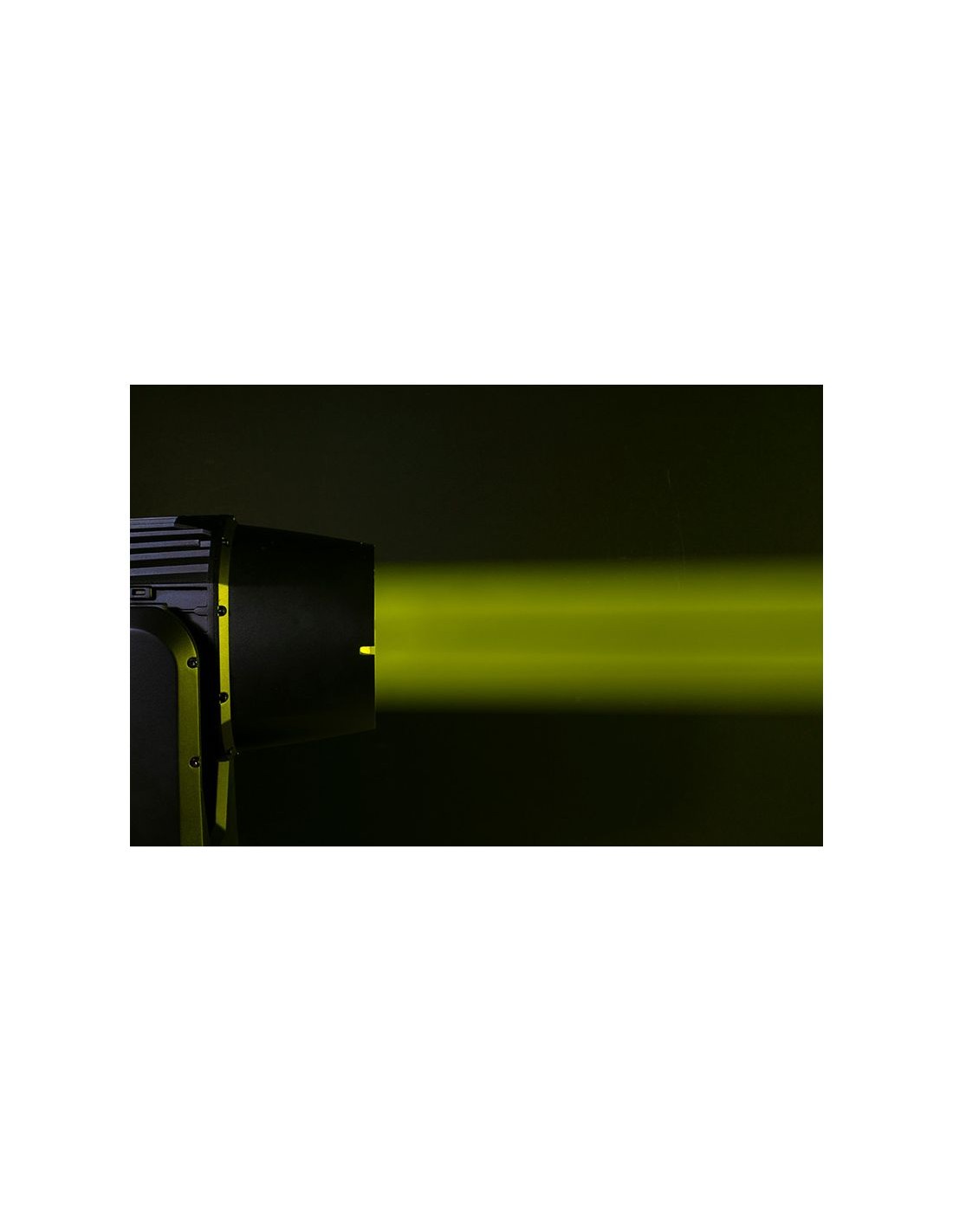

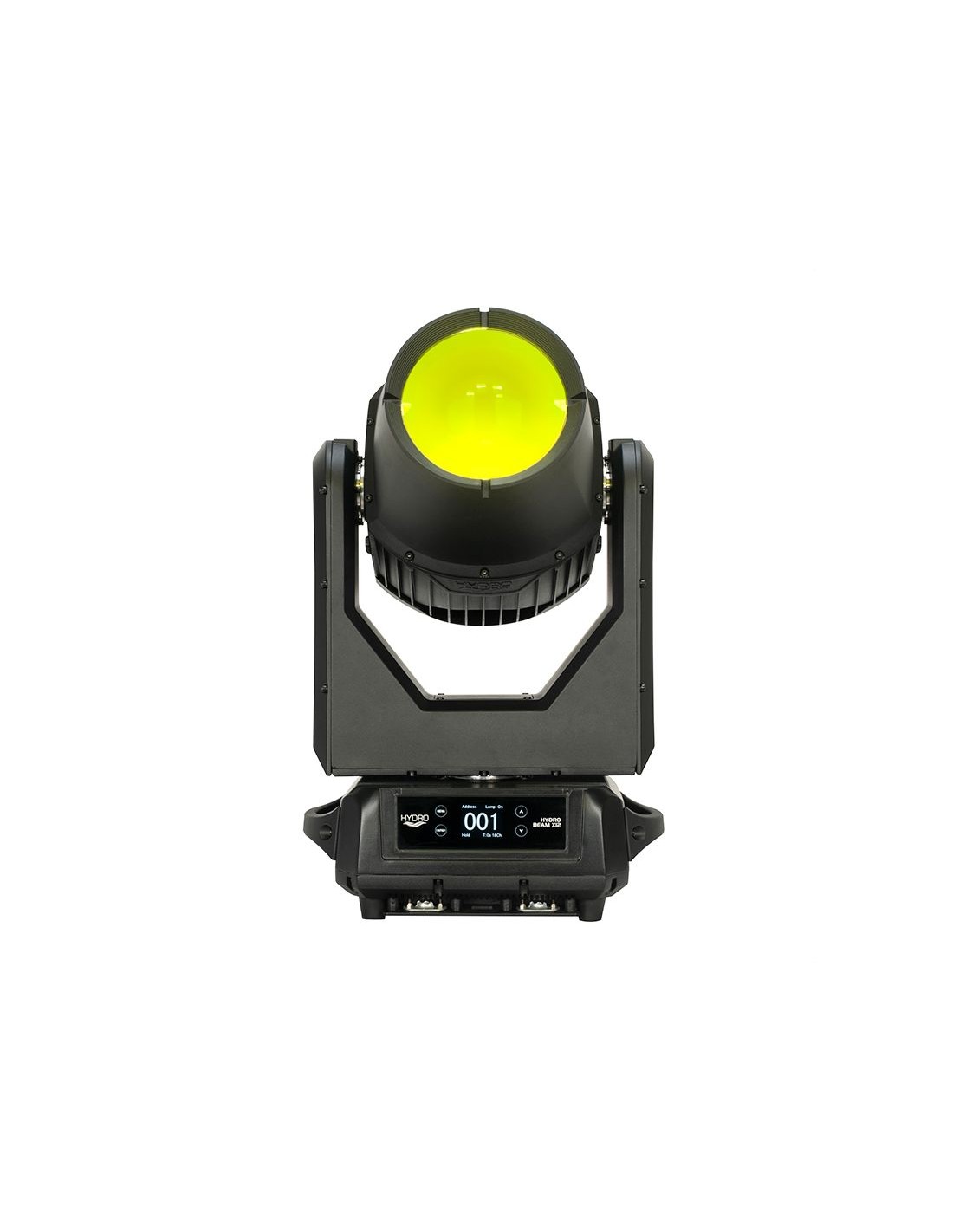

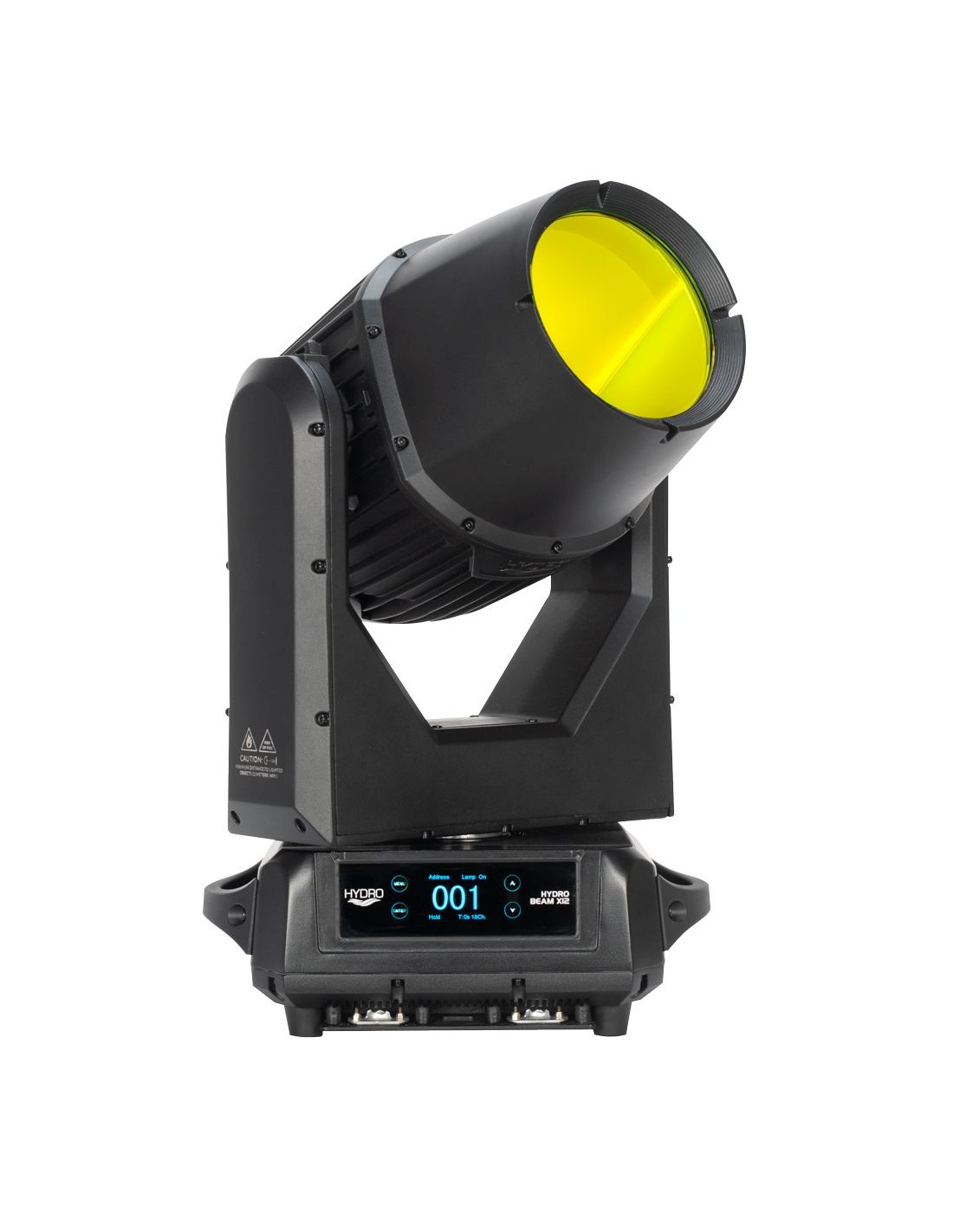

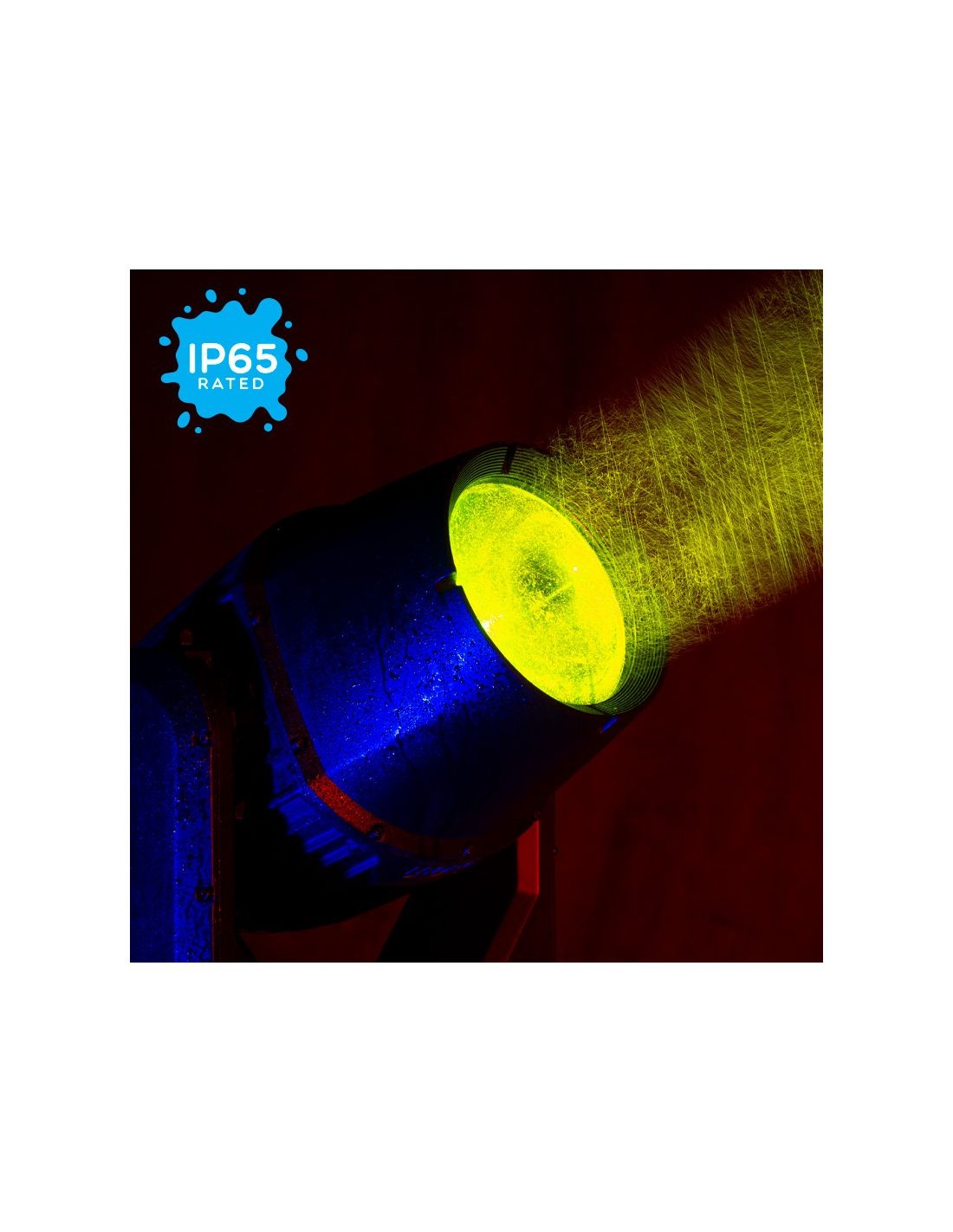

Designed to create stunning aerial effects both inside and outdoors, the ADJ Hydro Beam X12 is a powerful and feature-packed moving head beam fixture with an IP65 ‘outdoor’ rating. Harnessing the power of the latest Philips® Platinum 12R LL MSD Discharge Lamp technology, focused through high quality optics, it creates a piercing beam of light with a tight 2-degree beam angle. Designed for both indoor and outdoor use, the Hydro Beam X12 has a robust construction and an IP65-rating. Its durable casing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from sandy beach parties to rainy festival fields. Perfect for all kinds of outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this ground-breaking fixture also offers an extended operational life and reduced maintenance requirement when installed indoors, due to its sealed casing design. The Hydro Beam X12’s carefully curated selection of beam-shaping tools deliver the functionality that lighting designers need, while allowing the fixture to remain compact and agile. It features 14 colors + white, including UV, CTO (3200K) and CTB (6000K), with support for split colors and bidirectional scrolling. A static GOBO wheel features 16 patterns (plus open) optimized for aerial effects, including four beam reducers, and offers GOBO shake and bidirectional GOBO scrolling effects.
Weight
21.8 kg
21.8 kg
Power supply
IP65 rated power locking In/Out connections
IP65 rated power locking In/Out connections
Modos de trabajo DMX
2 DMX Channel Modes: 14/18 Channels
Tensión de alimentación
Multi-voltage operation: 100-240V, 50/60Hz
Consumo máximo
422W (@230V)
422W (@230V)
Longitud
356 mm.
356 mm.
Amplitud
240 mm.
240 mm.
Altura vertical
615.8 mm.
615.8 mm.
Rueda de color
Bidirectional color wheel scrolling
Movimiento PAN / TILT
Pan: 540 degrees (plus 16-bit fine pan) / Tilt: 270 degrees (plus 16-bit fine tilt)
CMY
14 dichroic colors + white [Includes CTO (3200K), CTB (6000K) & UV]
Gobos fijos
16 static GOBOs + open (4 GOBOs are beam reducers)
Ángulo de apertura Beam
Prisma
2 Rotating prisms: 6-facet Linear and 24-facet Circular, overlayable
Filtro difusor (Frost)
Frost Filter to create wash effect
Dimmer / Shutter
5 Dimmer Curves
Rueda de animación
Bidirectional gobo wheel scrolling
Grado de protección
IP65 rating
IP65 rating

Services and facilities implemented

¿Necesitas ayuda?

Contacta con el comercial más cercano

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

PHYSICAL
Weight 21.8 kg
21.8 kg
ELECTRICAL
Power supply IP65 rated power locking In/Out connections
IP65 rated power locking In/Out connections
CONSTRUCCION
Grado de protección IP65 rating
Grado de protección IP65 rating
CONTROL
Modos de trabajo DMX 2 DMX Channel Modes: 14/18 Channels
Movimiento PAN / TILT Pan: 540 degrees (plus 16-bit fine pan) / Tilt: 270 degrees (plus 16-bit fine tilt)
COLOR
Rueda de color Bidirectional color wheel scrolling
CMY 14 dichroic colors + white [Includes CTO (3200K), CTB (6000K) & UV]
ALIMENTACION y TEMPERATURA
Tensión de alimentación Multi-voltage operation: 100-240V, 50/60Hz
Consumo máximo 422W (@230V)
422W (@230V)
DIMENSIONES Y PESO
Longitud 356 mm.
356 mm.
Amplitud 240 mm.
240 mm.
Altura vertical 615.8 mm.
615.8 mm.
ÓPTICAS
Ángulo de apertura Beam
Prisma 2 Rotating prisms: 6-facet Linear and 24-facet Circular, overlayable
Filtro difusor (Frost) Frost Filter to create wash effect
Dimmer / Shutter 5 Dimmer Curves
GOBOS Y EFECTOS
Gobos fijos 16 static GOBOs + open (4 GOBOs are beam reducers)
Rueda de animación Bidirectional gobo wheel scrolling
