CALEDPAR0363
Check availability

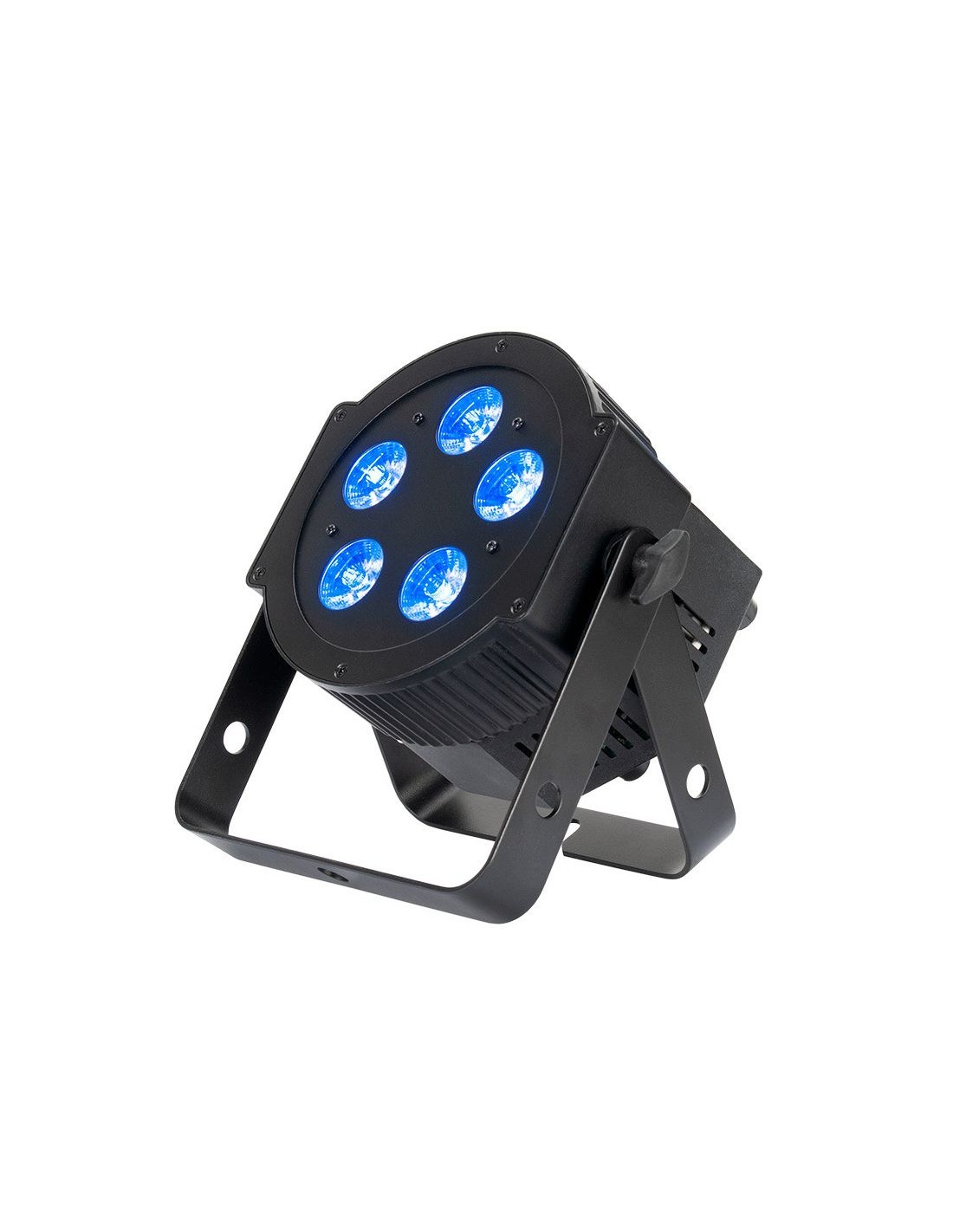

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 12-Watt
See more Features Resources

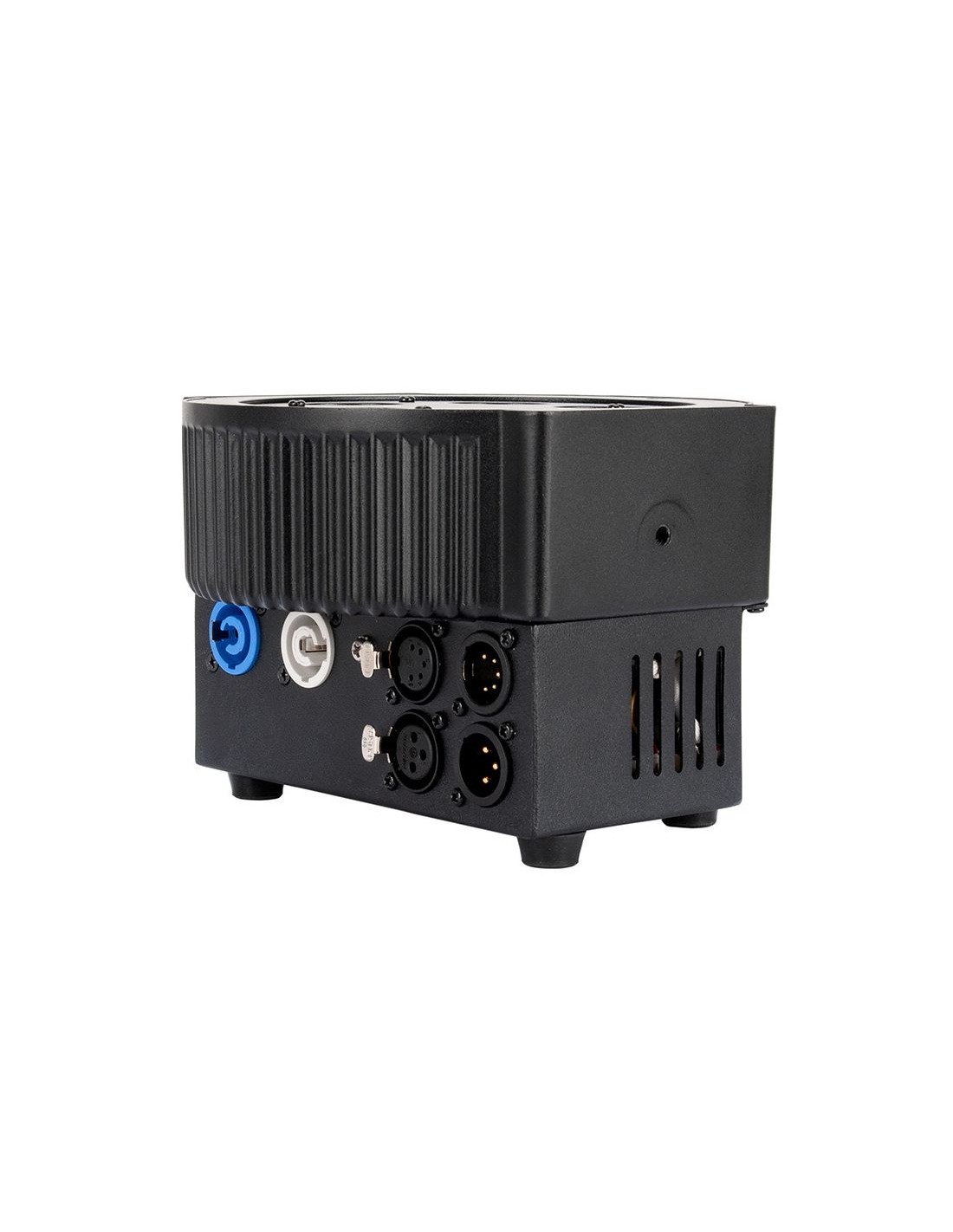

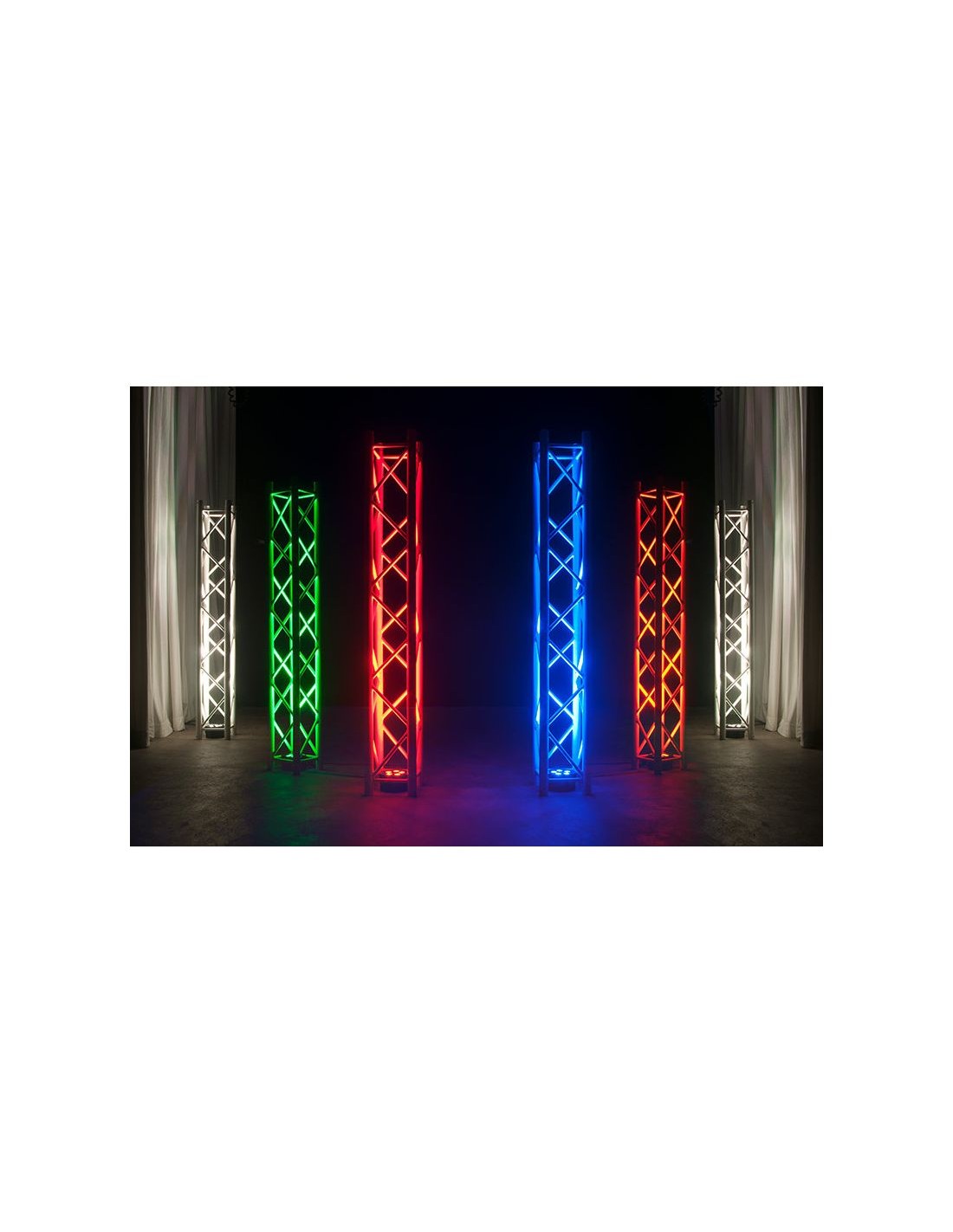

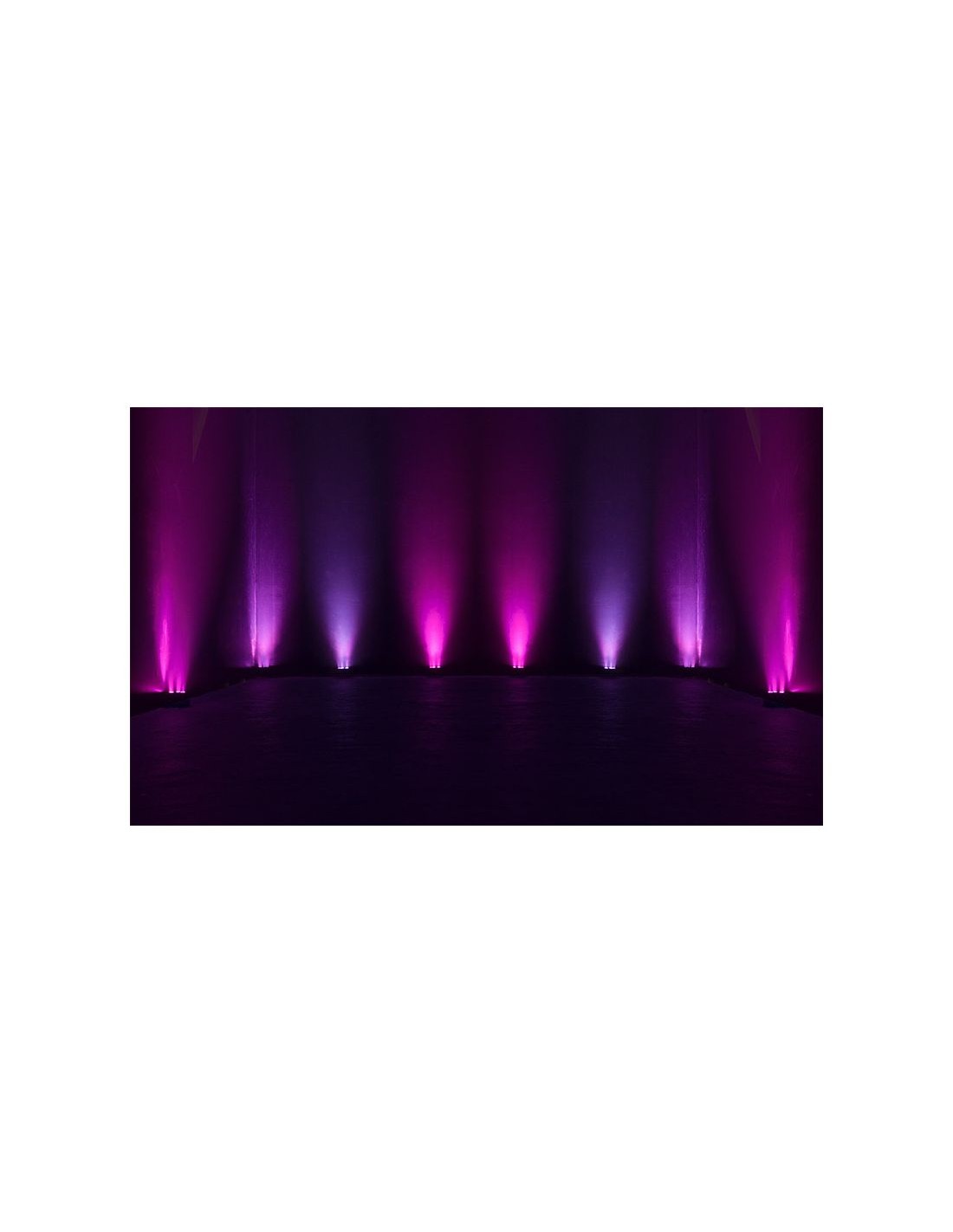

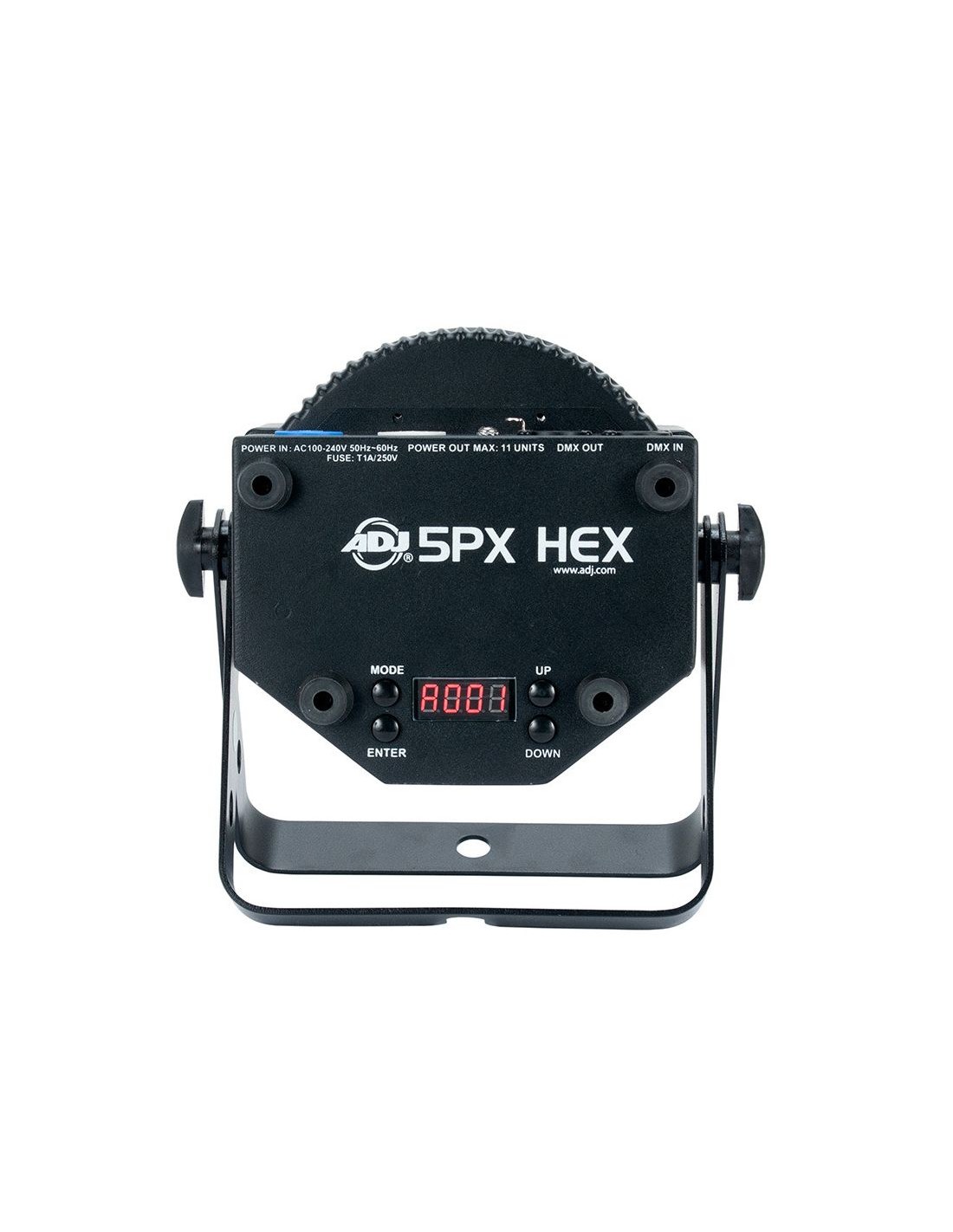

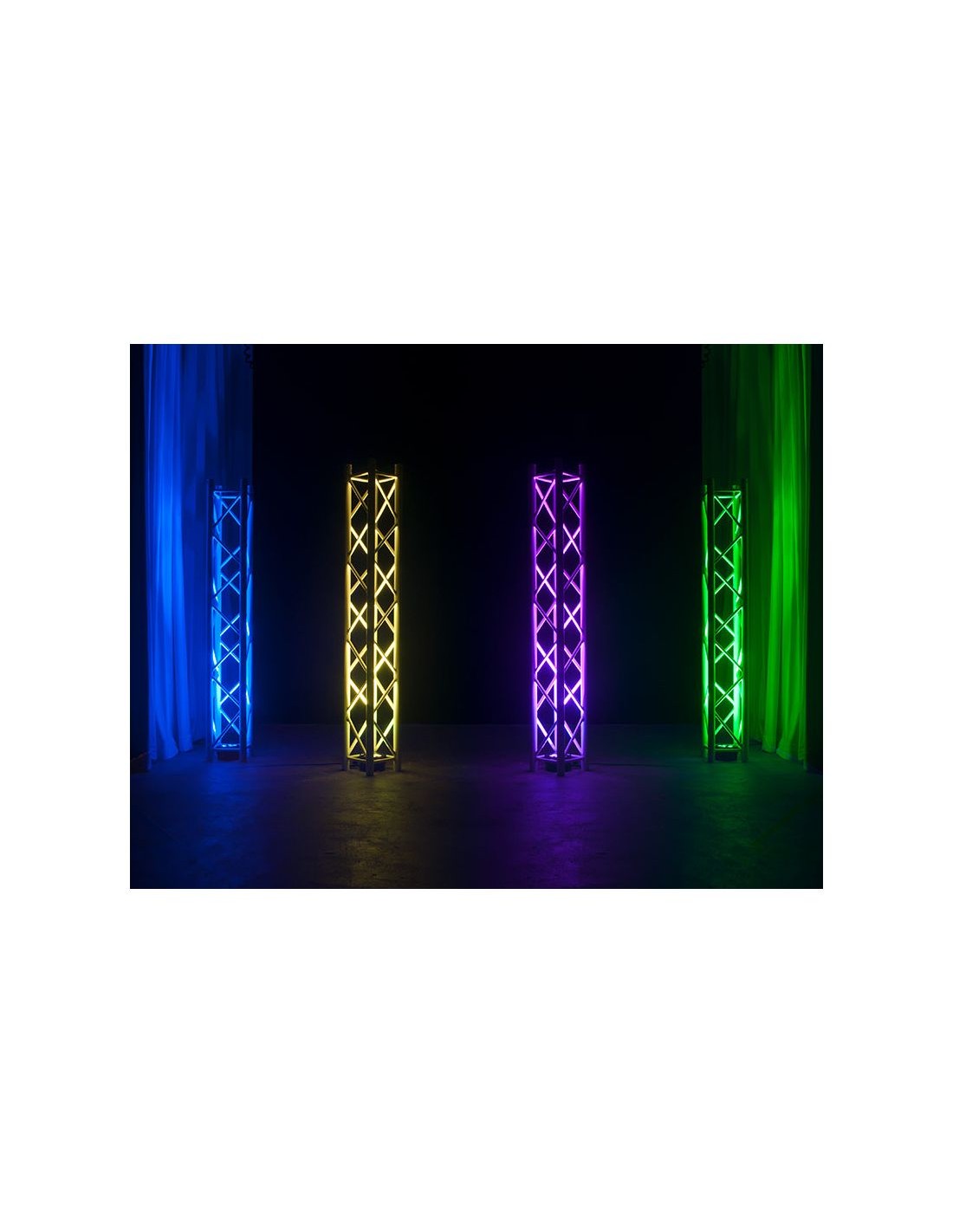

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 12-Watt , 6-IN-1 HEX LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, Locking Power and 3 & 5pin DMX connectors, it’s great for uplighting a venue. 5PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 11 units together via the fixtures built-in Locking Power In/Out connectors. The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
Weight
2.6kg
Modos de trabajo DMX
4 DMX channel modes: 6, 7, 8 and 12 channels
Control
3- and 5-pole Locking DMX inputs and outputs
Tensión de alimentación
100-240V 50 / 60Hz
Consumo máximo
60 watts
Longitud
114mm
Amplitud
208mm
Altura vertical
222mm
