Part of ADJ’s Lime Par series of LED fixtures

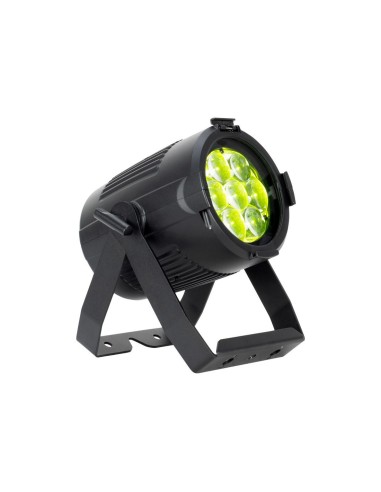

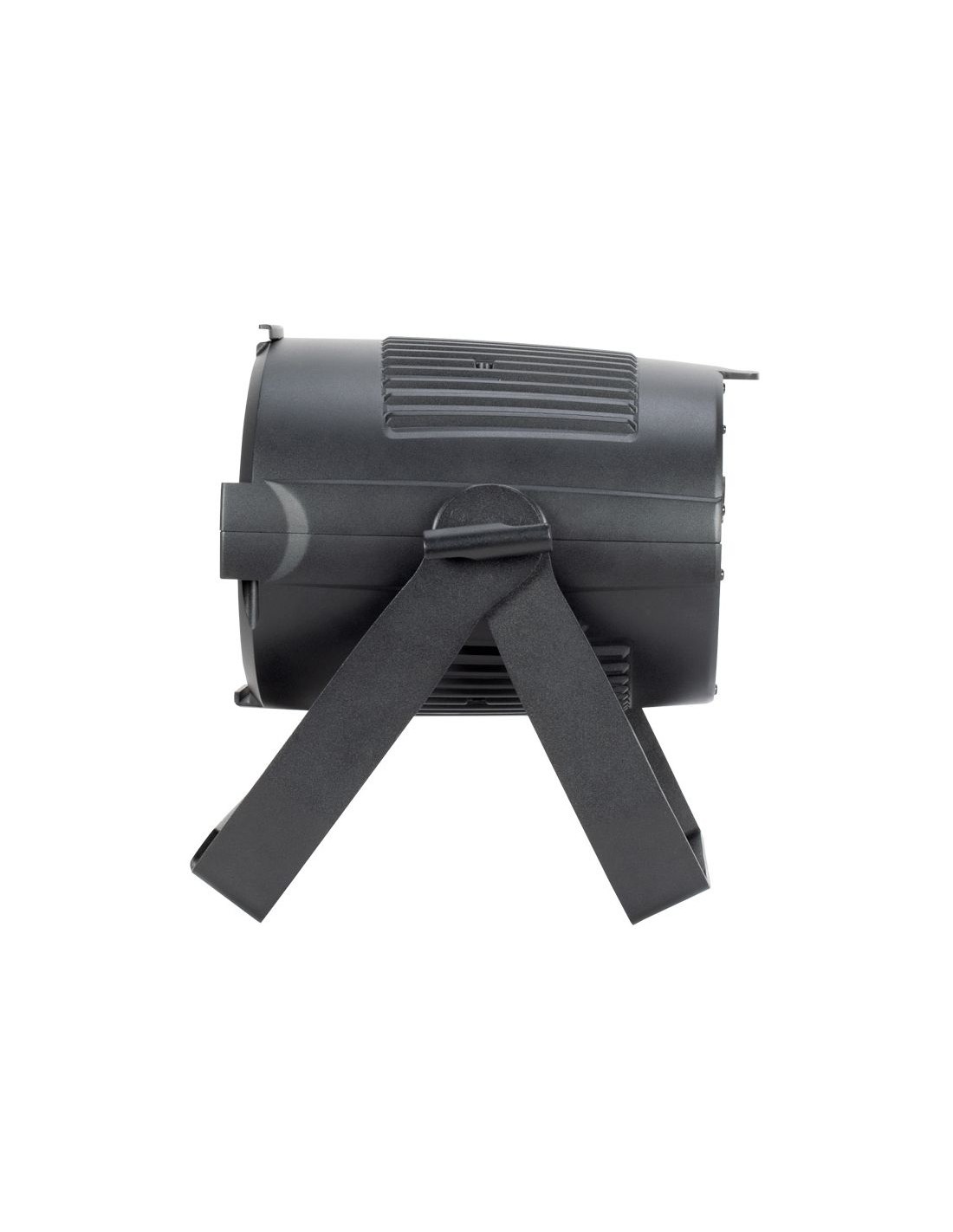

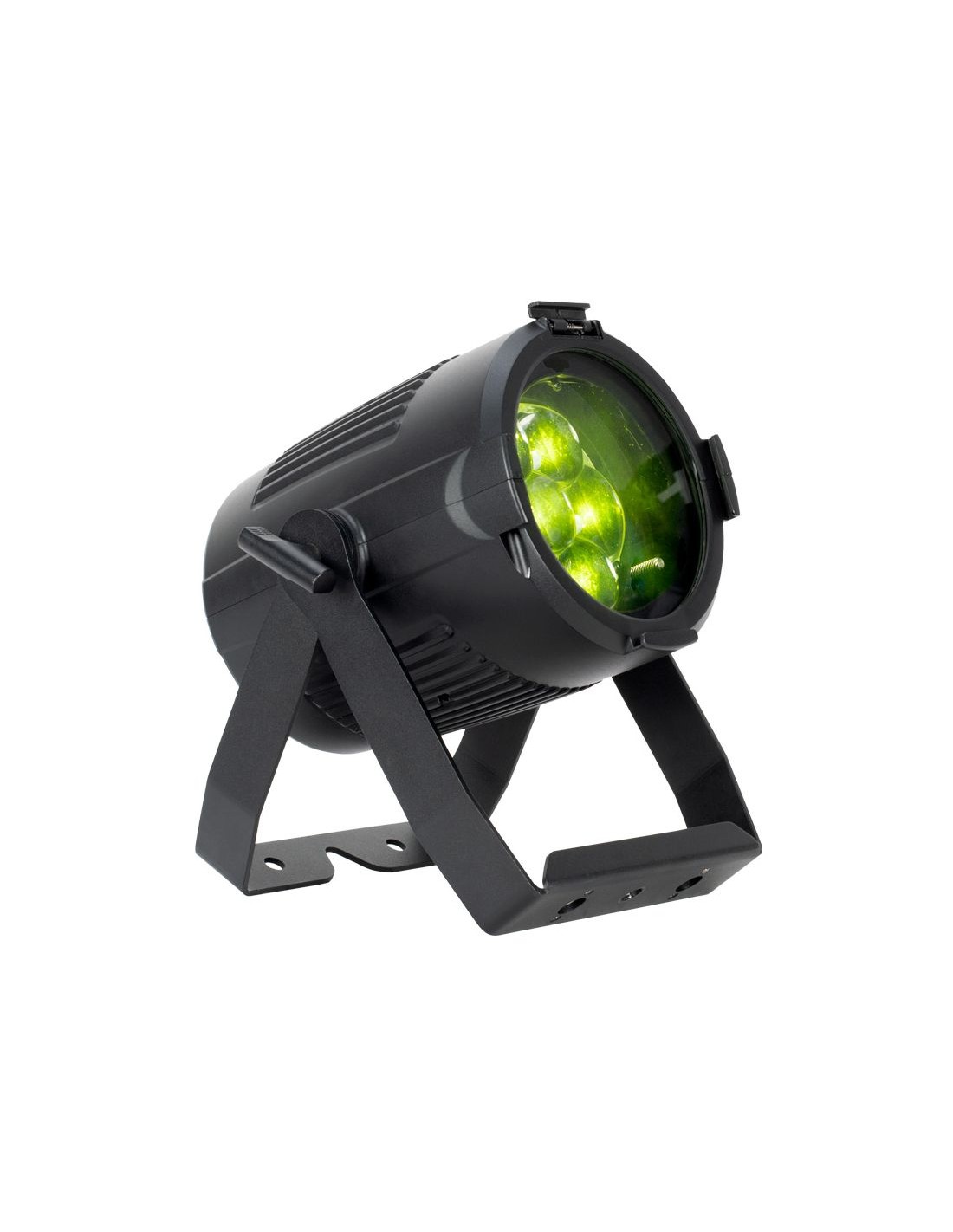

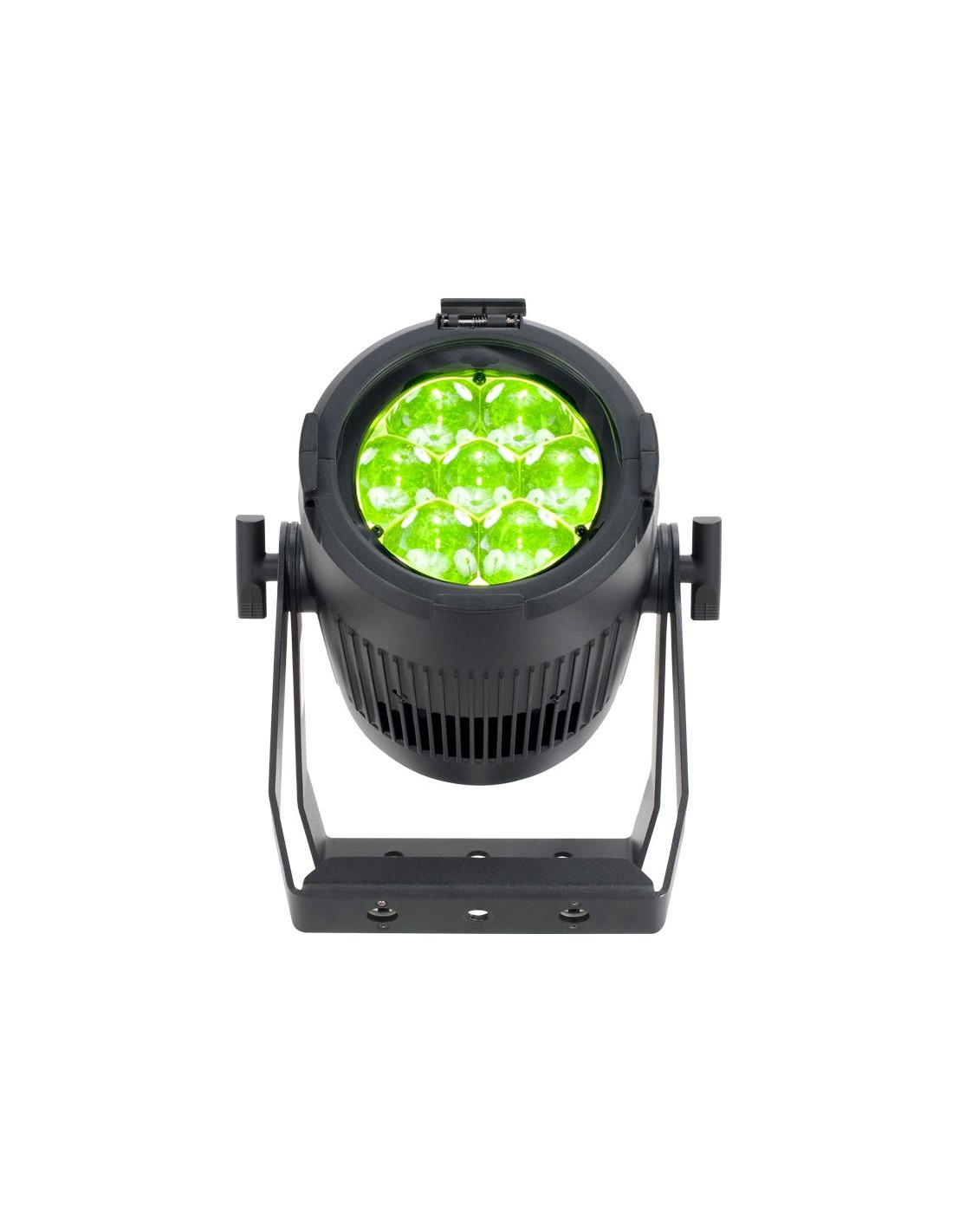

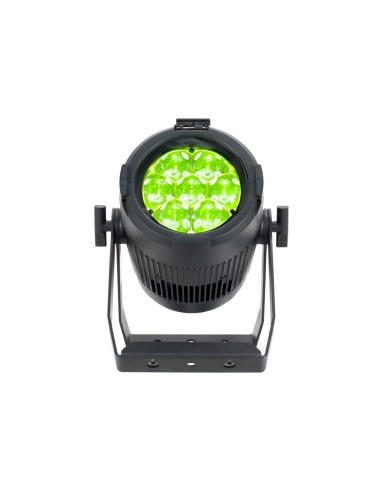

Part of ADJ’s Lime Par series of LED fixtures, the Encore Z7LP is a compact and versatile professional par fixture. Its motorized zoom function allows the beam angle to be adjusted remotely via DMX between a concise 5-degrees and a wide 50-degrees. This means that the fixture can be easily utilized both to create a tight pool of light or broad wash, even switching between the two for different scenes of the same production. The fixture is supplied with a variable angle scissor yoke, which can be used either as a floor stand or hanging bracket, as well as an optional barn door accessory for directing the light output.

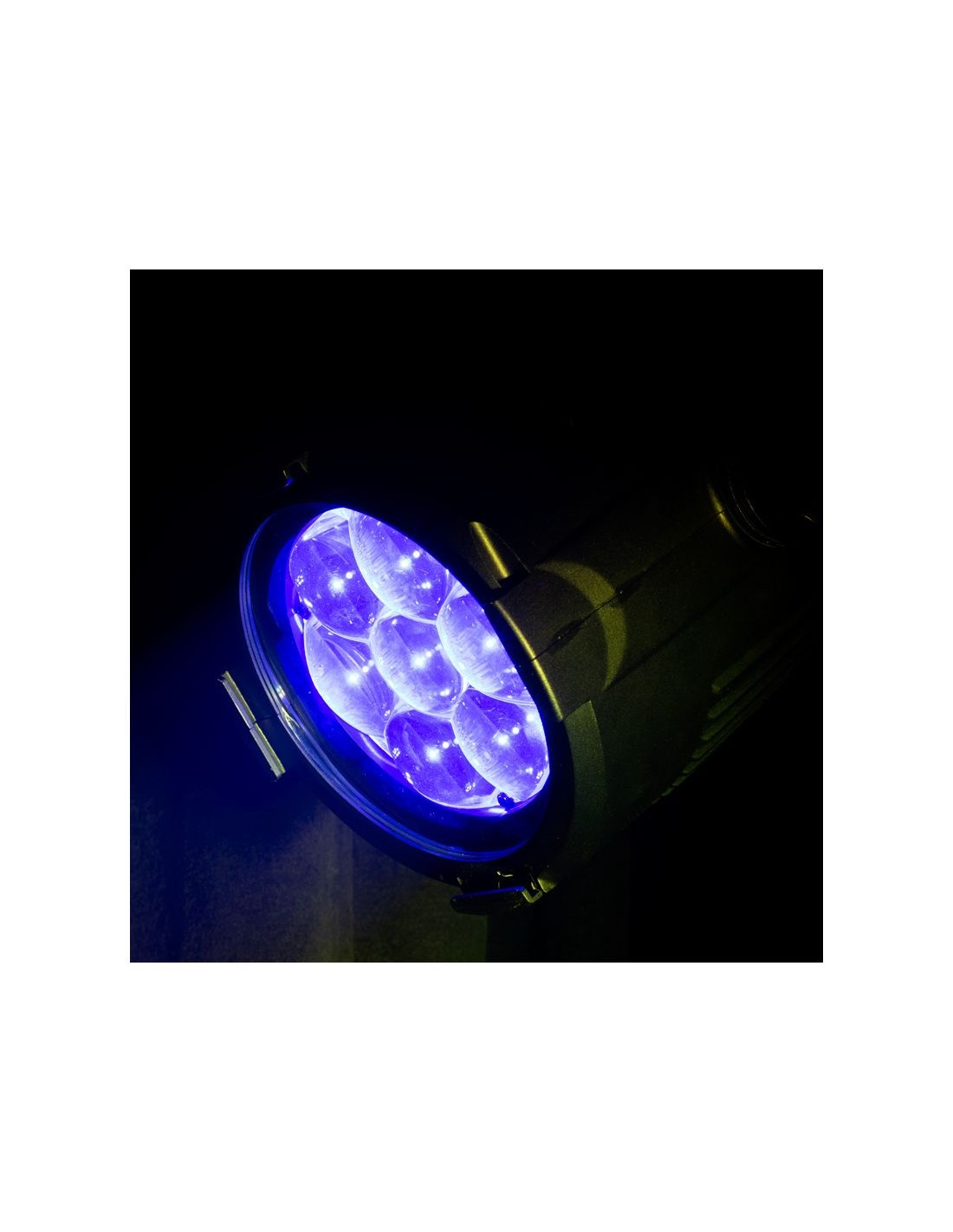

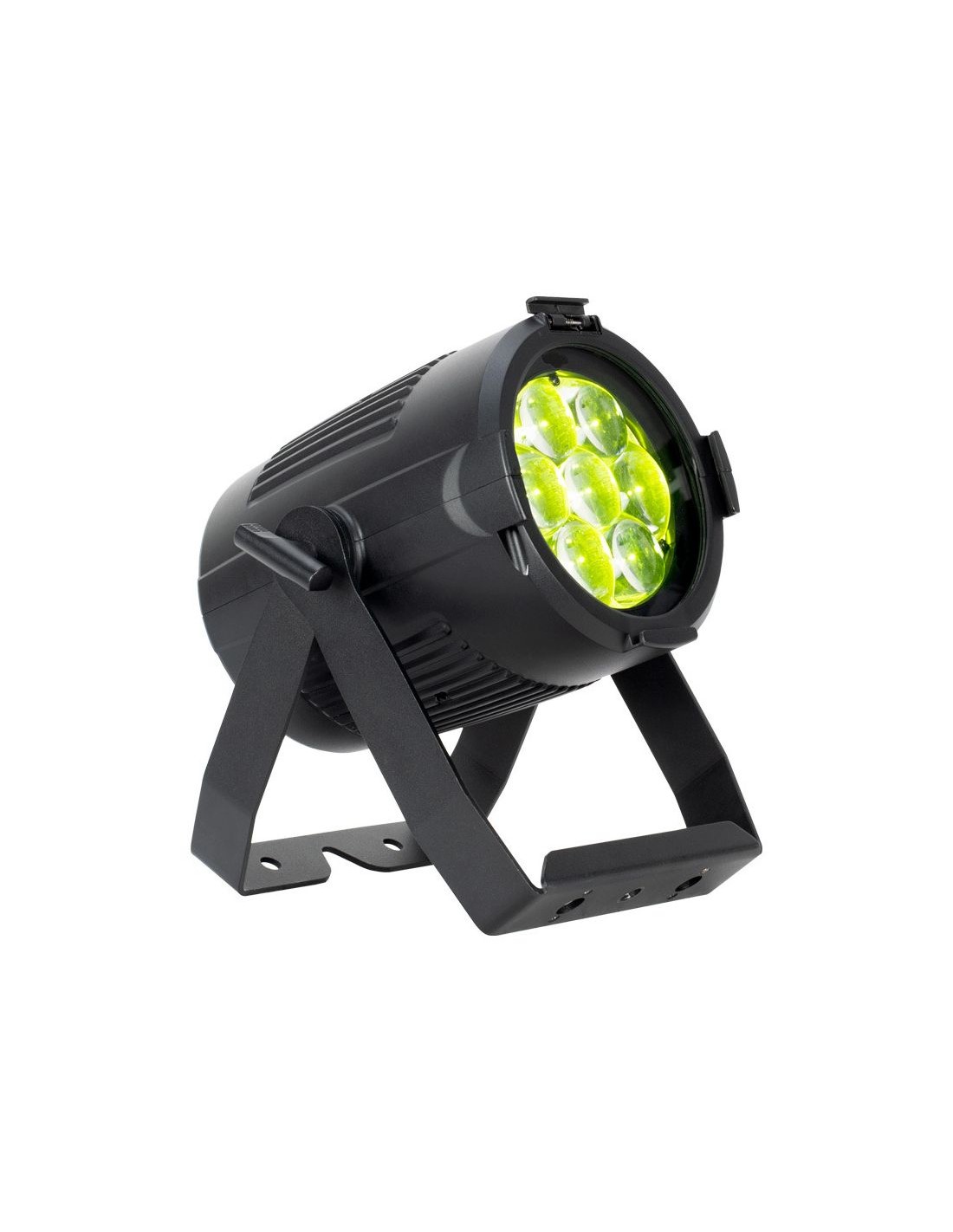

The unit’s light source comprises 7 high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 6500K, which can be easily selected using either linear control or one of 5 preset macros. Inclusion of the Lime LED element boosts CRI and perceived brightness as well as filling in gaps in the color spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of color possibilities, while 64 built-in macros facilitate easy selection of popular options.
- Weight
- 6.9kg
- Modos de trabajo DMX
- 6 DMX Modes: 6, 9, 10, 12, 15 and 18 channels
- Control

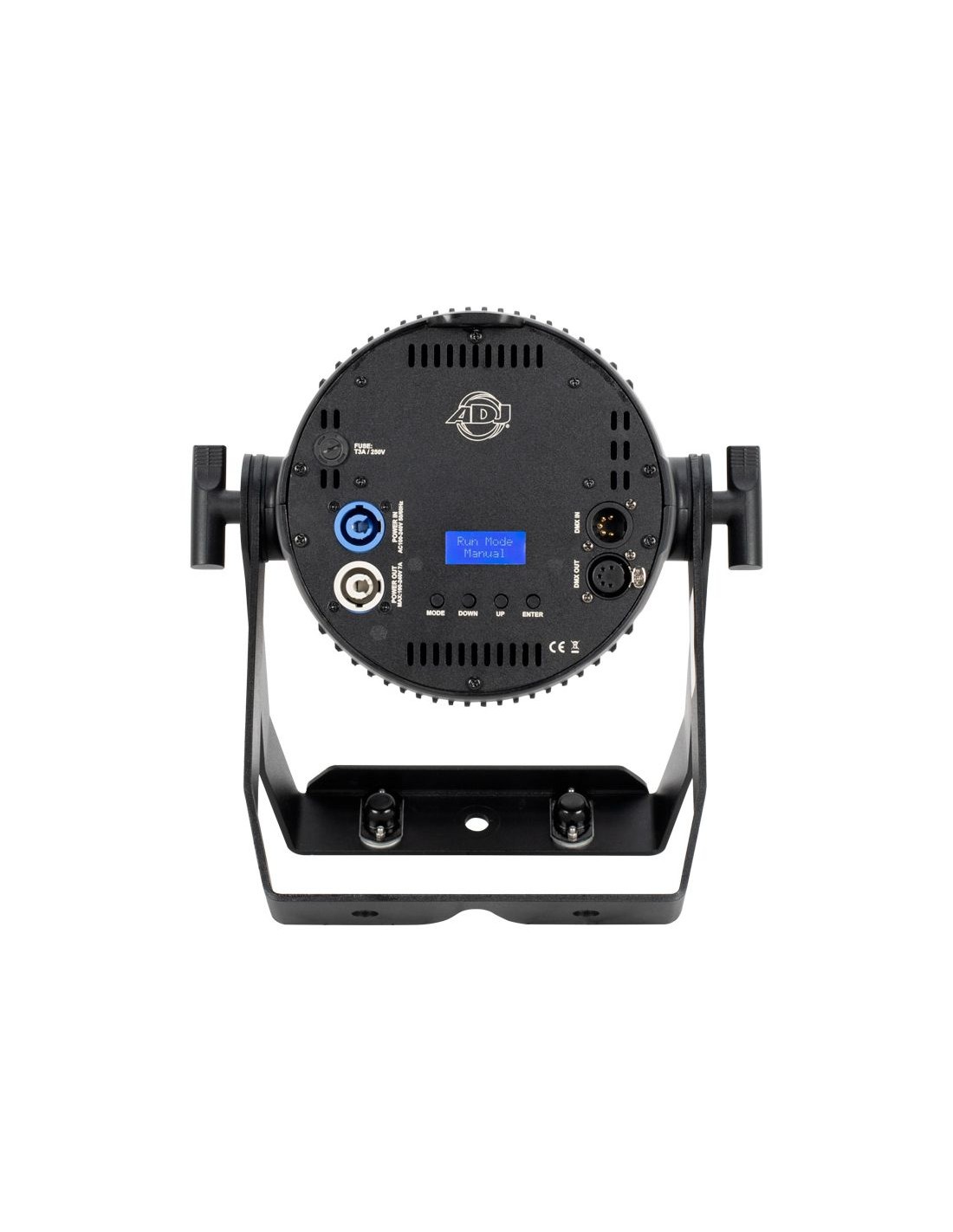

- 5-pin XLR DMX In/Out sockets
- Tensión de alimentación
- AC 100-240V, 47/63Hz
- Consumo máximo
- 103W
- Longitud
- 220mm
- Amplitud
- 160mm
- Altura vertical
- 242mm
PHYSICAL
| Weight |
6.9kg |
|---|
CONTROL
| Modos de trabajo DMX |
6 DMX Modes: 6, 9, 10, 12, 15 and 18 channels |
|---|
CONEXIONES
| Control |
5-pin XLR DMX In/Out sockets |
|---|
ALIMENTACION y TEMPERATURA
| Tensión de alimentación |
AC 100-240V, 47/63Hz |
|---|---|
| Consumo máximo |
103W |
DIMENSIONES Y PESO
| Longitud |
220mm
|
|---|---|
| Amplitud |
160mm
|
| Altura vertical |
242mm
|
