CMPAGE1R
Available
1-zone | desktop | paging station

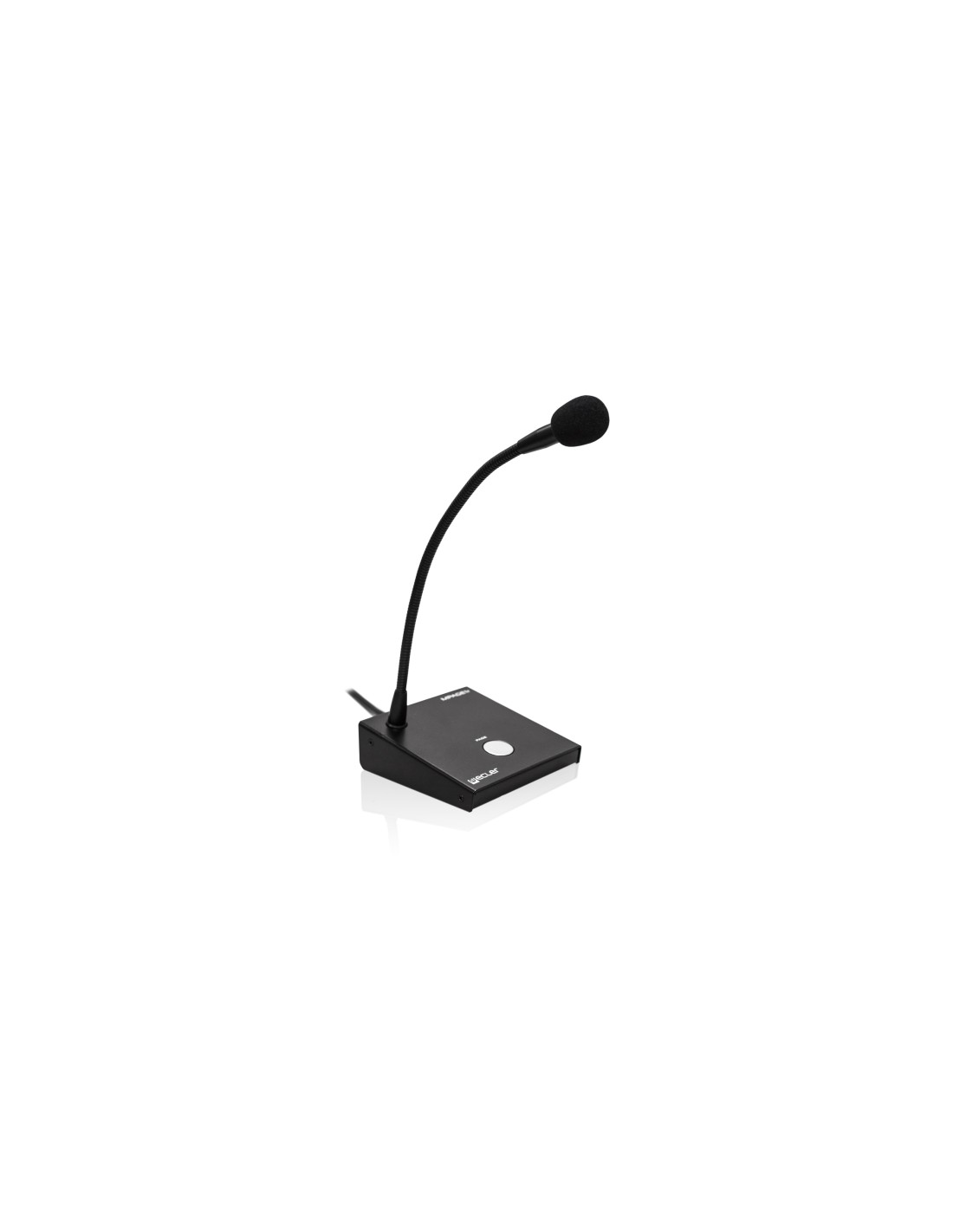

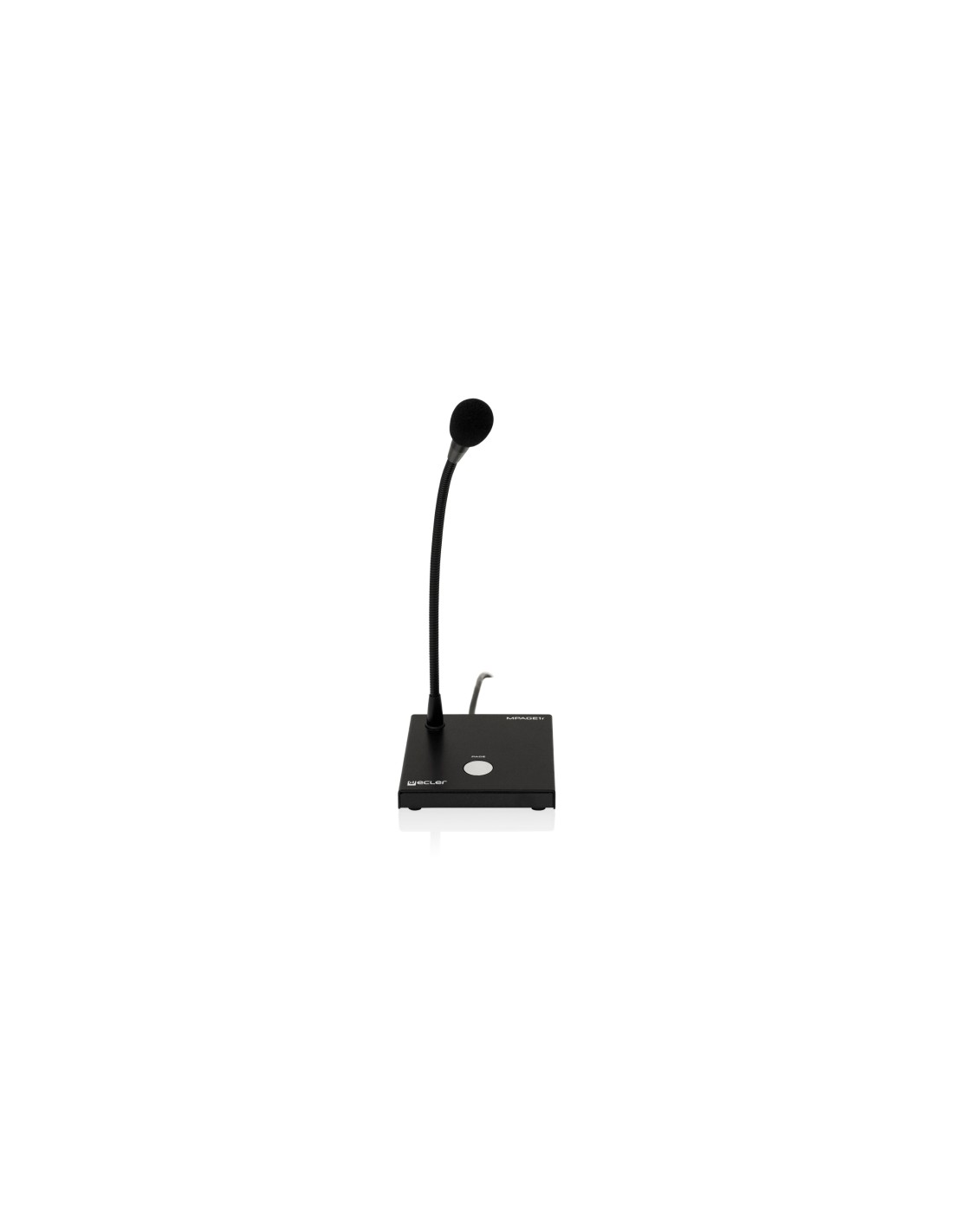

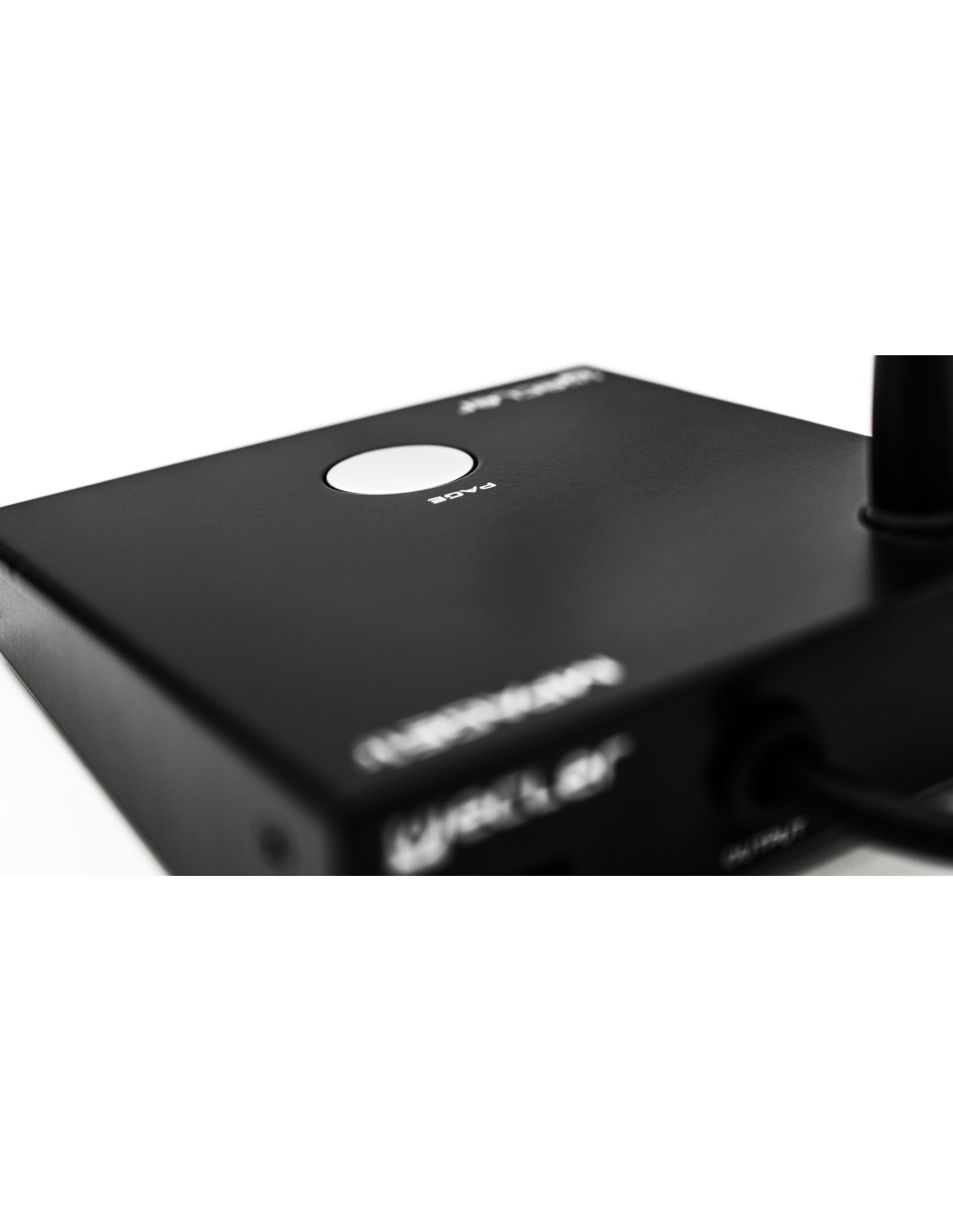

MPAGE1r is a 1-zone desktop paging station, compatible with any device including a phantom-powered microphone input (SAM series, COMPACT series, DAM614, MIMO88, CA series, HMA series, etc.).
Installation options
Desktop
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Included accessories

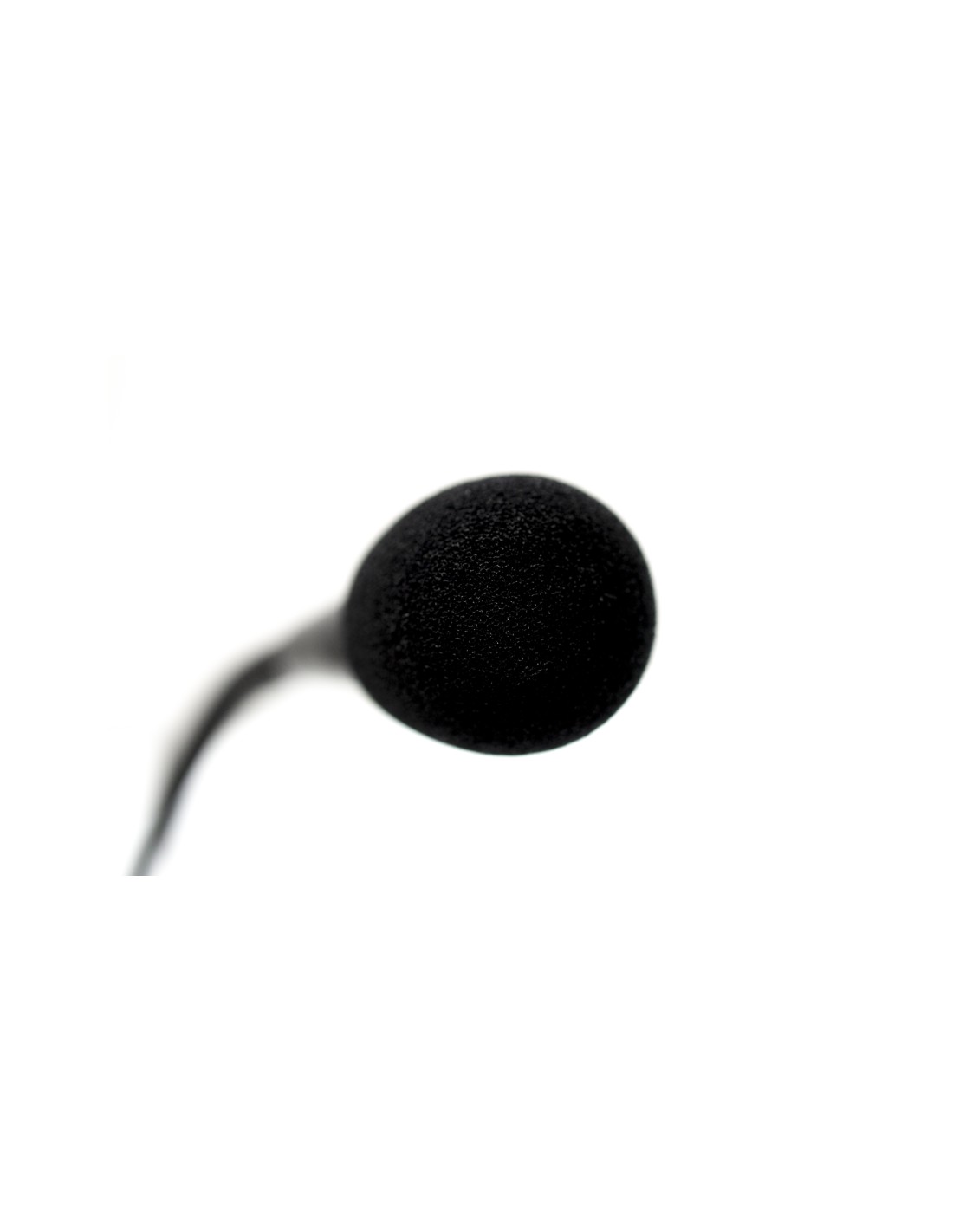

Windscreen, connectors
Dimensions
Microphone excluded: 120 x 43 x 126 mm / 4.72 x 4.96 x 1.69 in. (WxHxD)
Weight
0.625 kg / 1.38 lb
Shipping dimensions
240 x 165 x 190 mm / 9.45 x 6.5 x 7.48 in. (WxHxD)
Shipping weight
1.0 kg / 2.2 lb
Status
New
EAN code
8435071306553
Tariff code
8518400000
Shipping Location
Spain
Frequency response
50Hz – 18KHz (-10dB)
Microphone type
Non-removable gooseneck condenser microphone
Polar pattern
Unidirectional
Phantom power
+10 to +48VDC, 2mA

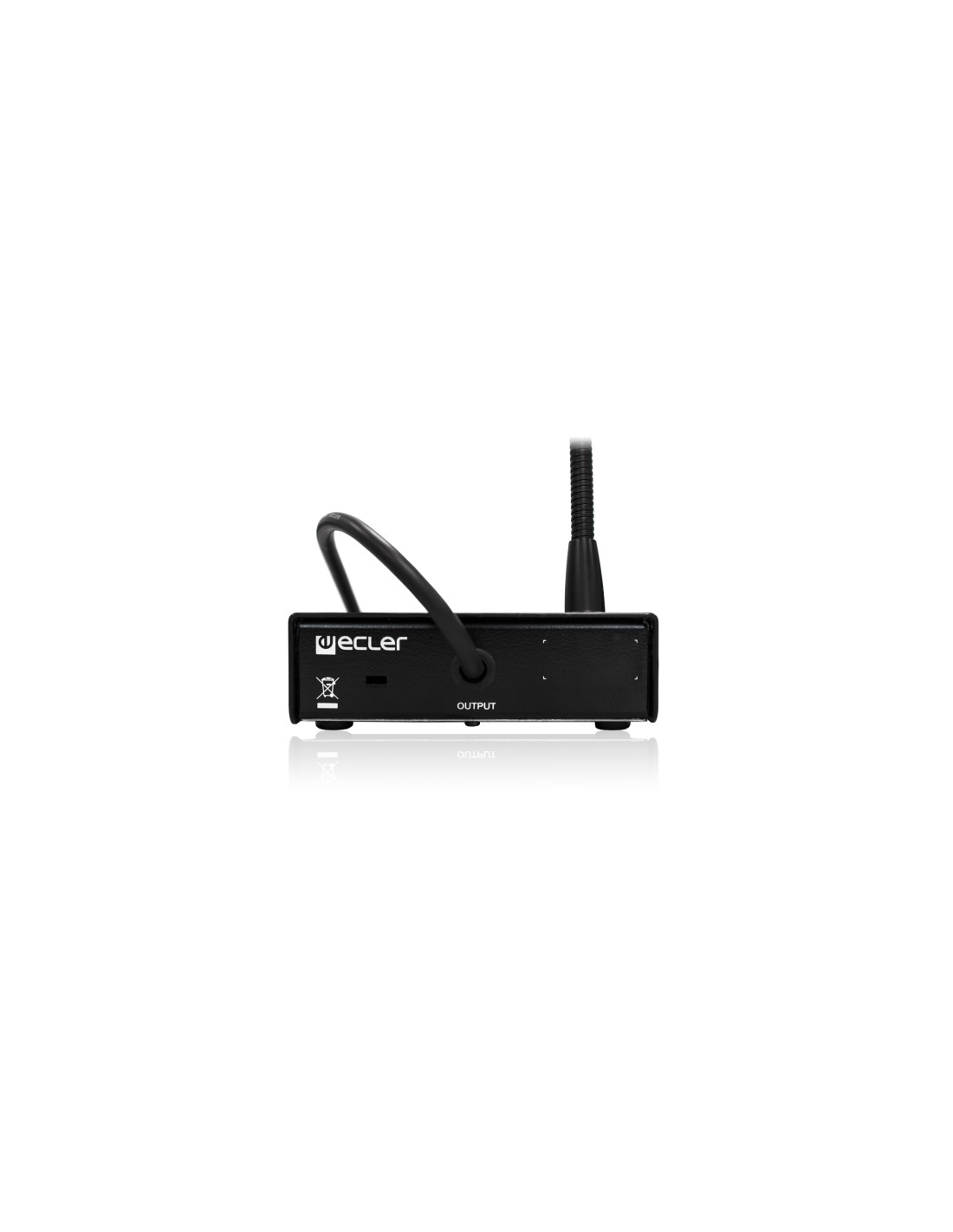

Output connection type
Balanced, detachable 3 pole screw terminal (pager)
Max output level
-24dBV @ 104dB SPL
-34dBV @ 94dB SPL

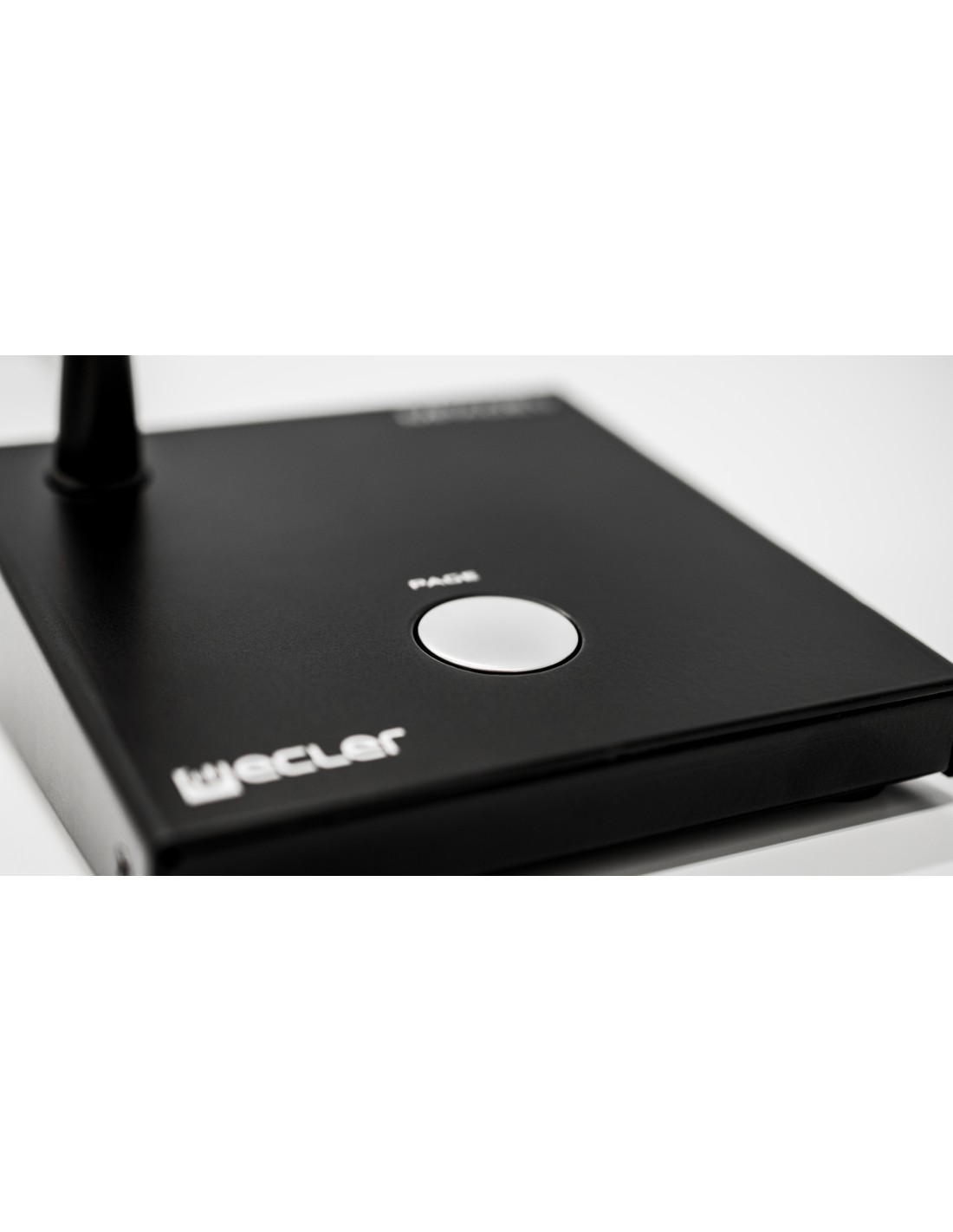

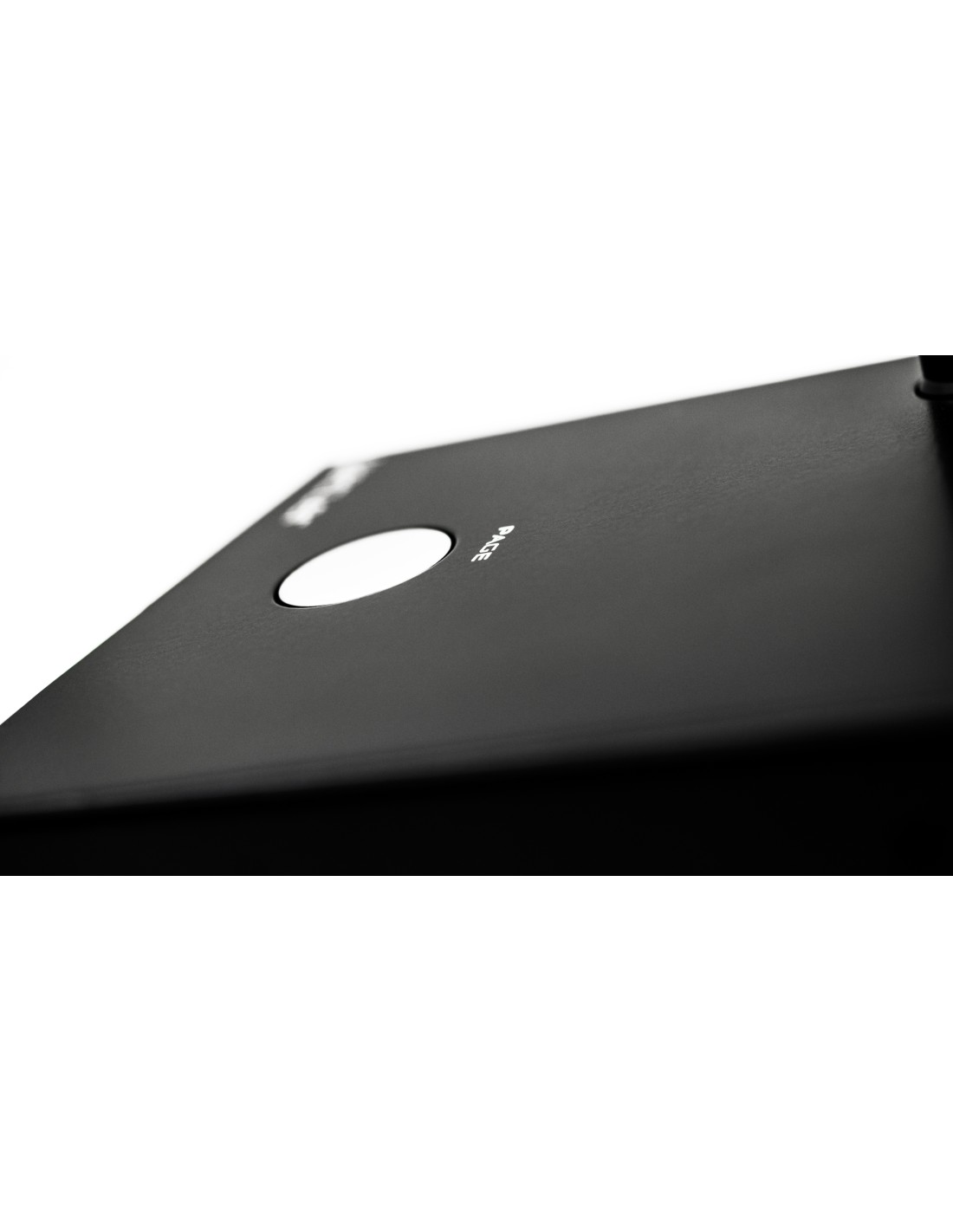

Buttons
PAGE key
Number of paging zones
1
Type
Desktop paging station

Services and facilities implemented

¿Necesitas ayuda?

Contacta con el comercial más cercano

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

SYSTEM
Number of paging zones 1
PHYSICAL
Installation options Desktop
Operating temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Operating humidity <85% HR
85% HR
Storage temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Storage humidity <90% HR
90% HR
Included accessories Windscreen, connectors
Dimensions Microphone excluded: 120 x 43 x 126 mm / 4.72 x 4.96 x 1.69 in. (WxHxD)
Weight 0.625 kg / 1.38 lb
Shipping dimensions 240 x 165 x 190 mm / 9.45 x 6.5 x 7.48 in. (WxHxD)
Shipping weight 1.0 kg / 2.2 lb
Type Desktop paging station
LOGISTICS
Status New
EAN code 8435071306553
Tariff code 8518400000
Shipping Location Spain
MICS
Microphone type Non-removable gooseneck condenser microphone
Polar pattern Unidirectional
MONITORING AND CONTROL
Buttons PAGE key
MIC INPUTS
Phantom power +10 to +48VDC, 2mA
LINE OUTPUTS
Frequency response 50Hz – 18KHz (-10dB)
Output connection type Balanced, detachable 3 pole screw terminal (pager)
Max output level -24dBV @ 104dB SPL -34dBV @ 94dB SPL
