NXA6-80
CNXA680
Check availability
6x80 WRMS | DSP | Class D | Silent | TP-NET | EclerNet

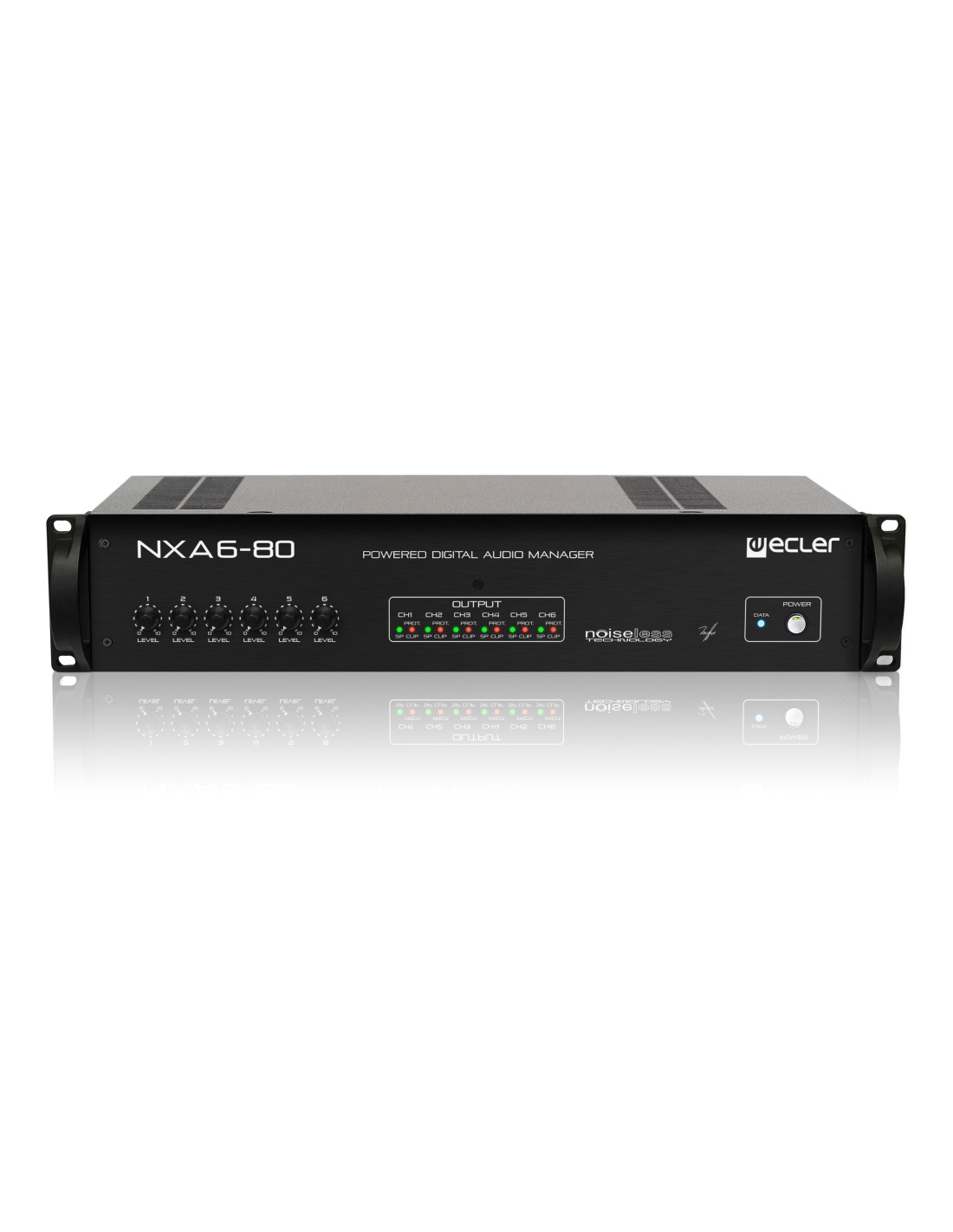

NXA6-80 is a 6 channel x 80W self-powered digital manager that stays halfway between a digital matrix and a multichannel amplifier. An "all-in-one" digital audio device that becomes a complete audio solution, including several remote control options and a long list of smart features.
- Installation options
- 19" rack format (2RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPaSCREEN
- Dimensions
- 482.6 x 88 x 373 mm / 19 x 3.46 x 14.69 in. (WxHxD) (Handles and knobs excluded)
- Weight
- 10.2 kg / 22.49 lb
- Status
- New
- EAN code
- 8435071304696
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 10Hz – 25kHz
- CMRR
- 50 dB
>50 dB - Crosstalk
- 75 dB
>75 dB - Programing and control
- EclerNet Manager control application
- GPIs
- x6 GPIs (0-10V)
- AC mains requirement
- 115V/230V @ 47-63Hz
- AC mains connector
- IEC mains inlet
- SNR
- 100dB (110dB typ.) - TBC
>100dB (110dB typ.) - TBC
- Output connection type
- 2-pin Euroblock
- Power
- 3W
144VA
290VA
<3W - Number of output channels
- 6
- Number of input channels
- 6 analogue input channels
- Input connection type
- Analogue: IN1-6: 3-pin Euroblock
- Input impedance
- Balanced, 22kΩ
- Max input level
- +18 dBV +21dBu
- THD + Noise
- 0.05%
<0.05% - Damping factor
- 150
>150 - Cooling
- Convection cooling system
- Latency
- 2ms
- Maximum fan noise
- Fanless
- Ethernet
- Ethernet Base-Tx 10/100Mb, Auto X-Over, Cat5
- Output configuration
- SINGLE (independent), PARALLEL or BRIDGED
- Input configuration
- Digital matrix 6 in x 6 powered audio out
- AC protection
- No
- DC protection
- No
- Short-circuit protection
- Yes
- Clip limiter
- Yes
- Long term limiter
- No
- Thermal protection
- Yes
- Attenuators
- Front panel amplified OUTs attenuators
- Signal Present
- SP LED
- Cliping
- CLIP LED
- Number of inputs
- 6 analogue input channels
- Dynamic range
- 115 dB
- Amplification technology
- Class D
- Power ON/OFF
- Yes, back panel switch
- Protect
- PROT LED
- Analogue input connection type
- IN1-6: 3-pin Euroblock
- Number of amplified outputs
- 6
- Amplified output connection type
- 2-pin Euroblock
- Voltage gain
- +26 / +32 dB
- HF protection
- No
- Output mode settings
- SINGLE (independent), PARALLEL or BRIDGED
- Data
- DATA LED
- On
- GREEN when RUN
ORANGE when AUTOSTBY
RED when in PROT mode - Digital processing
- 32/64 bits
- Inputs processing
- LP and HP Crossover filters, Compressor / Limiter
- Outputs processing
- Parametric EQ filters bank, Ducker, Delay, Compressor
- Energy saving
- Auto stand-by function
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Number of input channels |
6 analogue input channels |
|---|
PHYSICAL
| Installation options |
19" rack format (2RU) |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPaSCREEN |
| Dimensions |
482.6 x 88 x 373 mm / 19 x 3.46 x 14.69 in. (WxHxD) (Handles and knobs excluded) |
| Weight |
10.2 kg / 22.49 lb |
POWERED
| Power |
<3W 290VA 144VA 3W |
|---|
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071304696 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
ELECTRICAL
| AC mains requirement |
115V/230V @ 47-63Hz |
|---|---|
| AC mains connector |
IEC mains inlet |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
2ms |
| Dynamic range |
115 dB |
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
>75 dB 75 dB |
|---|
CONNECTIVITY
| Programing and control |
EclerNet Manager control application |
|---|---|
| Ethernet |
Ethernet Base-Tx 10/100Mb, Auto X-Over, Cat5 |
REMOTE CONTROL CONNECTIONS
| GPIs |
x6 GPIs (0-10V) |
|---|
CHANNELS
| Number of output channels |
6 |
|---|---|
| Output configuration |
SINGLE (independent), PARALLEL or BRIDGED |
| Input configuration |
Digital matrix 6 in x 6 powered audio out |
SIGNAL
| SNR |
>100dB (110dB typ.) - TBC
100dB (110dB typ.) - TBC |
|---|---|
| Damping factor |
>150 150 |
| Voltage gain |
+26 / +32 dB |
TECHNOLOGIES
| Cooling |
Convection cooling system |
|---|---|
| Maximum fan noise |
Fanless |
| Amplification technology |
Class D |
| Energy saving |
Auto stand-by function |
PROTECTIONS
| AC protection |
No |
|---|---|
| DC protection |
No |
| Short-circuit protection |
Yes |
| Clip limiter |
Yes |
| Long term limiter |
No |
| Thermal protection |
Yes |
| HF protection |
No |
MONITORING
| Signal Present |
SP LED |
|---|---|
| Cliping |
CLIP LED |
| Protect |
PROT LED |
| Data |
DATA LED |
| On |
GREEN when RUN
ORANGE when AUTOSTBY
RED when in PROT mode |
DSP
| Digital processing |
32/64 bits |
|---|---|
| Inputs processing |
LP and HP Crossover filters, Compressor / Limiter |
| Outputs processing |
Parametric EQ filters bank, Ducker, Delay, Compressor |
ANALOGUE AUDIO INPUTS
| Number of inputs |
6 analogue input channels |
|---|
LINE INPUTS
| CMRR |
>50 dB 50 dB |
|---|---|
| Input connection type |
Analogue: IN1-6: 3-pin Euroblock |
| Input impedance |
Balanced, 22kΩ |
| Max input level |
+18 dBV +21dBu |
LINE OUTPUTS
| Frequency response |
10Hz – 25kHz |
|---|---|
| Output connection type |
2-pin Euroblock |
| THD + Noise |
<0.05% 0.05% |
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
INPUTS
| Analogue input connection type |
IN1-6: 3-pin Euroblock |
|---|
AMPLIFIED OUTPUTS
| Number of amplified outputs |
6 |
|---|---|
| Amplified output connection type |
2-pin Euroblock |
LOCAL CONTROL
| Attenuators |
Front panel amplified OUTs attenuators |
|---|---|
| Power ON/OFF |
Yes, back panel switch |
| Output mode settings |
SINGLE (independent), PARALLEL or BRIDGED |
OUTPUT POWER - All channels driven @ 1%THD
