VIDA-48Q
CVIDA48Q
Only a few left

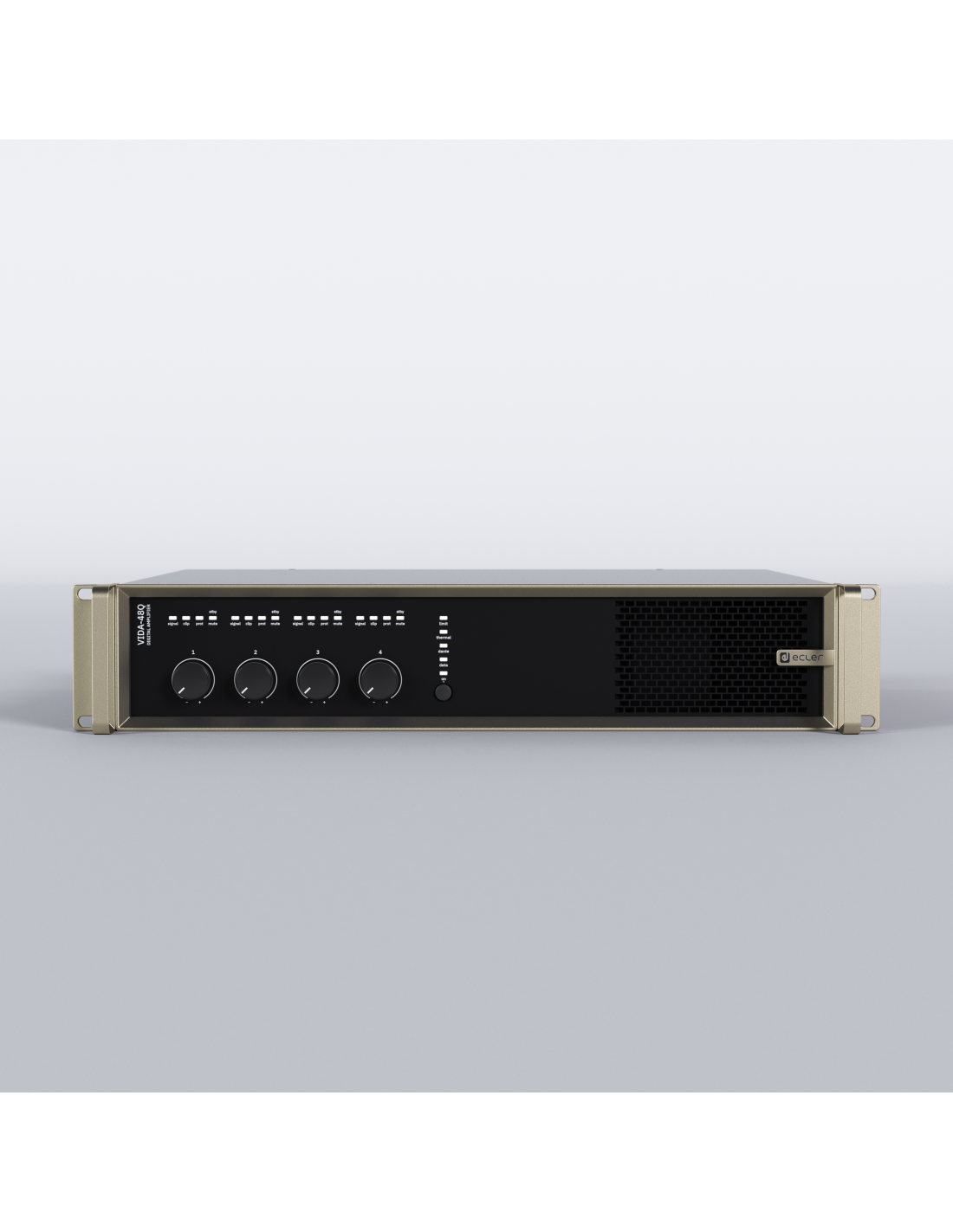

Dante/AES67 Digital Amplifier with DSP and Player
VIDA-48Q is a 4800W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency.
This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante/AES67 digital inputs, audio player - with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and 4 Dante/AES67 digital outputs.
All these features are managed from its intuitive web application which, among other functionalities, allows signal routing - matrix -, audio signal processing - such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation.

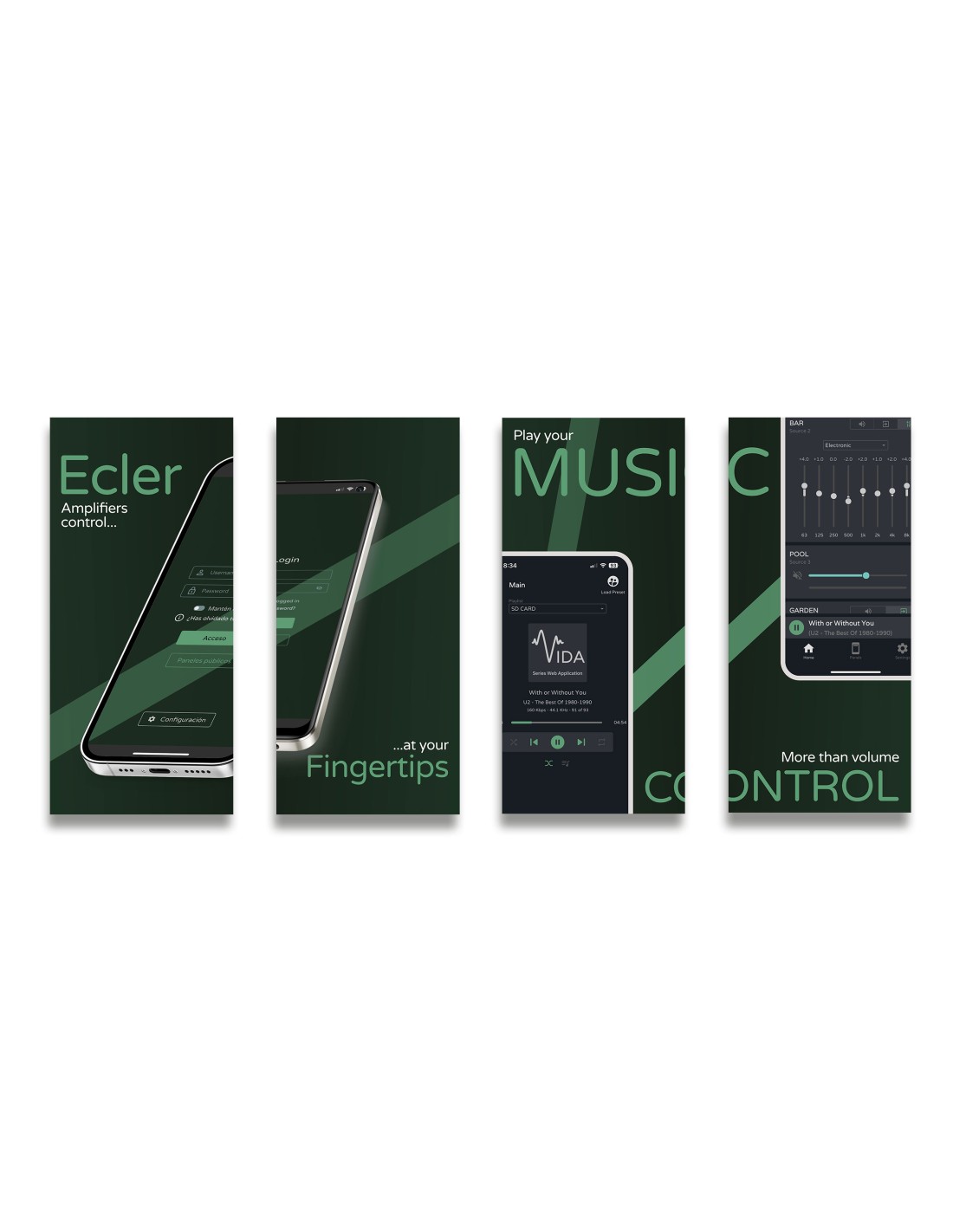

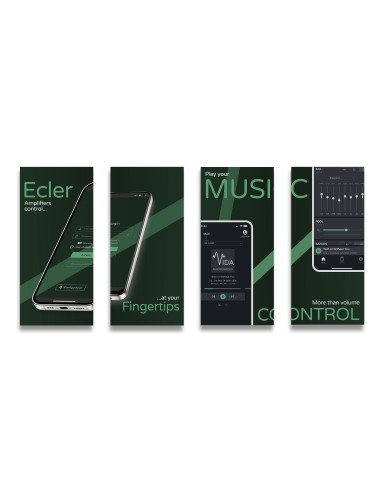

Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.
- Installation options
- Rack 19" installation & desktop
- Operating temperature
- -10º to 50º C
14º to 122º F
(performance may be reduced above 40 °C) - Operating humidity
- 5 - 85% RH, non-condensing
- Storage temperature
- -10º to 50º C
14º to 122º F - Storage humidity
- 5 - 85% RH, non-condensing
- Included accessories
- Powercon cable, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware
Universal Main cords, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware
powerCON® cable, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware - Optional accessories
- -
- Dimensions
- 482.6 x 88 x 410 mm. / 19 x 3.46 x 16.14 in. (WxHxD)
- Weight
- 9.9 kg / 21.8 lb
- Shipping dimensions
- 650 x 125 x 600 mm. / 25.59 x 4.92 x 23.62 in. (WxHxD)
- Shipping weight
- 12.9 kg / 28.43 lb
- Status
- New
- EAN code
- 8435071343916
- Tariff code
- 8518400000
- Processor
- Quad core 64bits 1,5GHz
- Sampling rate
- 48 kHz
- Resolution
- 24 bit
- Frequency response
- 15Hz-25kHz (-3dB, 1W any load)
- Input sensitivity
- -6 to +6 dBV
-3,78 to 8,2 dBu
0,5 to 2 Vrms
(adjusted by means of Smart Versa Power utility) - CMRR
- 65 Typ (from 20Hz-20kHz)
> 65 Typ (from 20Hz-20kHz) - Crosstalk
- 80dB (@ 1kHz)
>80dB (@ 1kHz) - Programing and control
- Embedded web application
- GPIs
- x4 GPIs (0-10V) (Function and settings by embedded web application, 5-pin Euroblock connector, rear panel. Euroblock pitch 3,5 mm)
- AC mains requirement
- 100-240 V @ 50-60Hz ((±10%)
- AC mains connector
- IEC C14 inlet (10Amax)
powerCON® - Power supply
- Universal, regulated SMPS with PFC
- SNR
- 95 dBA (40dB Gain, from 20Hz - 20kHz)
- Output connection type
- 2-pin Euroblock. Pitch: 7,62 mm
Ref: DEGSON 5EDGRC-7.62
- Power
- 3,25 W | 10,7 VA
3,74 W | 31 VA
68 W | 120 VA
72 W | 125 VA
864 W | 970 VA
866 W | 940 VA
1555 W | 1606 VA
1589 W | 1660 VA - Number of output channels
- 4
- Number of input channels
- 4 analogue input channels
4 DANTE/ AES67 Network Rx channels
1 embedded player, 1 embedded signal generator
4 analogue input channels
4 DANTE™/ AES67 Network Rx channels
1 embedded player, 1 embedded signal generator - Input connection type
- Digital: Ethernet, managed via Dante/ AES67 Controller
Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm.
Digital: Ethernet, managed via Dante™/ AES67 Controller
Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm. - Max output power @ 100V
- 1200W
2860W - Max output power @ 70V
- 1200W
2000W - Input impedance
- 24k (balanced)
>24k (balanced) - Max input level
- +18 dBV
+20,2 dBu
(@ Gain 34 dBV) - THD + Noise
- 0,1 %
0,015 Typ
(@ 1kHz, from 0,1W to Full Power)
< 0,1 %
0,015 Typ
(@ 1kHz, from 0,1W to Full Power) - Damping factor
- 500 (@ 8Ω, from 20Hz to 1kHz)
>500 (@ 8Ω, from 20Hz to 1kHz) - Cooling
- Fan (Forced air, front to back airflow. Temperature controlled continuously variable speed)
- Latency
- 2,8 ms (Analogue IN to analogue OUT)
- Maximum fan noise
- 55,5dBA (maximum acoustical noise @1m)
- Ethernet
- Ethernet Base-Tx 10/100/1000Mb Auto X-Over
2 Ports Ethernet Switch capability
(CAT5 up to 100m. Settings by embedded web application)
- Output configuration
- Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω
Output mode selection per channel
Rear panel DIP SWITCH selectors
- Input configuration
- Digital matrix 4in x 6out (Settings by embedded web application)
- Efficiency
- 77% (1/4 POWER, @ 4Ω 230VAC)
- DC protection
- Yes
Yes (Protects loudspeaker and installation against DC and infrasonic signals at the outputs) - Short-circuit protection
- Yes
Yes (protects the amplifier from overcurrent, short circuit or other stressful events for the output stages with output reduction or MUTE (automatic protection reset) - Clip limiter
- Yes
Yes (prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output). - Long term limiter
- Yes
Yes (protects the loudspeaker and amplifier against steady long term rms signals (sine wave, non-music) reducing maximum output) - Thermal protection
- Yes
Yes (output power reduction when output stages operating temperature up to 90 °C (194 °F). Mute when output stages operating temperature up to 100 °C (212 °F) - External MUTE
- Yes, contact (2 pins Euroblock connector, rear panel, Euroblock pitch 3,5 mm)
- Attenuators
- Programmable Front panel knobs (defaults: Amplified OUTs attenuators)
- Signal Present
- SP LED (White) per channel (trigger @- 40 dBV)
- Cliping
- CLIP LED (Red) per channel (Clip, Versa power limiter, Peak power, Power supply overload)
- Number of inputs
- 4 analogue input channels
4 DANTE™/ AES67 Network Rx channels
1 embedded player, 1 embedded signal generator - Dynamic range
- 114dB
- GPOs
- x4 NC / NO contacts
4x 3pins Euroblock connector, rear panel
Euroblock pitch 3,5 mm
- Retention time
- 5 years
> 5 years - Accuracy
- ±1 minute / month
- Micro SD
- SDXC
- Capacity
- Up to 2TB
- File system
- FAT16, FAT 32, VFAT (read/write)
NTFS (read)
Multi-partition up to 1 - Playable audio files
- mp3, ogg, WAV, FLAC, AIFF
- Files analysis
- 65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder - Folder hierarchy
- Up to 8 containing the root directory
- Sorting
- UNICODE, in alphabetical order
Up to 100 folders / files by folder
Folders/files over 100 sorted in the FAT order - Amplification technology
- Class D
- DANTE Protocol
- Dante/ AES67 4x Tx / 4x Rx channels (2/2 flows)
Primary and secondary capability. RJ-45 ports
(Settings by embedded web application)
Dante™/ AES67 4x Tx / 4x Rx channels
Primary and secondary capability. RJ-45 ports
(Settings by embedded web application)
- Power ON/OFF
- Yes, back panel switch (Red LED indicator)
- Thermal
- THERMAL LED (Red) per unit (Temperature limiter)
- Protect
- PROT LED (Red) per channel (Current overload, Output short circuit, Under voltage, Over Voltage,
DC OUT (slow blink), HF protect (fast blink) - Analogue input connection type
- IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm.
- Number of amplified outputs
- 4
- Amplified output connection type
- 2-pin Euroblock. Pitch: 7,62 mm
Ref: DEGSON 5EDGRC-7.62
- Voltage gain
- 28 to 40 dBV
30,2 to 42,2 dBu - Power factor correction
- 0,96 (Output Power 500W)
> 0,96 (Output Power > 500W) - HF protection
- Yes
Yes (Protects the loudspeakers against non-audible, strong, non-musical high frequency signals) - ON / OFF
- No
- Output mode settings
- Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω
Output mode selection per channel
(Rear panel DIP SWITCH selectors)
- RUN/SLEEP mode
- Yes, front panel push-button (operate when pressed more than 0,5 seconds)
- Standby / Mute
- STBY/MUTE LED (White) per channel
(ON when STBY, BLINK when MUTE) - Limit
- LIMIT LED (Red) per unit
(Power (power supply) overload) - Data
- DATA LED (White) per unit (ON when DATA)
- On
- ON LED (White) per unit (ON when RUN,
SLOW BLINK when SLEEP by BUTTON, FAST BLINK when SLEEP by AUTOSTBY, VERY FAST BLINK when HW Fault)
- Digital processing
- 32/64 bit
- Inputs processing
- Noise gate, HPF, Freq. Shifter, compressor/limiter (Settings by embedded web application)
- Outputs processing
- Delay, Parametric EQ, Graphic EQ independent for every amp out and aux out.
Limiters independent for every amp out
Smart VersaPower management
(Settings by embedded web application) - Others
- Preset management, Internal matrix, priority & backup signals management, local & network groups, events management incl. calendar (Settings by embedded web application)
- Digital input connection type
- Ethernet, managed via Dante™/ AES67 Controller
- Energy saving
- Auto standby function programmable per channel
Sleep Mode function selectable - Number of auxiliar outputs
- 2
- Auxiliar output connection type
- AUX1-2: 3-pin Euroblock, balanced (Euroblock pitch 3,5 mm. Settings by embedded web application)
- Number of digital outputs
- 4
- Digital output connection type
- Ethernet, managed via Dante/ AES67 Controller
Ethernet, managed via Dante™/ AES67 Controller - Current Draw
- 0,089 Arms
0,13 Arms
0,55 Arms
0,99 Arms
4,24 Arms
7,08 Arms
8,03 Arms
14,4 Arms - Thermal Loss
- 2,9 kcal/h | 11,1 BTU/h
3,22kcal/h | 12,76BTU/h
57,6 kcal/h | 228,7 BTU/h
61,9kcal/h | 245,7BTU/h
220,2 kcal/h | 873,7 BTU/h
221,9 kcal/h | 880,55 BTU/h
312,2 kcal/h | 1238,9 BTU/h
341,4 kcal/h | 1355 BTU/h - Dante
- DANTE/ AES67 LED (White) per unit (OFF NO WIRE, ON when MASTER, BLINK when SLAVE)
DANTE™/ AES67 LED (White) per unit (OFF NO WIRE, ON when MASTER, BLINK when SLAVE) - Battery
- VARTA CR2032 3V, 230mAh
- RUN/SLEEP mode
- Yes, front panel push-button (operate when pressed more than 0,5 seconds)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
Quad core 64bits 1,5GHz |
|---|---|
| Number of input channels |
4 analogue input channels
4 DANTE™/ AES67 Network Rx channels
1 embedded player, 1 embedded signal generator 4 analogue input channels 4 DANTE/ AES67 Network Rx channels 1 embedded player, 1 embedded signal generator |
PHYSICAL
| Installation options |
Rack 19" installation & desktop |
|---|---|
| Operating temperature |
-10º to 50º C
14º to 122º F
(performance may be reduced above 40 °C) |
| Operating humidity |
5 - 85% RH, non-condensing |
| Storage temperature |
-10º to 50º C
14º to 122º F |
| Storage humidity |
5 - 85% RH, non-condensing |
| Included accessories |
Universal Main cords, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware Powercon cable, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware powerCON® cable, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware |
| Optional accessories |
- |
| Dimensions |
482.6 x 88 x 410 mm. / 19 x 3.46 x 16.14 in. (WxHxD) |
| Weight |
9.9 kg / 21.8 lb |
| Shipping dimensions |
650 x 125 x 600 mm. / 25.59 x 4.92 x 23.62 in. (WxHxD) |
| Shipping weight |
12.9 kg / 28.43 lb |
POWERED
| Power |
1555 W | 1606 VA 864 W | 970 VA 72 W | 125 VA 3,74 W | 31 VA 1589 W | 1660 VA 866 W | 940 VA 68 W | 120 VA 3,25 W | 10,7 VA |
|---|
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071343916 |
| Tariff code |
8518400000 |
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz ((±10%) |
|---|---|
| AC mains connector |
IEC C14 inlet (10Amax) powerCON® |
| Power supply |
Universal, regulated SMPS with PFC |
| Power factor correction |
> 0,96 (Output Power > 500W) 0,96 (Output Power 500W) |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
2,8 ms (Analogue IN to analogue OUT) |
| Dynamic range |
114dB |
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
>80dB (@ 1kHz) 80dB (@ 1kHz) |
|---|
CONNECTIVITY
| Programing and control |
Embedded web application |
|---|---|
| Ethernet |
Ethernet Base-Tx 10/100/1000Mb Auto X-Over
2 Ports Ethernet Switch capability
(CAT5 up to 100m. Settings by embedded web application)
|
| DANTE Protocol |
Dante™/ AES67 4x Tx / 4x Rx channels
Primary and secondary capability. RJ-45 ports
(Settings by embedded web application)
Dante/ AES67 4x Tx / 4x Rx channels (2/2 flows) Primary and secondary capability. RJ-45 ports (Settings by embedded web application) |
REMOTE CONTROL CONNECTIONS
| GPIs |
x4 GPIs (0-10V) (Function and settings by embedded web application, 5-pin Euroblock connector, rear panel. Euroblock pitch 3,5 mm) |
|---|---|
| GPOs |
x4 NC / NO contacts
4x 3pins Euroblock connector, rear panel
Euroblock pitch 3,5 mm
|
| ON / OFF |
No |
REAL-TIME CLOCK
| Retention time |
> 5 years 5 years |
|---|---|
| Accuracy |
±1 minute / month |
| Battery |
VARTA CR2032 3V, 230mAh |
LOCAL STORAGE
| Micro SD |
SDXC |
|---|---|
| Capacity |
Up to 2TB |
| File system |
FAT16, FAT 32, VFAT (read/write)
NTFS (read)
Multi-partition up to 1 |
| Playable audio files |
mp3, ogg, WAV, FLAC, AIFF |
| Files analysis |
65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder |
| Folder hierarchy |
Up to 8 containing the root directory |
| Sorting |
UNICODE, in alphabetical order
Up to 100 folders / files by folder
Folders/files over 100 sorted in the FAT order |
CHANNELS
| Number of output channels |
4 |
|---|---|
| Output configuration |
Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω
Output mode selection per channel
Rear panel DIP SWITCH selectors
|
| Input configuration |
Digital matrix 4in x 6out (Settings by embedded web application) |
SIGNAL
| SNR |
95 dBA (40dB Gain, from 20Hz - 20kHz) |
|---|---|
| Damping factor |
>500 (@ 8Ω, from 20Hz to 1kHz) 500 (@ 8Ω, from 20Hz to 1kHz) |
| Voltage gain |
28 to 40 dBV
30,2 to 42,2 dBu |
TECHNOLOGIES
| Cooling |
Fan (Forced air, front to back airflow. Temperature controlled continuously variable speed) |
|---|---|
| Maximum fan noise |
55,5dBA (maximum acoustical noise @1m) |
| Efficiency |
77% (1/4 POWER, @ 4Ω 230VAC) |
| Amplification technology |
Class D |
| Energy saving |
Auto standby function programmable per channel
Sleep Mode function selectable |
PROTECTIONS
| DC protection |
Yes Yes (Protects loudspeaker and installation against DC and infrasonic signals at the outputs) |
|---|---|
| Short-circuit protection |
Yes Yes (protects the amplifier from overcurrent, short circuit or other stressful events for the output stages with output reduction or MUTE (automatic protection reset) |
| Clip limiter |
Yes Yes (prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output). |
| Long term limiter |
Yes Yes (protects the loudspeaker and amplifier against steady long term rms signals (sine wave, non-music) reducing maximum output) |
| Thermal protection |
Yes Yes (output power reduction when output stages operating temperature up to 90 °C (194 °F). Mute when output stages operating temperature up to 100 °C (212 °F) |
| HF protection |
Yes (Protects the loudspeakers against non-audible, strong, non-musical high frequency signals) Yes |
MONITORING
| Signal Present |
SP LED (White) per channel (trigger @- 40 dBV) |
|---|---|
| Cliping |
CLIP LED (Red) per channel (Clip, Versa power limiter, Peak power, Power supply overload) |
| Thermal |
THERMAL LED (Red) per unit (Temperature limiter) |
| Protect |
PROT LED (Red) per channel (Current overload, Output short circuit, Under voltage, Over Voltage,
DC OUT (slow blink), HF protect (fast blink) |
| Standby / Mute |
STBY/MUTE LED (White) per channel
(ON when STBY, BLINK when MUTE) |
| Limit |
LIMIT LED (Red) per unit
(Power (power supply) overload) |
| Data |
DATA LED (White) per unit (ON when DATA) |
| On |
ON LED (White) per unit (ON when RUN,
SLOW BLINK when SLEEP by BUTTON, FAST BLINK when SLEEP by AUTOSTBY, VERY FAST BLINK when HW Fault)
|
| Dante |
DANTE™/ AES67 LED (White) per unit (OFF NO WIRE, ON when MASTER, BLINK when SLAVE) DANTE/ AES67 LED (White) per unit (OFF NO WIRE, ON when MASTER, BLINK when SLAVE) |
DSP
| Digital processing |
32/64 bit |
|---|---|
| Inputs processing |
Noise gate, HPF, Freq. Shifter, compressor/limiter (Settings by embedded web application) |
| Outputs processing |
Delay, Parametric EQ, Graphic EQ independent for every amp out and aux out.
Limiters independent for every amp out
Smart VersaPower management
(Settings by embedded web application) |
| Others |
Preset management, Internal matrix, priority & backup signals management, local & network groups, events management incl. calendar (Settings by embedded web application) |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
-6 to +6 dBV
-3,78 to 8,2 dBu
0,5 to 2 Vrms
(adjusted by means of Smart Versa Power utility) |
|---|---|
| Number of inputs |
4 analogue input channels
4 DANTE™/ AES67 Network Rx channels
1 embedded player, 1 embedded signal generator |
CONTROL CONNECTIVITY
| External MUTE |
Yes, contact (2 pins Euroblock connector, rear panel, Euroblock pitch 3,5 mm) |
|---|
LINE INPUTS
| CMRR |
> 65 Typ (from 20Hz-20kHz) 65 Typ (from 20Hz-20kHz) |
|---|---|
| Input connection type |
Digital: Ethernet, managed via Dante™/ AES67 Controller
Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm. Digital: Ethernet, managed via Dante/ AES67 Controller Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm. |
| Input impedance |
>24k (balanced) 24k (balanced) |
| Max input level |
+18 dBV
+20,2 dBu
(@ Gain 34 dBV) |
LINE OUTPUTS
| Frequency response |
15Hz-25kHz (-3dB, 1W any load) |
|---|---|
| Output connection type |
2-pin Euroblock. Pitch: 7,62 mm
Ref: DEGSON 5EDGRC-7.62
|
| THD + Noise |
< 0,1 %
0,015 Typ
(@ 1kHz, from 0,1W to Full Power) 0,1 % 0,015 Typ (@ 1kHz, from 0,1W to Full Power) |
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
INPUTS
| Analogue input connection type |
IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm. |
|---|---|
| Digital input connection type |
Ethernet, managed via Dante™/ AES67 Controller |
AMPLIFIED OUTPUTS
| Number of amplified outputs |
4 |
|---|---|
| Amplified output connection type |
2-pin Euroblock. Pitch: 7,62 mm
Ref: DEGSON 5EDGRC-7.62
|
AUXILIAR OUTPUTS
| Number of auxiliar outputs |
2 |
|---|---|
| Auxiliar output connection type |
AUX1-2: 3-pin Euroblock, balanced (Euroblock pitch 3,5 mm. Settings by embedded web application) |
DIGITAL OUTPUTS
| Number of digital outputs |
4 |
|---|---|
| Digital output connection type |
Ethernet, managed via Dante™/ AES67 Controller Ethernet, managed via Dante/ AES67 Controller |

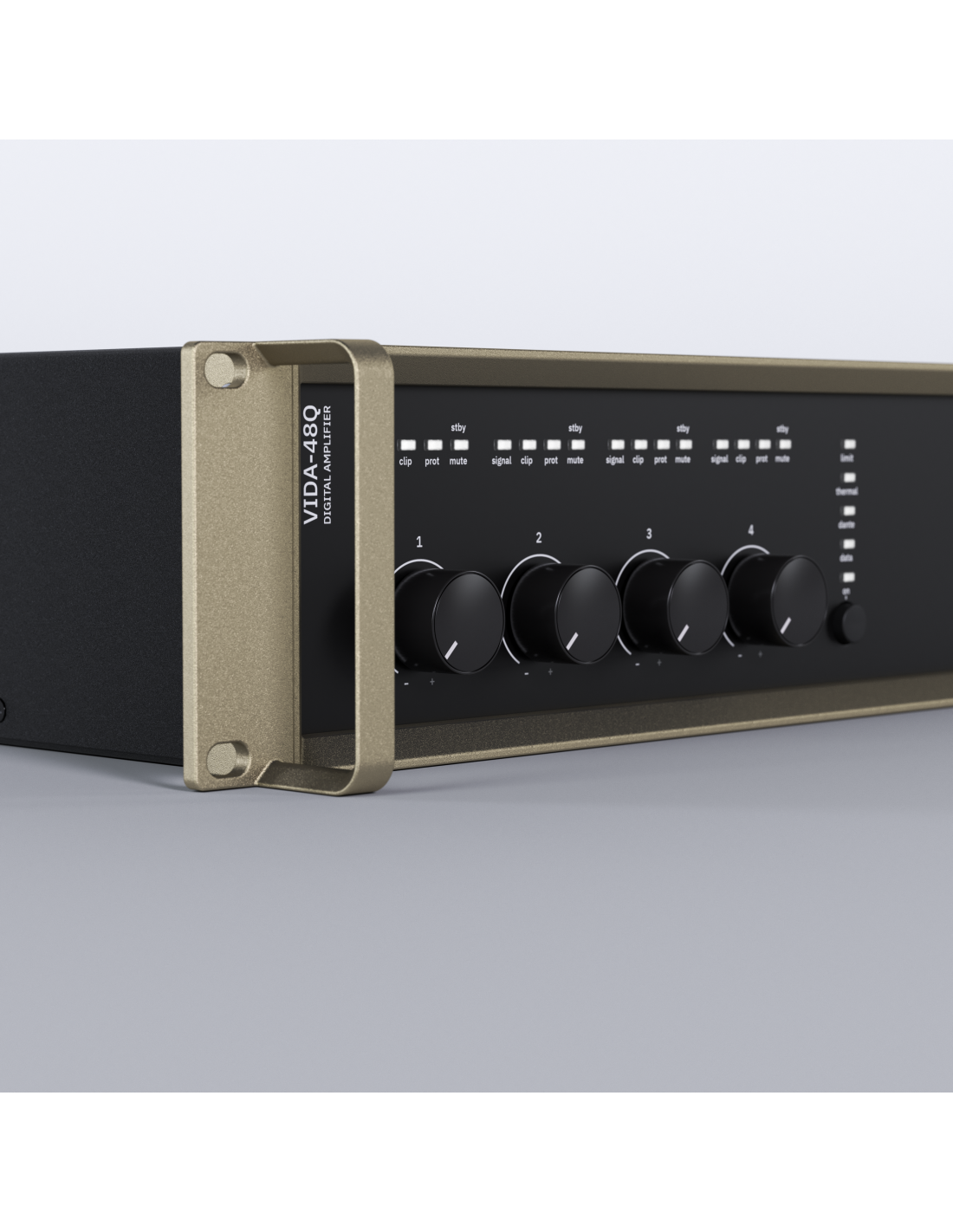

LOCAL CONTROL
| Attenuators |
Programmable Front panel knobs (defaults: Amplified OUTs attenuators) |
|---|---|
| Power ON/OFF |
Yes, back panel switch (Red LED indicator) |
| Output mode settings |
Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω
Output mode selection per channel
(Rear panel DIP SWITCH selectors)
|
| RUN/SLEEP mode |
Yes, front panel push-button (operate when pressed more than 0,5 seconds) |
| RUN/SLEEP mode |
Yes, front panel push-button (operate when pressed more than 0,5 seconds) |
OUTPUT POWER - All channels driven @ 1%THD
| Max output power @ 100V |
1200W 2860W |
|---|---|
| Max output power @ 70V |
2000W 1200W |
POWER & HEAT @120VAC - STANDBY/SLEEP MODE
| Current Draw |
7,08 Arms 4,24 Arms 0,55 Arms 0,13 Arms 14,4 Arms 8,03 Arms 0,99 Arms 0,089 Arms |
|---|---|
| Thermal Loss |
312,2 kcal/h | 1238,9 BTU/h 220,2 kcal/h | 873,7 BTU/h 61,9kcal/h | 245,7BTU/h 3,22kcal/h | 12,76BTU/h 341,4 kcal/h | 1355 BTU/h 221,9 kcal/h | 880,55 BTU/h 57,6 kcal/h | 228,7 BTU/h 2,9 kcal/h | 11,1 BTU/h |
Tap to zoom
