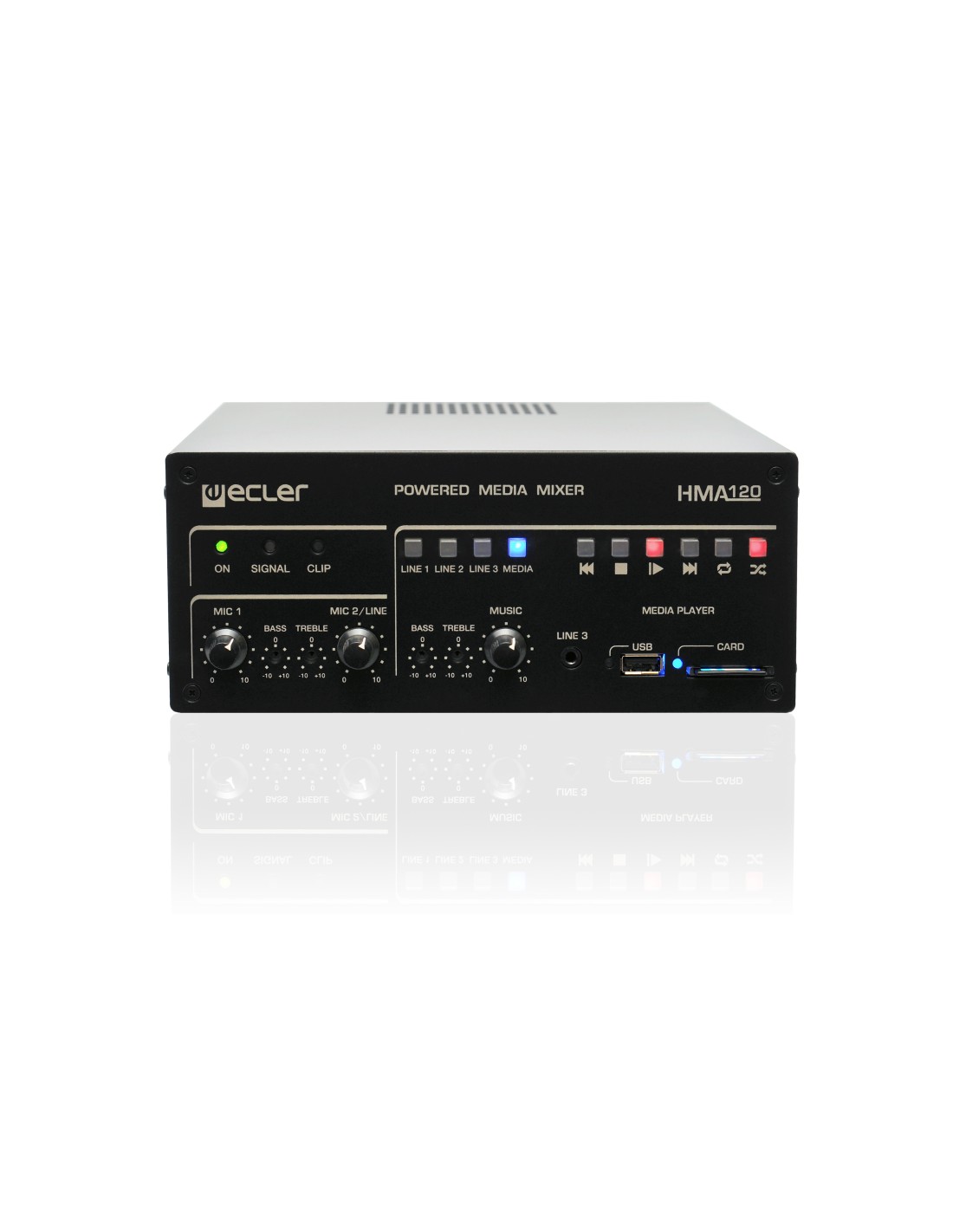

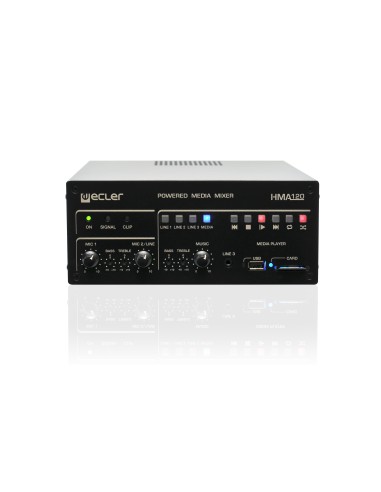

HMA120
CHMA120
Check availability
120 WRMS | powered | media mixer
HMA120 is a self-powered mixer including an integrated media player and 5 external audio inputs: 3 x LINE ST, 1 MIC/LINE and 1 MIC. It features a 120W powered output that supports both low (4 Ω) and high impedance (70V, 100V) loudspeaker lines. It also includes a 2 level priority system (paging, emergencies, etc.), auto stand-by mode, AUX OUT and an additional remote control port to manage the source selection and output volume by means of WPa series wall panels.
HMA120 is the perfect integral solution for user-friendly and budget audio projects.
- Connection type
- Euroblock
Euroblock and double RCA - Installation options
- Tabletop, 19" or 9.5" rack format
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPa series wall panels for remote control, kit of 2 brackets (2UHRMKIT)
- Dimensions
- 210 x 88 x 230 mm / 8.27 x 3.46 x 9.06 in. (WxHxD)
- Weight
- 5.95 kg / 13.12 lb
- Shipping dimensions
- 370 x 118 x 340 mm / 14.57 x 4.65 x 13.39 in. (WxHxD)
- Shipping weight
- 7.16 kg / 15.79 lb
- Status
- New
- EAN code
- 8435071304818
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Number of input ports
- 5, MIC/LINE level
- Input sensitivity
- LINE1-2: 0dBV
LINE3: -6dBV
MIC1-2 (BAL): -20 to -50dBV - CMRR
- MIC1-2 (BAL): 70dB @ 1kHz
MIC1-2 (BAL): >70dB @ 1kHz - Number of output ports
- 2 + 1 AUX
- Crosstalk
- 70dB (Inputs shorted) @ 1kHz
>70dB (Inputs shorted) @ 1kHz - GPIs
- x1 GPI (0-10VDC) for volume control
- AC mains requirement
- 115V/230V. Voltage changed internally (NOT BY SWITCH)
- AC mains connector
- AC socket connector (IEC)
- Phantom power
- +15VDC / 8mA max (internally selectable)
- Output connection type
- Euroblock
- Number of output channels
- 1 + 1 AUX
- Number of input channels
- 5
- Input connection type
- MIC: balanced Euroblock
LINE: unbalanced double RCA (or minijack on duplicated LINE3) - Max output power @ 100V
- 140 WRMS @ 85Ω
- Max output power @ 70V
- 140 WRMS @ 41Ω
- Input impedance
- LINE1-3: 70kΩ
MIC1-2:4.5kΩ
LINE (internally selectable): 4.5kΩ
LINE1-3: >70kΩ
MIC1-2:>4.5kΩ
LINE (internally selectable): 4.5kΩ - Power Consumption (STBY)
- 5W
- Output configuration
- 1 x 120W @ 4Ω or 70V/100V
- Input configuration
- 1 MIC input
1 MIC/LINE input
3 LINE inputs - Power Consumption (1/3 POWER, @ 4Ω)
- pink noise, 65W / 90VA
- Power Consumption (1/8 POWER, @ 4Ω)
- pink noise, 29W / 43VA
- Energy save
- Auto standby function
- AC protection
- No
- DC protection
- No
- VHF protection
- No
- Short-circuit protection
- No
- Clip limiter
- No
- Long term limiter
- No
- Thermal protection
- No
- External MUTE
- Potential free, external contact
- Attenuators
- Front panel knobs
- Tone control
- 2-band EQ (BASS/TREBLE) for MIC1 and MIC2/LINE and 2-band EQ for program MUSIC signal
- Output settings
- Lo-Z/70V/100V outputs
- Auto stand-by function
- Rear panel switch
- Auto stand-by time
- 120 seconds
- Signal Present
- SP LED (Green) @ -35 dB
- Cliping
- CLIP LED (Red)
- Standby
- STBY LED (Orange)
- Filters
- 70Hz High pass filter 3rd order Butterworth
- Talkover
- Yes
- Power ON/OFF
- Rear panel switch and front panel indicator
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Number of input channels |
5 |
|---|
PHYSICAL
| Connection type |
Euroblock Euroblock and double RCA |
|---|---|
| Installation options |
Tabletop, 19" or 9.5" rack format |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPa series wall panels for remote control, kit of 2 brackets (2UHRMKIT) |
| Dimensions |
210 x 88 x 230 mm / 8.27 x 3.46 x 9.06 in. (WxHxD) |
| Weight |
5.95 kg / 13.12 lb |
| Shipping dimensions |
370 x 118 x 340 mm / 14.57 x 4.65 x 13.39 in. (WxHxD) |
| Shipping weight |
7.16 kg / 15.79 lb |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071304818 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
ELECTRICAL
| AC mains requirement |
115V/230V. Voltage changed internally (NOT BY SWITCH) |
|---|---|
| AC mains connector |
AC socket connector (IEC) |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
5, MIC/LINE level |
|---|
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
2 + 1 AUX |
|---|---|
| Crosstalk |
>70dB (Inputs shorted) @ 1kHz 70dB (Inputs shorted) @ 1kHz |
REMOTE CONTROL CONNECTIONS
| GPIs |
x1 GPI (0-10VDC) for volume control |
|---|
CHANNELS
| Number of output channels |
1 + 1 AUX |
|---|---|
| Output configuration |
1 x 120W @ 4Ω or 70V/100V |
| Input configuration |
1 MIC input
1 MIC/LINE input
3 LINE inputs |
POWER CONSUMPTION
| Power Consumption (STBY) |
5W |
|---|---|
| Power Consumption (1/3 POWER, @ 4Ω) |
pink noise, 65W / 90VA |
| Power Consumption (1/8 POWER, @ 4Ω) |
pink noise, 29W / 43VA |
TECHNOLOGIES
| Energy save |
Auto standby function |
|---|
PROTECTIONS
| AC protection |
No |
|---|---|
| DC protection |
No |
| VHF protection |
No |
| Short-circuit protection |
No |
| Clip limiter |
No |
| Long term limiter |
No |
| Thermal protection |
No |
SETTINGS
| Output settings |
Lo-Z/70V/100V outputs |
|---|---|
| Auto stand-by function |
Rear panel switch |
| Auto stand-by time |
120 seconds |
MONITORING
| Signal Present |
SP LED (Green) @ -35 dB |
|---|---|
| Cliping |
CLIP LED (Red) |
| Standby |
STBY LED (Orange) |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
LINE1-2: 0dBV
LINE3: -6dBV
MIC1-2 (BAL): -20 to -50dBV |
|---|
CONTROL CONNECTIVITY
| External MUTE |
Potential free, external contact |
|---|
MONITORING AND CONTROL
| Tone control |
2-band EQ (BASS/TREBLE) for MIC1 and MIC2/LINE and 2-band EQ for program MUSIC signal |
|---|
DEVICE CONTROL
| Talkover |
Yes |
|---|
MIC INPUTS
| Phantom power |
+15VDC / 8mA max (internally selectable) |
|---|---|
| Filters |
70Hz High pass filter 3rd order Butterworth |
LINE INPUTS
| CMRR |
MIC1-2 (BAL): >70dB @ 1kHz MIC1-2 (BAL): 70dB @ 1kHz |
|---|---|
| Input connection type |
MIC: balanced Euroblock
LINE: unbalanced double RCA (or minijack on duplicated LINE3) |
| Input impedance |
LINE1-3: >70kΩ
MIC1-2:>4.5kΩ
LINE (internally selectable): 4.5kΩ LINE1-3: 70kΩ MIC1-2:4.5kΩ LINE (internally selectable): 4.5kΩ |
LINE OUTPUTS
| Output connection type |
Euroblock |
|---|
LOCAL CONTROL
| Attenuators |
Front panel knobs |
|---|---|
| Power ON/OFF |
Rear panel switch and front panel indicator |
OUTPUT POWER - All channels driven @ 1%THD
| Max output power @ 100V |
140 WRMS @ 85Ω |
|---|---|
| Max output power @ 70V |
140 WRMS @ 41Ω |
