CEHMA60C
Available
60 WRMS | powered |audio mixer
See more Features Resources

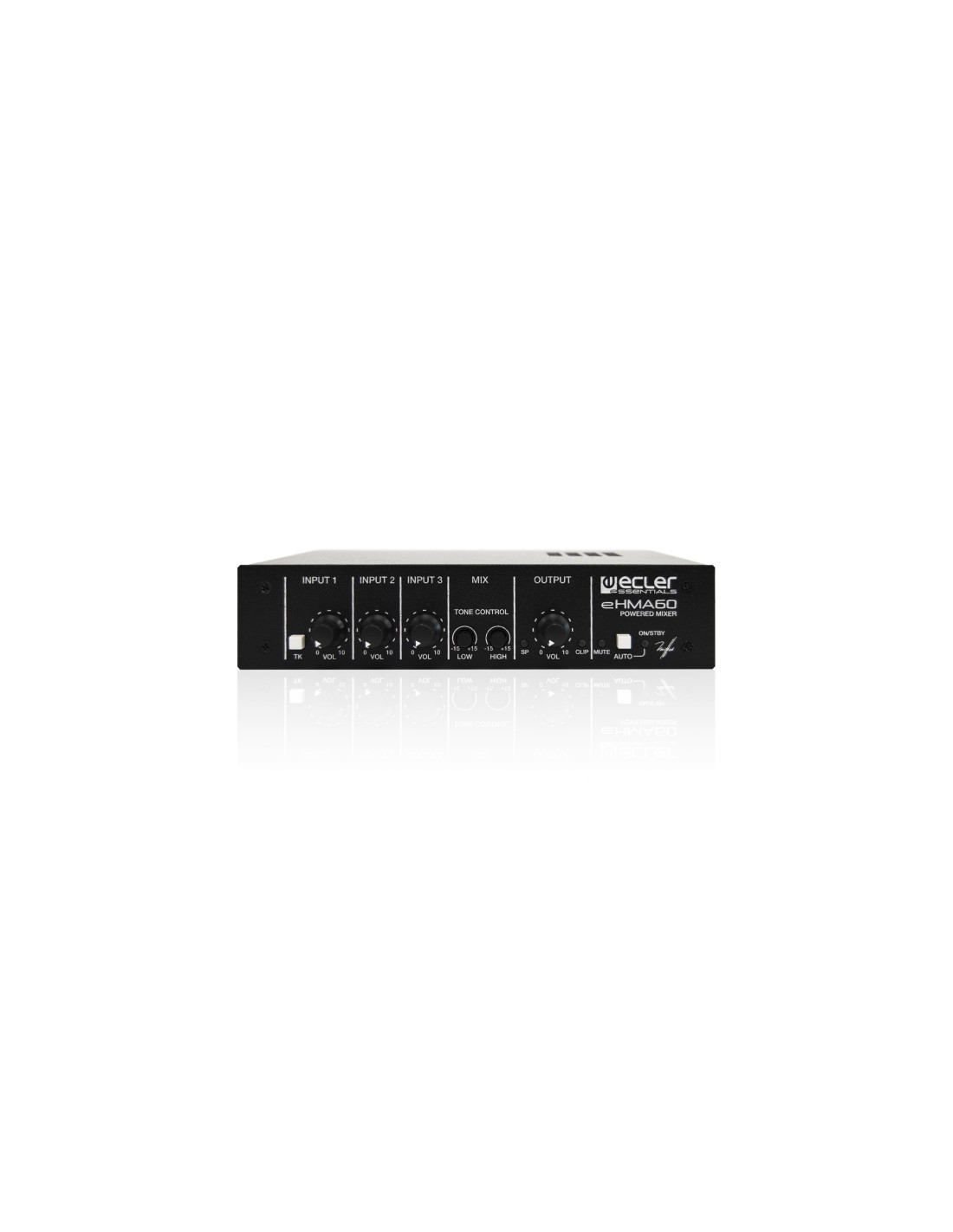

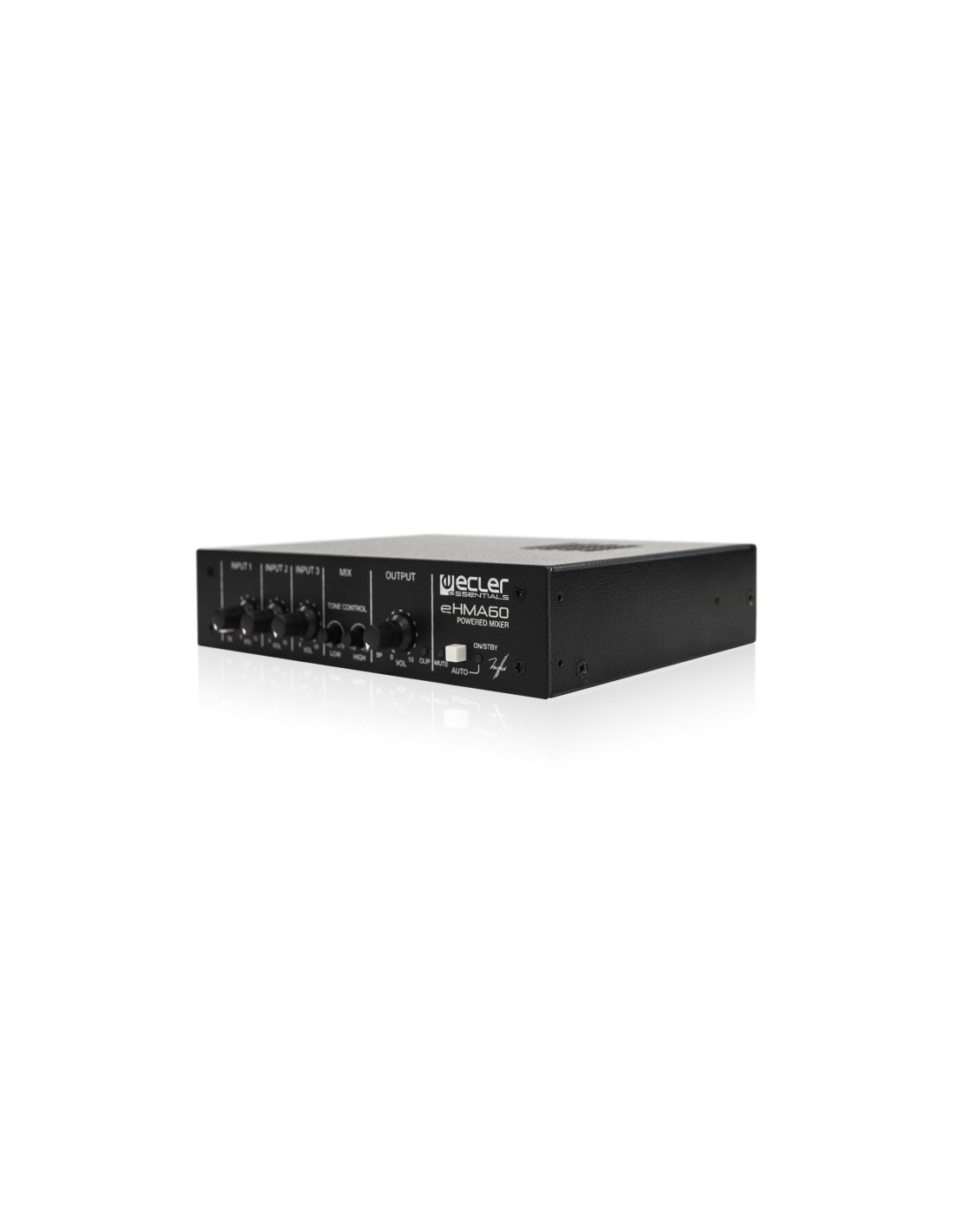

eHMA60 is a self-powered audio mixer including one MIC input and two MIC/LINE ST inputs. It features a 60W powered mono output that supports both low (4 ohm) and high impedance (70V, 100V) loudspeaker lines. It also includes an audio priority system (paging, emergencies, etc.), 2 band tone control, auto stand-by mode, MUTE port, universal power supply unit and auto standby function.
Connection type
Euroblock
Euroblock and double RCA
Installation options

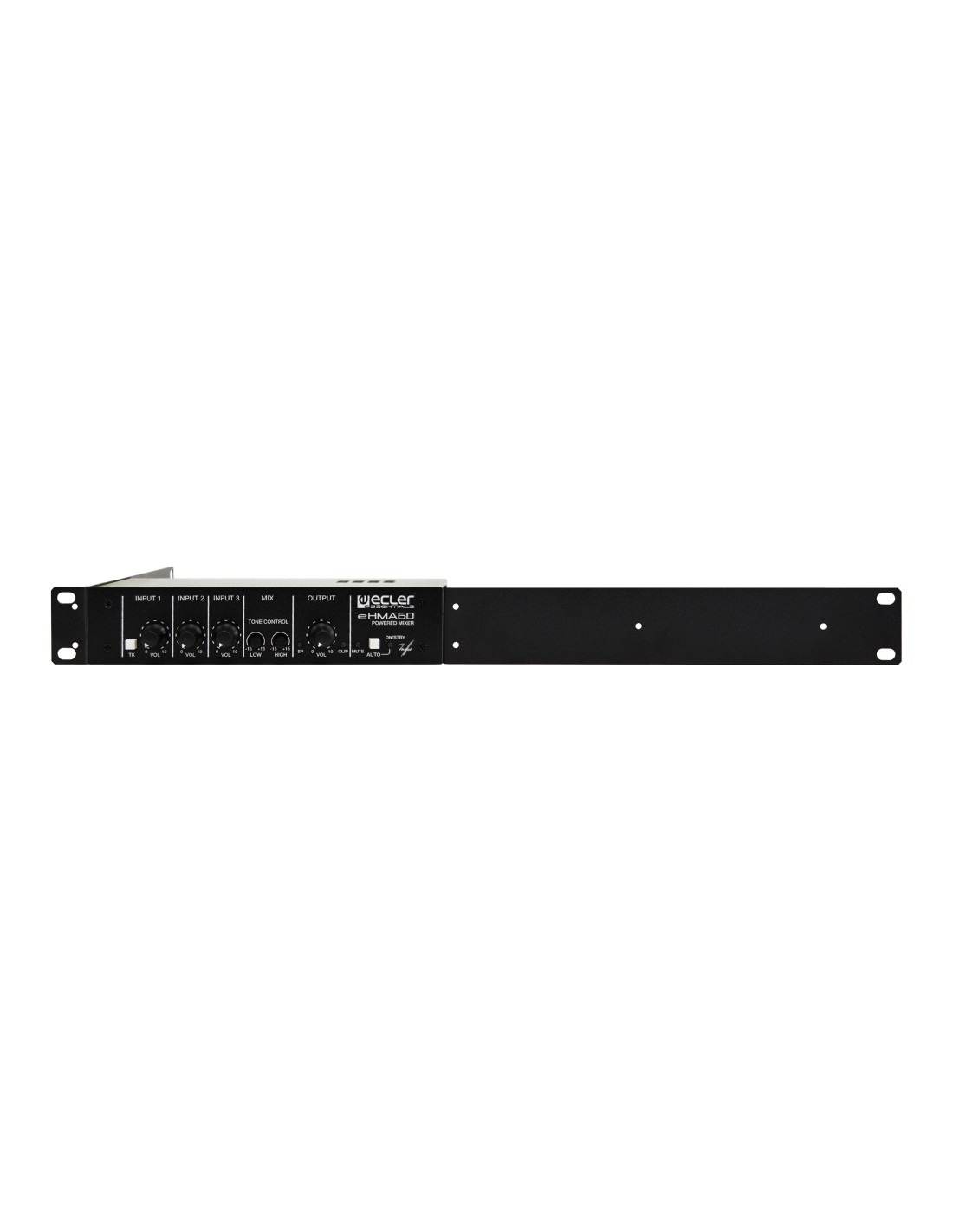

19" rack format (1 or 2 RU)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Included accessories
24VDC power supply
Optional accessories
UHRMKIT
Dimensions
Knobs excluded: 200 x 44 x 150 mm / 7.87 x 1.73 x 5.91 in. (WxHxD)
Weight
1.9 kg / 4.19 lb
Shipping dimensions
260 x 60 x 450 mm / 10.24 x 2.36 x 17.72 in. (WxHxD)
Shipping weight
2.8 kg / 6.17 lb
Status
Descat
EAN code
8435071305730
8435071308250
Tariff code
8518400000
Shipping Location
Spain
Number of input ports
3
Input sensitivity
LINE1-2: -15dBV to + 15dBV
MIC1-3: -20dBV to -50dBV
CMRR
MIC (BAL): 65dB @ 1kHz
MIC (BAL): >65dB @ 1kHz
Number of output ports
2
Crosstalk
65dB @ 1kHz
>65dB @ 1kHz
AC mains requirement
100-240VAC + External PSU 24VDC
AC mains connector
DC24V socket connector
Control Buttons
1x Talkover switch, 1x Auto-standby switch, 1x phantom ON/OFF,
Status Indicators
SP, CLIP, MUTE, ON/STBY
Power supply
Universal
Phantom power
24VDC (external switch)
Output connection type
Euroblock
Number of output channels
2
Number of input channels
3

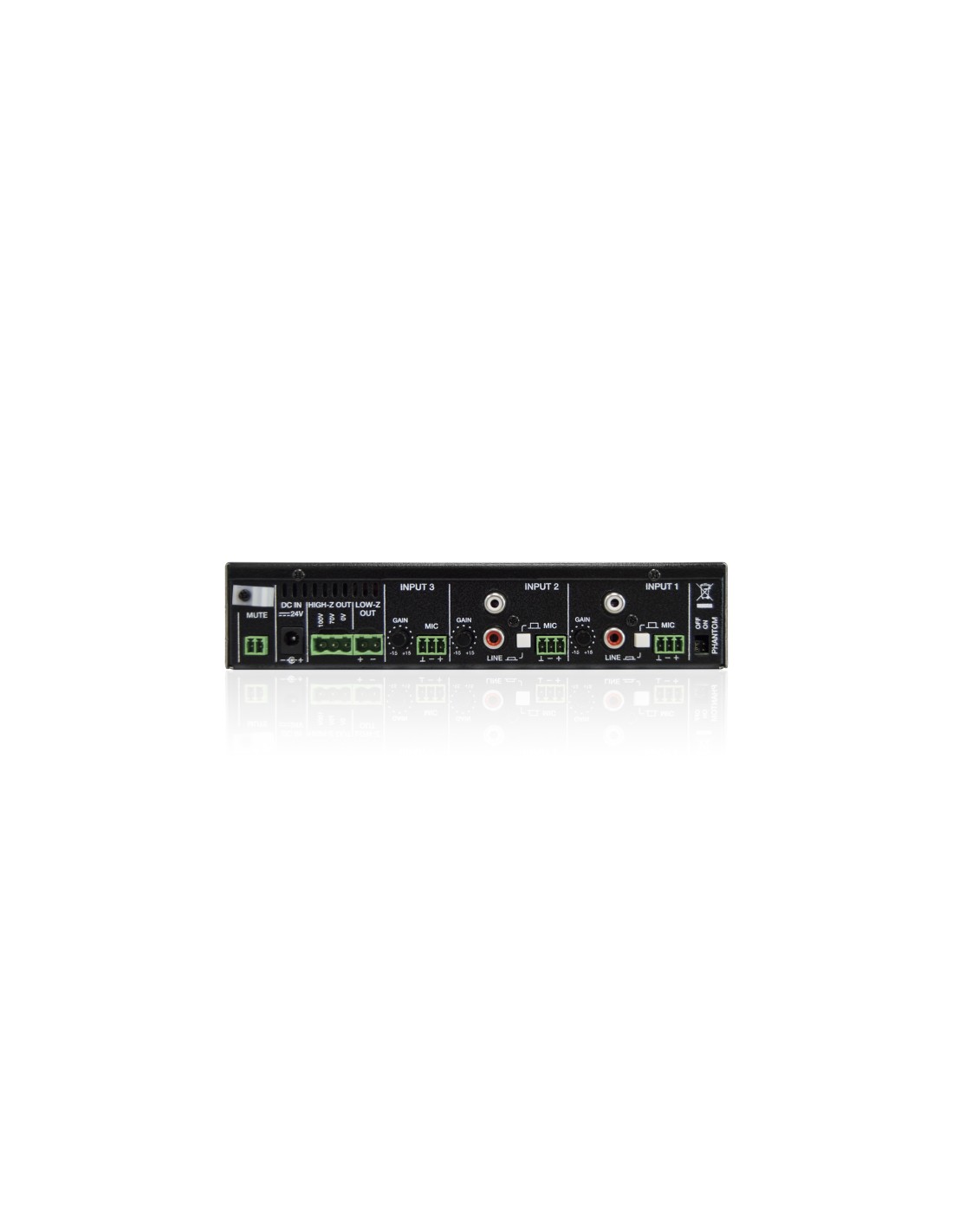

Input connection type
MIC: balanced Euroblock
LINE: unbalanced double RCA
Max output power @ 100V
60W @ 166Ω
Input impedance
LINE1-2: 10 kΩ
MIC1-3: 1 kΩ
LINE1-2: >10 kΩ
MIC1-3: >1 kΩ
Gain
Rear panel knobs
Power Consumption (STBY)
4W
<4W
Output configuration
1 x 60 W @ 4Ω or 70V/100V
Input configuration
1 MIC input
2 MIC/LINE inputs
Power Consumption (1/3 POWER, @ 4Ω)
pink noise, 36W / 62VA
Power Consumption (1/8 POWER, @ 4Ω)
pink noise, 17W / 33VA
Energy save
Auto standby function
Efficiency
TBC
AC protection
No
DC protection
No
VHF protection
No
Short-circuit protection
No
Clip limiter
No
Long term limiter
No
Thermal protection
No
External MUTE
External dry contact closure
Attenuators
Front panel knobs per channel
Tone control
2-band EQ (BASS/TREBLE) for Mix Output
2-band tone control
Output settings
Lo-Z/70V/100V outputs
Auto stand-by function
Front panel switch
Auto stand-by time
120 seconds
Signal Present
SP LED (Green)
Cliping
CLIP LED (Red)
Standby
STBY LED (Orange)
Filters
70Hz Hig Pass Filter
Tone Frequency Cut
BASS: 100Hz ±15dB
TREBLE: 10kHz ±15dB
Talkover
Yes
Power ON/OFF
Power mains switch (or by supplying power from external power supply)
Secondary power supply
External 24VDC IN backup supply systems compatible
SYSTEM
Number of input channels 3
PHYSICAL
Connection type Euroblock
Euroblock and double RCA
Installation options 19" rack format (1 or 2 RU)
Operating temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Operating humidity <85% HR
85% HR
Storage temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Storage humidity <90% HR
90% HR
Included accessories 24VDC power supply
Optional accessories UHRMKIT
Dimensions Knobs excluded: 200 x 44 x 150 mm / 7.87 x 1.73 x 5.91 in. (WxHxD)
Weight 1.9 kg / 4.19 lb
Shipping dimensions 260 x 60 x 450 mm / 10.24 x 2.36 x 17.72 in. (WxHxD)
Shipping weight 2.8 kg / 6.17 lb
LOGISTICS
Status Descat
EAN code 8435071305730 8435071308250
Tariff code 8518400000
Shipping Location Spain
ELECTRICAL
AC mains requirement 100-240VAC + External PSU 24VDC
AC mains connector DC24V socket connector
Power supply Universal
Secondary power supply External 24VDC IN backup supply systems compatible
ANALOGUE AUDIO INPUT PORTS
Number of input ports 3
ANALOGUE AUDIO OUTPUT PORTS
Number of output ports 2
Crosstalk >65dB @ 1kHz
65dB @ 1kHz
CHANNELS
Number of output channels 2
Output configuration 1 x 60 W @ 4Ω or 70V/100V
Input configuration 1 MIC input 2 MIC/LINE inputs
POWER CONSUMPTION
Power Consumption (STBY) <4W
4W
Power Consumption (1/3 POWER, @ 4Ω) pink noise, 36W / 62VA
Power Consumption (1/8 POWER, @ 4Ω) pink noise, 17W / 33VA
TECHNOLOGIES
Energy save Auto standby function
Efficiency TBC
PROTECTIONS
AC protection No
DC protection No
VHF protection No
Short-circuit protection No
Clip limiter No
Long term limiter No
Thermal protection No
SETTINGS
Gain Rear panel knobs
Output settings Lo-Z/70V/100V outputs
Auto stand-by function Front panel switch
Auto stand-by time 120 seconds
MONITORING
Signal Present SP LED (Green)
Cliping CLIP LED (Red)
Standby STBY LED (Orange)
ANALOGUE AUDIO INPUTS
Input sensitivity LINE1-2: -15dBV to + 15dBV MIC1-3: -20dBV to -50dBV
CONTROL CONNECTIVITY
External MUTE External dry contact closure
MONITORING AND CONTROL
Tone control 2-band EQ (BASS/TREBLE) for Mix Output
2-band tone control
DEVICE CONTROL
Control Buttons 1x Talkover switch, 1x Auto-standby switch, 1x phantom ON/OFF,
Status Indicators SP, CLIP, MUTE, ON/STBY
Tone Frequency Cut BASS: 100Hz ±15dB TREBLE: 10kHz ±15dB
Talkover Yes
MIC INPUTS
Phantom power 24VDC (external switch)
Filters 70Hz Hig Pass Filter
LINE INPUTS
CMRR MIC (BAL): >65dB @ 1kHz
MIC (BAL): 65dB @ 1kHz
Input connection type MIC: balanced Euroblock LINE: unbalanced double RCA
Input impedance LINE1-2: >10 kΩ MIC1-3: >1 kΩ
LINE1-2: 10 kΩ MIC1-3: 1 kΩ
LINE OUTPUTS
Output connection type Euroblock
LOCAL CONTROL
Attenuators Front panel knobs per channel
Power ON/OFF Power mains switch (or by supplying power from external power supply)
OUTPUT POWER - All channels driven @ 1%THD
Max output power @ 100V 60W @ 166Ω
