eHMA120

Reference CEHMA120C

Available

95 WRMS | powered | audio mixer

See more Features Resources

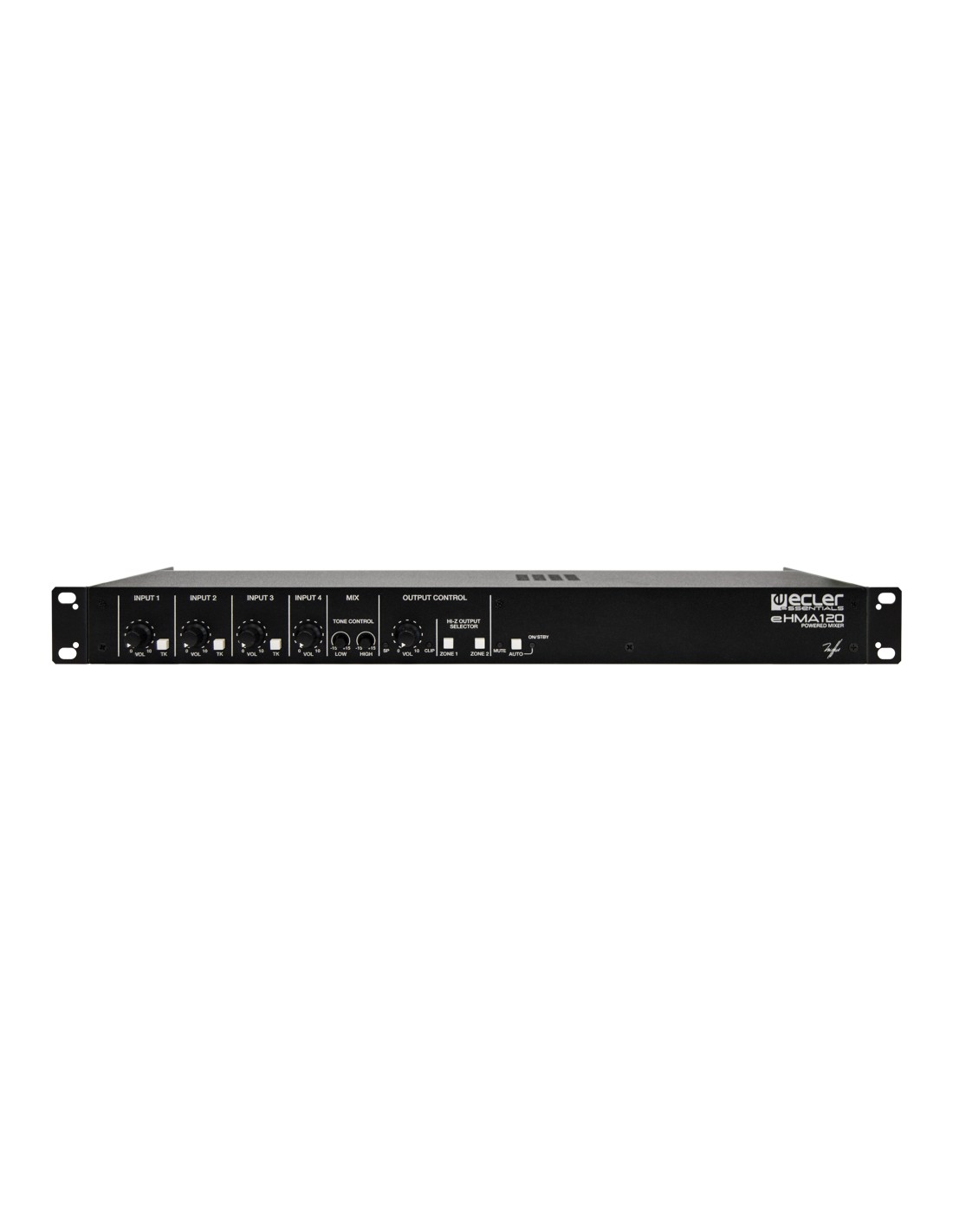

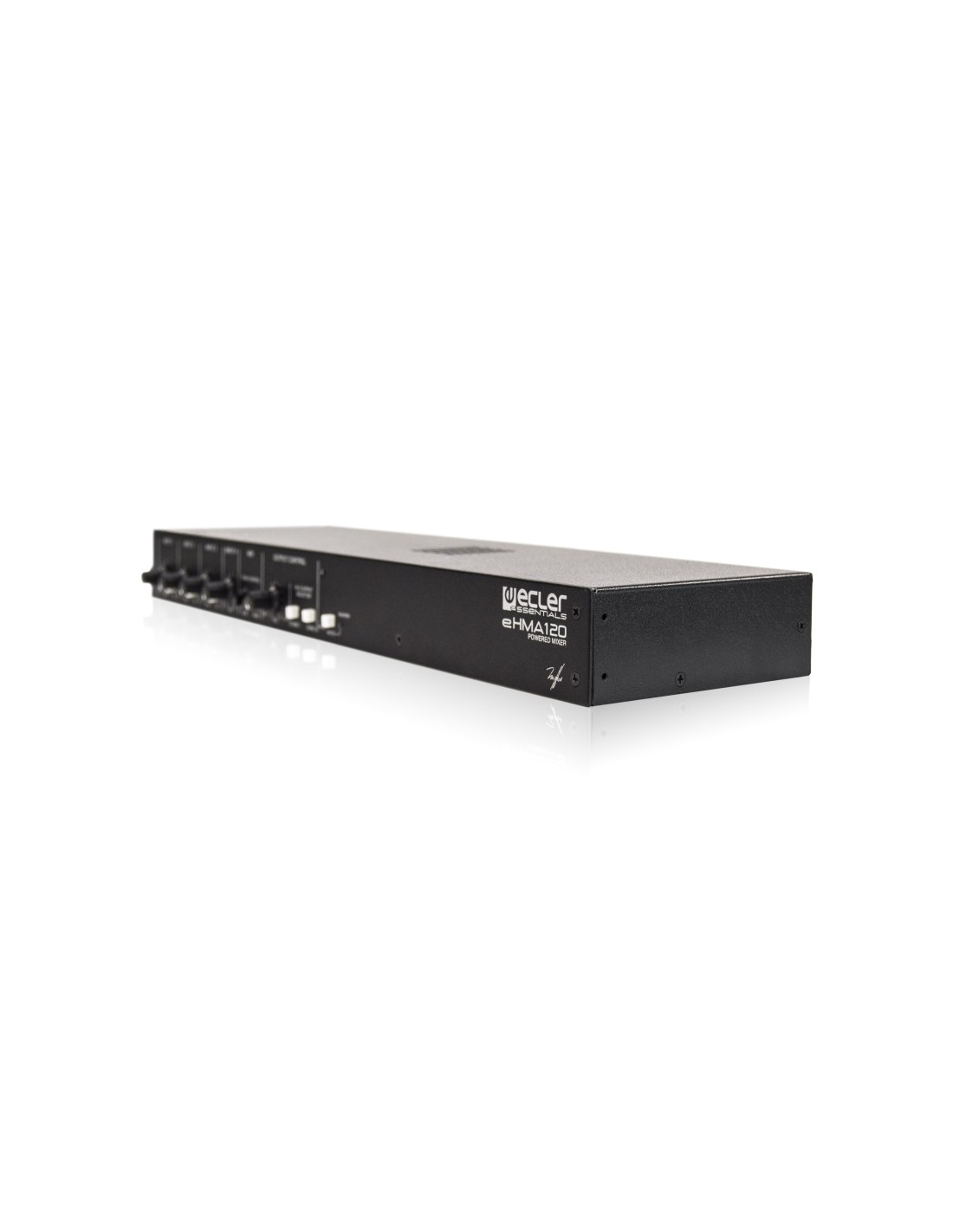

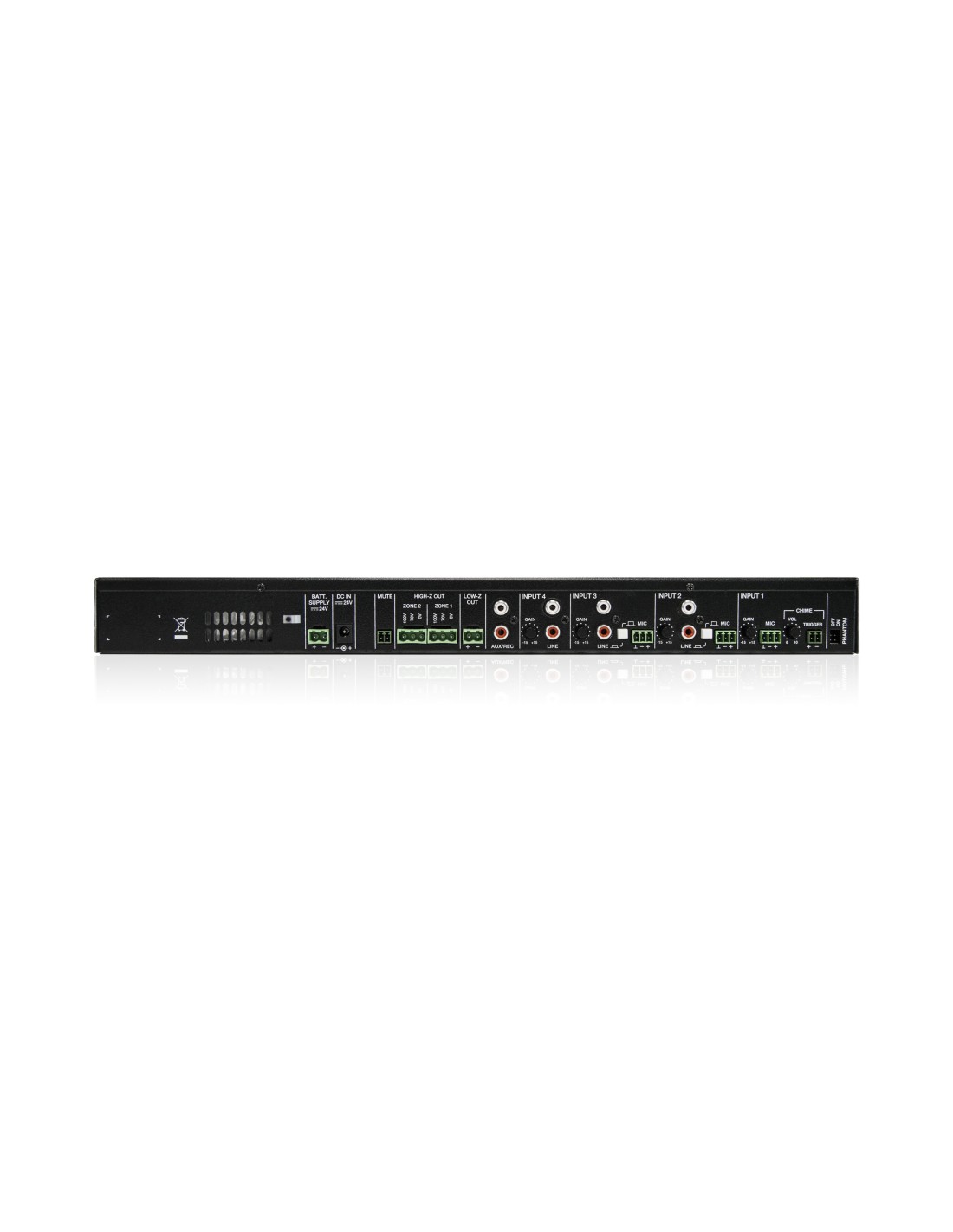

eHMA120 is a self-powered audio mixer including three MIC/LINE ST inputs and one LINE ST input. It features a 120W powered mono output that supports both low (4 ohm) and high impedance (70V, 100V) loudspeaker lines, with independent 2-ZONE ON/OFF switches (ZONE 1, ZONE 2). It also includes an audio priority system (voice messages, emergencies, etc.) available in 3 inputs, Pager and embedded Chime function (compatible with 1 zone paging microphones), 2 band tone control, auto stand-by mode, MUTE port and universal power supply unit, being compatible with external 24 VDC IN backup supply systems.

Connection type: Euroblock
Euroblock, double RCA
Installation options: 19" rack format (1 or 2 RU)
Operating temperature: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity: 85% HR
<85% HR
Storage temperature: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity: 90% HR
<90% HR
Included accessories: 24VDC external power supply included, with external battery backup connector
Dimensions: 435 x 44 x 120 mm / 17.13 x 1.73 x 4.72 in. (WxHxD)
Weight: 2.9 kg / 6.39 lb
Shipping dimensions: 320 x 70 x 580 mm / 12.6 x 2.76 x 22.83 in. (WxHxD)
Shipping weight: 4.2 kg / 9.26 lb
Status: Descat
EAN code: 8435071305747
8435071308267
Tariff code: 8518400000
Shipping Location: Spain
Number of input ports: 4 MIC/LINE level
Input sensitivity: LINE2-4: -15dBV to + 15dBV
MIC1-3: -20dBV to -50dBV
CMRR: MIC (BAL): 65dB @ 1kHz
MIC (BAL): >65dB @ 1kHz
Number of output ports: 3 + 1 AUX
Crosstalk: 65dB @ 1kHz
>65dB @ 1kHz
AC mains requirement: 100-240VAC + External PSU 24VDC
AC mains connector: DC24V socket connector
Control Buttons: 1x Talkover switch, 1x Auto-standby switch, 1x phantom ON/OFF, 1x CHIME TRIGGER, 1x ZONE ON/OFF
Status Indicators: SP, CLIP, MUTE, ON/STBY
Power supply: Universal
Phantom power: +24VDC / 10mA max.
Output connection type: Euroblock
Number of output channels: 3 + 1 AUX/REC
Number of input channels: 4
Input connection type: MIC: balanced Euroblock
LINE: unbalanced double RCA
Max output power @ 100V: 95W @ 100Ω
Input impedance: LINE2-4: 10 kΩ
MIC1-3: 1 kΩ
LINE2-4: >10 kΩ
MIC1-3: >1 kΩ
Gain: Rear panel knobs per channel
Power Consumption (STBY): 5W
<5W
Output configuration: 95 W 2 Hi-Z + 1 Lo-Z
Input configuration: 3 MIC/LINE inputs
1 LINE ST input
Power Consumption (1/3 POWER, @ 4Ω): pink noise, 58W / 64VA
Power Consumption (1/8 POWER, @ 4Ω): pink noise, 26W / 47VA
Energy save: Auto standby function
Efficiency: TBC
AC protection: No
DC protection: No
VHF protection: No
Short-circuit protection: No
Clip limiter: No
Long term limiter: No
Thermal protection: No
External MUTE: External dry contact closure
Attenuators: Front panel knobs per channel
Tone control: 2-band EQ
2-band EQ (BASS/TREBLE) for Mix Output
Output settings: Lo-Z/70V/100V outputs
Auto stand-by function: Front panel switch
Auto stand-by time: 120 seconds
Signal Present: SP LED (Green)
Cliping: CLIP LED (Red)
Standby: STBY LED (Orange)
Filters: 70Hz High Pass Filter
Tone Frequency Cut: BASS: 100Hz ±15dB
TREBLE: 10kHz ±15dB
Talkover: Yes
Power ON/OFF: Power mains switch (or by supplying power from external power supply)
Secondary power supply: External 24VDC IN backup supply systems compatible

User Manual PDF EN CEHMA120C

Download (1.25MB)

User Manual PDF ES CEHMA120C

Download (1.26MB)

User Manual PDF DE CEHMA120C

Download (1.26MB)

User Manual PDF FR CEHMA120C

Download (1.27MB)

Data sheet CEHMA120C

Download (294.89KB)

CE CEHMA120C

Download (61.4KB)

FCC CEHMA120C

Download (92.94KB)

CB SCHEME CEHMA120C

Download (1.13MB)

ETL CEHMA120C

Download (356.3KB)

Mechanical Diagram CEHMA120C

Download (257.15KB)

Mechanical Diagram II CEHMA120C

Download (1.58MB)

SYSTEM

Number of input channels	4

PHYSICAL

Connection type	Euroblock, double RCA Euroblock
Installation options	19" rack format (1 or 2 RU)
Operating temperature	Min: -10°C ; 14°F Max: 40°C ; 104°F
Operating humidity	<85% HR 85% HR
Storage temperature	Min: -10°C ; 14°F Max: 40°C ; 104°F
Storage humidity	<90% HR 90% HR
Included accessories	24VDC external power supply included, with external battery backup connector
Dimensions	435 x 44 x 120 mm / 17.13 x 1.73 x 4.72 in. (WxHxD)
Weight	2.9 kg / 6.39 lb
Shipping dimensions	320 x 70 x 580 mm / 12.6 x 2.76 x 22.83 in. (WxHxD)
Shipping weight	4.2 kg / 9.26 lb

LOGISTICS

Status	Descat
EAN code	8435071305747 8435071308267
Tariff code	8518400000
Shipping Location	Spain

ELECTRICAL

AC mains requirement	100-240VAC + External PSU 24VDC
AC mains connector	DC24V socket connector
Power supply	Universal
Secondary power supply	External 24VDC IN backup supply systems compatible

ANALOGUE AUDIO INPUT PORTS

Number of input ports	4 MIC/LINE level

ANALOGUE AUDIO OUTPUT PORTS

Number of output ports	3 + 1 AUX
Crosstalk	>65dB @ 1kHz 65dB @ 1kHz

CHANNELS

Number of output channels	3 + 1 AUX/REC
Output configuration	95 W 2 Hi-Z + 1 Lo-Z
Input configuration	3 MIC/LINE inputs 1 LINE ST input

POWER CONSUMPTION

Power Consumption (STBY)	<5W 5W
Power Consumption (1/3 POWER, @ 4Ω)	pink noise, 58W / 64VA
Power Consumption (1/8 POWER, @ 4Ω)	pink noise, 26W / 47VA

TECHNOLOGIES

Energy save	Auto standby function
Efficiency	TBC

PROTECTIONS

AC protection	No
DC protection	No
VHF protection	No
Short-circuit protection	No
Clip limiter	No
Long term limiter	No
Thermal protection	No

SETTINGS

Gain	Rear panel knobs per channel
Output settings	Lo-Z/70V/100V outputs
Auto stand-by function	Front panel switch
Auto stand-by time	120 seconds

MONITORING

Signal Present	SP LED (Green)
Cliping	CLIP LED (Red)
Standby	STBY LED (Orange)

ANALOGUE AUDIO INPUTS

Input sensitivity	LINE2-4: -15dBV to + 15dBV MIC1-3: -20dBV to -50dBV

CONTROL CONNECTIVITY

External MUTE	External dry contact closure

MONITORING AND CONTROL

Tone control	2-band EQ 2-band EQ (BASS/TREBLE) for Mix Output

DEVICE CONTROL

Control Buttons	1x Talkover switch, 1x Auto-standby switch, 1x phantom ON/OFF, 1x CHIME TRIGGER, 1x ZONE ON/OFF
Status Indicators	SP, CLIP, MUTE, ON/STBY
Tone Frequency Cut	BASS: 100Hz ±15dB TREBLE: 10kHz ±15dB
Talkover	Yes

MIC INPUTS

Phantom power	+24VDC / 10mA max.
Filters	70Hz High Pass Filter

LINE INPUTS

CMRR	MIC (BAL): >65dB @ 1kHz MIC (BAL): 65dB @ 1kHz
Input connection type	MIC: balanced Euroblock LINE: unbalanced double RCA
Input impedance	LINE2-4: >10 kΩ MIC1-3: >1 kΩ LINE2-4: 10 kΩ MIC1-3: 1 kΩ

LINE OUTPUTS

Output connection type	Euroblock

LOCAL CONTROL

Attenuators	Front panel knobs per channel
Power ON/OFF	Power mains switch (or by supplying power from external power supply)

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 100V	95W @ 100Ω
