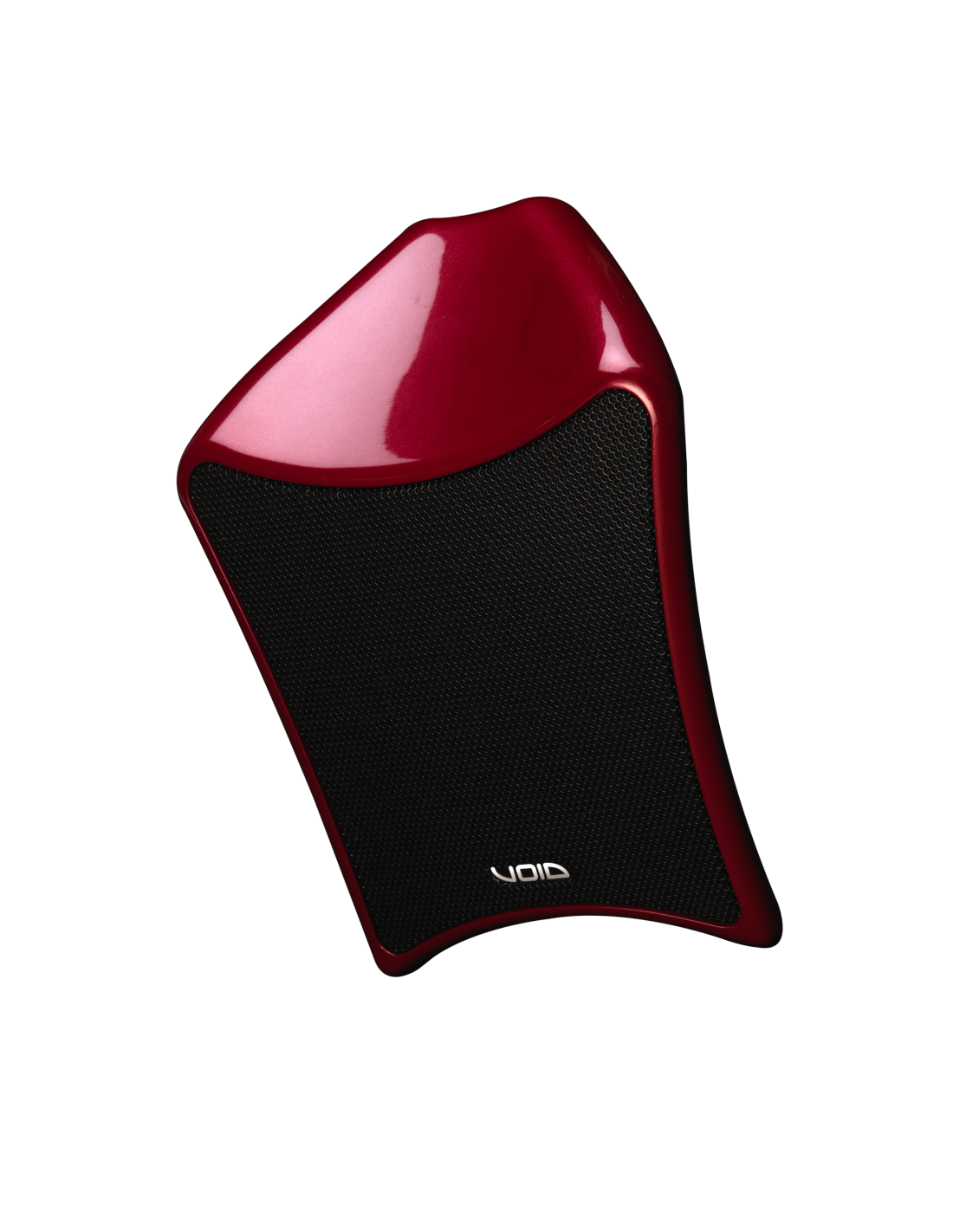

Air 8.1 - Rojo
CVOIT3046
Only a few left
2-way installation mid-high satellite. Includes wall mount.
The loudspeaker shall be a passive two-way system consisting of one high power 8” (203.2 mm) direct radiating reflex loaded low frequency (LF) transducer and a 1” (25 mm) diameter co-axially-mounted neodymium high frequency (HF) compression transducer mounted in a fibreglass, smooth cellulose enclosure.
- Effective Freq. Range
- 70 Hz - 20 kHz ±3 dB
- Coverage angle / Dispersion
- 90°H x 90°V
- Power handling
- 300 W AES
- Sensitivity
- 95 dB 1W/1mpoint
95 dB 1W/1mpoint
- Maximum SPL
- 119 dB cont, 121 dB peak
- Low frequency driver
- 1 x 8”, 1 x 1” coaxial
- Nominal impedance
- 8 Ω
- Crossover filter
- 2 kHz passive

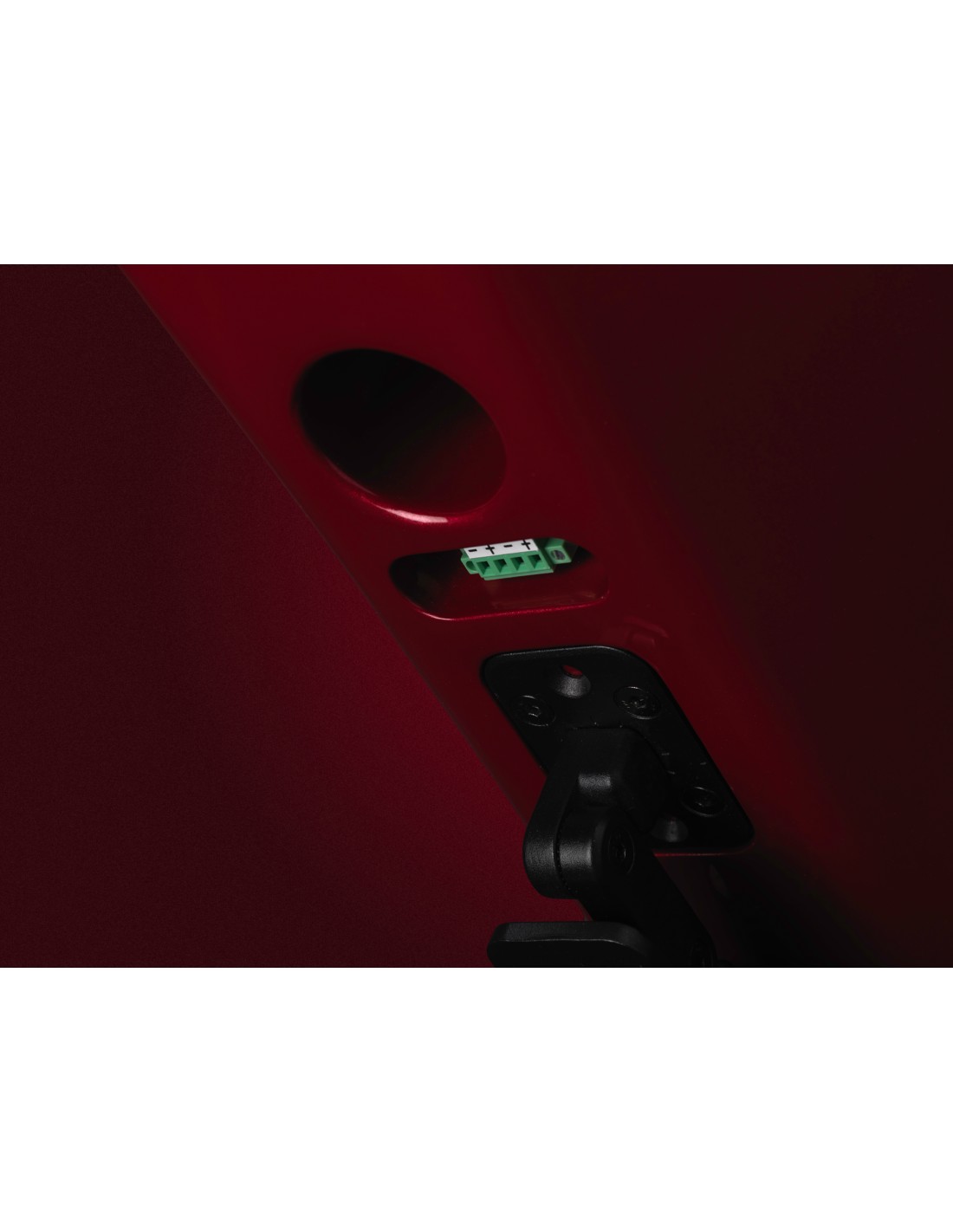

- Connection type
- Phoenix
- Enclosure material
- Fibreglass composite
- Finished colour
- Custom colours available upon request
- Weight
- 6.2 kg (13.2 lbs)
- Status
- New
- EAN code
- IT3045
IT3046
IT3047
IT3046 - Tariff code
- 8518220000
- Shipping Location
- Spain

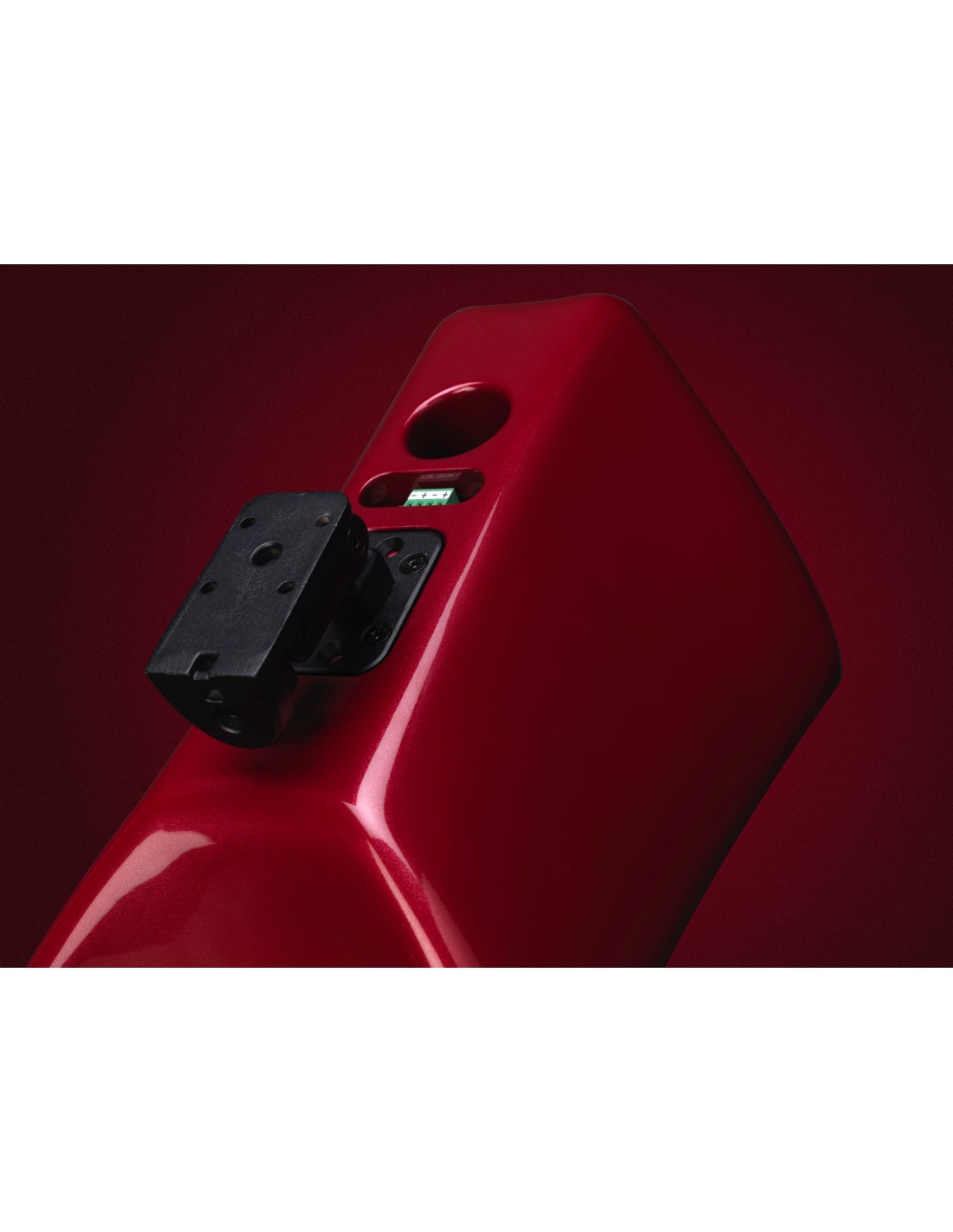

- Mounting system
- Air 8 wall bracket (supplied)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70 Hz - 20 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
90°H x 90°V |
| Power handling |
300 W AES |
| Sensitivity |
95 dB 1W/1mpoint
95 dB 1W/1mpoint |
| Maximum SPL |
119 dB cont, 121 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 8”, 1 x 1” coaxial |
|---|---|
| Nominal impedance |
8 Ω |
FILTERS
| Crossover filter |
2 kHz passive |
|---|
PHYSICAL
| Connection type |
Phoenix |
|---|---|
| Enclosure material |
Fibreglass composite |
| Finished colour |
Custom colours available upon request |
| Weight |
6.2 kg (13.2 lbs) |
| Mounting system |
Air 8 wall bracket (supplied) |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT3045
IT3046
IT3047 IT3046 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
