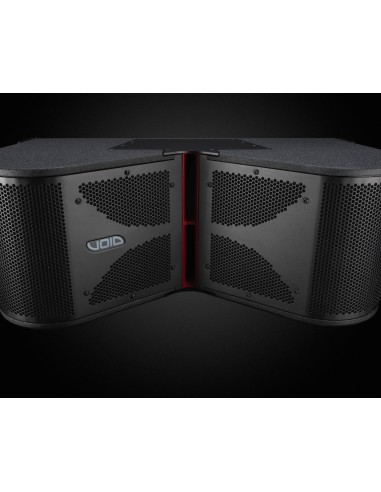

Arcline 8 - Negro
CVOIT2837
Check availability

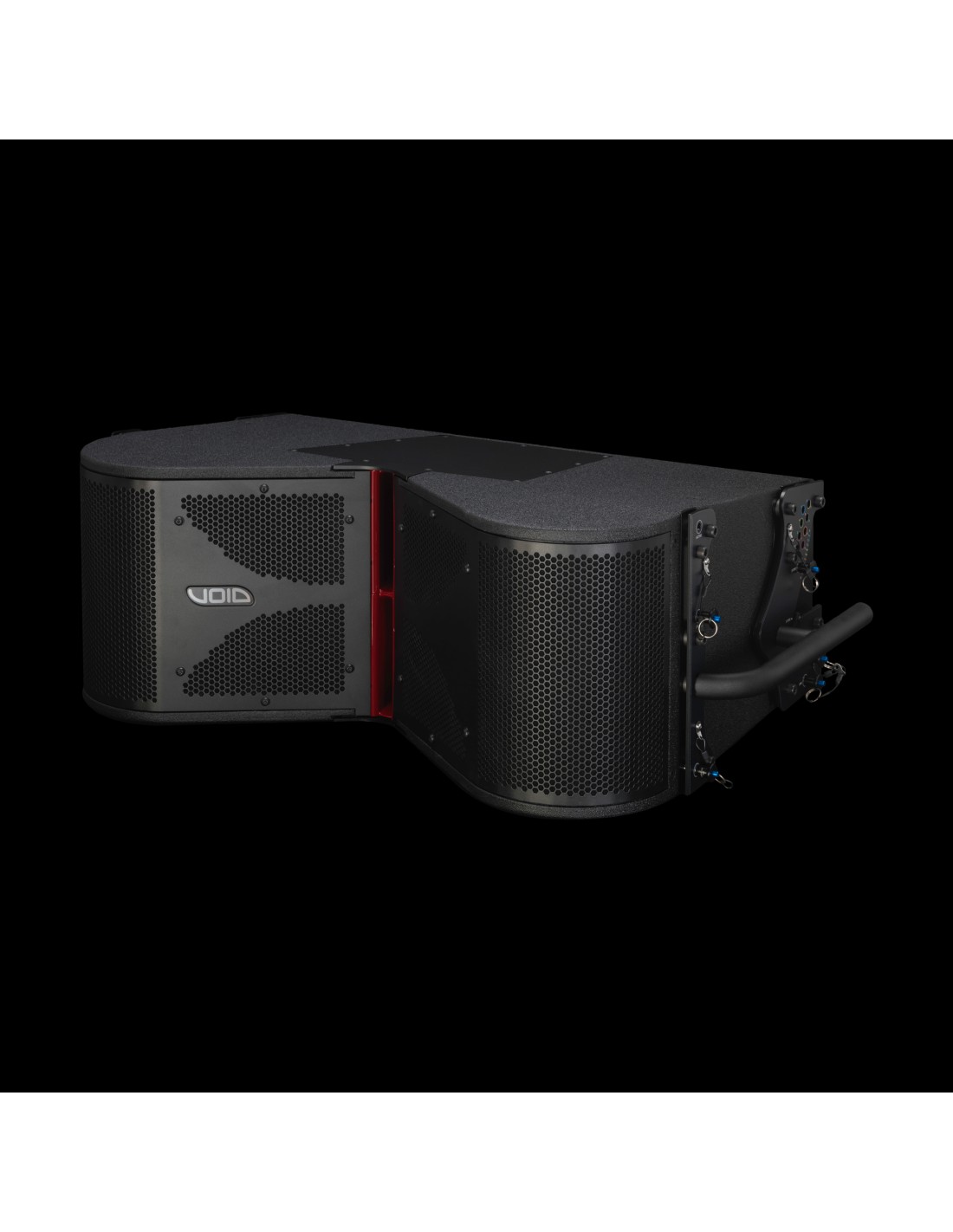

Mid-hi satellite for Line Array Arcline.
A host of new technologies dramatically improve the perceived sound quality and definition of the Arcline 8, while an advanced rigging system reduces setup time and the need for more than one person to rig multiple enclosures. Delivering a true 110-degree dispersion results in a highly uniform polar pattern, bringing uniform sound quality across the entire sound field.

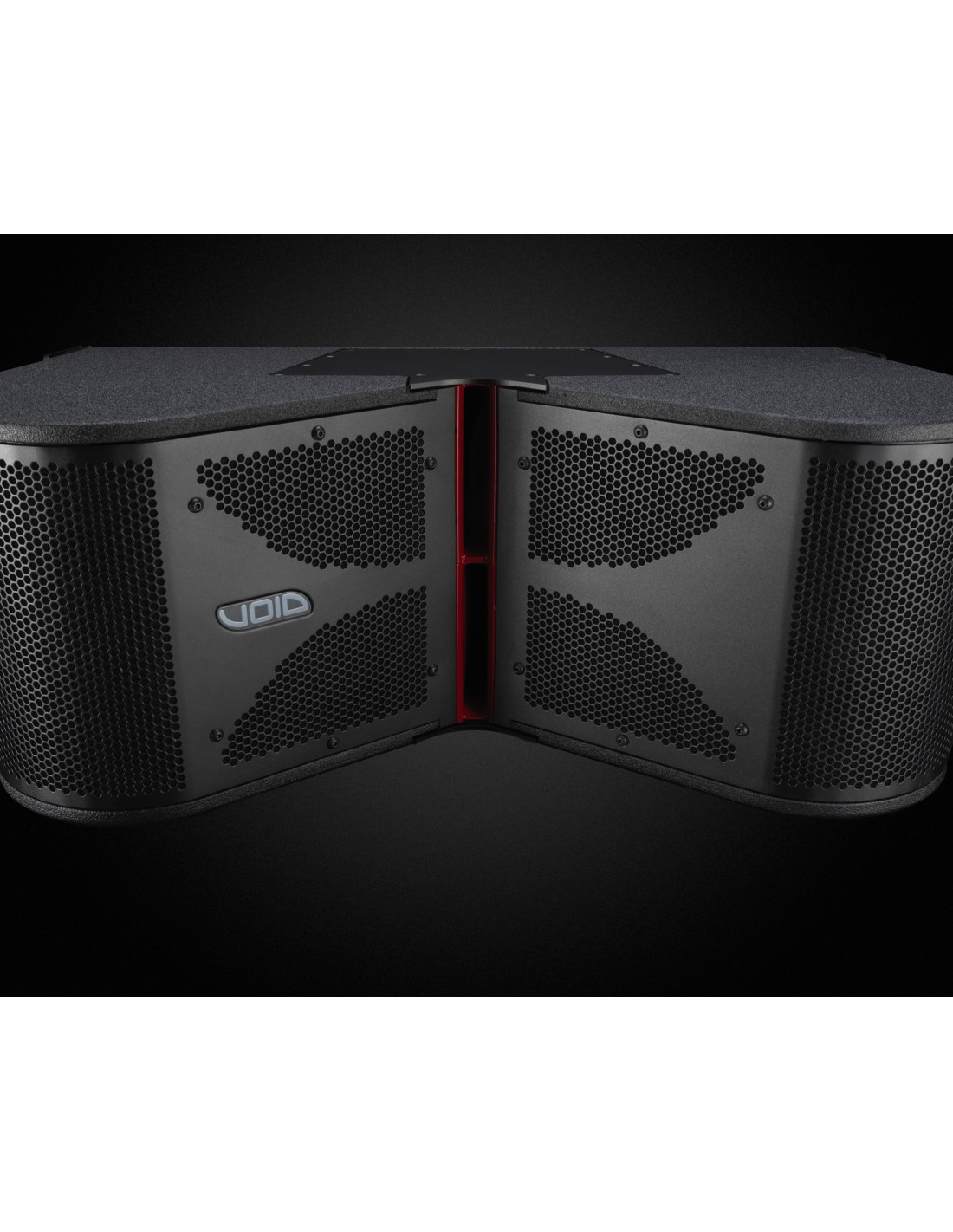

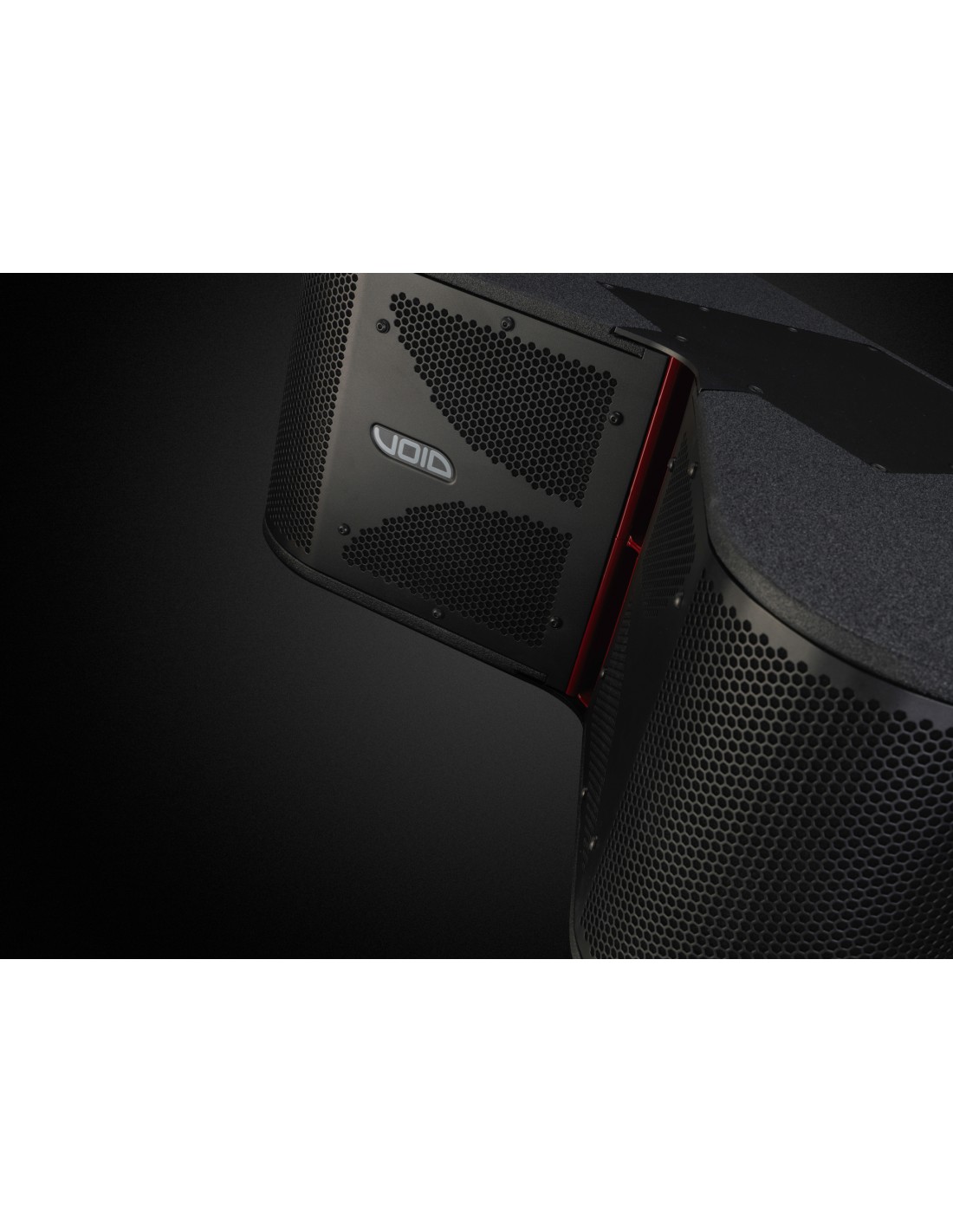

The high frequency horn design optimises the waveguide and a new phase shading device allows multiple Arcline 8 enclosures to form a true cylindrical wavefront by splitting two acoustic sources into four, with the acoustic centre positioned optimally for coupling. Rigging angles can also be pre-selected before flying the system.
- Effective Freq. Range
- 110 Hz - 20 kHz single enclosure, 90 Hz - 20 kHz three enclosures
- Coverage angle / Dispersion
- 110°H x 12°V
- Power handling
- LF: 500 W AES, HMF: 500 W AES
- Sensitivity
- LF: 97 dB (100 dB referenced to 1 W) | MF/HF: 103 dB (106 dB referenced to 1 W)
LF: 100 dB | MF/HF: 106 dB 1W/1m - Maximum SPL
- 128 dB cont, 145 dB peak
132 dB cont, 139 dB peak - Low frequency driver
- 2 x 8” horn loaded low frequency transducers
- Nominal impedance
- 2 x 16 Ω
- Recommended High-Pass protection filter
- Internal electronic control
- Connection type
- 2 x 4-pole speakON™ NL4
- Enclosure material
- 15 mm multi-laminate plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 39 kg (86 lbs)
- Status
- New
- EAN code
- IT2837
IT2837
IT3790 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system

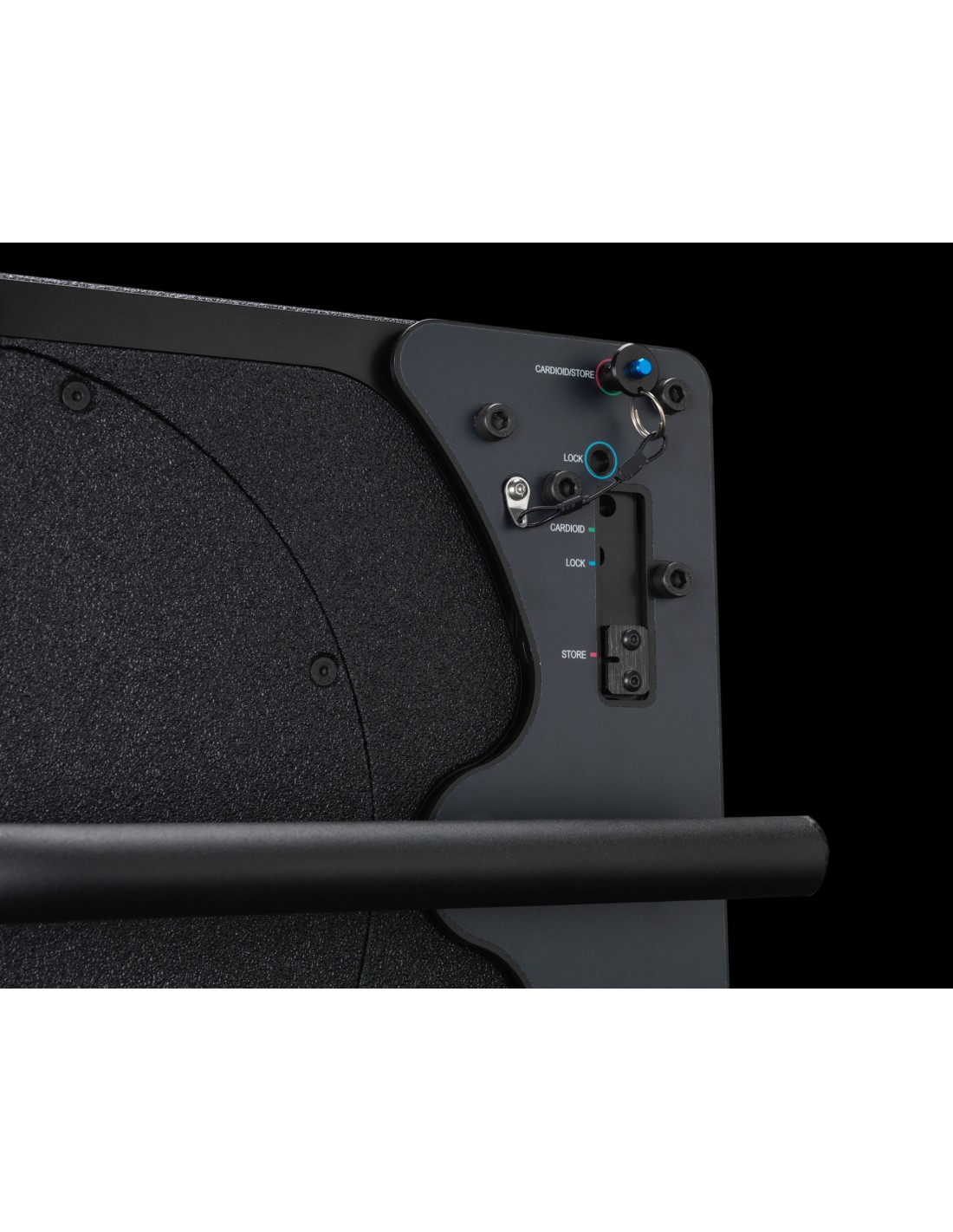

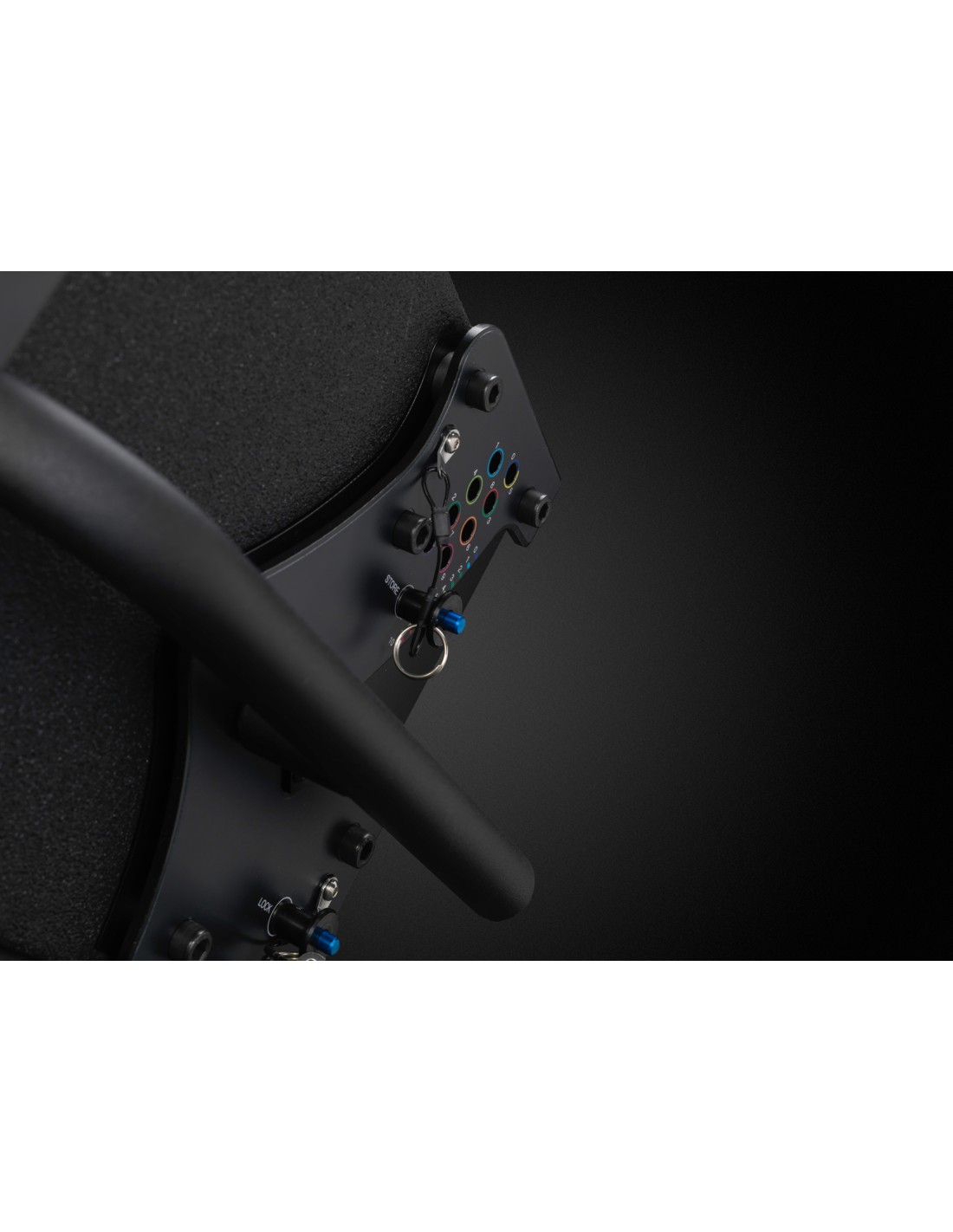

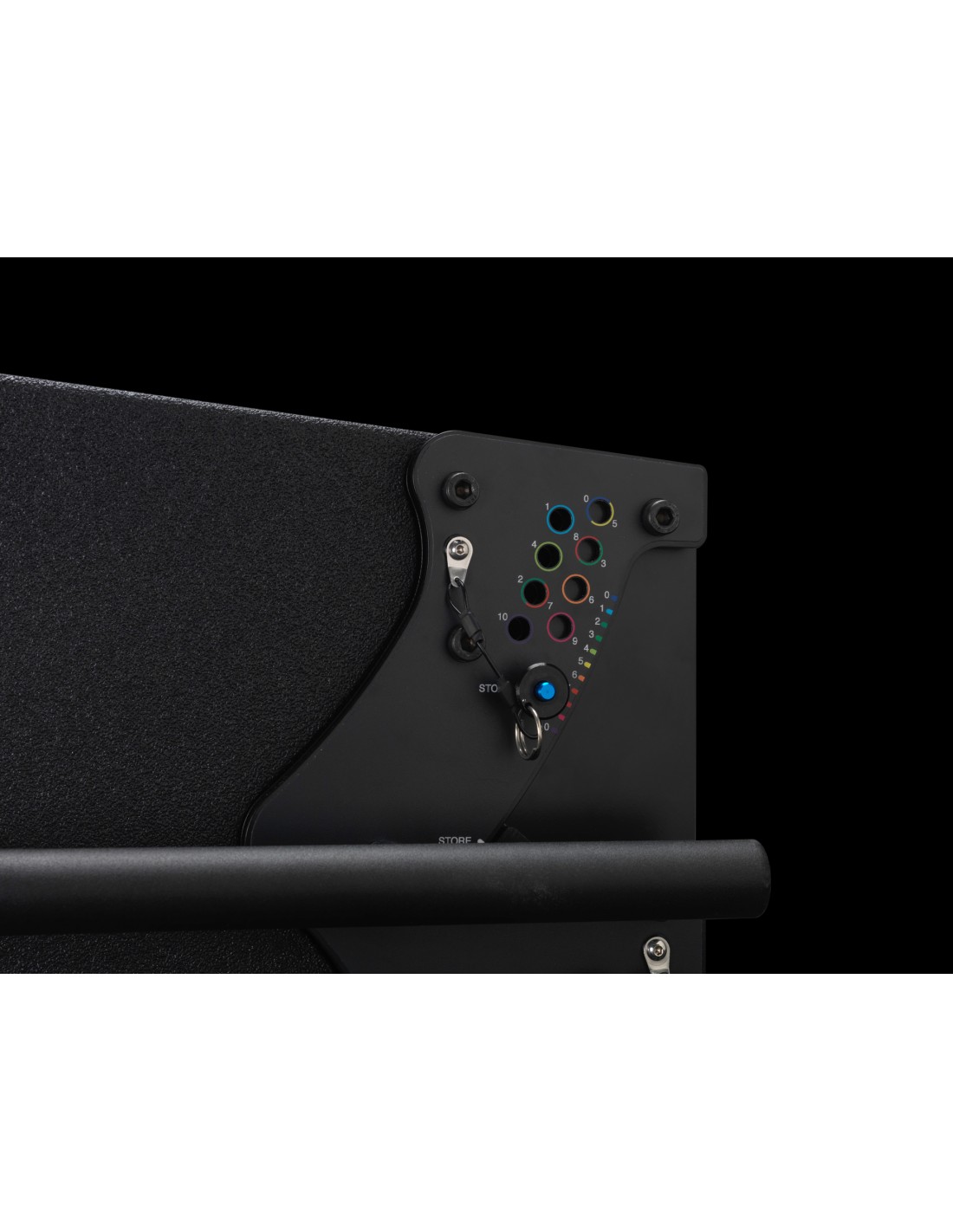

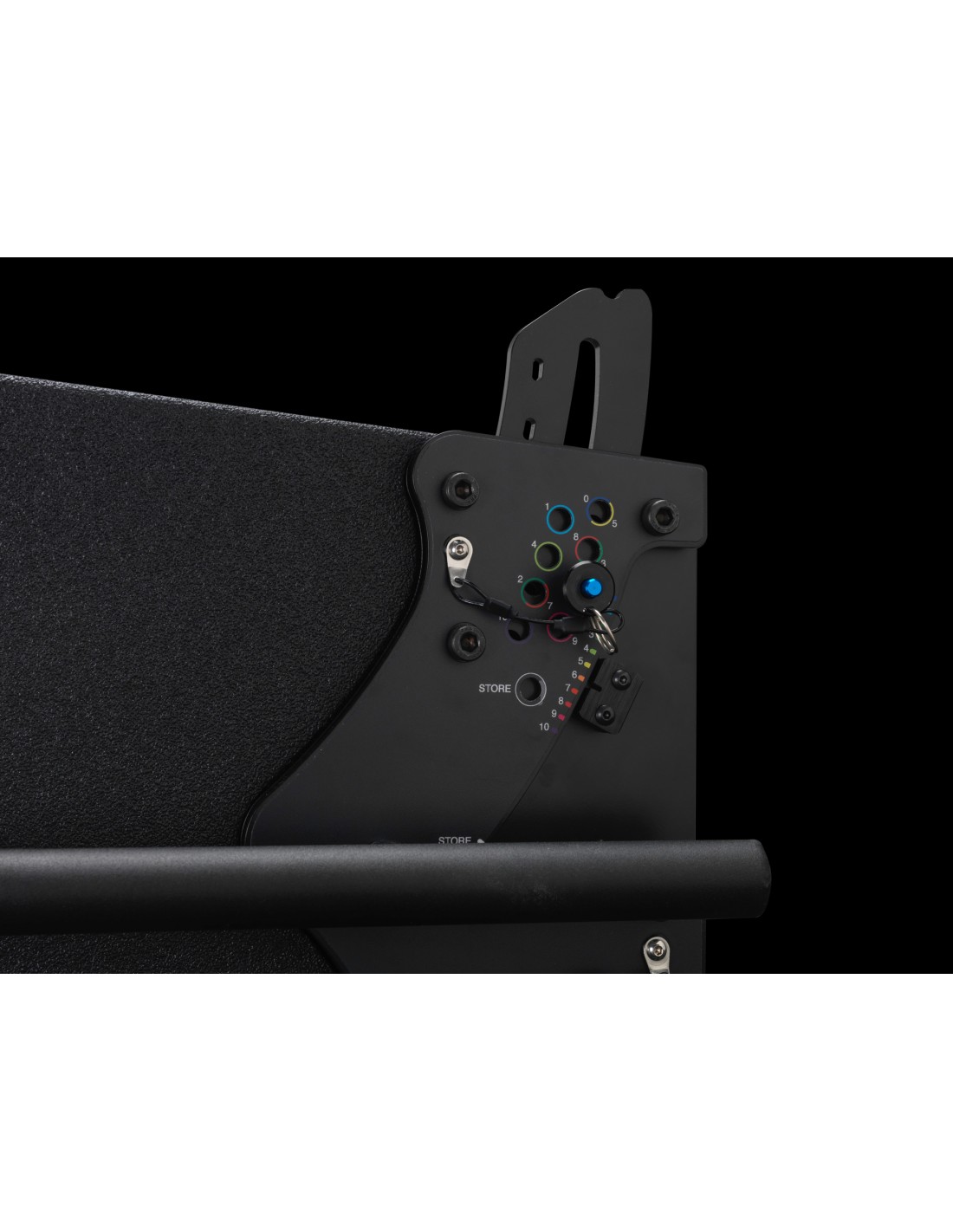

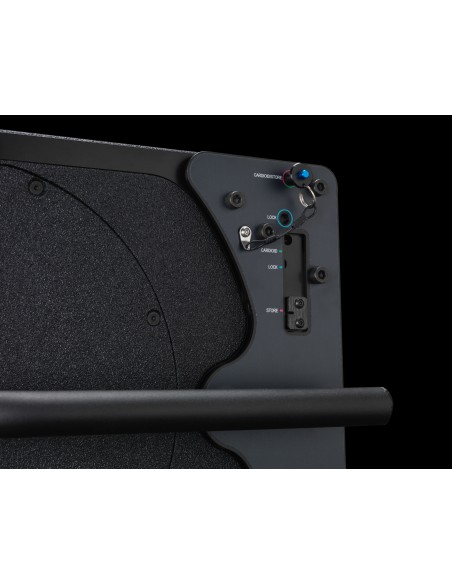

- Rigging angle pre-selected before you lift the enclosures. Ground stackable. A4 stainless steel
- Power handling per way
- LF: 500 W AES, HMF: 500 W AES
- Finish
- Textured ‘TourCoat’ polyurea
- Rigging
- angle pre-selected before you lift the enclosures, ground stackable
- Driver
- 2 x 1.4” compression drivers, 2 x 8” mid drivers with phase device, 2 x 8” horn loaded low frequency drivers
2 x 1.4” compression transducers - Mid frecuency driver
- 2 x 8” mid transducers with phase devices
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
110 Hz - 20 kHz single enclosure, 90 Hz - 20 kHz three enclosures |
|---|---|
| Coverage angle / Dispersion |
110°H x 12°V |
| Power handling |
LF: 500 W AES, HMF: 500 W AES |
| Sensitivity |
LF: 97 dB (100 dB referenced to 1 W) | MF/HF: 103 dB (106 dB referenced to 1 W) LF: 100 dB | MF/HF: 106 dB 1W/1m |
| Maximum SPL |
128 dB cont, 145 dB peak 132 dB cont, 139 dB peak |
| Power handling per way |
LF: 500 W AES, HMF: 500 W AES |
TRANSDUCERS
| Low frequency driver |
2 x 8” horn loaded low frequency transducers |
|---|---|
| Nominal impedance |
2 x 16 Ω |
| Driver |
2 x 1.4” compression transducers 2 x 1.4” compression drivers, 2 x 8” mid drivers with phase device, 2 x 8” horn loaded low frequency drivers |
| Mid frecuency driver |
2 x 8” mid transducers with phase devices |
FILTERS
| Recommended High-Pass protection filter |
Internal electronic control |
|---|
PHYSICAL
| Connection type |
2 x 4-pole speakON™ NL4 |
|---|---|
| Enclosure material |
15 mm multi-laminate plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
39 kg (86 lbs) |
| Mounting system |
Rigging angle pre-selected before you lift the enclosures. Ground stackable. A4 stainless steel |
| Finish |
Textured ‘TourCoat’ polyurea |
| Rigging |
angle pre-selected before you lift the enclosures, ground stackable |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2837
IT3790 IT2837 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
