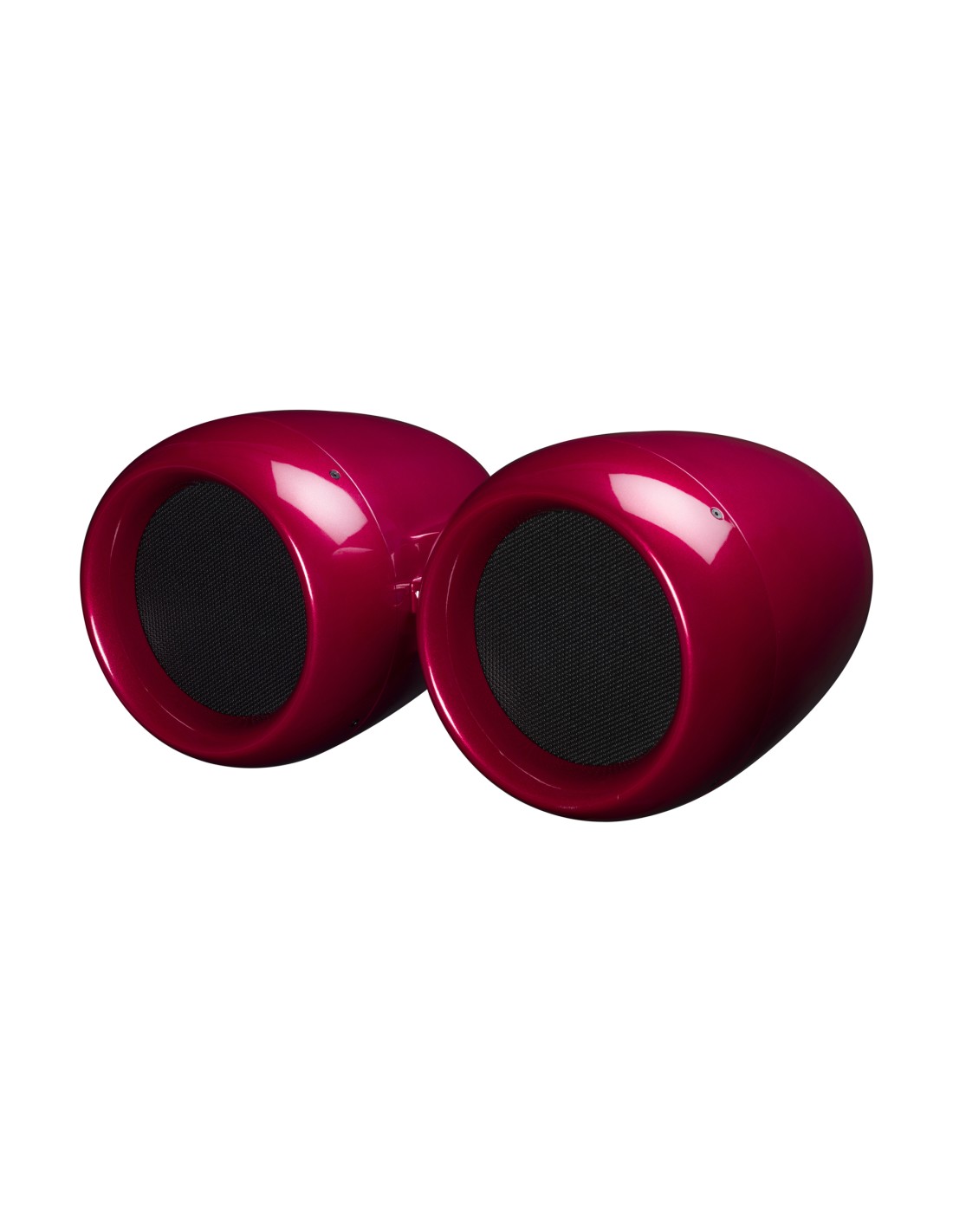

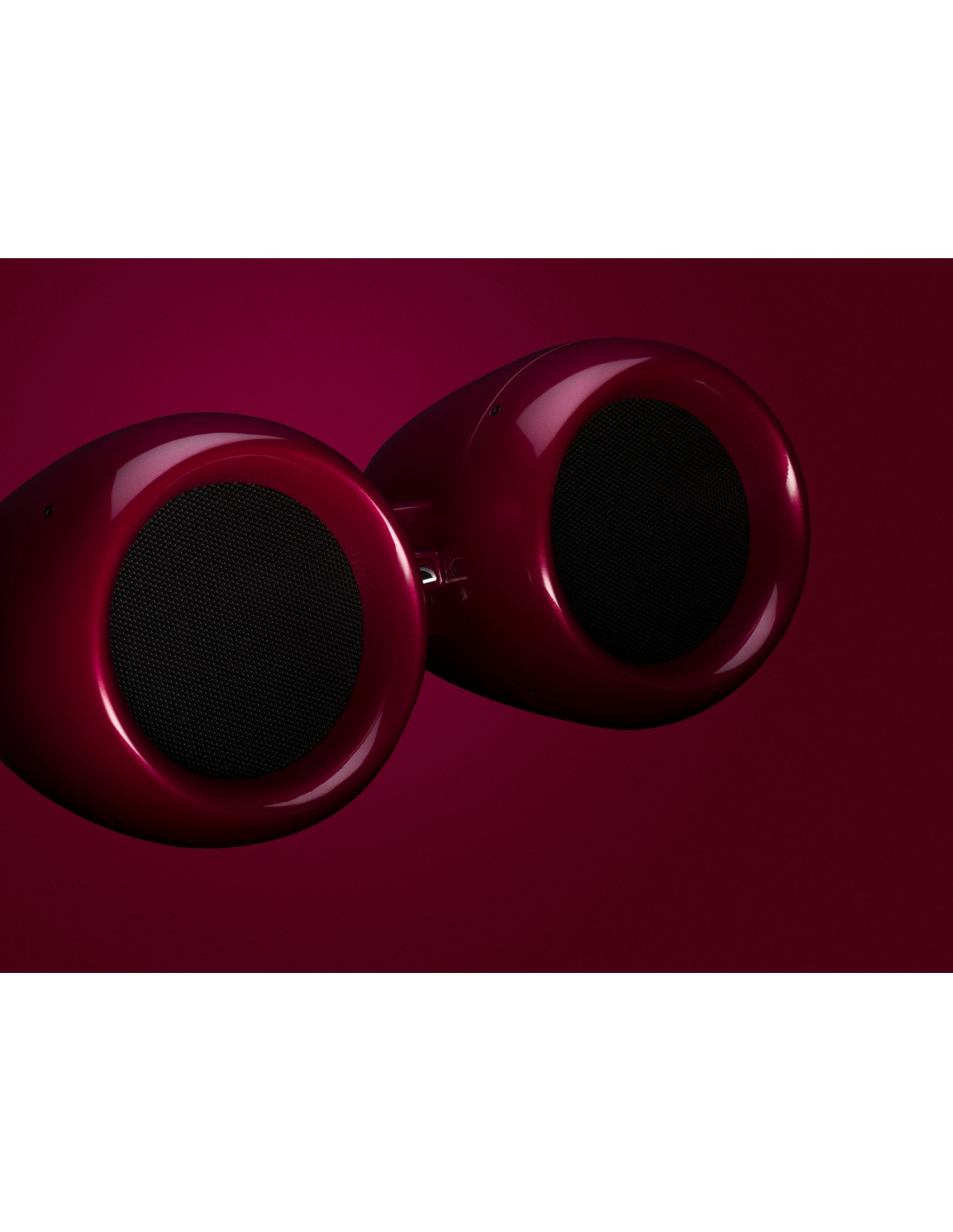

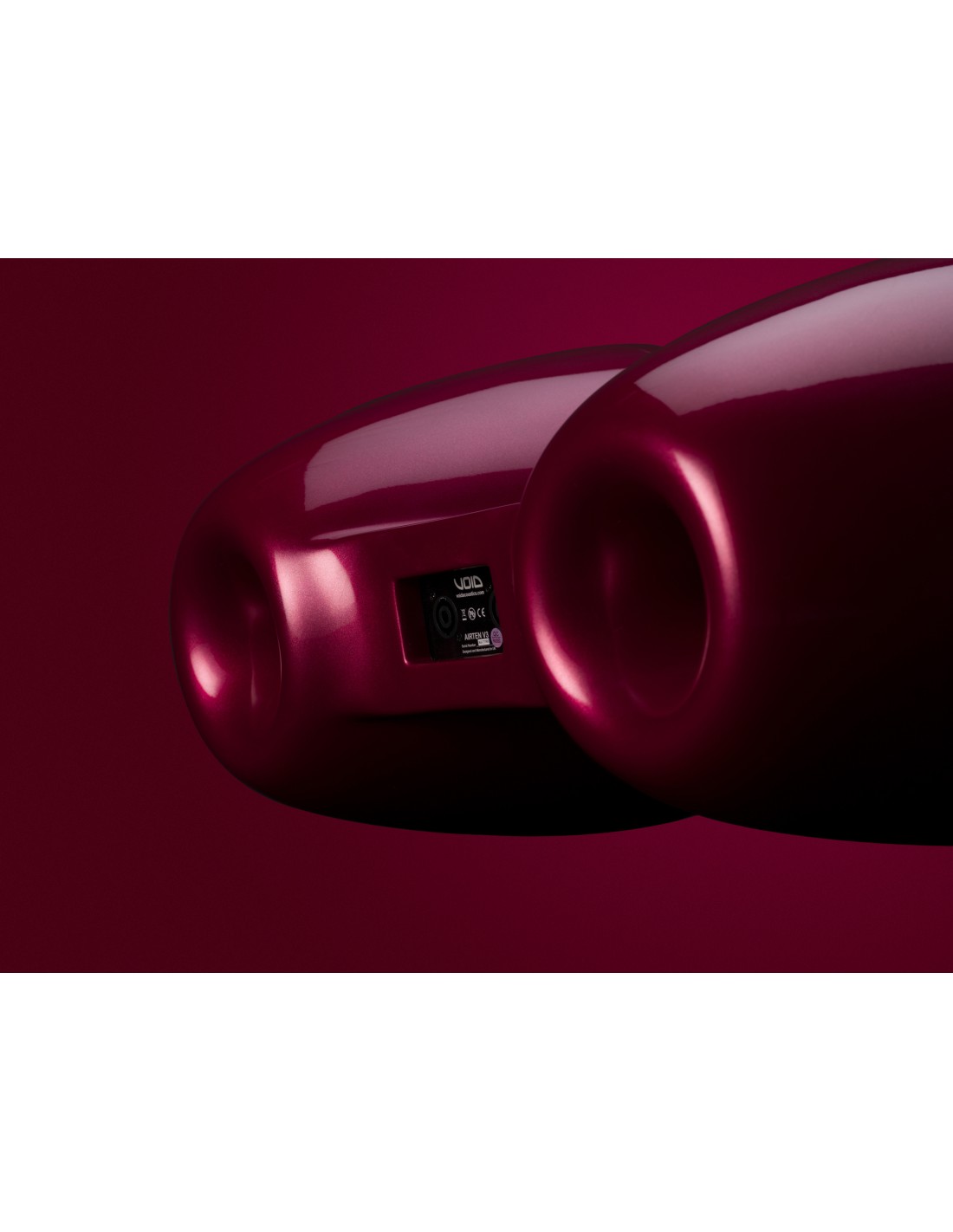

Airten V3 - Rojo
CVOIT2704
Check availability
2-way installation high-performance mid-high satellite.
This small, futuristic-styled composite loudspeaker is particularly favoured for high-end club and bar applications.
Enjoy exceptional fidelity, zero resonance and accurately controlled dispersion.
Three key enhancements have been made in this latest V3 model to improve performance. The new crossover provides better frequency linearity, coherence and summation between the drivers. By introducing the Finite Element Analysis (FEA) optimised rear port, with refined aesthetics, noise and distortion are reduced while airflow is increased to reduce power compression. In addition, the diaphragm size within the compression driver has increased from 44 mm to 63 mm, allowing each driver to operate at its optimal frequency band with more efficiency and more accurate high frequency detail.
- Effective Freq. Range
- 60 Hz - 20 kHz ±3 dB
- Coverage angle / Dispersion
- 80°H x 80°V
- Power handling
- 500 W AES
- Sensitivity
- 99 dB 1w/1m
- Maximum SPL
- 125 dB cont, 128 dB peak
- Low frequency driver
- 2 x 10" LF, 1 x 1.4" HF compression driver
- Nominal impedance
- 4 Ω
- Crossover filter
- Passive 1.2 kHz
- Connection type
- 2 x 4-pole speakON™ NL4
- Enclosure material
- Fibreglass composite
- Finished colour
- Custom colours available upon request
- Weight
- 20 kg (44.1 lbs)
- Status
- New
- EAN code
- IT2704
IT2704
IT2998
IT3000 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Integral mounting system
- Finish
- Smooth cellulose
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
60 Hz - 20 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
80°H x 80°V |
| Power handling |
500 W AES |
| Sensitivity |
99 dB 1w/1m |
| Maximum SPL |
125 dB cont, 128 dB peak |
TRANSDUCERS
| Low frequency driver |
2 x 10" LF, 1 x 1.4" HF compression driver |
|---|---|
| Nominal impedance |
4 Ω |
FILTERS
| Crossover filter |
Passive 1.2 kHz |
|---|
PHYSICAL
| Connection type |
2 x 4-pole speakON™ NL4 |
|---|---|
| Enclosure material |
Fibreglass composite |
| Finished colour |
Custom colours available upon request |
| Weight |
20 kg (44.1 lbs) |
| Mounting system |
Integral mounting system |
| Finish |
Smooth cellulose |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2704
IT2998
IT3000 IT2704 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
