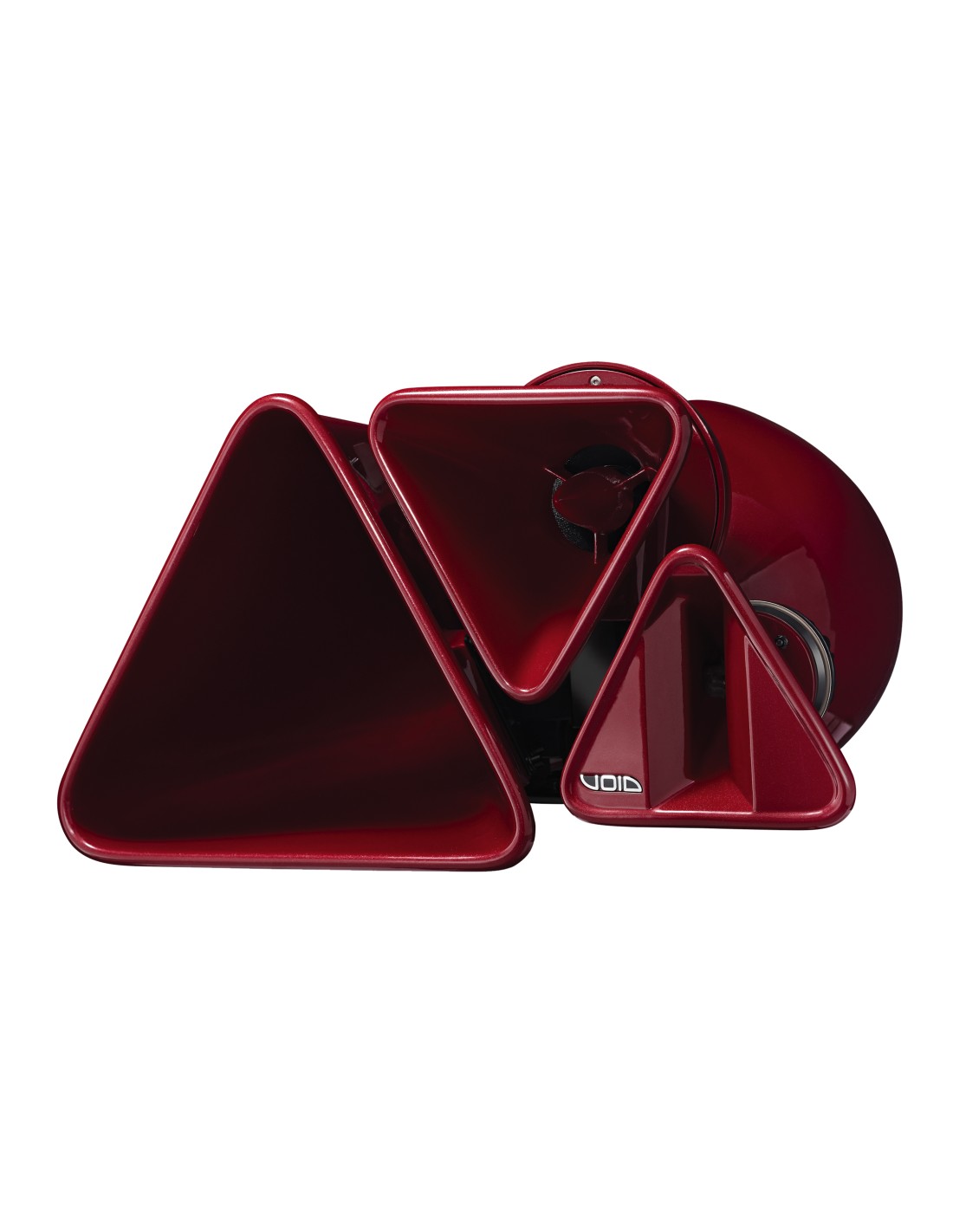

Tri Motion - Rojo - Izquierdo (Outdoor)

Tri Motion - Rojo - Izquierdo (Outdoor)

CVOIT4106
Check availability
3-way installation high-performance mid-high satellite.
See more Features Resources

High-performance mid-hi satellite for 3-way installation. The aesthetically striking Tri Motion pushes sonic and creative frontiers, providing extraordinary efficiency and controlled dispersion, perfect for larger venues requiring cutting-edge performance.
Effective Freq. Range
120 Hz - 20 kHz ±3 dB
Coverage angle / Dispersion
90°H x 60°V
Sensitivity
LF: 107 dB 1W/1m, HMF: 110 dB 1W/1m
Maximum SPL
135 dB cont, 138 dB peak
Low frequency driver
1 x 15” LF, 1 x 8” MF, 1 x 1.5” HF compression driver
Nominal impedance
LF: 8 Ω, HMF: 8 Ω
Crossover filter
LF: 120 Hz and 500 Hz, HMF: 500 Hz - Passive 1.4 kHz
Connection type
2 x 4-pole speakON™ NL4
Enclosure material
Fibreglass composite
Finished colour
Custom colours available upon request
Weight
47.1 kg (103.8 lbs)
Status
New
EAN code
IT4106
Tariff code
8518220000
Shipping Location
Spain
Mounting system
Integral mounting system
Power handling per way
LF: 700 W AES, MHF: 250 W AES
