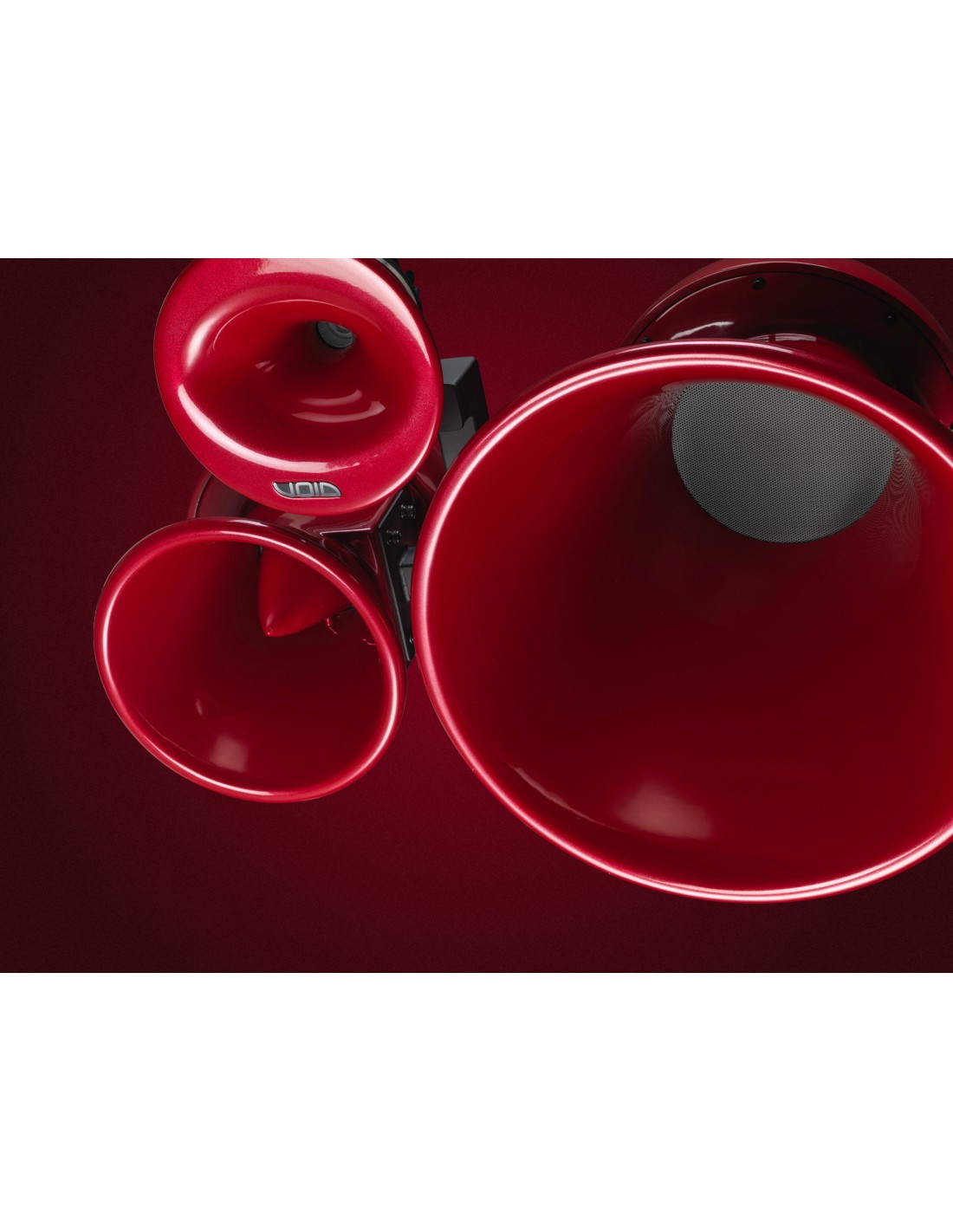

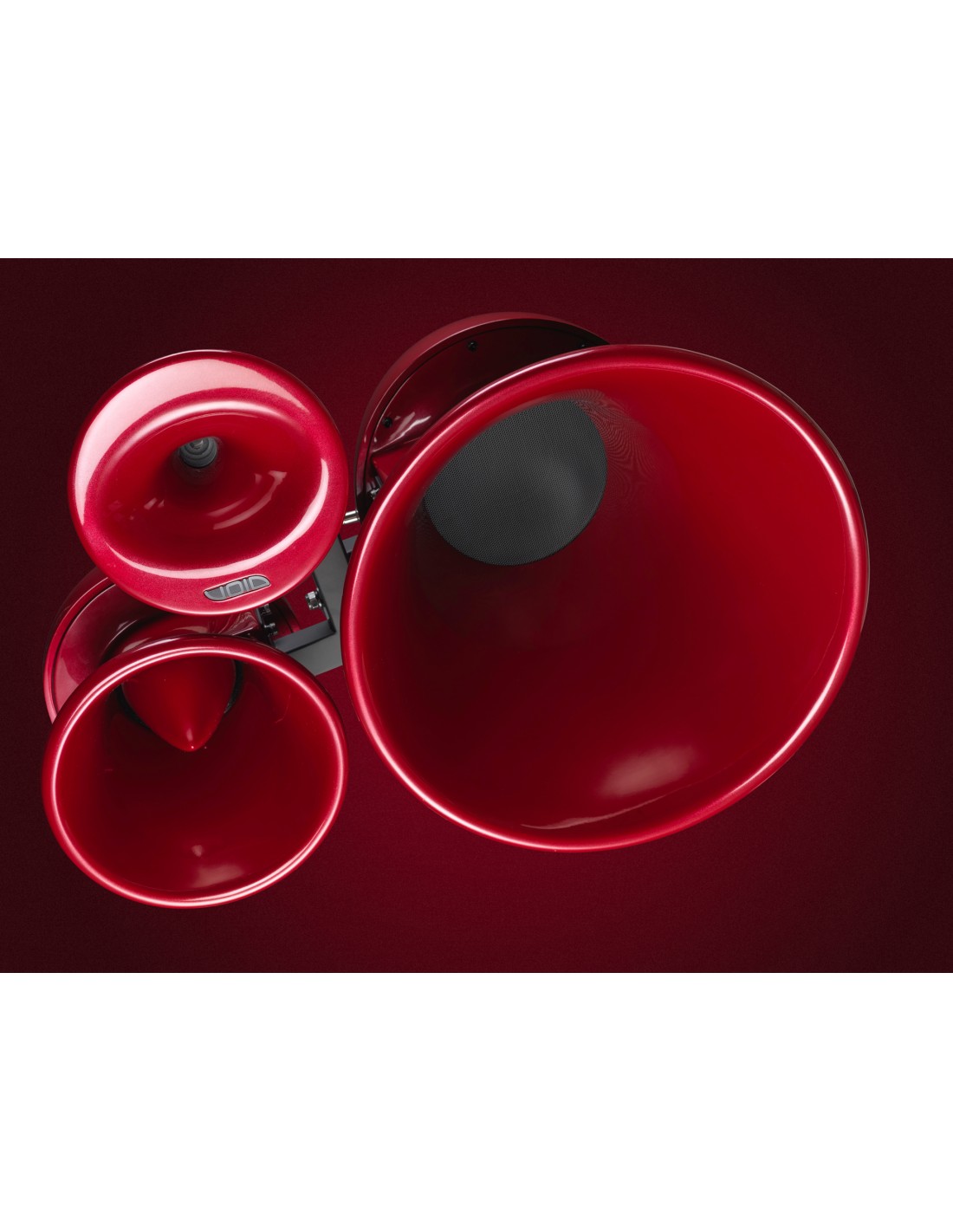

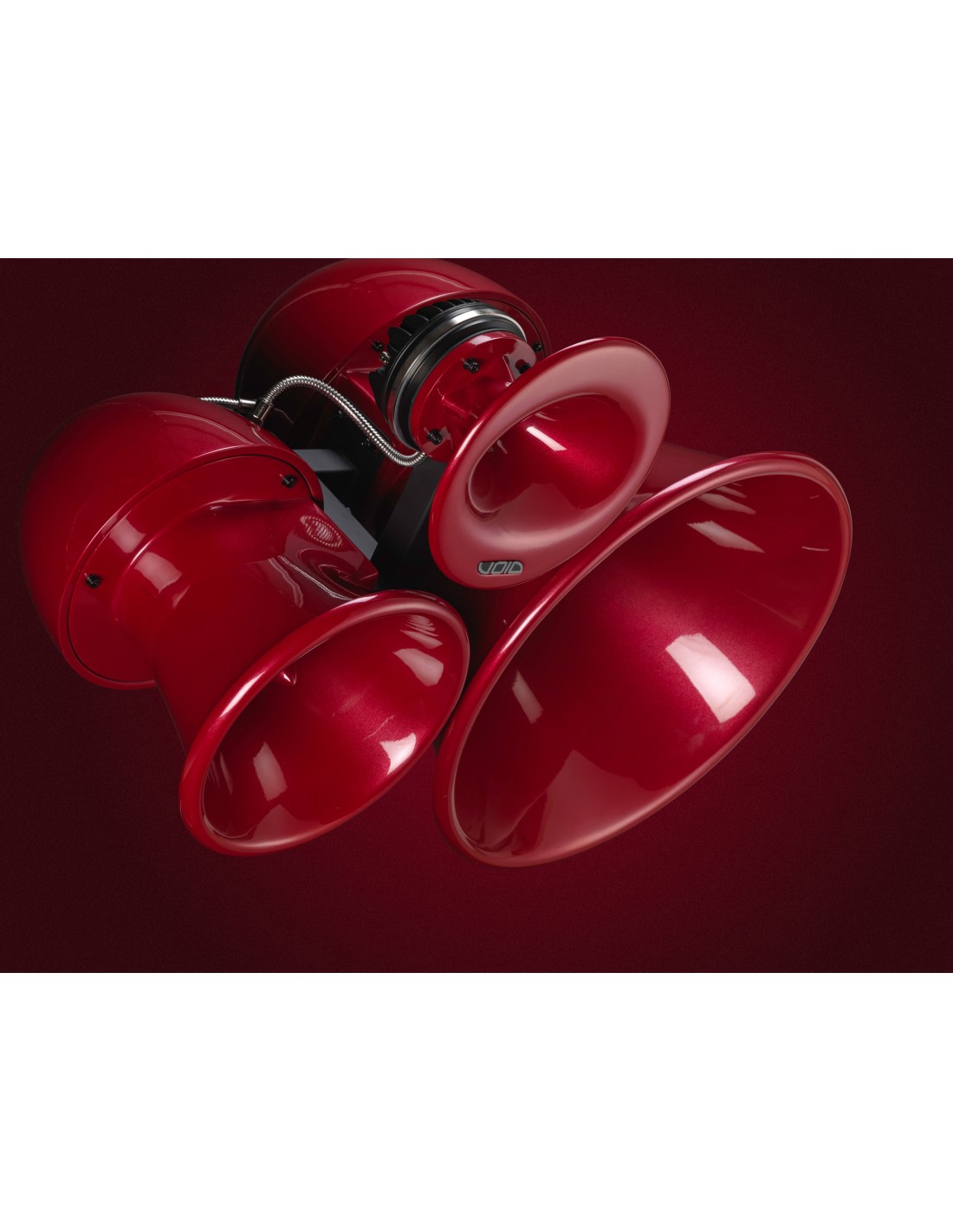

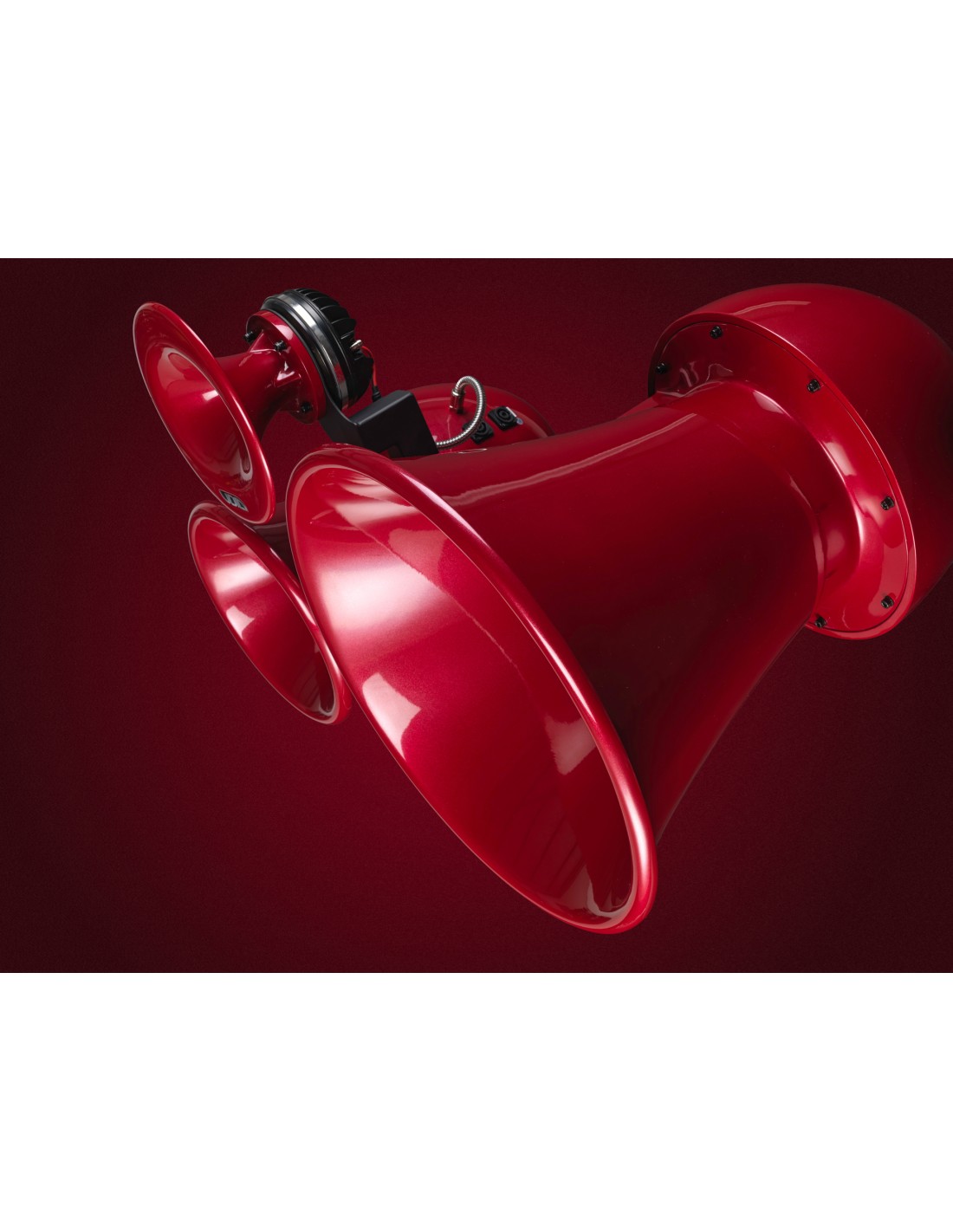

Air Motion - Rojo - Derecho (Outdoor)
CVOIT3678
Check availability
3-way installation high-performance mid-high satellite.
The loudspeaker shall be an active, three-way, biamped system consisting of a high power 12” (305 mm) isometric conical horn loaded low frequency (LF) transducer with a passive two way, mid-high frequency section consisting of an 8” (200 mm) isometric conical horn loaded mid frequency (MF) transducer and a 1.5” (38.1 mm) diameter exit high frequency (HF) compression driver mounted on a user rotatable horn.
- Effective Freq. Range
- 140 Hz - 20 kHz ±3 dB
- Coverage angle / Dispersion
- LF: 140 Hz and 600 Hz, MHF: 600 Hz - Passive 1.7 kHz
- Sensitivity
- LF: 106 dB 1W/1m, MHF: 108 dB 1W/1m
- Maximum SPL
- 134 dB cont, 137 dB peak
- Low frequency driver
- 1 x 12” LF, 1 x 8” MF, 1 x 1.5” HF compression driver
- Nominal impedance
- LF: 8 Ω, MHF: 8 Ω
- Connection type
- 2 x 4-pole speakON™ NL4
- Enclosure material
- Fibreglass composite
- Finished colour
- Custom colours available upon request
- Weight
- 35.4 kg (78 lbs)
- Status
- New
- EAN code
- IT3678
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Integral mounting system
- Power handling per way
- LF: 500 W AES, MHF: 250 W AES
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
140 Hz - 20 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
LF: 140 Hz and 600 Hz, MHF: 600 Hz - Passive 1.7 kHz |
| Sensitivity |
LF: 106 dB 1W/1m, MHF: 108 dB 1W/1m |
| Maximum SPL |
134 dB cont, 137 dB peak |
| Power handling per way |
LF: 500 W AES, MHF: 250 W AES |
TRANSDUCERS
| Low frequency driver |
1 x 12” LF, 1 x 8” MF, 1 x 1.5” HF compression driver |
|---|---|
| Nominal impedance |
LF: 8 Ω, MHF: 8 Ω |
PHYSICAL
| Connection type |
2 x 4-pole speakON™ NL4 |
|---|---|
| Enclosure material |
Fibreglass composite |
| Finished colour |
Custom colours available upon request |
| Weight |
35.4 kg (78 lbs) |
| Mounting system |
Integral mounting system |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT3678 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
