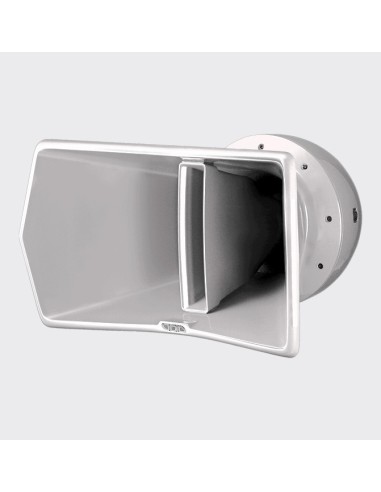

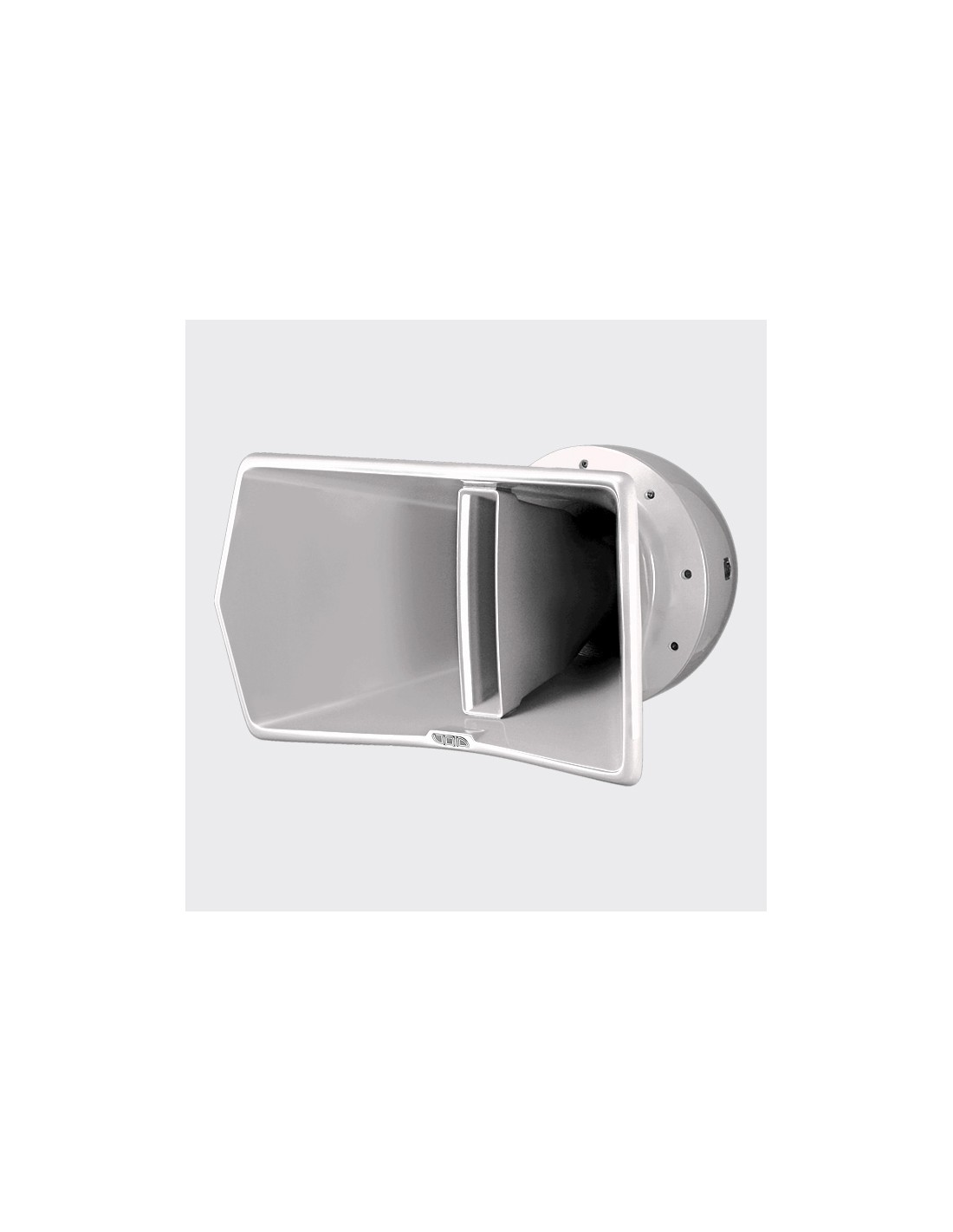

Air Vantage V2 - Blanco - Blanco HF
CVOIT4009
Check availability
2-way installation high-performance mid-high satellite.
Use the Air Vantage as a stand-alone mid-top with low frequency enclosures in a main club system, or as a DJ
monitor when paired with the Sub Vantage. True point source transmission, a linear frequency response, and very
high SPLs with minimum fatigue are just some of its benefits.
The loudspeaker shall be a passive, two-way system consisting of one high power 12” (304.8 mm) horn loaded low frequency (LF) transducer and 1.5” (25 mm) exit co-axial high frequency (HF) compression driver mounted in a high precision waveguide within an aesthetically designed enclosure.
- Effective Freq. Range
- 140 Hz - 20 kHz ±3 dB
- Coverage angle / Dispersion
- 70°H x 40°V
- Power handling
- 500 W AES
- Sensitivity
- 100 dB 1W/1m
- Maximum SPL
- 127 dB cont : 133 dB peak
- Low frequency driver
- 1 x 12" - 1 x 1.5” coaxial
- Nominal impedance
- 8 Ω
- Crossover filter
- 1.6 kHz passive
- Connection type
- 1 x 4-pole speakON™ NL4
- Enclosure material
- Smooth cellulose
- Finished colour
- Custom colours available upon request
- Weight
- 23.5 kg (51.8 lbs)
- Mounting system
- Tilt adjustable mount (optional)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
140 Hz - 20 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
70°H x 40°V |
| Power handling |
500 W AES |
| Sensitivity |
100 dB 1W/1m |
| Maximum SPL |
127 dB cont : 133 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 12" - 1 x 1.5” coaxial |
|---|---|
| Nominal impedance |
8 Ω |
FILTERS
| Crossover filter |
1.6 kHz passive |
|---|
PHYSICAL
| Connection type |
1 x 4-pole speakON™ NL4 |
|---|---|
| Enclosure material |
Smooth cellulose |
| Finished colour |
Custom colours available upon request |
| Weight |
23.5 kg (51.8 lbs) |
| Mounting system |
Tilt adjustable mount (optional) |
