Nexus 6 - Rojo
CVOIT1218
Check availability
2-way "Virtual Arc" type mid-high frequency satellite for installation.

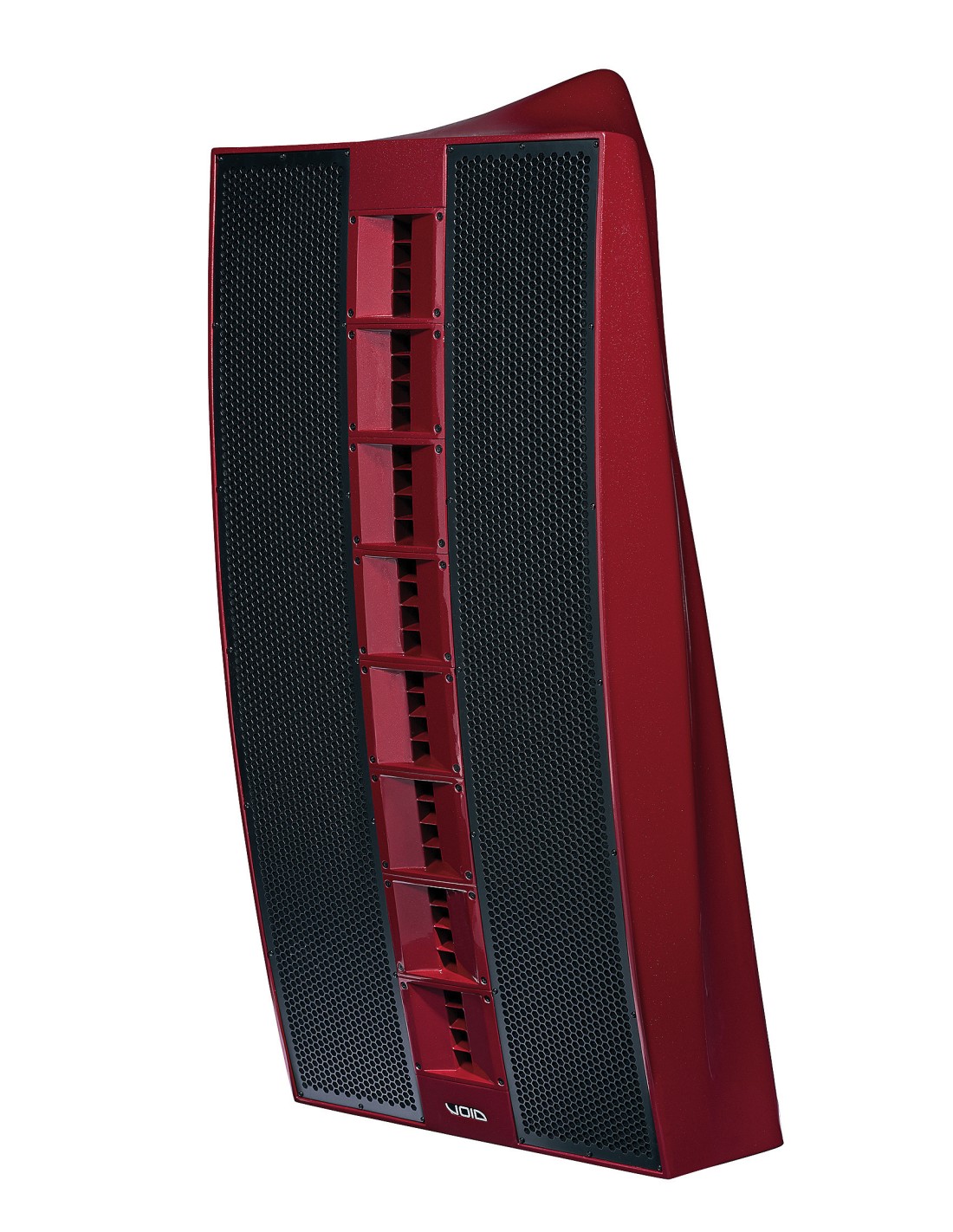

Ideal for larger venues, the four-way Nexus 6 has an innovative internal transducer layout and 20 high power drivers, housed in a sculpted fibreglass enclosure. Virtual Arc technology forms a common acoustic centre at the back of the array, overcoming all the disadvantages of a traditional array where multiple sound sources emit from different locations. Instead, dispersion, phase, coherency and timing are all controlled and unified, ensuring the same sound is experienced by the audience, regardless of where they are standing. Whether placed on low frequency enclosures to form a dance stack or flown independently, the Nexus 6 provides intelligent performance and styling.
- Effective Freq. Range
- 78 Hz - 21 kHz ±3 dB
- Coverage angle / Dispersion
- 110°H x 50°V
- Sensitivity
- LF: 105 dB 1W/1m, HF: 110 dB 1W/1m
- Maximum SPL
- 137 dB cont, 140 dB peak
- Low frequency driver
- 12 x 6.5” LF, 8 x 1” HF compression driver
- Nominal impedance
- LF: 2 x 5.3 Ω, HF: 2 x 4 Ω
- Crossover filter
- 1.6 kHz active
- Connection type
- 1 x 8-pole speakON™ NL8
- Enclosure material
- Fibreglass composite
- Weight
- 75.5 kg (166.5 lbs)
- Status
- New
- EAN code
- IT1218
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Stack mounted or proprietary suspension system
- Power handling per way
- LF: 2 x 1350 W AES, HF: 2 x 160 W AES
- Finish
- Smooth cellulose
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
78 Hz - 21 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
110°H x 50°V |
| Sensitivity |
LF: 105 dB 1W/1m, HF: 110 dB 1W/1m |
| Maximum SPL |
137 dB cont, 140 dB peak |
| Power handling per way |
LF: 2 x 1350 W AES, HF: 2 x 160 W AES |
TRANSDUCERS
| Low frequency driver |
12 x 6.5” LF, 8 x 1” HF compression driver |
|---|---|
| Nominal impedance |
LF: 2 x 5.3 Ω, HF: 2 x 4 Ω |
FILTERS
| Crossover filter |
1.6 kHz active |
|---|
PHYSICAL
| Connection type |
1 x 8-pole speakON™ NL8 |
|---|---|
| Enclosure material |
Fibreglass composite |
| Weight |
75.5 kg (166.5 lbs) |
| Mounting system |
Stack mounted or proprietary suspension system |
| Finish |
Smooth cellulose |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT1218 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
