VEO-MXH44D
CVEOMXH44D
Available

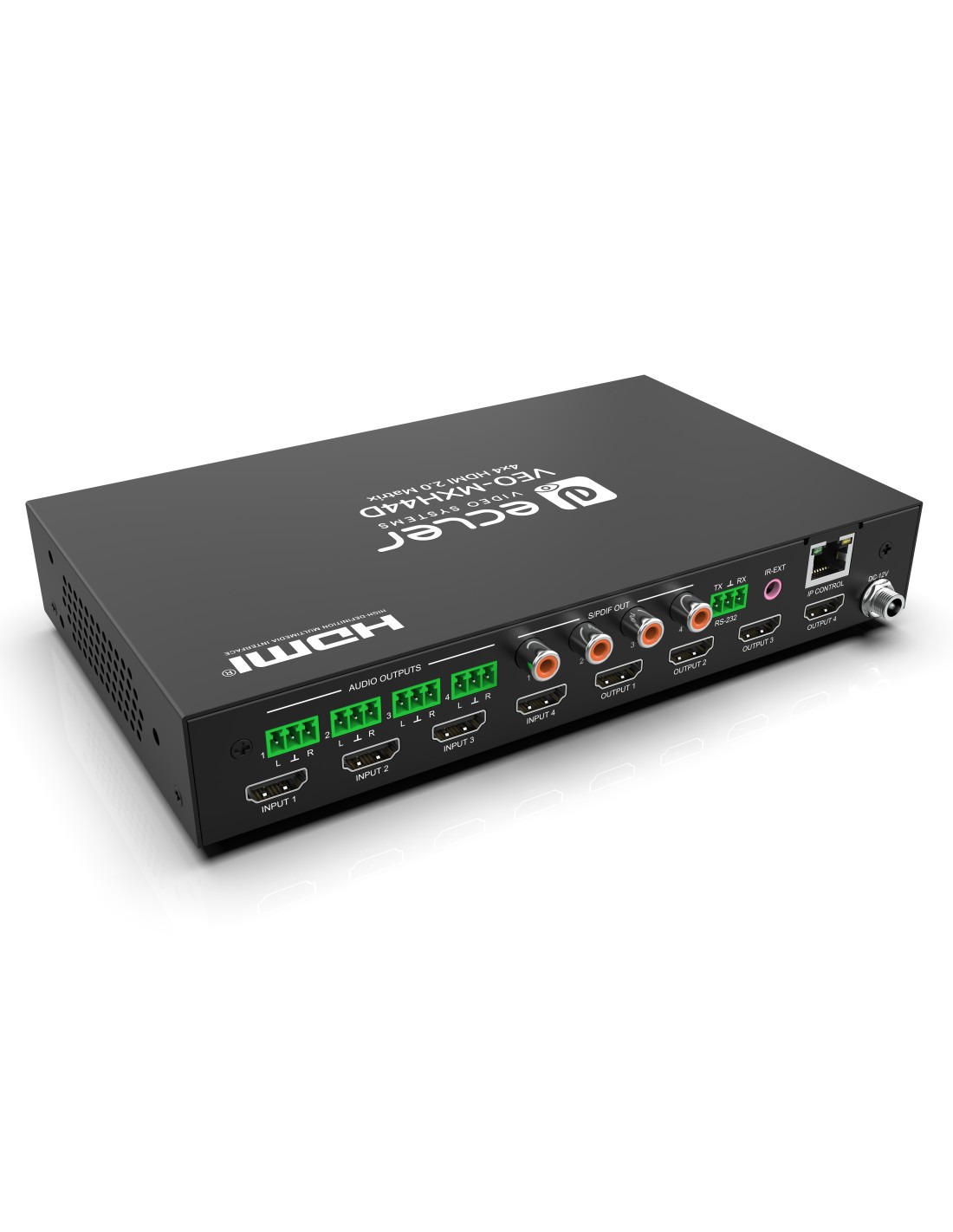

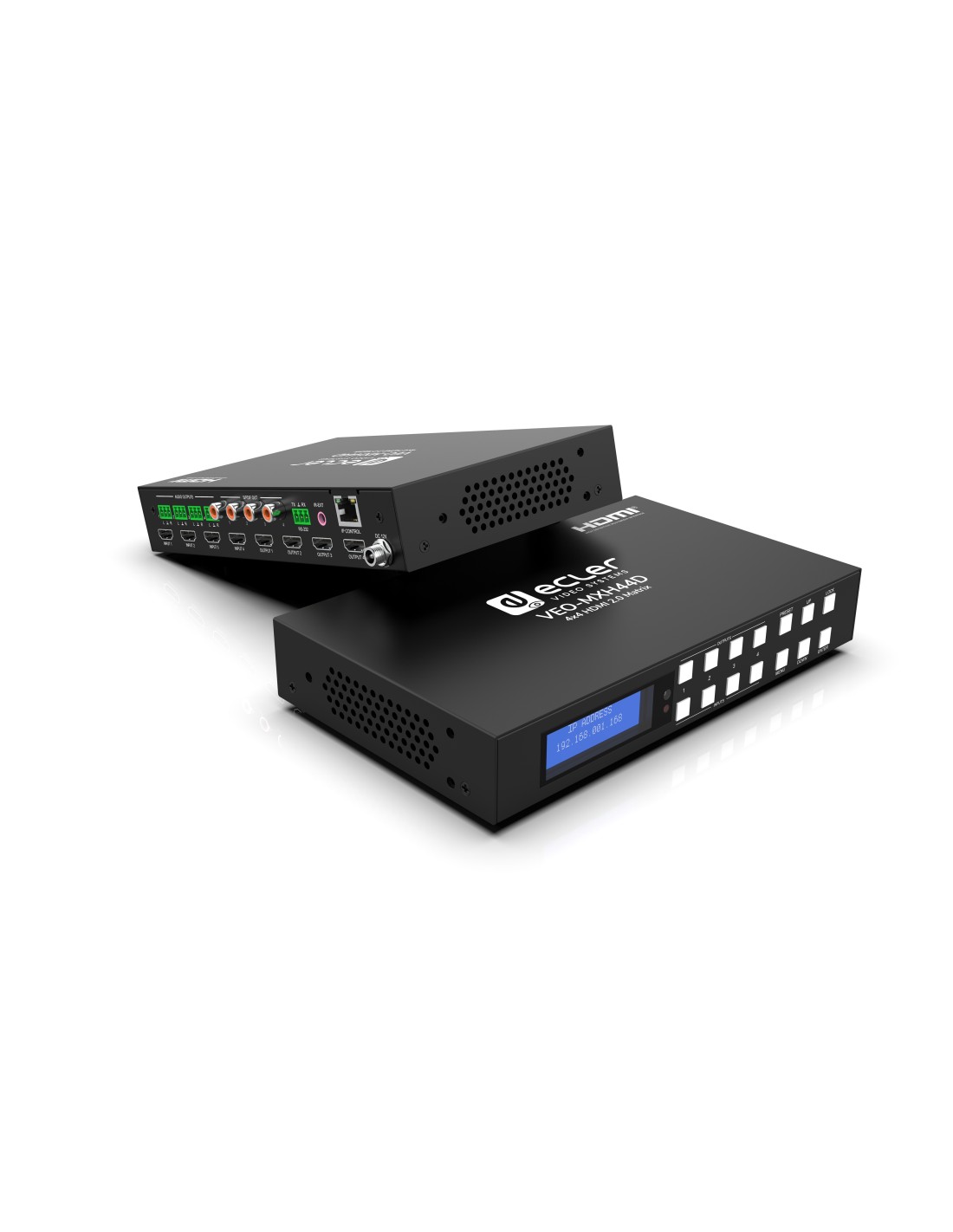

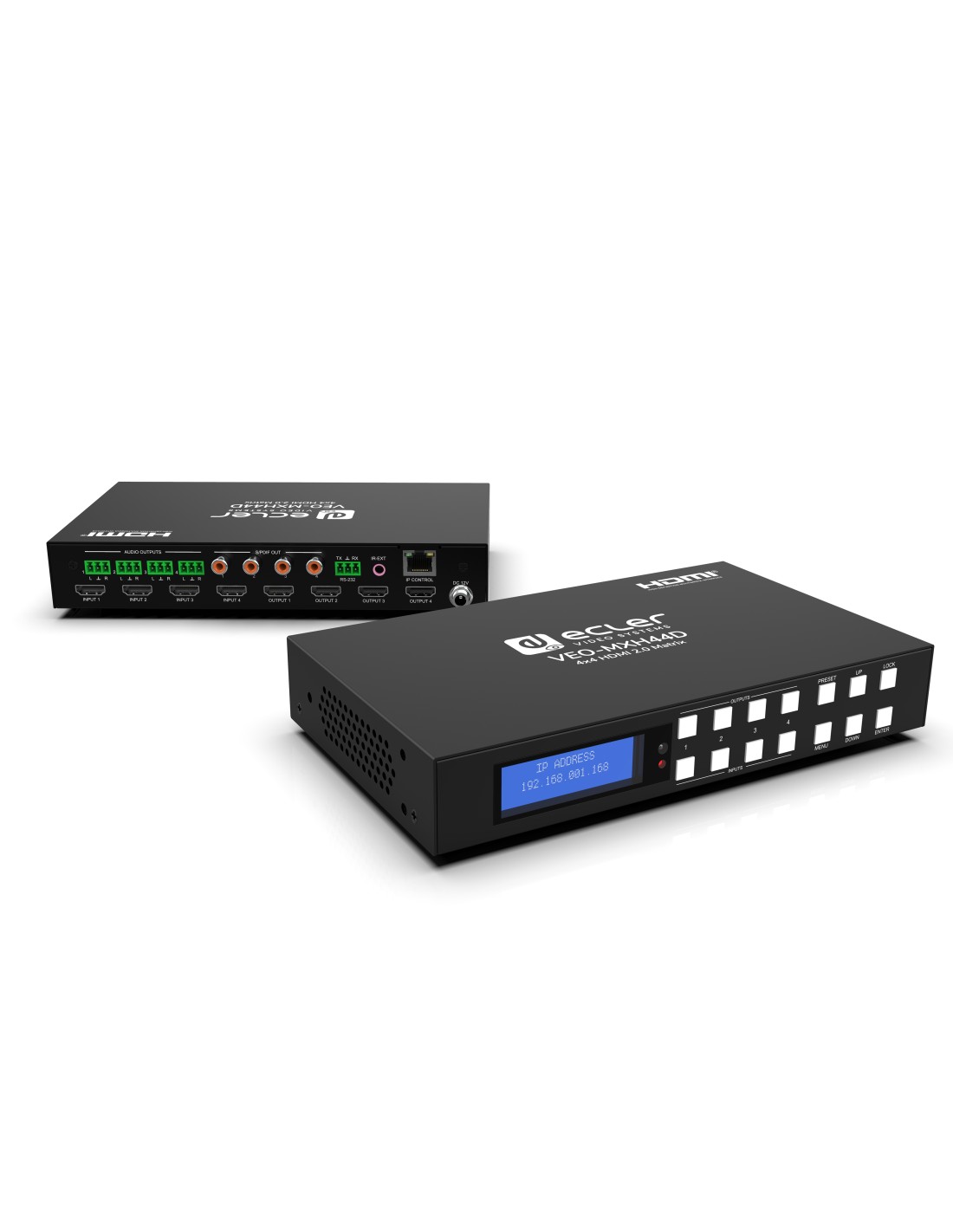

HDMI® 4x4 18Gbps Matrix with Audio De-Embedders and Display

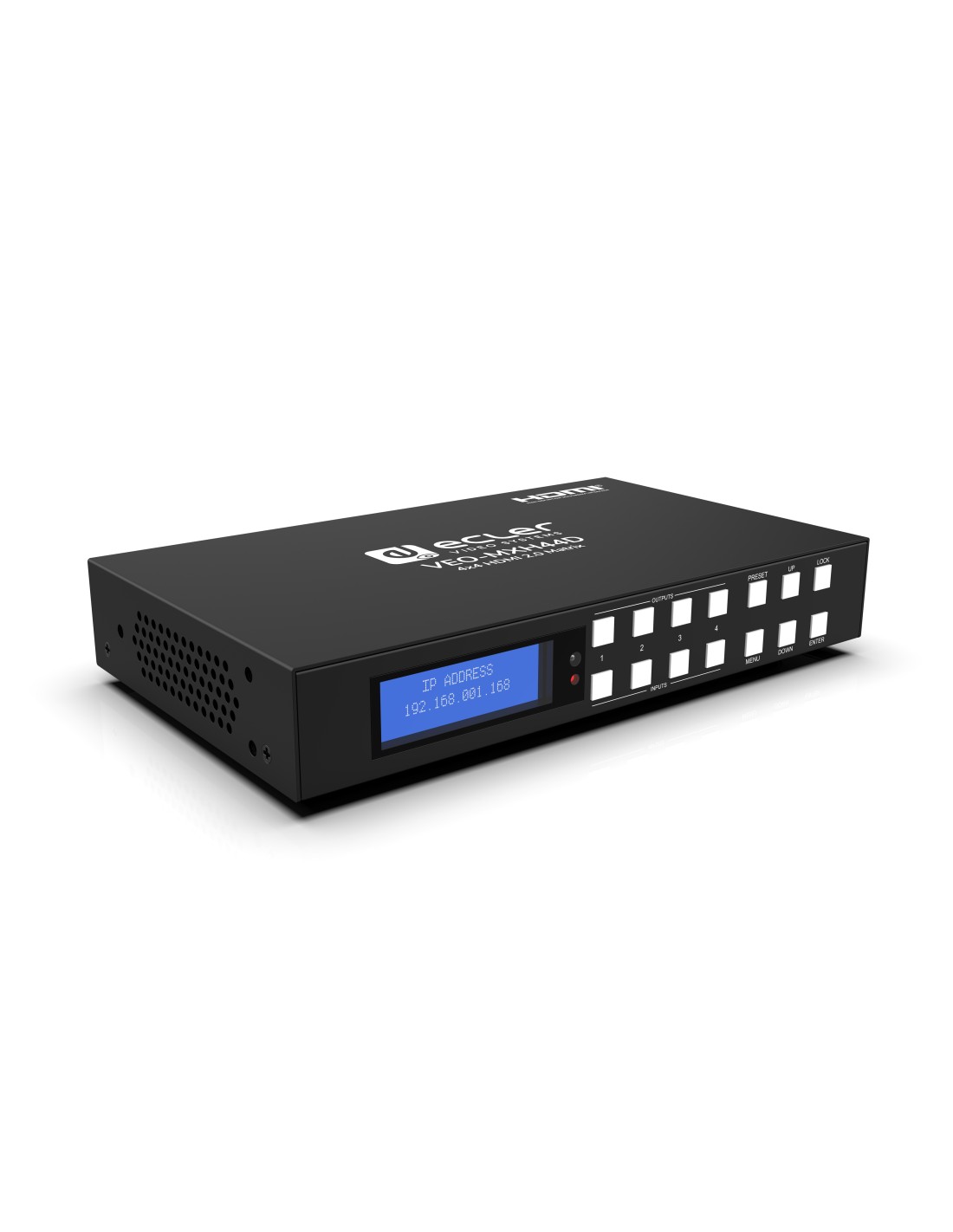

VEO-MXH44D is a 4x4 HDMI® matrix that supports up to 4K/UHD video resolution at 60 Hz with 4:4:4 chroma sampling. It features 8 analogue and digital audio de-embedding outputs, along with EDID management, an LCD display, and an integrated web GUI, providing a user-friendly configuration and control interface.
HDMI sources can be addressed using the selection buttons on the front panel or through serial commands, TCP/IP, and IR. The VEO-MXH44D is compliant with HDCP 2.2 and 1.4 standards. Additionally, the VEO-MXH44D can load and launch up to 8 presets, making it a professional solution for applications that require routing of video and audio HDMI signals between 4K/UHD sources and displays, with smart control management.
- Installation options
- Desktop
- Operating temperature
- Min: 0°C; 32°F
Max: 40°C; 104°F - Operating humidity
- 90% HR
<90% HR - Included accessories

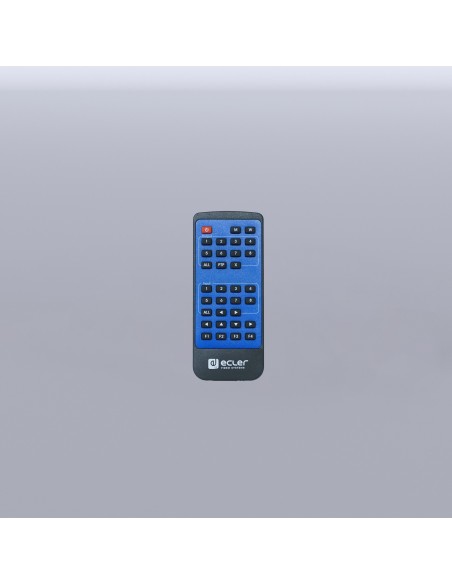

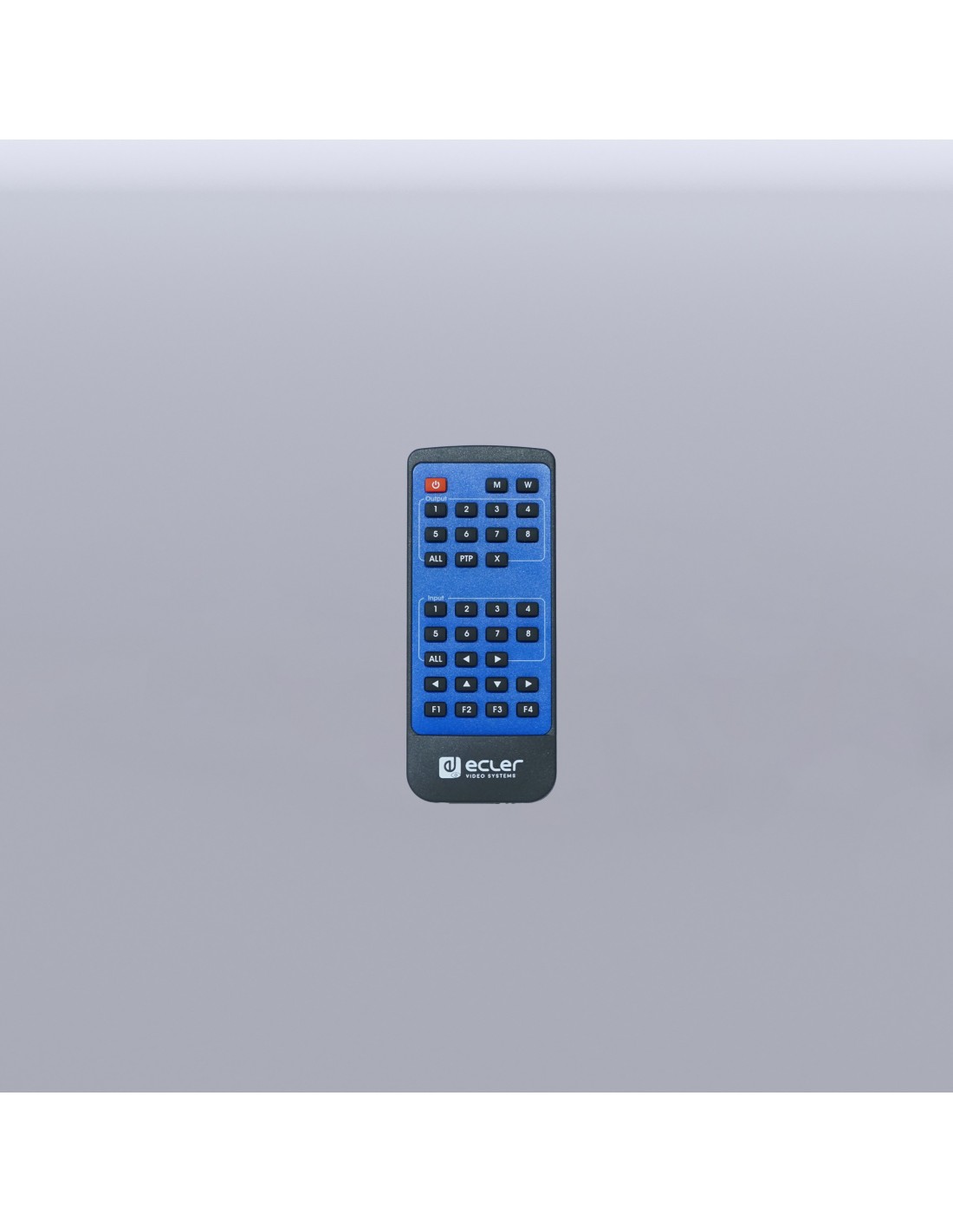

- 5 x 3 pin Euroblock connector, 1 x Remote Control, 1 x IR receiver, 1x 12V PSU
- Finished colour
- Black
- Dimensions
- 217.4 x 35 x 128.7 mm / 8.56 x 1.38 x 5.07 in. (WxHxD)
- Weight
- 0,47 Kg / 1,04 lb
- Shipping dimensions
- 310 x 85 x 264 mm / 12.20 x 3.35 x 10.39 in. (WxHxD)
- Shipping weight
- 1.4 kg. / 3.09 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071316798
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 31
- Height (cm)
- 8.5
- Depth (cm)
- 26.4
- Vol. (dm3)
- 6.96
- Gross Weight (kg)
- 1.4
- Net Weight (kg)
- 0385
- Format
- Unit
- Warranty (months)
- 60
- AC mains connector
- 100-240VAC 50-60Hz with EU, UK ,US , AU blades
- Power consumption
- 14W
- Video Input Connectors
- 4 x HDMI Type A Female, 2.0, 18 Gbps
4 x HDMI® Type A Female, 18 Gbps - Video Output Connectors
- 4 x HDMI Type A Female, 2.0, 18 Gbps
4 x HDMI® Type A Female, 18 Gbps - Video Input Resolutions
- 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
- Video Output Resolutions
- 480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
- Chroma Subsampling
- YUV 4:4:4, YUV 4:2:0 (4K @ 60Hz)
- Colour Depth
- 8-bit, 10-bit, 12-bit
- Colour Space
- RGB, YUV
- HDCP
- 2.2
- HDR
- HDR10, Dolby Vision, HLG
- HDMI Distance
- 10m with Ecler VEO Cables (up to 1080p)
5m with Ecler VEO Cables (up to 4K) - Audio Output Connectors
- 4 x 3 pin Euroblock connector, 4 x Coaxial Digital Out connector
- Audio Formats
- PCM2.0, PCM5.1, PCM7.1, Dolby Digital, DTS 5.1, Dolby Digital+ Dolby True HD, DTS-HD master audio, Dolby Atmos, DTS-X
- Sample Rate
- up to 192KHZ
- Control Buttons
- 1 x Enter, 1 x Lock , 1 x Up, 1 x Down, 1 x Preset Selection, 1 x Menu, 4 x Input Selection, 4 x Output Selection, Remote control
- EDID Management
- Software, Front Panel Buttons
- Status Indicators
- Input LED, LCD Display
- Power supply
- External power supply
- DC mains connector
- 12VDC-2A with coaxial DC connector
- Chassis material
- Metal
- Control Connectors
- Euroblock, RJ-45, IR 3,5mm stereo jack
- Audio De-Embedding
- Yes
- Control Protocols
- Web, Telnet, RS-232, IR, Front panel Buttons and LCD Display
- Network Connectors
- 1 x RJ-45
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop |
|---|---|
| Operating temperature |
Min: 0°C; 32°F
Max: 40°C; 104°F |
| Operating humidity |
<90% HR 90% HR |
| Included accessories |
5 x 3 pin Euroblock connector, 1 x Remote Control, 1 x IR receiver, 1x 12V PSU |
| Finished colour |
Black |
| Dimensions |
217.4 x 35 x 128.7 mm / 8.56 x 1.38 x 5.07 in. (WxHxD) |
| Weight |
0,47 Kg / 1,04 lb |
| Shipping dimensions |
310 x 85 x 264 mm / 12.20 x 3.35 x 10.39 in. (WxHxD) |
| Shipping weight |
1.4 kg. / 3.09 lb |
| Format |
Unit |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071316798
|
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
31 |
| Height (cm) |
8.5 |
| Depth (cm) |
26.4 |
| Vol. (dm3) |
6.96 |
| Gross Weight (kg) |
1.4 |
| Net Weight (kg) |
0385 |
| Warranty (months) |
60 |
ELECTRICAL
| AC mains connector |
100-240VAC 50-60Hz with EU, UK ,US , AU blades |
|---|---|
| Power consumption |
14W |
| Power supply |
External power supply |
| DC mains connector |
12VDC-2A with coaxial DC connector |
DEVICE CONTROL
| Control Buttons |
1 x Enter, 1 x Lock , 1 x Up, 1 x Down, 1 x Preset Selection, 1 x Menu, 4 x Input Selection, 4 x Output Selection, Remote control |
|---|---|
| EDID Management |
Software, Front Panel Buttons |
| Status Indicators |
Input LED, LCD Display |
| Control Connectors |
Euroblock, RJ-45, IR 3,5mm stereo jack |
| Control Protocols |
Web, Telnet, RS-232, IR, Front panel Buttons and LCD Display |
VIDEO PERFOMANCES
| Video Input Connectors |
4 x HDMI Type A Female, 2.0, 18 Gbps 4 x HDMI® Type A Female, 18 Gbps |
|---|---|
| Video Output Connectors |
4 x HDMI Type A Female, 2.0, 18 Gbps 4 x HDMI® Type A Female, 18 Gbps |
| Video Input Resolutions |
480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
| Video Output Resolutions |
480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
| Chroma Subsampling |
YUV 4:4:4, YUV 4:2:0 (4K @ 60Hz) |
| Colour Depth |
8-bit, 10-bit, 12-bit |
| Colour Space |
RGB, YUV |
| HDCP |
2.2 |
| HDR |
HDR10, Dolby Vision, HLG |
| HDMI Distance |
10m with Ecler VEO Cables (up to 1080p)
5m with Ecler VEO Cables (up to 4K) |
AUDIO PERFORMANCES
| Audio Output Connectors |
4 x 3 pin Euroblock connector, 4 x Coaxial Digital Out connector |
|---|---|
| Audio Formats |
PCM2.0, PCM5.1, PCM7.1, Dolby Digital, DTS 5.1, Dolby Digital+ Dolby True HD, DTS-HD master audio, Dolby Atmos, DTS-X |
| Sample Rate |
up to 192KHZ |
| Audio De-Embedding |
Yes |
NETWORK
| Network Connectors |
1 x RJ-45 |
|---|
