ALMA24
CALMA24
Available
2x4 | digital loudspeaker manager | USB

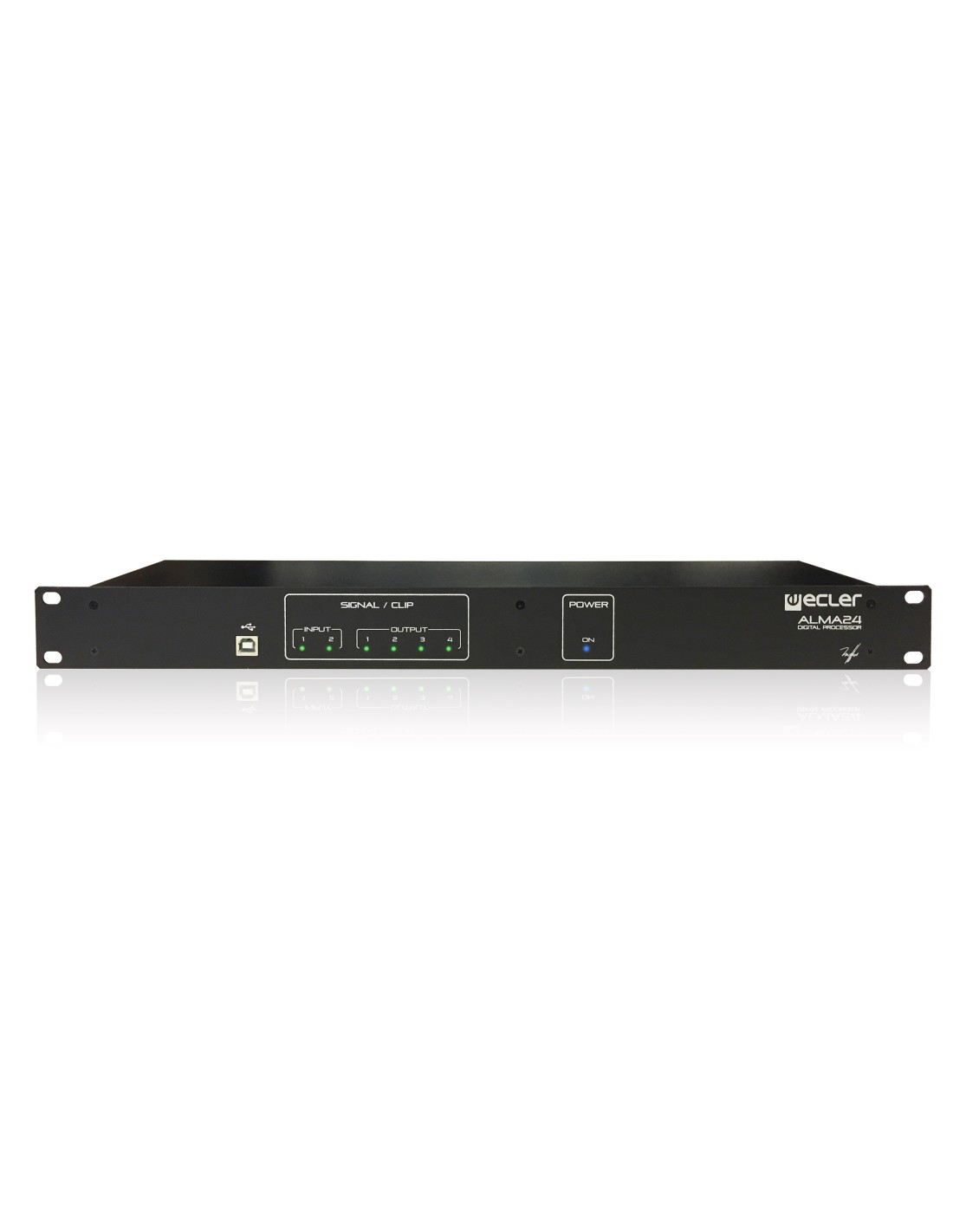

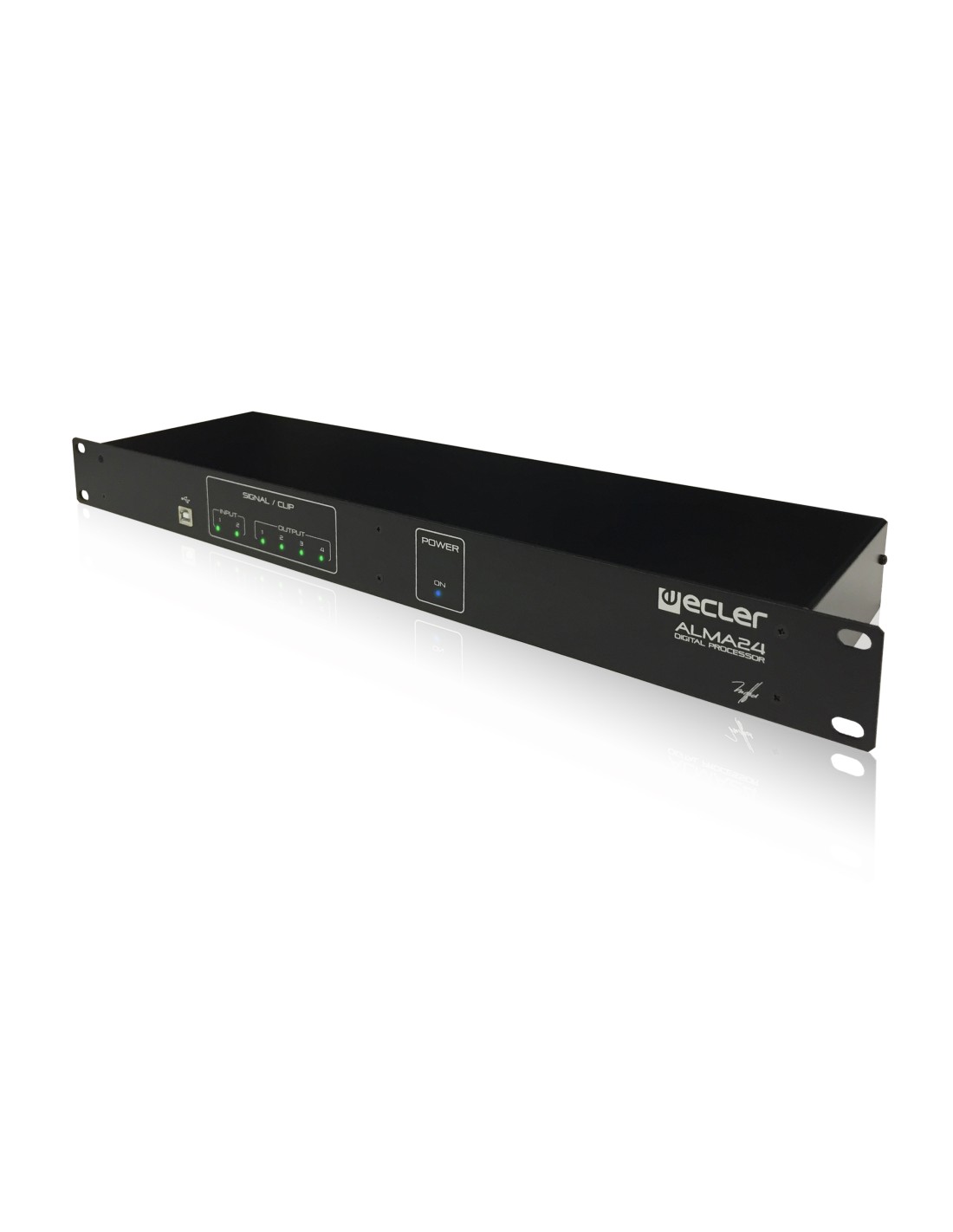

ALMA24 is a digital loudspeaker manager including 2 audio inputs and 4 audio outputs, USB interface and 2 volume remote control ports (0-10VDC). ALMA24 is a 1RU stand-alone processor.

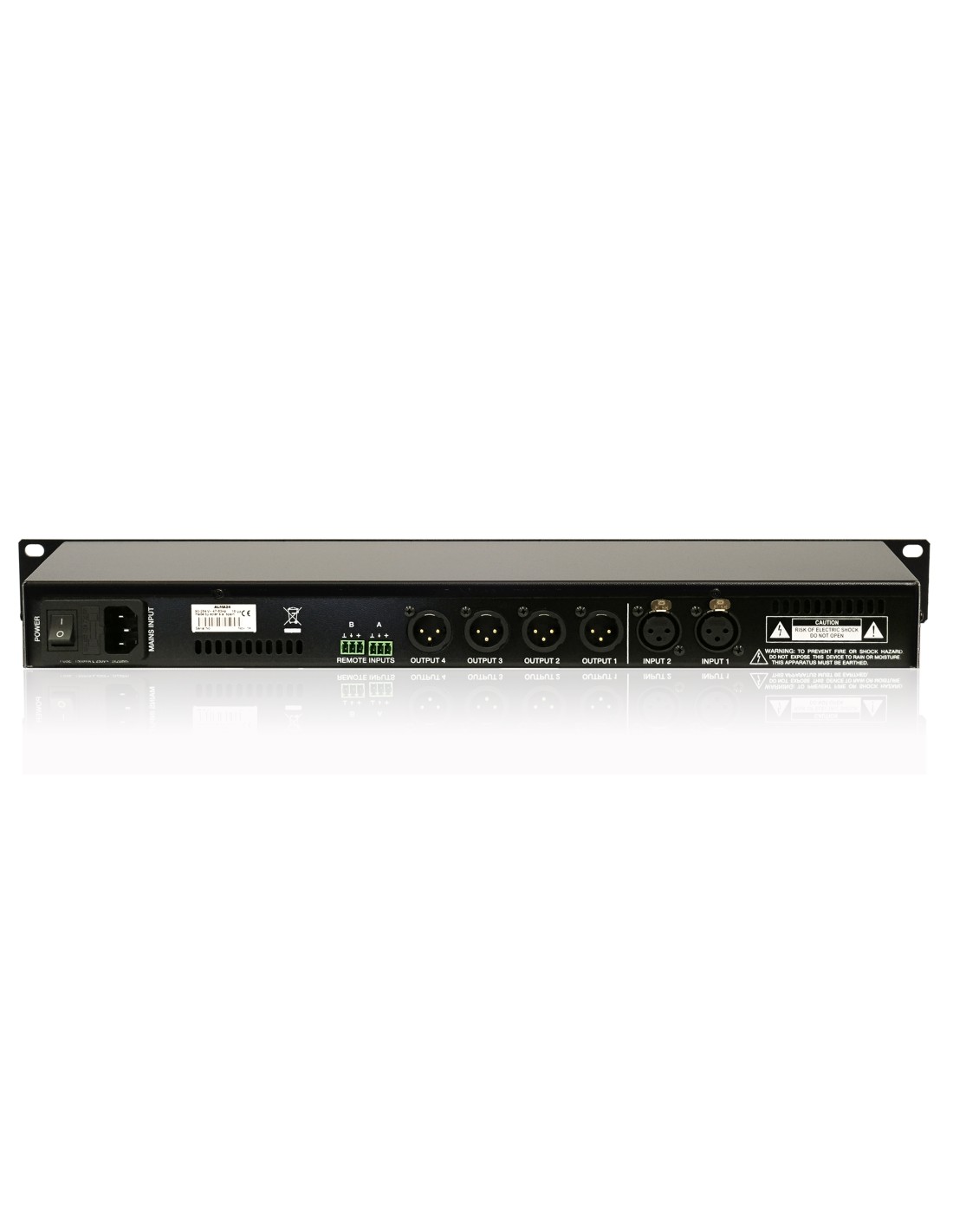

- Connection type
- XLR3 female, balanced
XLR3 male, balanced - Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- WPa series panels for remote control
- Dimensions
- 482.6 x 44 x 120 mm / 19.0 x 1.7 x 4.72 in. (WxHxD)
- Weight
- 1.75 kg / 3.86 lb
- Shipping dimensions
- 560 x 60 x 220 mm / 22.05 x 2.36 x 8.66 in. (WxHxD)
- Shipping weight
- 2.5 kg / 5.51 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071304917
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 56.00
- Height (cm)
- 6.00
- Depth (cm)
- 22.00
- Vol. (dm3)
- 7.39
- Gross Weight (kg)
- 2.50
- Net Weight (kg)
- 1.75
- Format
- Unit
- Warranty (months)
- 36
- Processor
- 24bits / 48kHz
- Sampling rate
- 48kHz
- Resolution
- 24 bit
- Frequency response
- 10Hz - 20kHz
<10Hz - 20kHz - Number of input ports
- 2
- Input sensitivity
- 0dBV
- Input impedanc
- 20k electronically balanced
>20k electronically balanced - CMRR
- 55dB (20Hz ÷ 20kHz)
>55dB (20Hz ÷ 20kHz) - Number of output ports
- 4
- Output impedance
- 300Ω electronically balanced
- Crosstalk
- 95dB, 30Hz ÷ 20kHz
>95dB, 30Hz ÷ 20kHz - Host ports
- 1, type B connector
- Device ports
- 1, type B connector
- Serial port
- USB type B
- Programing and control
- EclerCOMM Manager compatibility
- Digital remote controls
- 2, Euroblock connector
- GPIs
- x2 GPIs (0-10VDC) for volume control
- AC mains requirement
- 100-240 V @ 47-63Hz
- AC mains connector
- AC socket connector (IEC)
- Power consumption
- 16VA
- Input impedance
- 20k electronically balanced
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Processor |
24bits / 48kHz |
|---|
PHYSICAL
| Connection type |
XLR3 female, balanced XLR3 male, balanced |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
WPa series panels for remote control |
| Dimensions |
482.6 x 44 x 120 mm / 19.0 x 1.7 x 4.72 in. (WxHxD) |
| Weight |
1.75 kg / 3.86 lb |
| Shipping dimensions |
560 x 60 x 220 mm / 22.05 x 2.36 x 8.66 in. (WxHxD) |
| Shipping weight |
2.5 kg / 5.51 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071304917 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
56.00 |
| Height (cm) |
6.00 |
| Depth (cm) |
22.00 |
| Vol. (dm3) |
7.39 |
| Gross Weight (kg) |
2.50 |
| Net Weight (kg) |
1.75 |
| Warranty (months) |
36 |
MICS
| Output impedance |
300Ω electronically balanced |
|---|
ELECTRICAL
| AC mains requirement |
100-240 V @ 47-63Hz
|
|---|---|
| AC mains connector |
AC socket connector (IEC) |
| Power consumption |
16VA |
AUDIO CONVERTERS
| Sampling rate |
48kHz |
|---|
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
2 |
|---|---|
| Input impedanc |
>20k electronically balanced 20k electronically balanced |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
4 |
|---|---|
| Crosstalk |
>95dB, 30Hz ÷ 20kHz 95dB, 30Hz ÷ 20kHz |
USB AUDIO
| Host ports |
1, type B connector |
|---|---|
| Device ports |
1, type B connector |
CONNECTIVITY
| Serial port |
USB type B |
|---|---|
| Programing and control |
EclerCOMM Manager compatibility |
REMOTE CONTROL CONNECTIONS
| Digital remote controls |
2, Euroblock connector |
|---|---|
| GPIs |
x2 GPIs (0-10VDC) for volume control |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
0dBV |
|---|
LINE INPUTS
| CMRR |
>55dB (20Hz ÷ 20kHz) 55dB (20Hz ÷ 20kHz) |
|---|---|
| Input impedance |
20k electronically balanced |
LINE OUTPUTS
| Frequency response |
<10Hz - 20kHz 10Hz - 20kHz |
|---|
SCREEN/DISPLAY
| Resolution |
24 bit |
|---|
