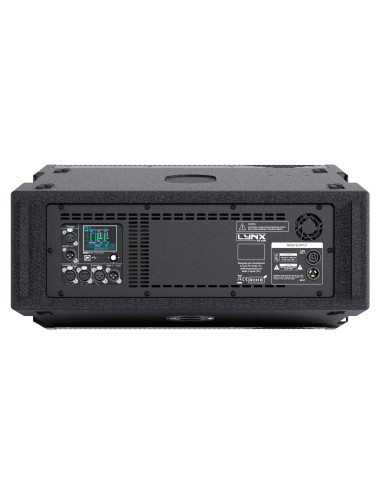

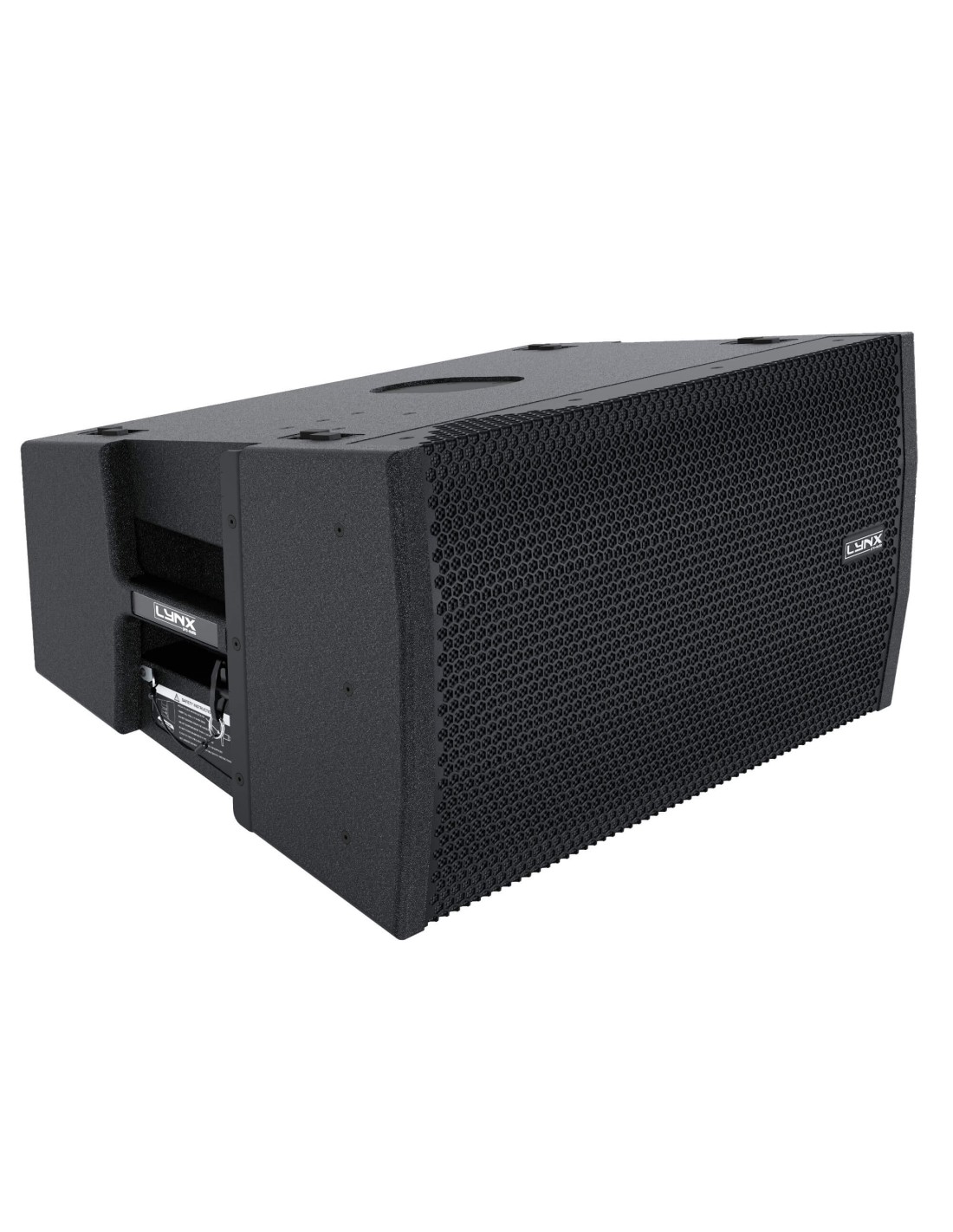

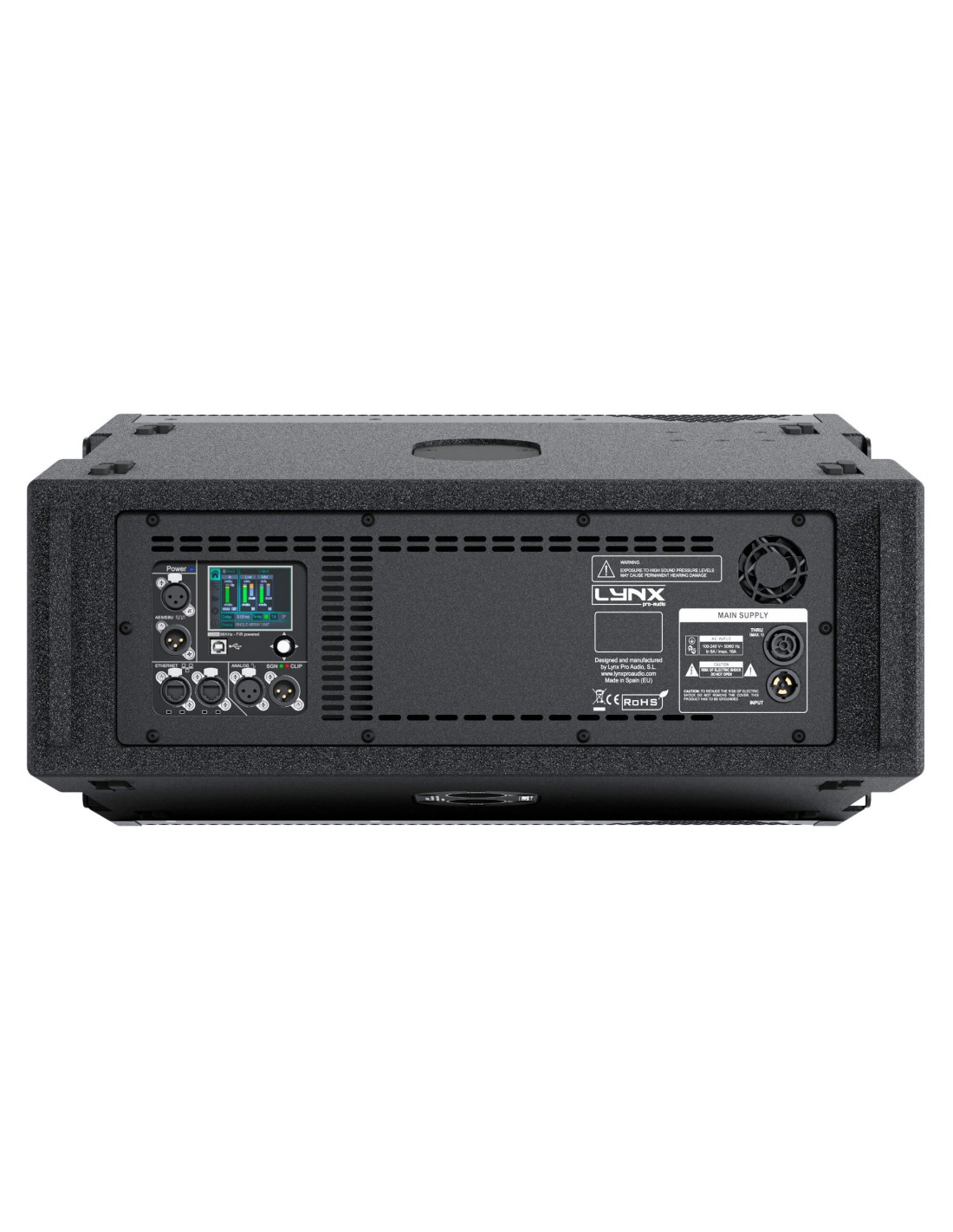

CXA-12INWA
CLYCXA12INWA
Check availability
Active Module 12” 1400W DSP Ins AES White
Line array enclosure with constant curvature designed for basic line array configurations multipurpose, with a maximum of 4 boxes. Mount a 12” speaker together with a multidriver waveguide system personalized. The enclosure is powered with a total of 1400 W in class D and switching power supply, with PFC system and DSP processor with linear phase FIR filters. This system can be controlled online in time real. The CXA-12 is ideal for a wide variety of applications, its design allows installations to be configured with Symmetrical HF dispersion or fly the boxes also in a vertical position. The venue has a complete range of accessories that facilitate its use both on tours and in fixed installations.
- Effective Freq. Range
- Frequency Range: 60 Hz – 20 KHz (-10dB)
Frequency Response: 70 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 100º H x 18 º V
- Power handling
- LF Amplifier: 1 x 800 W
HF Amplifier: 1 x 600 W - Maximum SPL
- 128 dB
- Connection type
- Ethernet (OCS) / USB (DSP updating)
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 357 x 632 x 484 mm (HxWxD)
- Weight
- 31 kg (68 lbs)
- Status
- New
- EAN code
- 8436612040868
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power supply
- 90 – 264V. 50/60 Hz with PFC
- Power handling per way
- LF: 12″, 2.5″ voice coil, Malt Cross Cooling System
HF: custom Multidriver system with wave guide, 1.4″ aluminium voice coil with titanium diaphragm - Finish
- Polyurea coating, black colour
- Power options (Hi Z Multi-tap)
- 1400W Class D with switching power supply & PF
- Audio inputs
- Analog / AES3 (optional)
- Display
- User control interface with 2.8″ IPS screen
- AC connections
- 16A Neutrik powercon true1 TOP with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency Range: 60 Hz – 20 KHz (-10dB)
Frequency Response: 70 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
100º H x 18 º V |
| Power handling |
LF Amplifier: 1 x 800 W
HF Amplifier: 1 x 600 W |
| Maximum SPL |
128 dB |
| Power handling per way |
LF: 12″, 2.5″ voice coil, Malt Cross Cooling System
HF: custom Multidriver system with wave guide, 1.4″ aluminium voice coil with titanium diaphragm |
| Power options (Hi Z Multi-tap) |
1400W Class D with switching power supply & PF |
PHYSICAL
| Connection type |
Ethernet (OCS) / USB (DSP updating) |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
357 x 632 x 484 mm (HxWxD) |
| Weight |
31 kg (68 lbs) |
| Finish |
Polyurea coating, black colour |
POWERED
| Audio inputs |
Analog / AES3 (optional) |
|---|---|
| AC connections |
16A Neutrik powercon true1 TOP with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040868 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
90 – 264V. 50/60 Hz with PFC |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8″ IPS screen |
|---|
