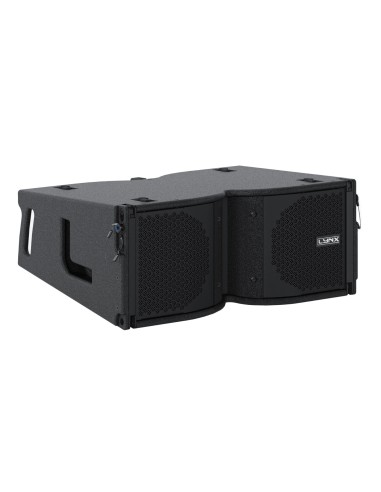

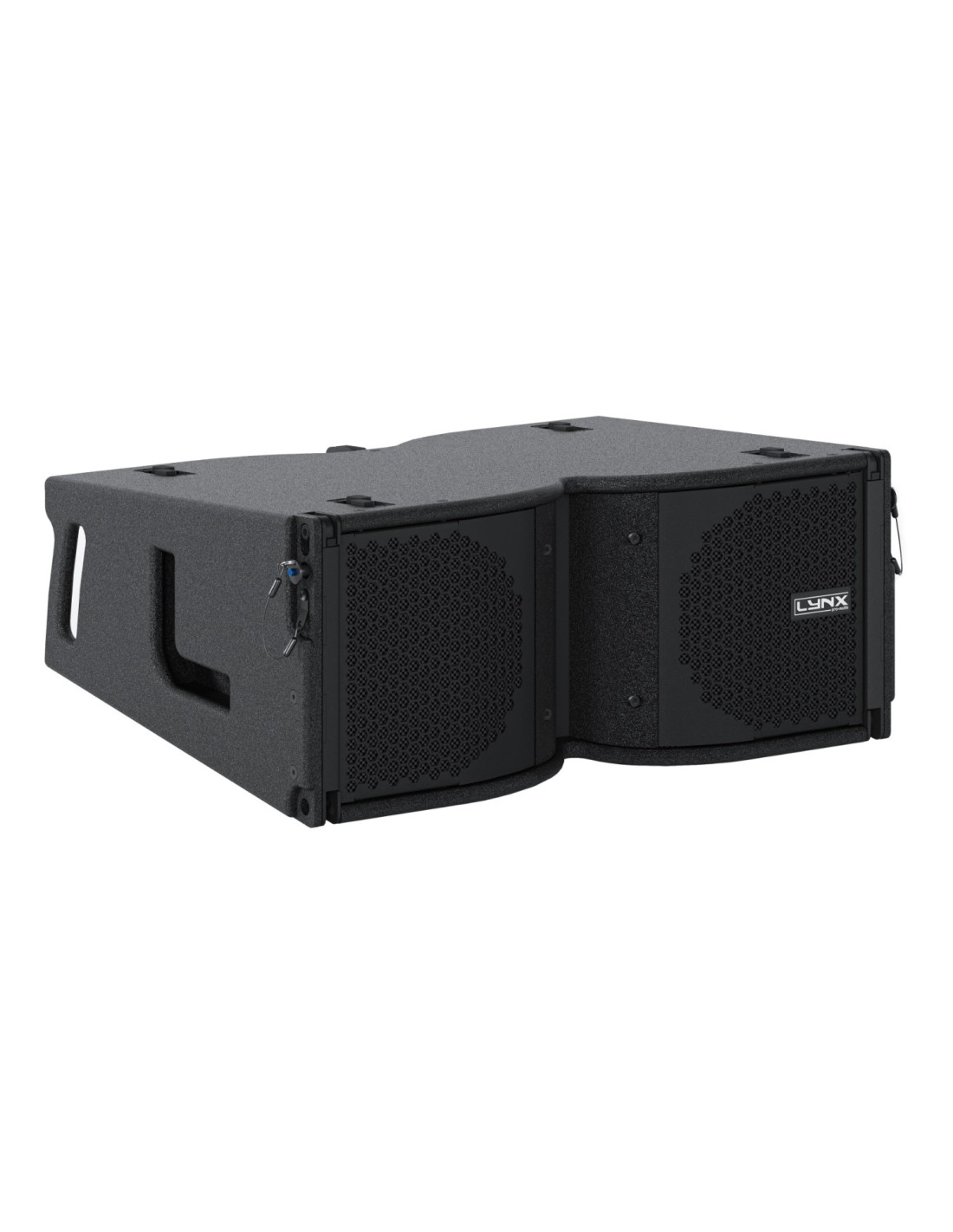

CLS-28P
CLYCLS28P
Check availability
Coaxial line array module (passive). 3-way bi-amplified enclosure.
The CLS-28P is a high-output extremely compact and extremely powerful 3-way biamplified symmetrical coaxial line source element designed for medium sized touring & fixed installations.
It uses two low distortion 8” (2.5” DUO copper voice coil) custom speakers for the low frequencies with exclusive Malt Cross cooling technology, FEA optimized neodymium magnet circuit, aluminium demodulating ring and waterproof cone.
- Effective Freq. Range
- Frequency Range: 55 Hz – 22 KHz (-10dB)
Frequency response: 65 Hz – 20 KHz (± 6dB) - Coverage angle / Dispersion
- H: 110º (-10 dB), 100º (-6 dB)
V: Single element 10º - Power handling
- Bi- Amp LF: 1000W (2000W program, 4000W peak)
Bi-Amp HF: 150W ( 300W program, 1000W peak) - Sensitivity
- LF: 100 dB, MF/HF: 112 dB
- Maximum SPL
- LF: 130 dB / 136 dB
MF/HF: 135 dB / 143 dB - Nominal impedance
- Low Section: 8 Ω
Mid/High Section: 16 Ω - Crossover filter
- Low/Mid 550 Hz
Mid/High 6300 Hz - Connection type
- 2 x Neutrik Speakon NL4MP
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 254.5 x 600 x 480 mm (HxWxD) / with pins 613.5 mm (W)
- Weight
- 25 Kg (55 lbs)
- Status
- New
- EAN code
- 8436612040028
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Finish
- Black Polyurea coating, high grade resistant paint. other colours (RAL) available
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency Range: 55 Hz – 22 KHz (-10dB)
Frequency response: 65 Hz – 20 KHz (± 6dB) |
|---|---|
| Coverage angle / Dispersion |
H: 110º (-10 dB), 100º (-6 dB)
V: Single element 10º |
| Power handling |
Bi- Amp LF: 1000W (2000W program, 4000W peak)
Bi-Amp HF: 150W ( 300W program, 1000W peak) |
| Sensitivity |
LF: 100 dB, MF/HF: 112 dB |
| Maximum SPL |
LF: 130 dB / 136 dB
MF/HF: 135 dB / 143 dB |
TRANSDUCERS
| Nominal impedance |
Low Section: 8 Ω
Mid/High Section: 16 Ω |
|---|
FILTERS
| Crossover filter |
Low/Mid 550 Hz
Mid/High 6300 Hz |
|---|
PHYSICAL
| Connection type |
2 x Neutrik Speakon NL4MP |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
254.5 x 600 x 480 mm (HxWxD) / with pins 613.5 mm (W) |
| Weight |
25 Kg (55 lbs) |
| Finish |
Black Polyurea coating, high grade resistant paint. other colours (RAL) available |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040028 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
