CLS-212
CLYCLS212
Check availability

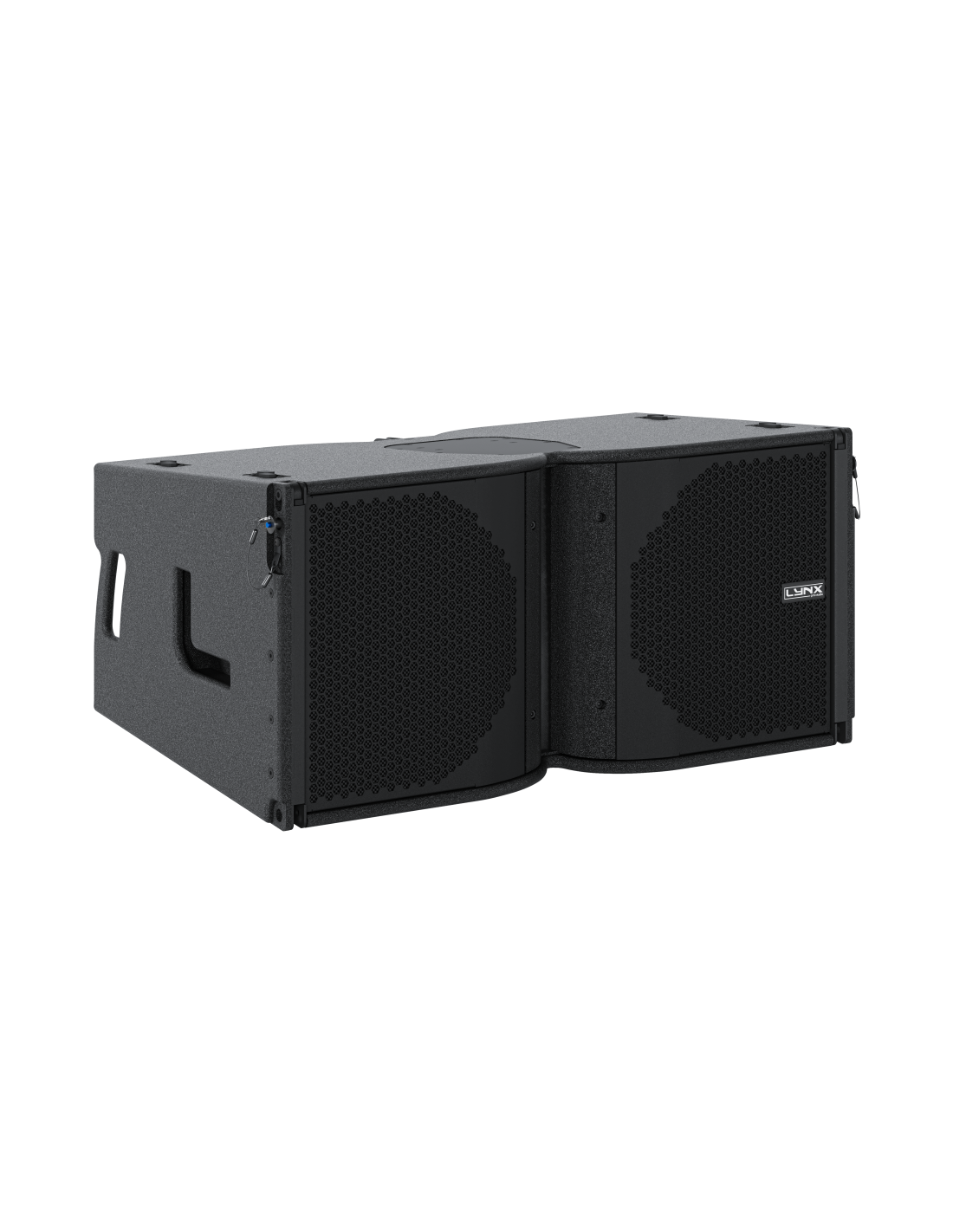

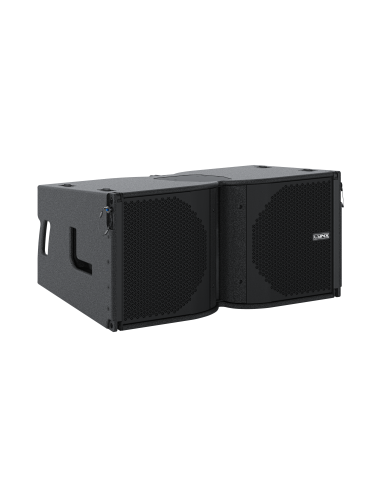

Extremely powerful and compact 3-way line array enclosure.
Extremely compact & extremely powerful 3-way, self-powered (6000 W Class-D with PFC), DSP
integrated coaxial line array element. Dual high power 12” neodymium transducers and two unique 6.5” dual diaphragm coaxial planar wave driver.
- Effective Freq. Range
- 60 Hz - 22 KHz
- Coverage angle / Dispersion
- Coverage 100º x coverage Single element 10º
- Maximum SPL
- 142 dB / 148 dB
- Recommended amplifier power
- 6000 W Class-D with switching power supply & PFC
LF amplifier: 1 x 3000W
MF/ HF amplifier: 1 x 3000W - Nominal impedance
- 100 - 240V AC @ 50-60 Hz
- Crossover filter
- Digital: FIR filter 500 Hz
Passive: 6.3 KHz - Grille material
- 15 mm Premium birch plywood
- Dimensions
- 384 x 800 x 480 mm (HxWxD) / with pins 815.5 mm (W)
- Weight
- 47 Kg (103.6 lbs)
- Status
- New
- EAN code
- 8436612040035
8436612040042 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Finish
- Polyurea coating, high grade resistant paint
- Audio inputs
- BAL/ UNBAL XLR connectors analog input
AES3 digital input - Display
- User control interface with 2.8” IPS display and multifunction
joystick controller - AC connections
- 16A Neutrik powercon true1 TOP with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear
phase.
High performance 32 bit 96 KHz AD/DA converters
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
60 Hz - 22 KHz |
|---|---|
| Coverage angle / Dispersion |
Coverage 100º x coverage Single element 10º |
| Maximum SPL |
142 dB / 148 dB |
| Recommended amplifier power |
6000 W Class-D with switching power supply & PFC
LF amplifier: 1 x 3000W
MF/ HF amplifier: 1 x 3000W |
TRANSDUCERS
| Nominal impedance |
100 - 240V AC @ 50-60 Hz |
|---|
FILTERS
| Crossover filter |
Digital: FIR filter 500 Hz
Passive: 6.3 KHz |
|---|
PHYSICAL
| Grille material |
15 mm Premium birch plywood |
|---|---|
| Dimensions |
384 x 800 x 480 mm (HxWxD) / with pins 815.5 mm (W) |
| Weight |
47 Kg (103.6 lbs) |
| Finish |
Polyurea coating, high grade resistant paint |
POWERED
| Audio inputs |
BAL/ UNBAL XLR connectors analog input
AES3 digital input |
|---|---|
| AC connections |
16A Neutrik powercon true1 TOP with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear
phase.
High performance 32 bit 96 KHz AD/DA converters |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040035
8436612040042 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
SCREEN/DISPLAY
| Display |
User control interface with 2.8” IPS display and multifunction
joystick controller |
|---|
