GXR-LA210P
CLYGXRLA210P
Check availability

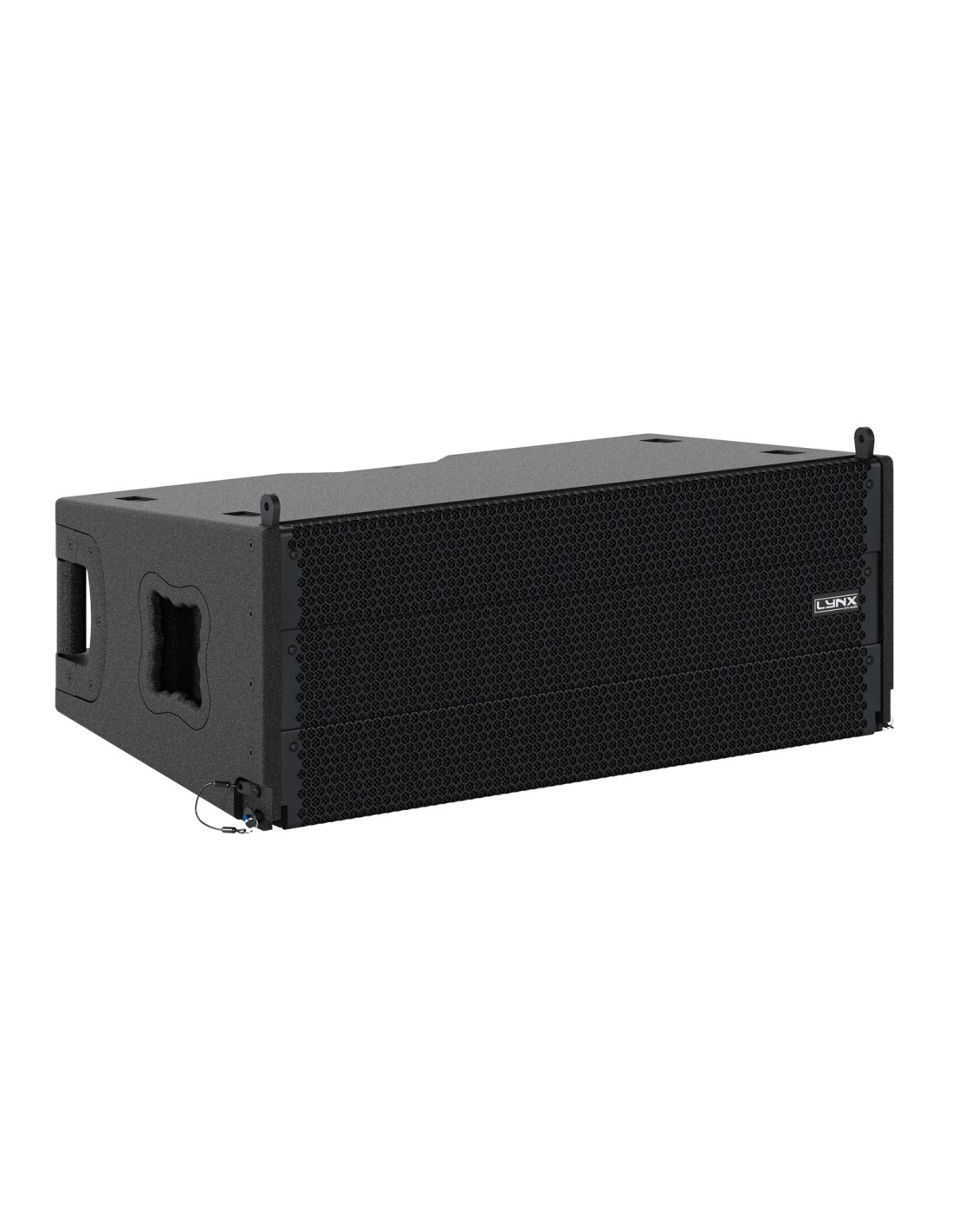

The GXR-LA210P (Passive) is a high output, compact bi-amp line array module.
The GXR-LA210P (Passive) is a high output, compact bi-amp line array module. Consists of 2 x 10” (2” voice coil) transducer with 1.4” exit throat driver.
Depending on the configuration, the system is amplified with the GTX Series, 4-channel, extremely high power level amplifiers with outstanding, high efficiency. They come equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface.
- Effective Freq. Range
- Frequency Range: 55 Hz – 20 KHz (-10dB)
Frequency Response: 65 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- H: 100ºV: depending number cabinets of array
- Sensitivity
- LF: 99 dB
HF: 109 dB - Maximum SPL
- LF: 127 dB / 133 dB
HF: 128 dB / 134 dB - Crossover filter
- Electronic FIR filters linear phase
- Connection type
- 2 x Neutrik NL4
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 15 mm premium birch plywood
- Weight
- 29 Kg (63.9 lbs)
- Status
- New
- EAN code
- 8436612040424
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Input sensitivity
- Low 8 Ω
High 16 Ω - Power handling per way
- LF: 10”, 2” voice coil, Malt Cross Cooling System
HF: 1.4” Exit throat, 3” voice coil with titanium diaphragm - Finish
- Polyurea coating
- Processing (DSP)
- LF: 600W AES, 1200W program, 2400W peak (Rated Power)
HF: 80W AES, 160W program, 320W peak (Rated Power)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency Range: 55 Hz – 20 KHz (-10dB)
Frequency Response: 65 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
H: 100ºV: depending number cabinets of array |
| Sensitivity |
LF: 99 dB
HF: 109 dB |
| Maximum SPL |
LF: 127 dB / 133 dB
HF: 128 dB / 134 dB |
| Power handling per way |
LF: 10”, 2” voice coil, Malt Cross Cooling System
HF: 1.4” Exit throat, 3” voice coil with titanium diaphragm |
FILTERS
| Crossover filter |
Electronic FIR filters linear phase |
|---|
PHYSICAL
| Connection type |
2 x Neutrik NL4 |
|---|---|
| Grille material |
15 mm Premium birch plywood |
| Dimensions |
15 mm premium birch plywood |
| Weight |
29 Kg (63.9 lbs) |
| Finish |
Polyurea coating |
POWERED
| Processing (DSP) |
LF: 600W AES, 1200W program, 2400W peak (Rated Power)
HF: 80W AES, 160W program, 320W peak (Rated Power)
|
|---|
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040424 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain
|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
Low 8 Ω
High 16 Ω |
|---|
