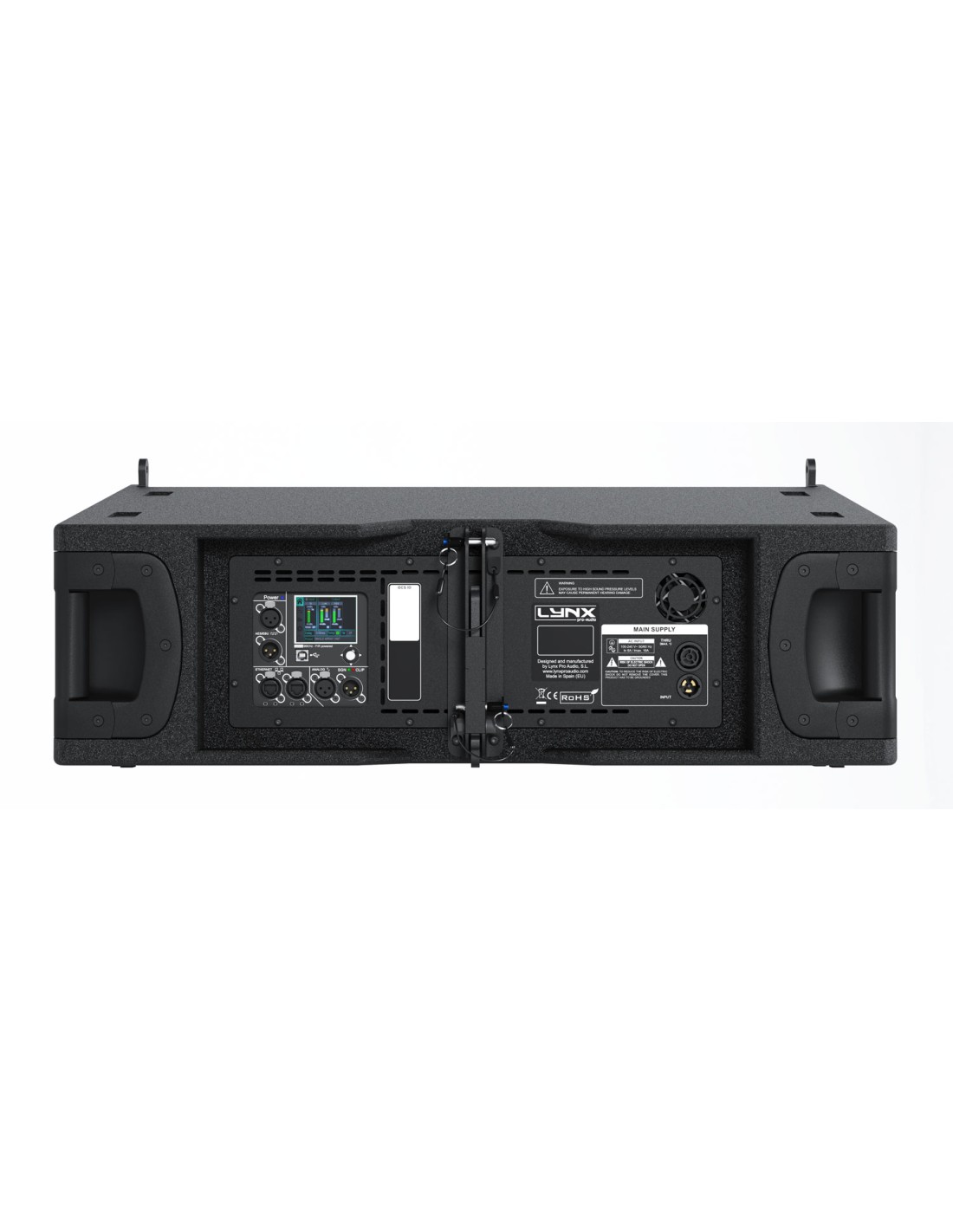

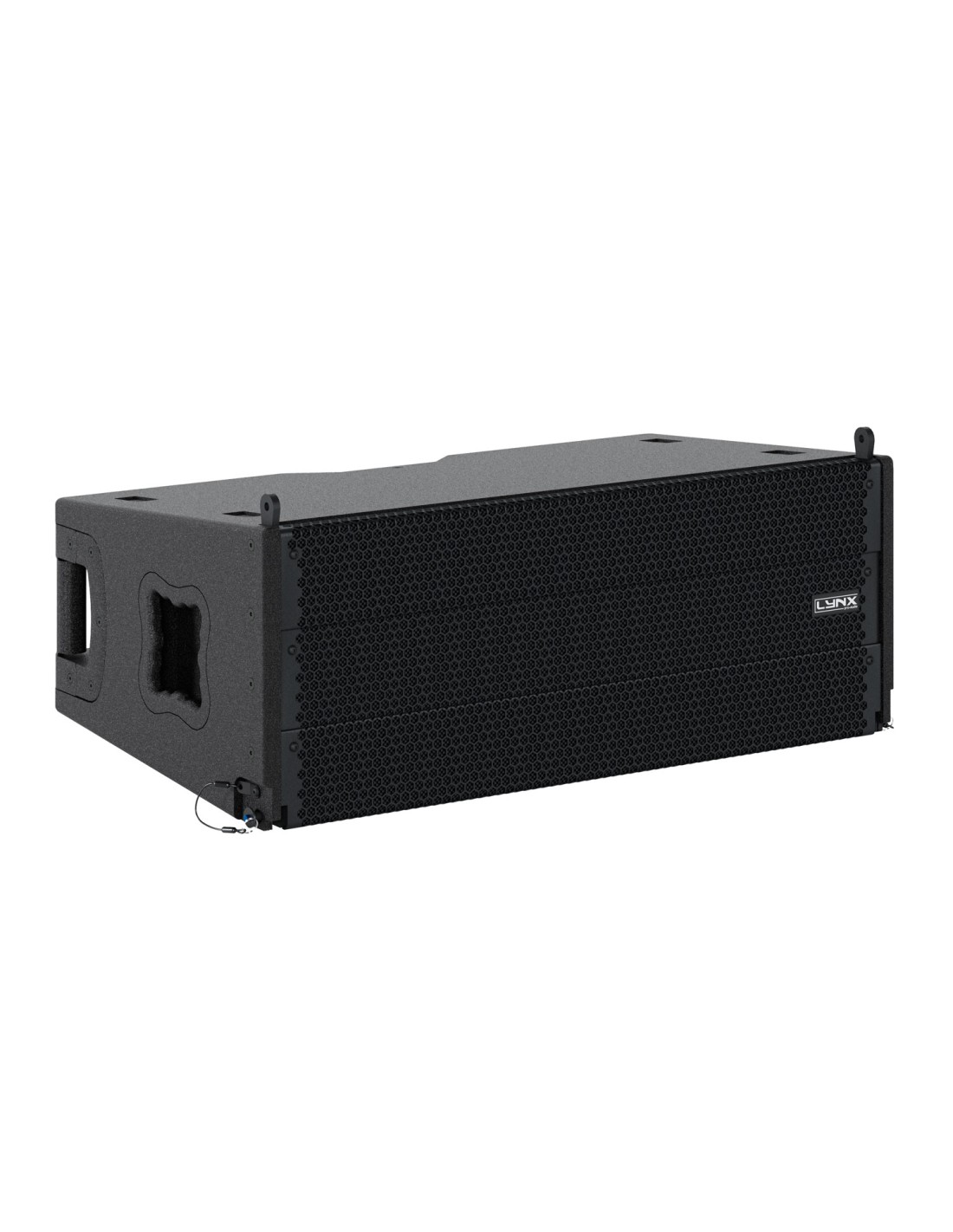

GXR-LA210
CLYGXRLA210
Check availability
Amplified enclosure with a total of 1400 W in class D and switch-mode power supply.
High output compact bi-amplified line array module. Consisting of a 2 x 10" transducer (2" voice coil) with 1.4" output throat driver.
With a total of 1400 W in class D and switching power supply, with PFC system and DSP processor with linear phase FIR filters. Two 10" loudspeakers are mounted together with a waveguide system.
This system can be controlled online in real time.
- Effective Freq. Range
- Frequency Range: 60 Hz – 20 KHz (-10dB)
Frequency Response: 68 Hz – 18 KHz (± 3dB) - Coverage angle / Dispersion
- 100º H x 10 º V
- Power handling
- 1400W Class D with switching power supply & PFC
- Maximum SPL
- 135dB
- Grille material
- 15 mm Premium birch plywood
- Dimensions
- 298 x 790 x 436 mm (HxWxD)
- Weight
- 31 kg (68.2 lbs)
- Status
- New
- EAN code
- 8436612040400
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Power supply
- 90 – 264V. 50/60 Hz with PFC
- Power handling per way
- LF Amplifier: 1 x 800 W RMS, 1600 W peak
HF Amplifier: 1 x 600 W RMS, 1200 W peak - Finish
- Polyurea coating, black colour
- Audio inputs
- Analog
- Display
- User control interface with 2.8″ IPS screen
- AC connections
- 16A Neutrik powercon true1 TOP with looping output
- Processing (DSP)
- Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
Frequency Range: 60 Hz – 20 KHz (-10dB)
Frequency Response: 68 Hz – 18 KHz (± 3dB) |
|---|---|
| Coverage angle / Dispersion |
100º H x 10 º V |
| Power handling |
1400W Class D with switching power supply & PFC |
| Maximum SPL |
135dB |
| Power handling per way |
LF Amplifier: 1 x 800 W RMS, 1600 W peak
HF Amplifier: 1 x 600 W RMS, 1200 W peak |
PHYSICAL
| Grille material |
15 mm Premium birch plywood |
|---|---|
| Dimensions |
298 x 790 x 436 mm (HxWxD) |
| Weight |
31 kg (68.2 lbs) |
| Finish |
Polyurea coating, black colour |
POWERED
| Audio inputs |
Analog |
|---|---|
| AC connections |
16A Neutrik powercon true1 TOP with looping output |
| Processing (DSP) |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8436612040400 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
90 – 264V. 50/60 Hz with PFC |
|---|
SCREEN/DISPLAY
| Display |
User control interface with 2.8″ IPS screen |
|---|
