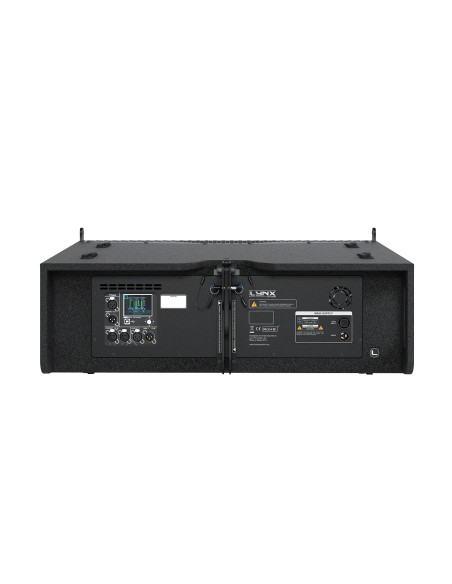

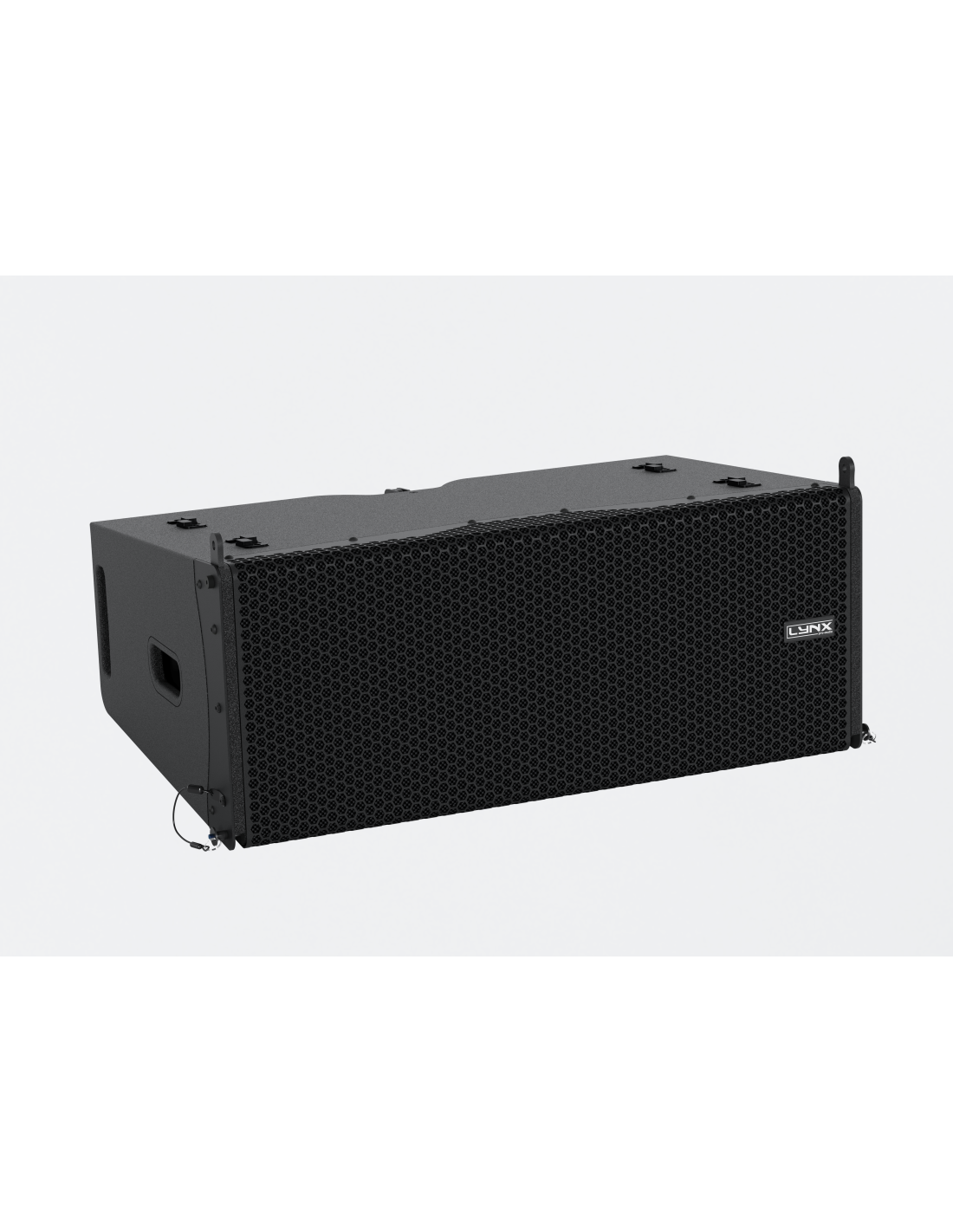

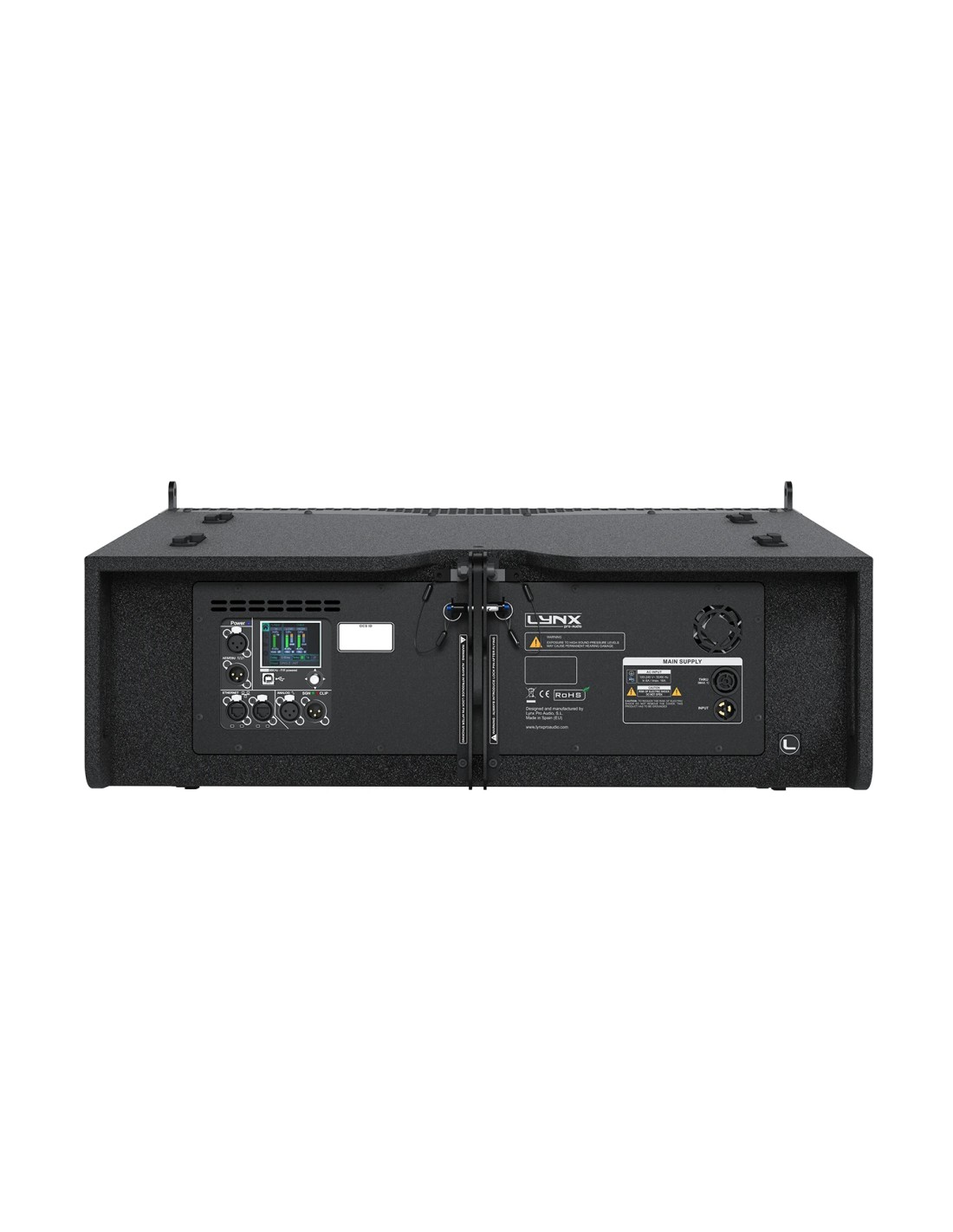

Active line array 2x10" 2000W DSP
See more Features Resources

High Output, self powered (class D switch mode power supply with PFC), line array element. It consists of a 2 x 10” (2” voice coil) transducer with 1.4” exit throat driver with waveguide system delivering 100ºH x 10ºV precise coverage. DSP (FIR technology) controlled with 2000W amplification, 138 dB peak.
Effective Freq. Range
55 Hz - 20 KHz (-10 dB)
Coverage angle / Dispersion
100º H x 10 º V
Maximum SPL
132dB / 138dB Peak*
Enclosure material
15 mm Premium birch plywood
Dimensions
303 x 749 x 473 mm (H x W x D) without pins
Weight
30 Kg (66.13 lbs)
Finish
Polyurea coating, high grade resistant pain
Power
2000 W (4000 W peak) Class D with switching power supply &
PFC
LF amplifier: 1 x 1600 W RMS, 1600 W peak
HF amplifier: 1 x 400 W RMS, 800 W peak
Audio inputs
Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC connections
16A Neutrik powercon true1 TOP with looping output
Processing (DSP)
96 KHz / 64 bit double-precision

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

SYSTEM
Effective Freq. Range 55 Hz - 20 KHz (-10 dB)
Coverage angle / Dispersion 100º H x 10 º V
Maximum SPL 132dB / 138dB Peak*
PHYSICAL
Enclosure material 15 mm Premium birch plywood
Dimensions 303 x 749 x 473 mm (H x W x D) without pins
Weight 30 Kg (66.13 lbs)
Finish Polyurea coating, high grade resistant pain
POWERED
Power 2000 W (4000 W peak) Class D with switching power supply & PFC LF amplifier: 1 x 1600 W RMS, 1600 W peak HF amplifier: 1 x 400 W RMS, 800 W peak
Audio inputs Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC connections 16A Neutrik powercon true1 TOP with looping output
Processing (DSP) 96 KHz / 64 bit double-precision
