CALEDPAR0501
Check availability

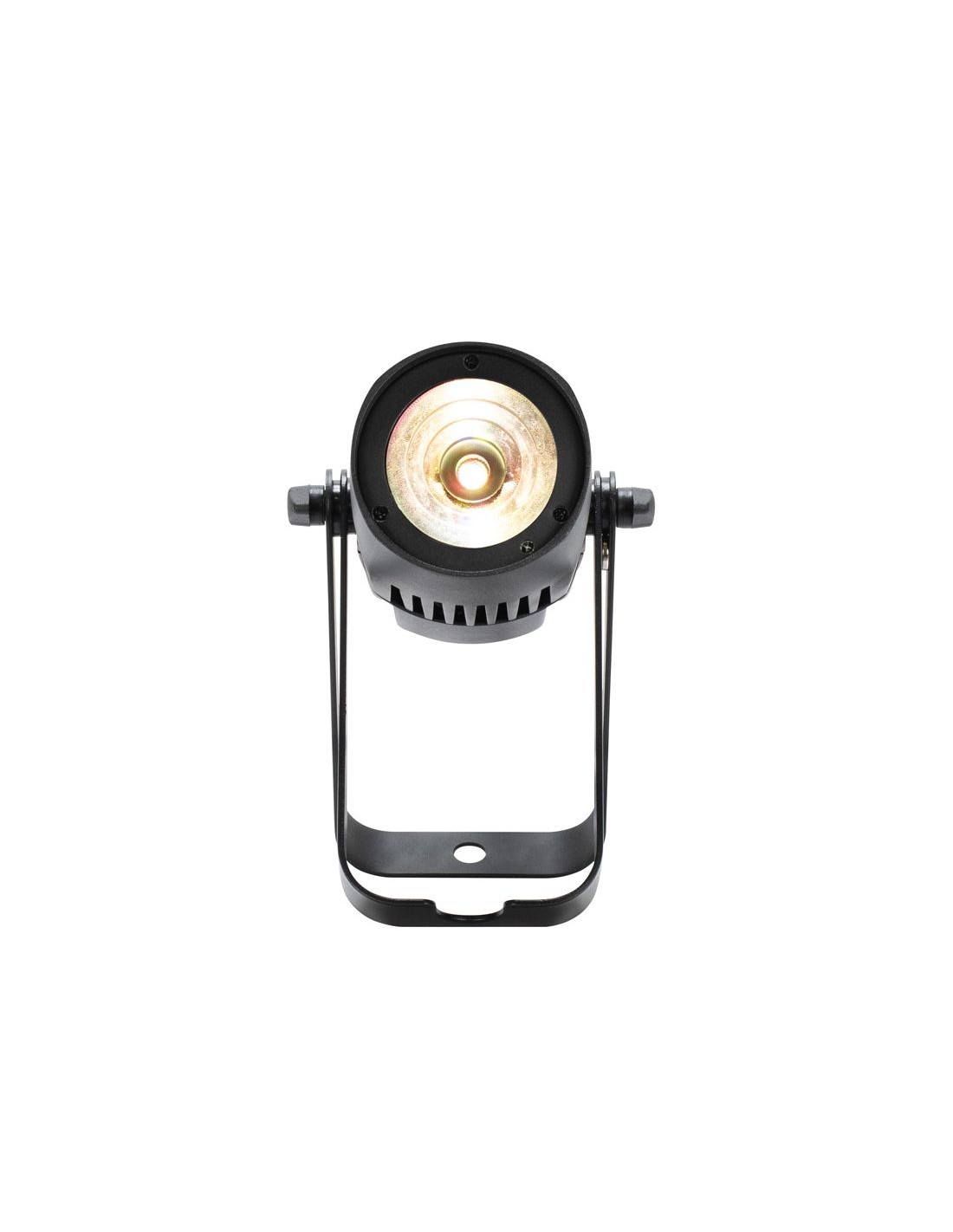

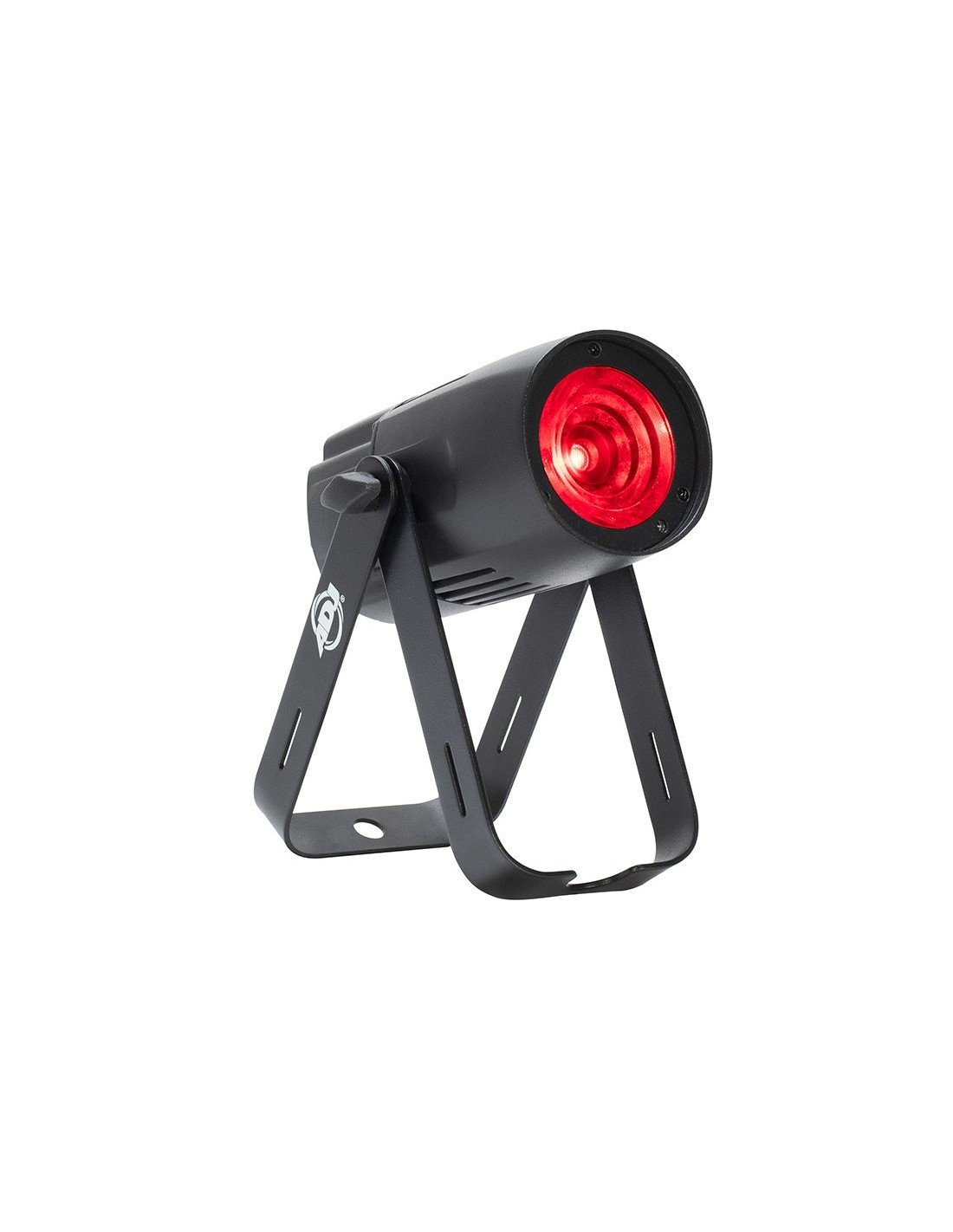

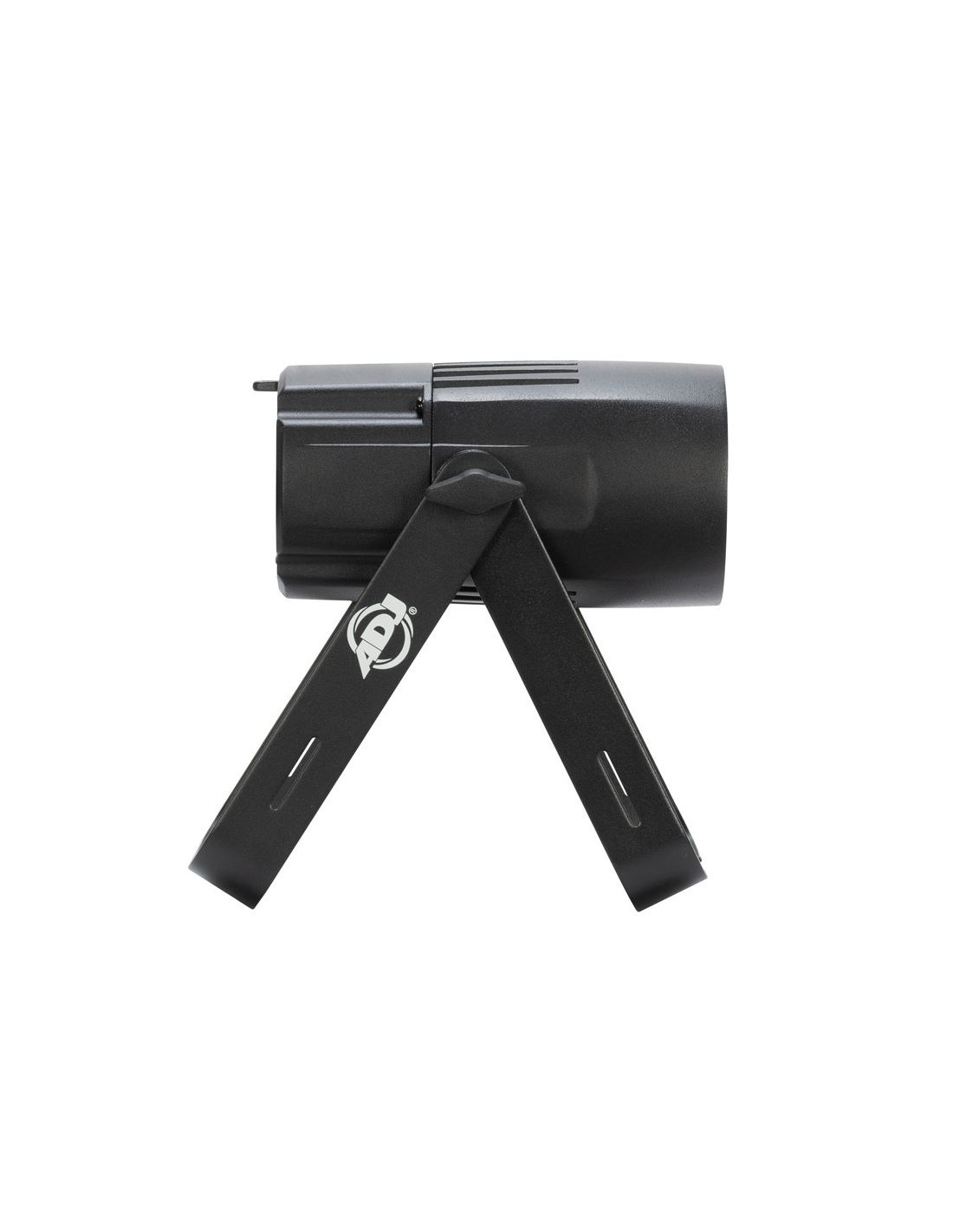

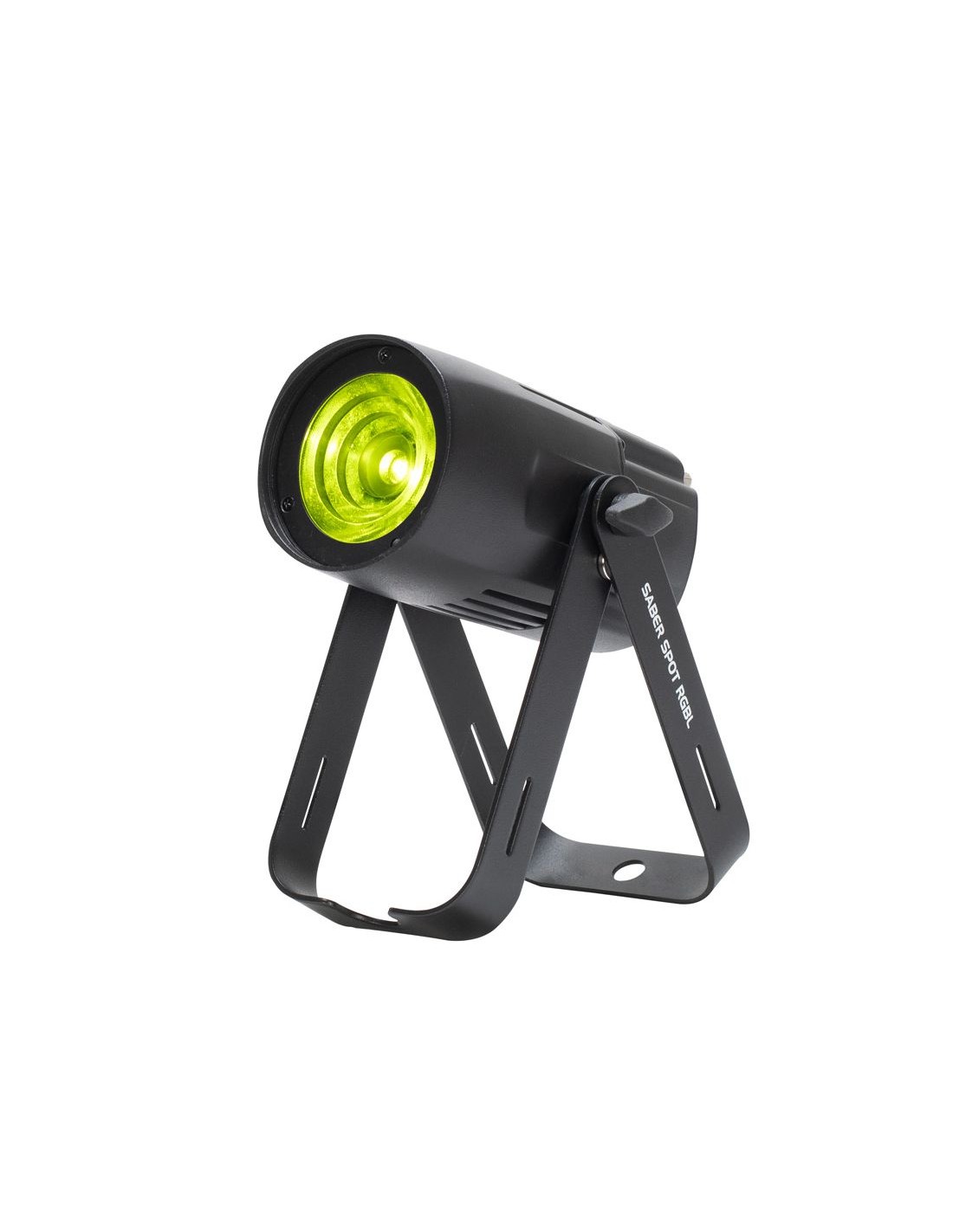

Sabre Spot RGBL expands the versatility of the modern LED pinspot
See more Features Resources

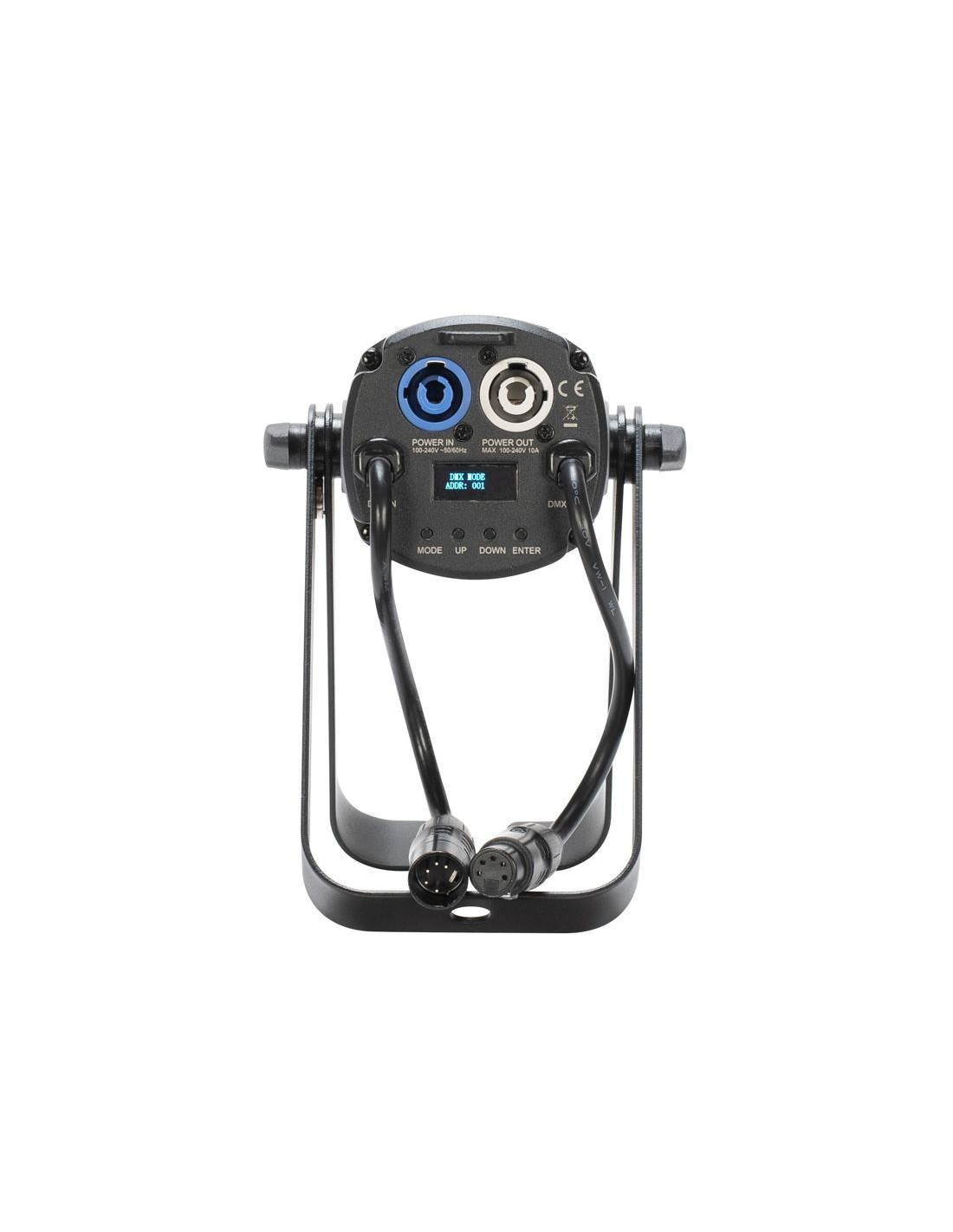

Sabre Spot RGBL expands the versatility of the modern LED pinspot. With a 20-watt RGBL (red, blue, green, and lime) LED source, an advanced ACL lens, and an adjusted beam angle of 5.7 degrees, this device is compatible with DMX and RDM with 12 DMX channel modes, 63 built-in color macros, 13 built-in color change programs, and has preset white color temperature settings ranging from 2000K to 9900K. A lens kit is provided with the device, giving lighting designers the option to change the beam angle to 10 or 45 degrees. Its scissor yoke allows for a variety of hanging options. The Sabre Spot RGBL features a 4-button digital display to navigate through functions and controls, along with internal In/Thru power lock and 5-pin DMX input/output pigtails are conveniently located at the back of the device.
Weight
1.45 kg
Modos de trabajo DMX
12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
Control
DMX and RDM Compliant
Tensión de alimentación
100-240V 50Hz/60Hz
Consumo máximo
16.7W
Longitud
170mm
Amplitud
135mm
Altura vertical
215mm
