CALEDBAR0069
Check availability

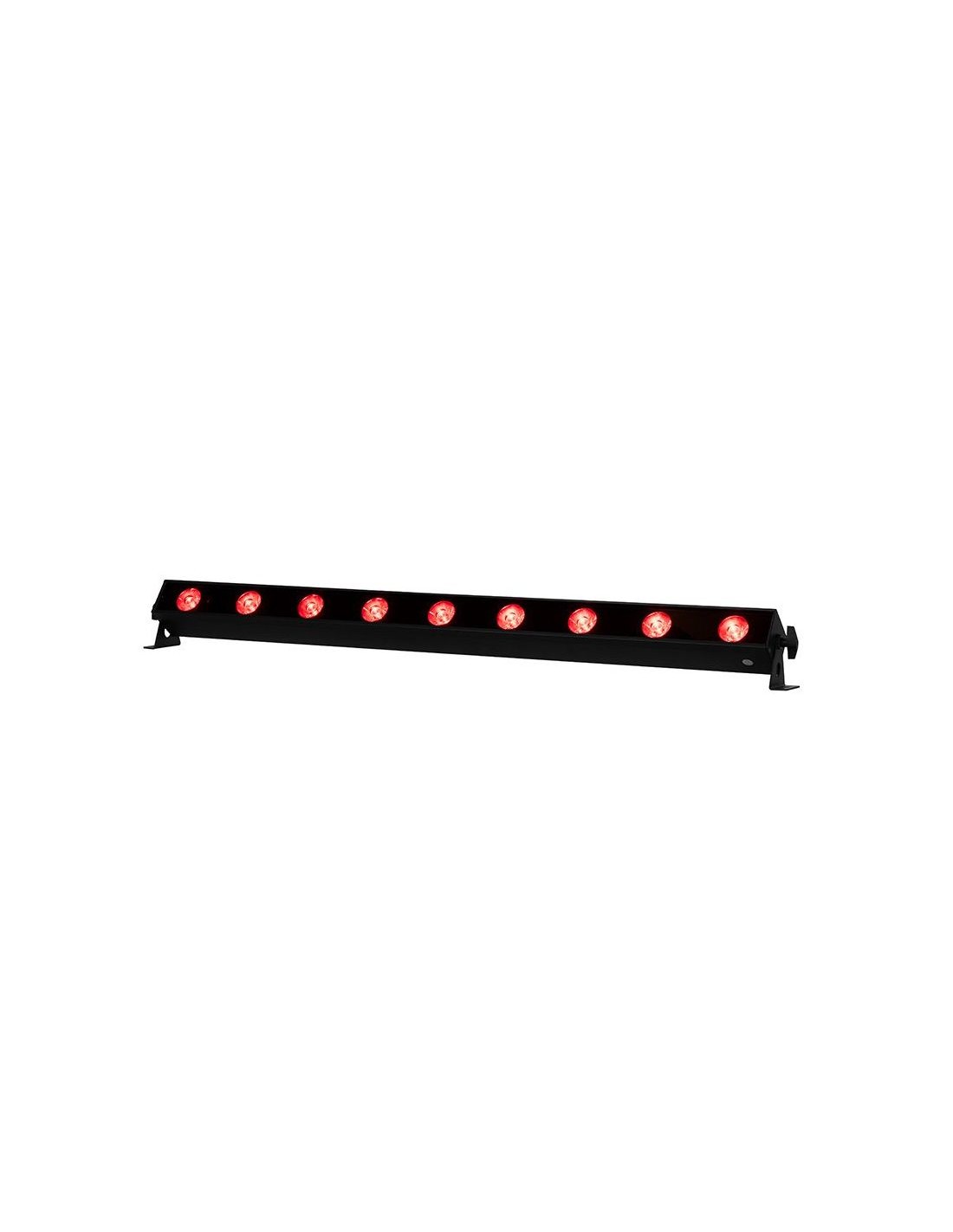

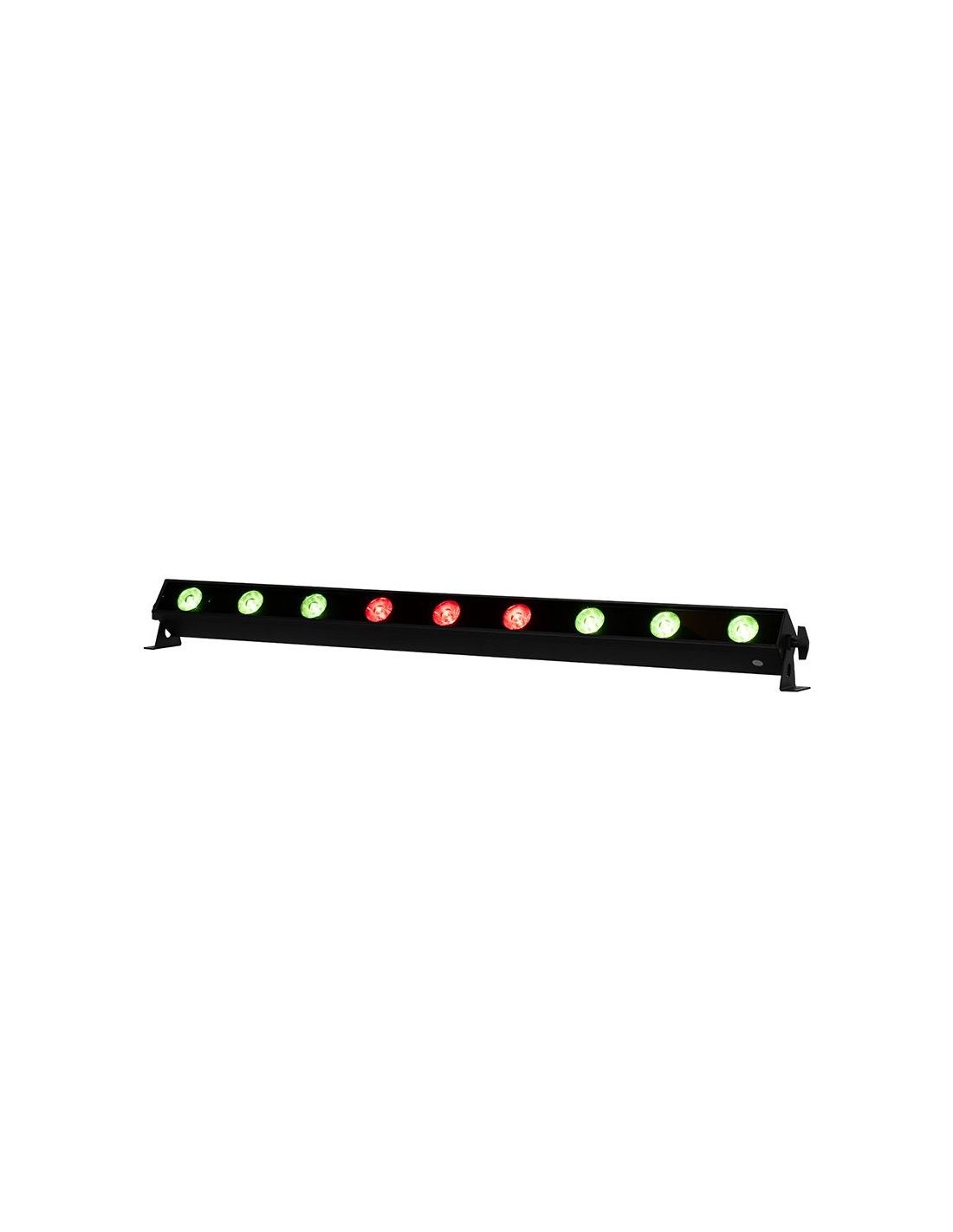

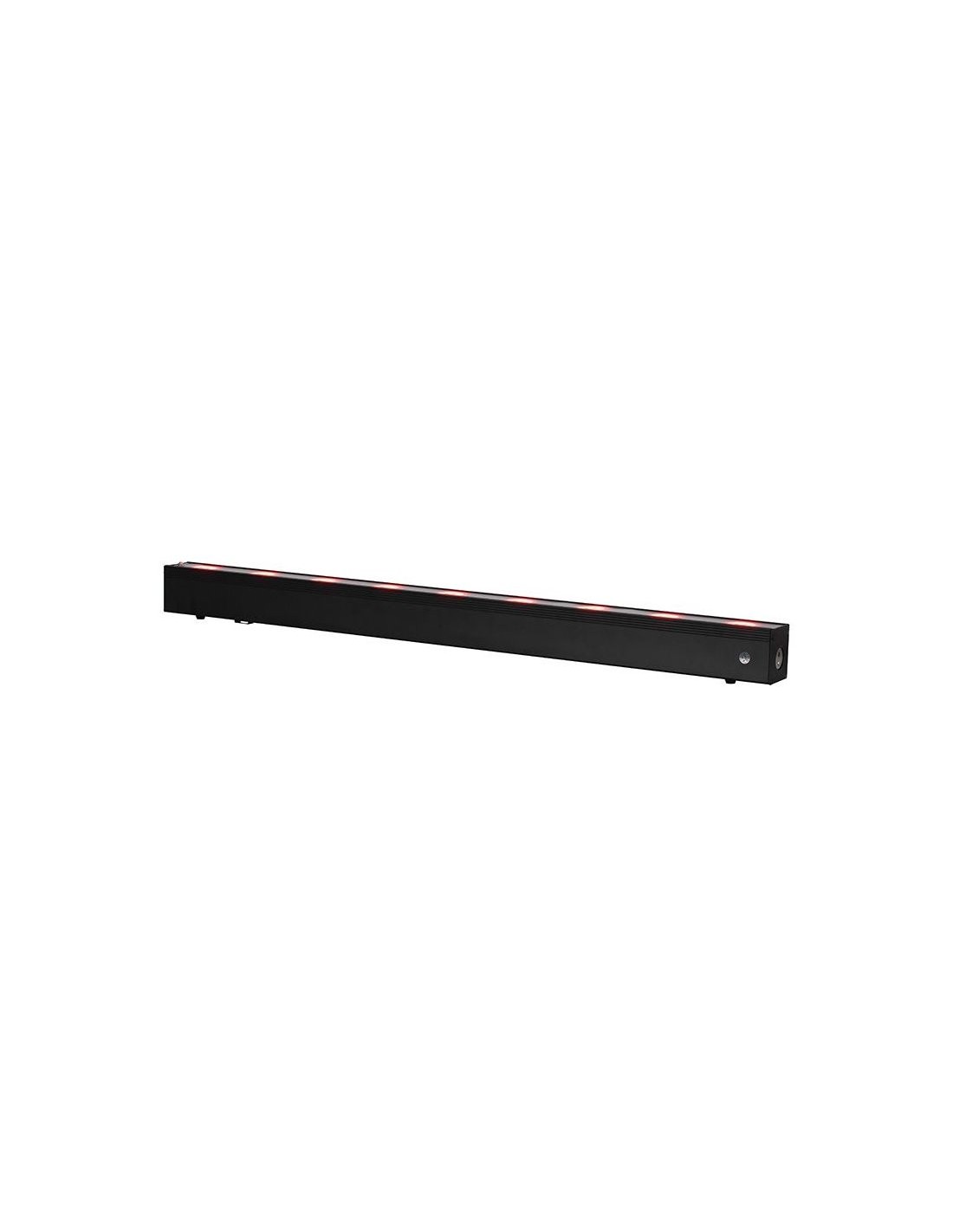

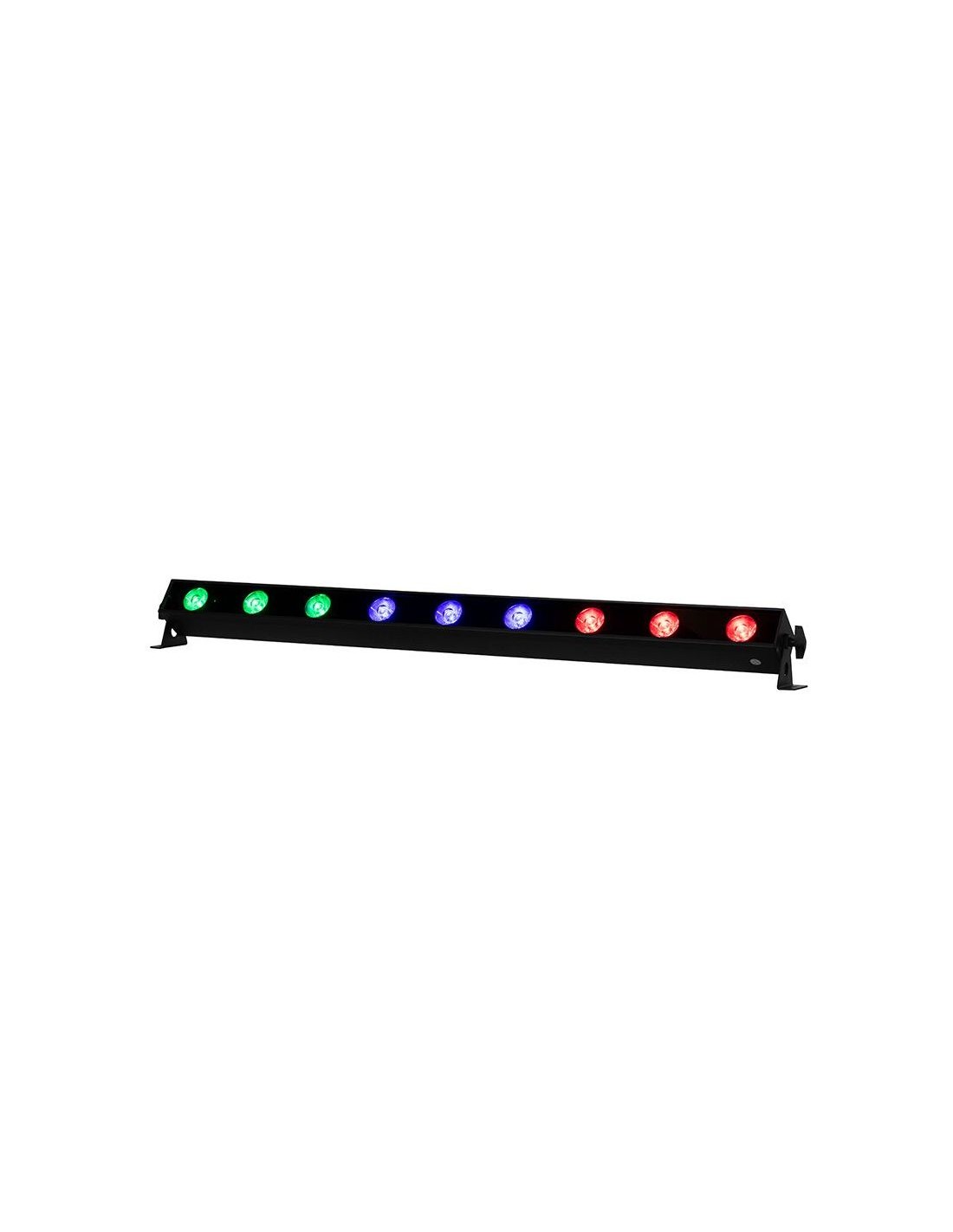

LED Bar (1 meter) powered by 9 x 6 W RGBAW+UV HEX LEDs.

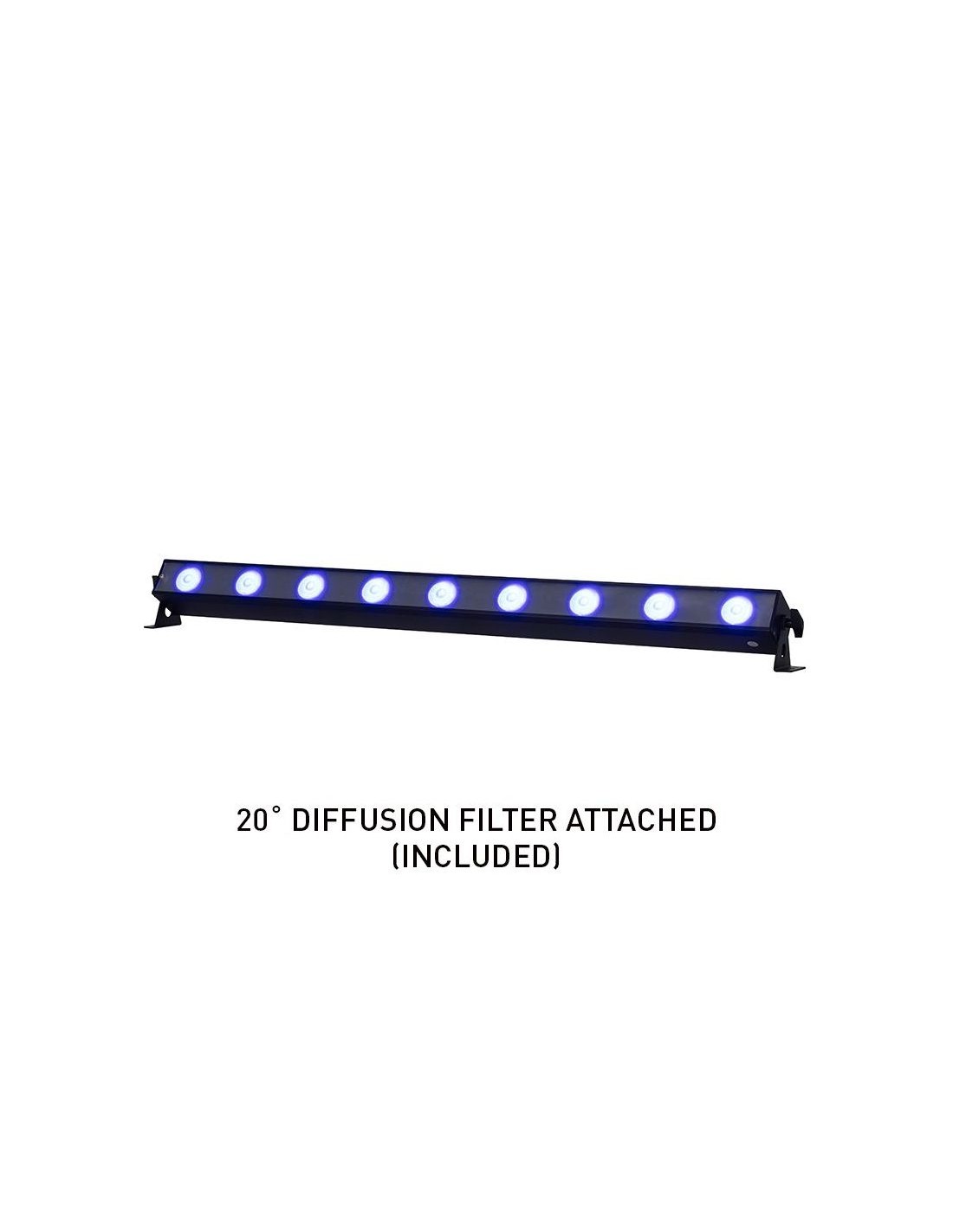

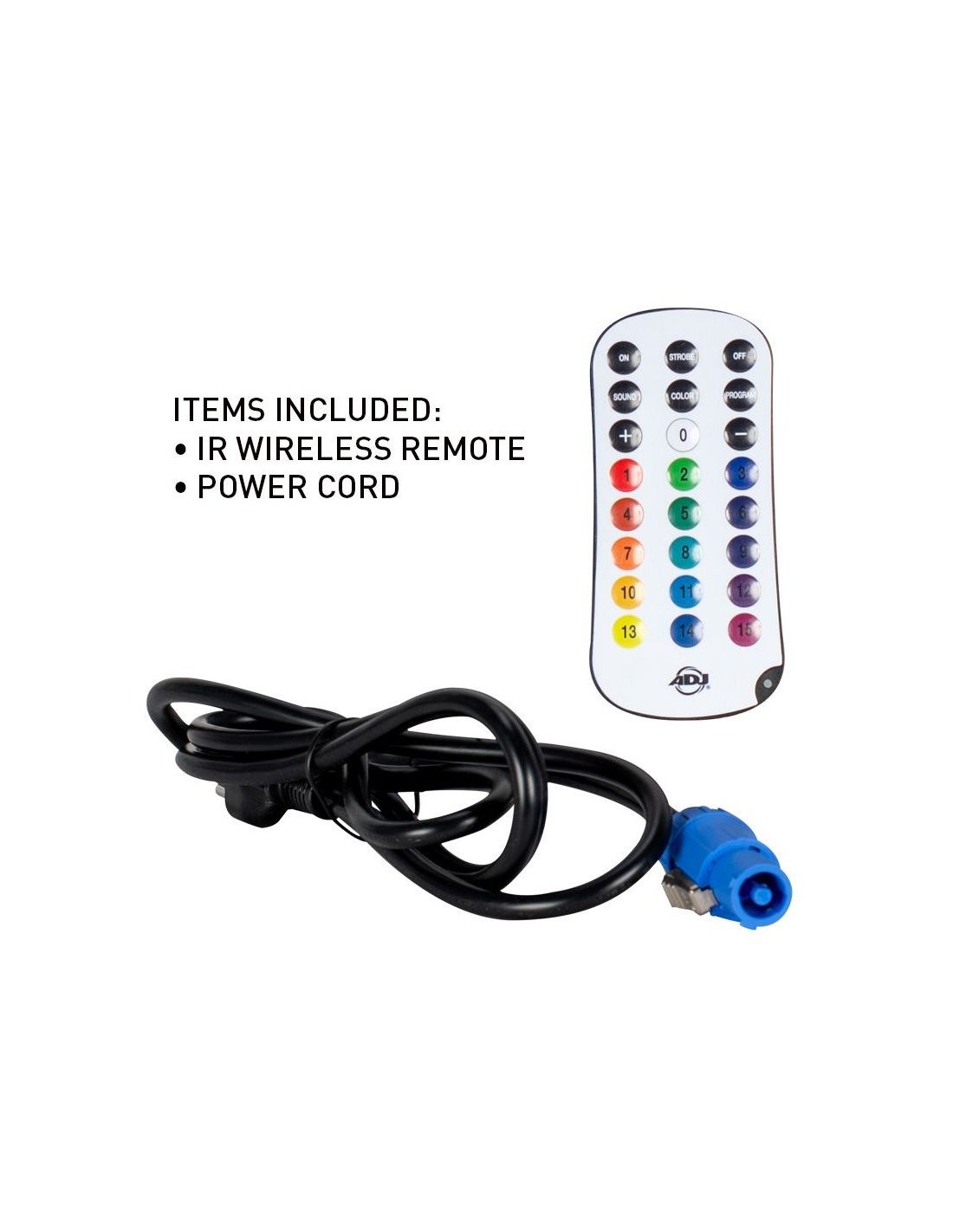

LED Bar (1 meter) powered by 9 x 6 W RGBAW+UV HEX LEDs. Its angle is 17º CRI+90 variable color temperature 2300ºK-9900ºK. Integrated color macros (built-in preset colors), 4 DMX channel modes, dimming from 0 to 100%, and variable speed strobe light. Additionally, it offers flexible programming from its built-in 4-button DMX-512 LED menu or from the ADJ UC-IR wireless remote control (sold separately). 7 DMX channel modes and 5 operating modes, this device is RDM compatible. With a variety of features such as a 1.9 KHz LED refresh rate, 64 built-in color macros, and selectable dimming modes and curves, the UBL12H provides unmatched flexibility. Connectable via DMX, this device supports daisy chaining for up to 17 units (120 V) or 32 units (230 V). It comes complete with a locking power cable, UC-IR24 remote control, and a 20º diffusion filter. Widen the beam angle to 1x40 degrees with the UBL612 linear diffusion lens kit (sold separately). Mount it on the floor or on a beam using the included brackets.
Weight
3.3kg
Modos de trabajo DMX
7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
Control
DMX via 5-pin XLR cable
Tensión de alimentación
AC 100V-240V 50/60Hz
Consumo máximo
54W
Longitud
75mm
Amplitud
1082mm
Altura vertical
106.7mm
Tiempo de vida medio
50,000 hrs.

Services and facilities implemented

¿Necesitas ayuda?

Contacta con el comercial más cercano

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

PHYSICAL
Weight 3.3kg
CONTROL
Modos de trabajo DMX 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
CONEXIONES
Control DMX via 5-pin XLR cable
ALIMENTACION y TEMPERATURA
Tensión de alimentación AC 100V-240V 50/60Hz
Consumo máximo 54W
DIMENSIONES Y PESO
Longitud 75mm
Amplitud 1082mm
Altura vertical 106.7mm
FUENTE DE LUZ
Tiempo de vida medio 50,000 hrs.
