eSAM603
CESAM603C
Only a few left

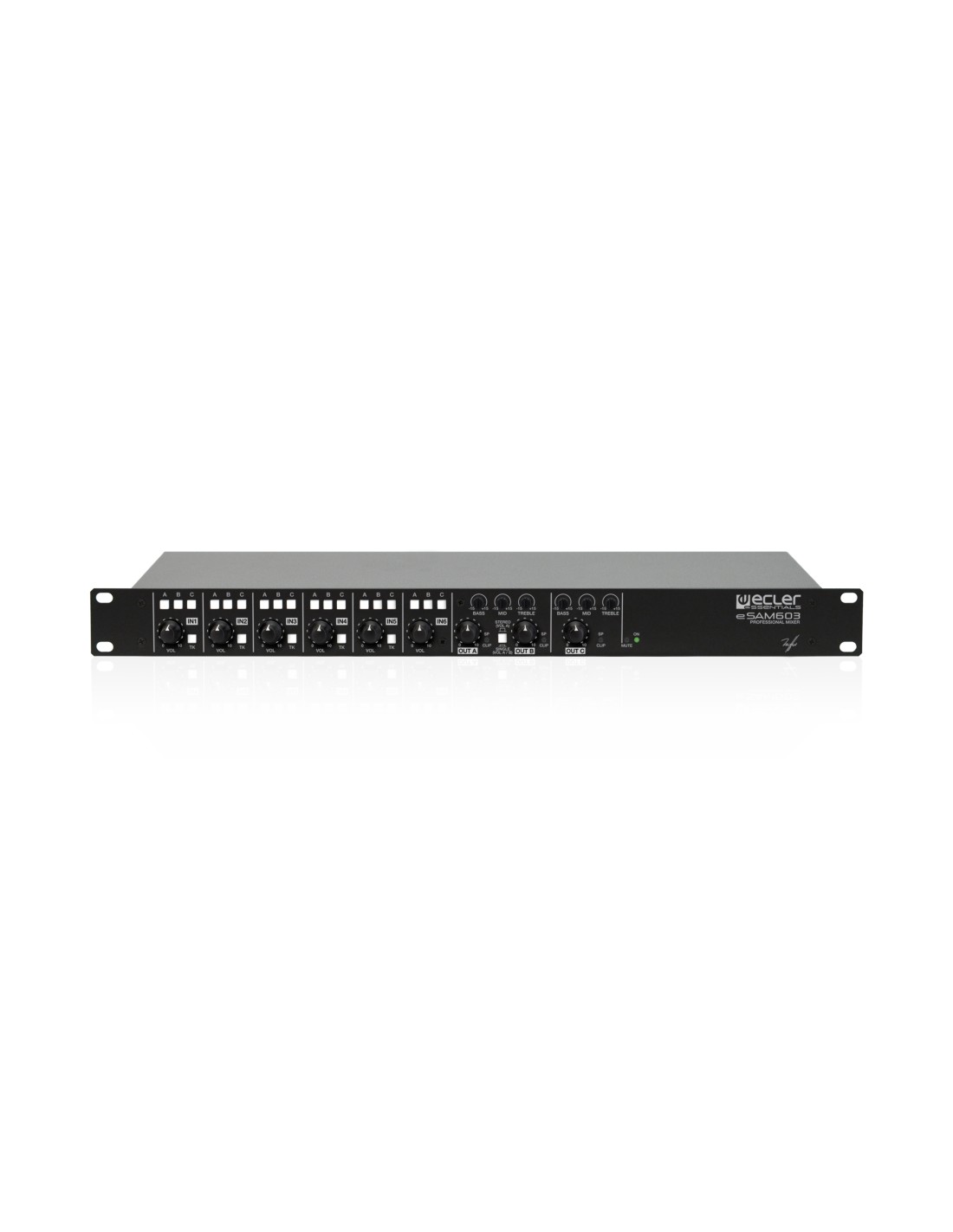

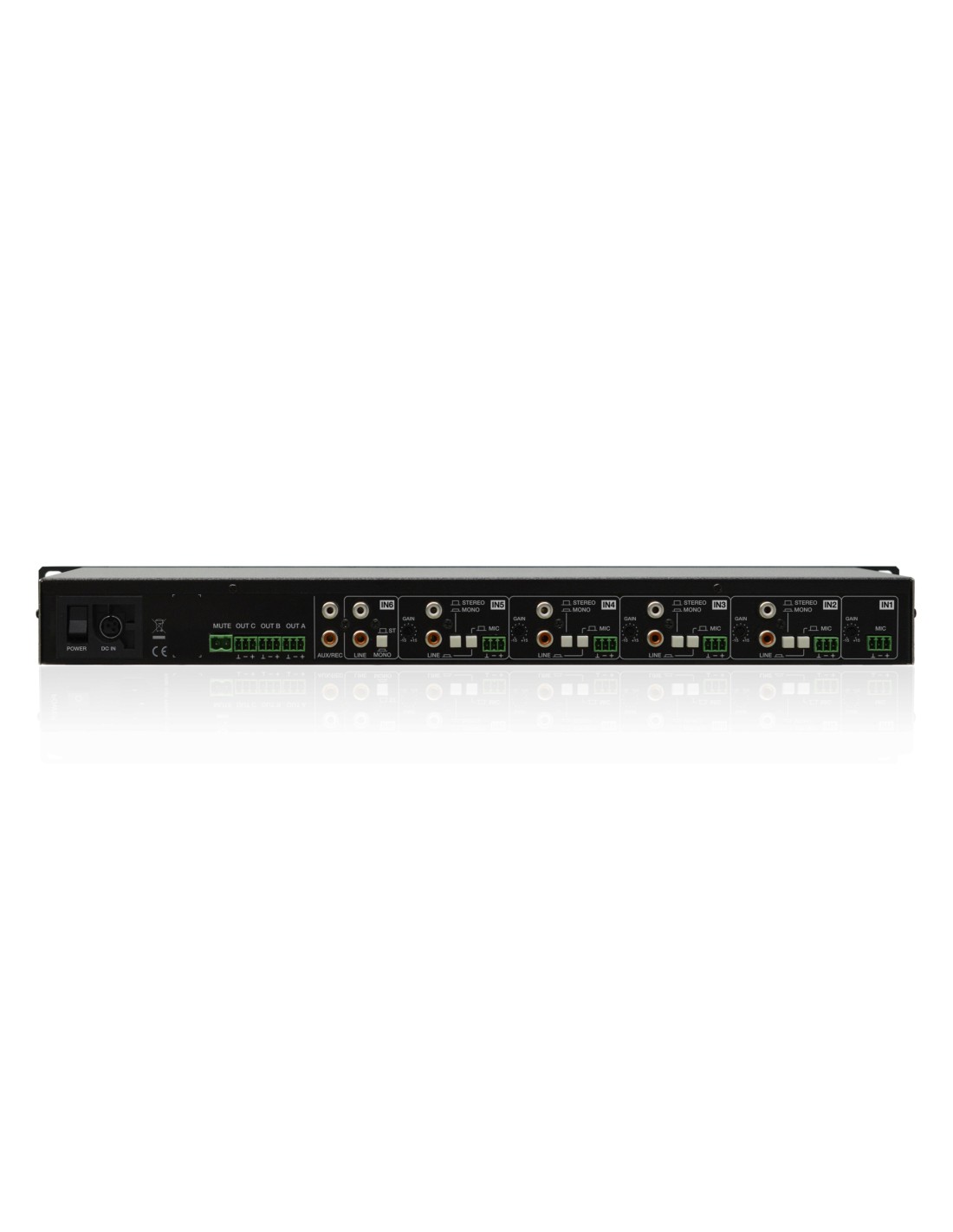

6x3 | 1U rack | analogue mixer
eSAM603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE ST inputs + 1 LINE ST input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono.
Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.
- Connection type
- MIC: 3-pin Euroblock
LINE: RCA
Main: 3-pin Euroblock
AUX/REC: RCA - Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Dimensions
- 482.6 x 44 x 120 mm / 19 x 1.73 x 4.72 in. (WxHxD)
- Weight
- 2.1 kg / 4.63 lb
- Shipping dimensions
- TBC
- Shipping weight
- TBC
- Status
- Descat
- EAN code
- 8435071305600
8435071308199 - Tariff code
- 8518408099
- Shipping Location
- Spain
- Number of input ports
- 4, MIC/LINE
1, MIC
1, LINE ST - Input sensitivity
- IN 2-5 LINE: 0dB
IN 6 LINE: 0(-6)dB internally selectable
IN 1-5 MIC/BAL: -35 dB - CMRR
- MIC 60dB @ 1 kHz
MIC >60dB @ 1 kHz - Number of output ports
- 1 ST/2 MONO main mix output and one MONO output
- Output impedance
- OUT: 600Ω
AUX/REC: 10kΩ - GPIs
- MUTE control port NO/NC
- AC mains requirement
- 100-240 VAC + External PSU 17.5VDC
- AC mains connector
- IEC mains inlet connector
- Power consumption
- 18 VA
- Control Buttons
- Output destination switches, Talkover switch, STEREO (VOL A)/SINGLE button, (VOL A/VOL B) switch, MIC/LINE selector, MONO/ST switch, Mains switch POWER
- Status Indicators
- SP/CLIP LED, MUTE LED, ON LED
- Power supply
- Universal external power supply (multi-plug)
- Phantom power
- +18VDC
- Input impedance
- IN 2-5 LINE: 50kΩ
IN 6 LINE: 50kΩ
IN 1-5 MIC/BAL: 1kΩ
IN 2-5 LINE: 50kΩ
IN 6 LINE: 50kΩ
IN 1-5 MIC/BAL: >1kΩ - THD + Noise
- LINE 0.005%
MIC BAL 0.04% - Tone control
- 2 x 3-band tone control section (A/B and C)
- THD + Noise
- LINE 0.005%
MIC BAL 0.04%
LINE <0.005%
MIC BAL <0.04% - Tone Frequency Cut
- BASS 100Hz ±15dB
MID 2kHz ±15dB
TREBLE 10kHz ±15dB - Talkover
- Yes
- Phantom voltage
- +18VDC
Services and facilities implemented
