SAMI-702BT
CSAMI702BT
Available

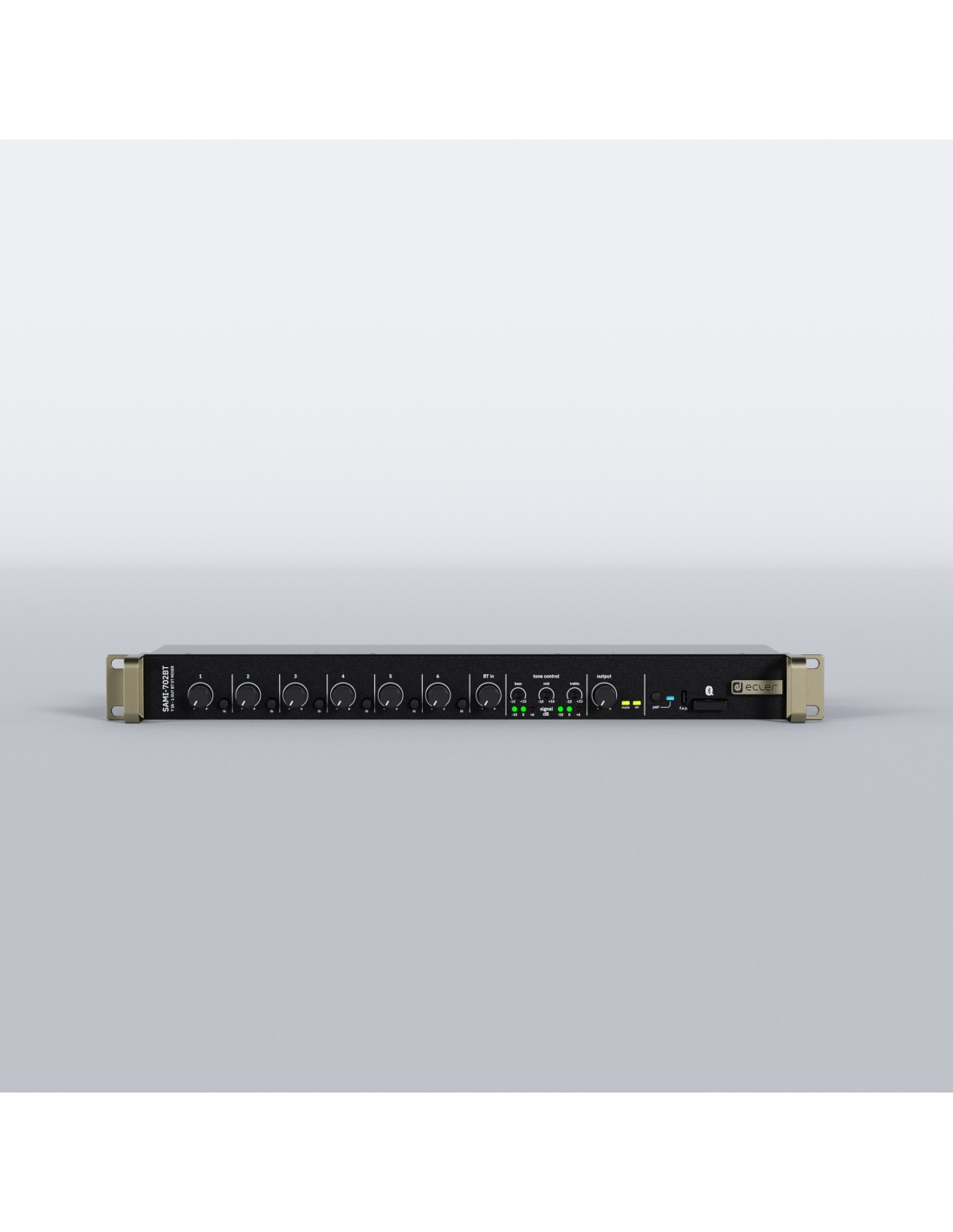

ANALOGUE STEREO MIXER | 7x2 | 1U rack | Bluetooth®
SAMI-702BT is an installation audio mixer in standard rack format, featuring 6 MIC/LINE Stereo inputs + 1 Bluetooth® Stereo input, 1 main mix output and one AUX/REC additional output.
It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering.
- Connection type
- MIC: 3-pin Euroblock
LINE/MIX: RCA
Bluetooth® Receiver
Main: 3-pin Euroblock
AUX/REC: RCA - Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: 0°C ; 32°F
Max: 35°C ; 95°F
- Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
- Included accessories
- ±17.5VDC multi-plug PSU, EuroBlocks,
Rubber Foot, Mini Jumpers - Dimensions
- 482.5 x 44 x 153.7 mm / 19 x 1.73 x 6.05 in (WxHxD)
- Weight
- 1.9 kg / 4.19 lb
- Shipping dimensions
- 554 x 54 x 290 mm / 21.81 x 2.13 x 11.42 in (WxHxD)
- Shipping weight
- 2.75 kg / 6.06 lb
- Frequency response
- LINE 1-6: 10Hz-50kHz -1dB
Bluetooth® LINE 7: 20Hz-20kHz -1dB
MIC BAL: 10Hz-30kHz -1dB - Number of input ports
- 6, MIC/LINE
1, BT in (Bluetooth® LINE STEREO) - Input sensitivity
- LINE 1-6: 0dB
Bluetooth® LINE 7: 0dB/-6dB (internally selectable)
MIC BAL: -35dB - CMRR
- MIC: 60dB @ 1 kHz
- Number of output ports
- 1 main mix output
1 AUX/REC output - Output impedance
- OUT: 600Ω
AUX/REC: 10kΩ - GPIs
- MUTE control port NO/NC
- AC mains requirement
- 100-240 V @ 50-60Hz (External PSU: 17.5VDC)
- AC mains connector
- IEC inlet connector
- Power consumption
- 14.35VA / 6.6W
- Control Buttons
- Power ON, Talkover, LINE/MIC, L+R (output), Gain knob, Volume knob, Bluetooth® Pair
- Status Indicators
- Power ON LED, MUTE LED, Vu-meter LEVEL LEDs, Pair LED
- Power supply
- ±17.5VDC External PSU
- Input impedance
- LINE 1-6: 50kΩ
MIC BAL: 1kΩ - THD + Noise
- LINE 1-6: 0.005%
Bluetooth® LINE 7: 0.03%
MIC BAL: 0.04% - Cooling
- Passive
- Output configuration
- STEREO / MONO (configurable via EBTM)
- Tone control
- 3-way tone control
- Range
- 25m
- Profiles
- A2DP1.3/AVRCP1.6/HFP1.7.2/HSP1.2
- Signal Noise Ratio
- LINE 1-6: 100dB
Bluetooth® LINE 7: 100dB
MIC BAL: 85dB - Tone Frequency Cut
- BASS: 100Hz ±15dB
MID: 2kHz ±15dB
TREBLE: 10kHz ±15dB - Talkover
- TIME: 2 seconds
EFFECT: -30dB - Type
- Class 1, 5.0
- Phantom voltage
- +18VDC
- Input sensitivity adjust
- MIC/LINE 1-6: ±15dB
- Output type
- 1 STEREO/2 MONO main mix output
1 STEREO AUX/REC - Nominal output level
- OUT: 0dB/+6dB (internally selectable)
AUX/REC: 0dB/+6dB (follows MAIN OUT, when AUX OUTPOST) - Programming and control
- ECLER BLUETOOTH® MANAGER - EBTM
- Interface
- USB - C
- Decoder support
- AAC, SBC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
Main: 3-pin Euroblock
AUX/REC: RCA MIC: 3-pin Euroblock LINE/MIX: RCA Bluetooth® Receiver |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: 0°C ; 32°F
Max: 35°C ; 95°F
|
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
90% HR |
| Included accessories |
±17.5VDC multi-plug PSU, EuroBlocks,
Rubber Foot, Mini Jumpers |
| Dimensions |
482.5 x 44 x 153.7 mm / 19 x 1.73 x 6.05 in (WxHxD) |
| Weight |
1.9 kg / 4.19 lb |
| Shipping dimensions |
554 x 54 x 290 mm / 21.81 x 2.13 x 11.42 in (WxHxD) |
| Shipping weight |
2.75 kg / 6.06 lb |
| Type |
Class 1, 5.0 |
POWERED
| Signal Noise Ratio |
LINE 1-6: 100dB
Bluetooth® LINE 7: 100dB
MIC BAL: 85dB |
|---|
MICS
| Output impedance |
OUT: 600Ω
AUX/REC: 10kΩ |
|---|
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz (External PSU: 17.5VDC) |
|---|---|
| AC mains connector |
IEC inlet connector |
| Power consumption |
14.35VA / 6.6W |
| Power supply |
±17.5VDC External PSU |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
6, MIC/LINE
1, BT in (Bluetooth® LINE STEREO) |
|---|---|
| Phantom voltage |
+18VDC |
| Input sensitivity adjust |
MIC/LINE 1-6: ±15dB |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
1 main mix output
1 AUX/REC output |
|---|---|
| Output type |
1 STEREO/2 MONO main mix output
1 STEREO AUX/REC |
| Nominal output level |
OUT: 0dB/+6dB (internally selectable)
AUX/REC: 0dB/+6dB (follows MAIN OUT, when AUX OUTPOST) |
REMOTE CONTROL CONNECTIONS
| GPIs |
MUTE control port NO/NC |
|---|
CHANNELS
| Output configuration |
STEREO / MONO (configurable via EBTM) |
|---|
TECHNOLOGIES
| Cooling |
Passive |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
LINE 1-6: 0dB
Bluetooth® LINE 7: 0dB/-6dB (internally selectable)
MIC BAL: -35dB |
|---|
BLUETOOTH AUDIO INPUT
| Range |
25m |
|---|---|
| Profiles |
A2DP1.3/AVRCP1.6/HFP1.7.2/HSP1.2 |
MONITORING AND CONTROL
| Tone control |
3-way tone control |
|---|
DEVICE CONTROL
| Control Buttons |
Power ON, Talkover, LINE/MIC, L+R (output), Gain knob, Volume knob, Bluetooth® Pair |
|---|---|
| Status Indicators |
Power ON LED, MUTE LED, Vu-meter LEVEL LEDs, Pair LED |
| Tone Frequency Cut |
BASS: 100Hz ±15dB
MID: 2kHz ±15dB
TREBLE: 10kHz ±15dB |
| Talkover |
TIME: 2 seconds
EFFECT: -30dB |
| Programming and control |
ECLER BLUETOOTH® MANAGER - EBTM |
| Interface |
USB - C |
LINE INPUTS
| CMRR |
MIC: 60dB @ 1 kHz |
|---|---|
| Input impedance |
LINE 1-6: 50kΩ
MIC BAL: 1kΩ |
LINE OUTPUTS
| Frequency response |
LINE 1-6: 10Hz-50kHz -1dB
Bluetooth® LINE 7: 20Hz-20kHz -1dB
MIC BAL: 10Hz-30kHz -1dB |
|---|---|
| THD + Noise |
LINE 1-6: 0.005%
Bluetooth® LINE 7: 0.03%
MIC BAL: 0.04% |
BLUETOOTH®
| Decoder support |
AAC, SBC |
|---|
