ANALOGUE STEREO MIXER | 6x2 | 1U rack | 3-band EQ
See more Features Resources

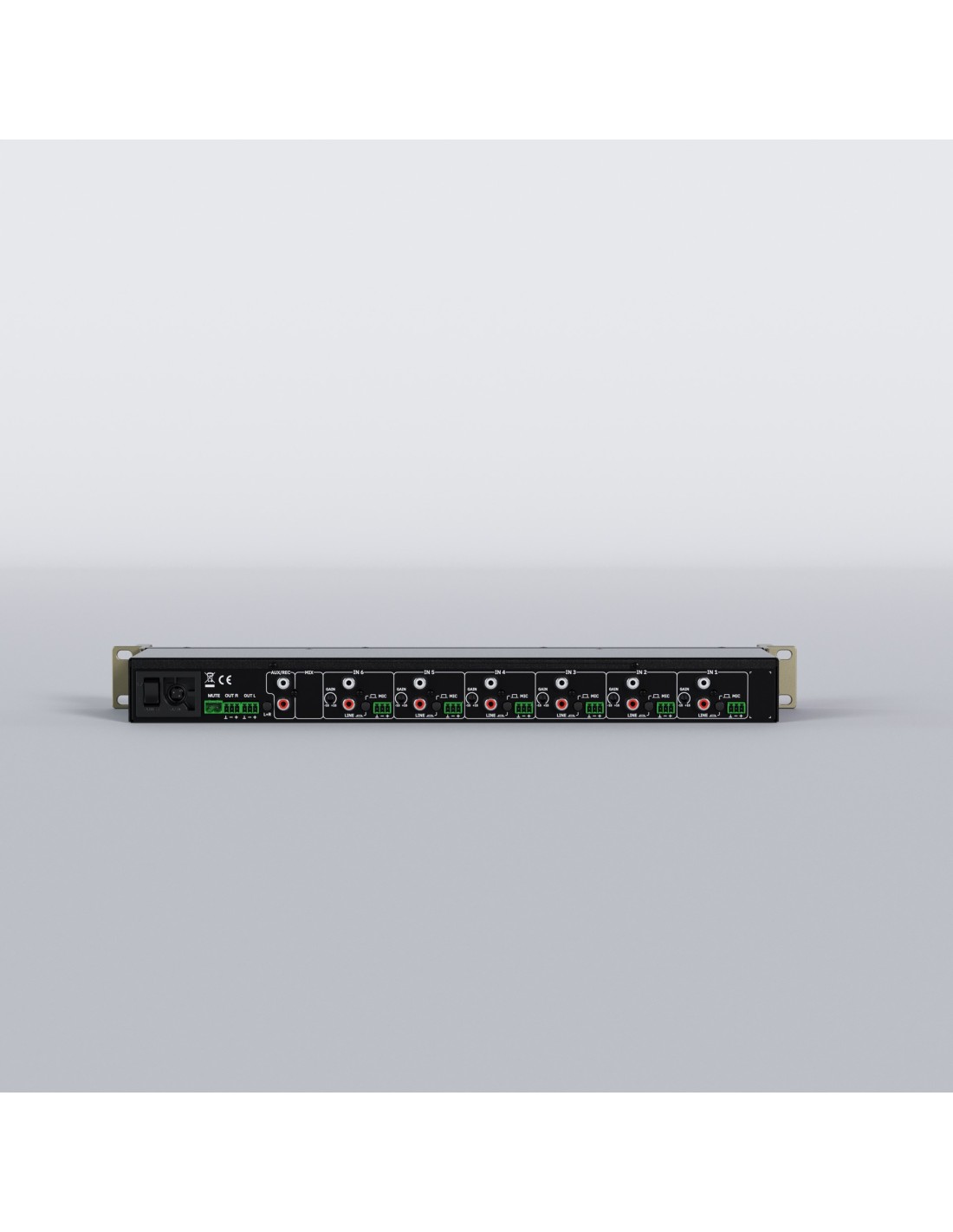

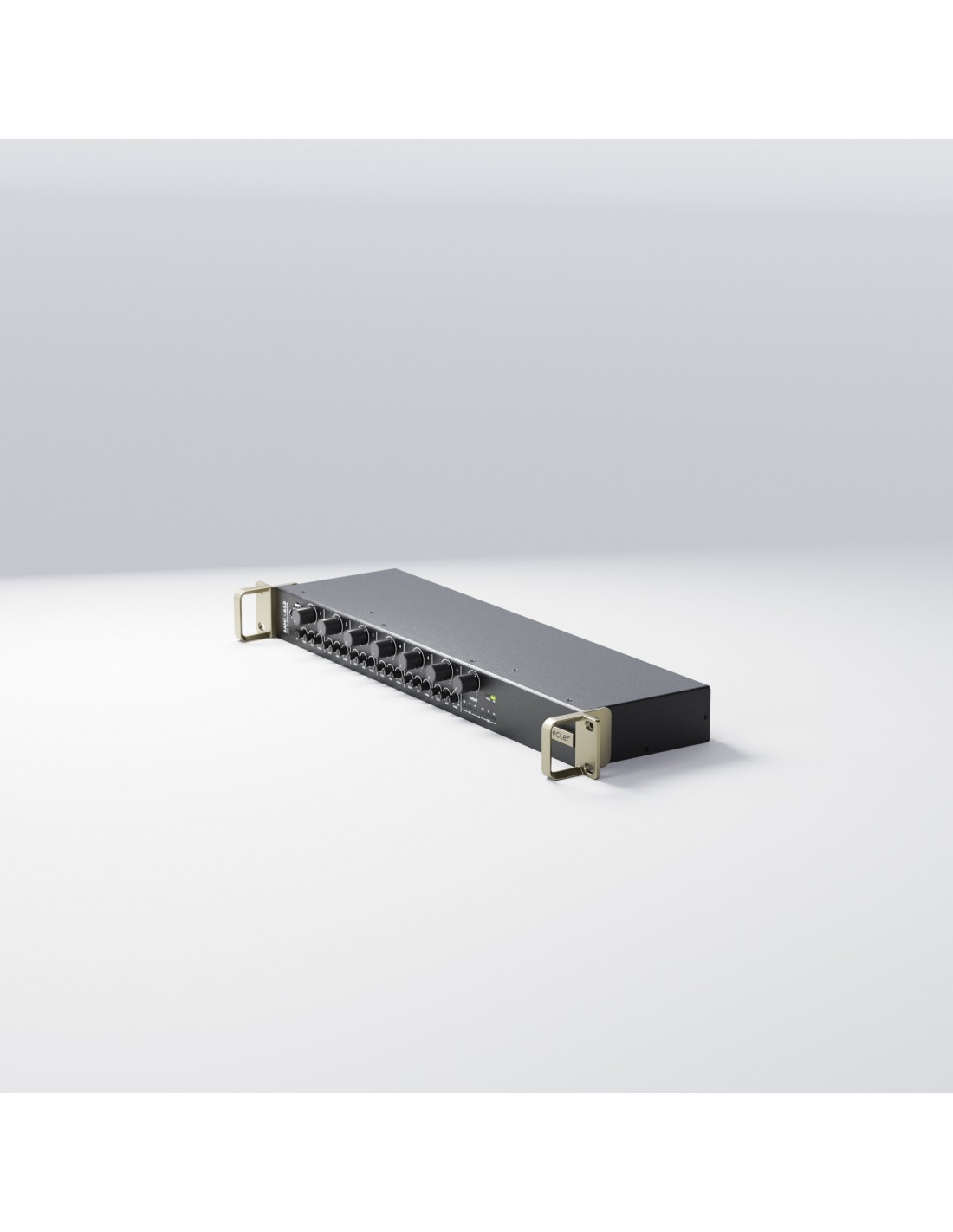

SAMI-612 is an installation audio mixer in standard rack format, featuring 6 MIC/LINE Stereo inputs, 1 Stereo MIX input and 1 Stereo MAIN output + 1 Stereo REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. Input 1 includes talkover (priority) function over the mix bus and additional front panel jack connector. Main output ST/MONO mode switch and MUTE port for external dry contact triggering.
Connection type
MIC: 3-pin Euroblock
LINE/MIX: RCA
Main: 3-pin Euroblock
AUX/REC: RCA
Installation options
19" rack format (1RU)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
Included accessories
±17.5VDC multi-plug PSU, EuroBlocks,
Rubber Foot, Mini Jumpers
Dimensions
482.5 x 44 x 153.7 mm / 19 x 1.73 x 6.05 in (WxHxD)
Weight
1.9 kg / 4.19 lb
Shipping dimensions
560 x 60 x 295 mm / 22.05 x 2.36 x 11.61 in (WxHxD)
Shipping weight
2.7 kg / 5.95 lb
Frequency response
LINE: 10Hz-50kHz -1dB
MIC BAL: 10Hz-30kHz -1dB
Number of input ports
6, MIC/LINE ( 1 STEREO direct MIC input on front panel)
1, MIX LINE
Input sensitivity
LINE 2-5: 0dB
LINE 6: 0dB/-6dB (internally selectable)
MIC 1-5 BAL: -35dB
CMRR
MIC: 60dB @ 1 kHz
Number of output ports
1 main mix output
1 AUX/REC output
Output impedance
OUT: 600Ω
AUX/REC: 10kΩ
GPIs
MUTE control port NO/NC
AC mains requirement
100-240 V @ 50-60Hz (External PSU: 17.5VDC)
AC mains connector
IEC inlet connector
Power consumption
14.5VA / 6.8W
Control Buttons
Power ON, Talkover, LINE/MIC, L+R (output), Gain knob, Volume knob
Status Indicators
Power ON LED, MUTE LED, Vu-meter LEVEL LEDs
Power supply
±17.5VDC External PSU
Input impedance
LINE 1-6: 50kΩ
MIX LINE: 10kΩ
MIC 1-6 BAL: 1kΩ
THD + Noise
LINE: 0.005%
MIC BAL: 0.04%
Cooling
Passive
Tone control
3-way tone control (For all inputs)
Signal Noise Ratio
LINE: 100dB
MIC BAL: 85dB
Tone Frequency Cut
BASS: 100Hz ±15dB
MID: 2kHz ±15dB
TREBLE: 10kHz ±15dB
Talkover
TIME: 2 seconds
EFFECT: -30dB
Phantom voltage
+18VDC
Input sensitivity adjust
MIC/LINE: ±15dB
Output type
1 STEREO/2 MONO main mix output
1 STEREO AUX/REC
Nominal output level
OUT: 0dB
AUX/REC: 0dB/+6dB (internally selectable)

Services and facilities implemented
