SAMI-603
CSAMI603
Available

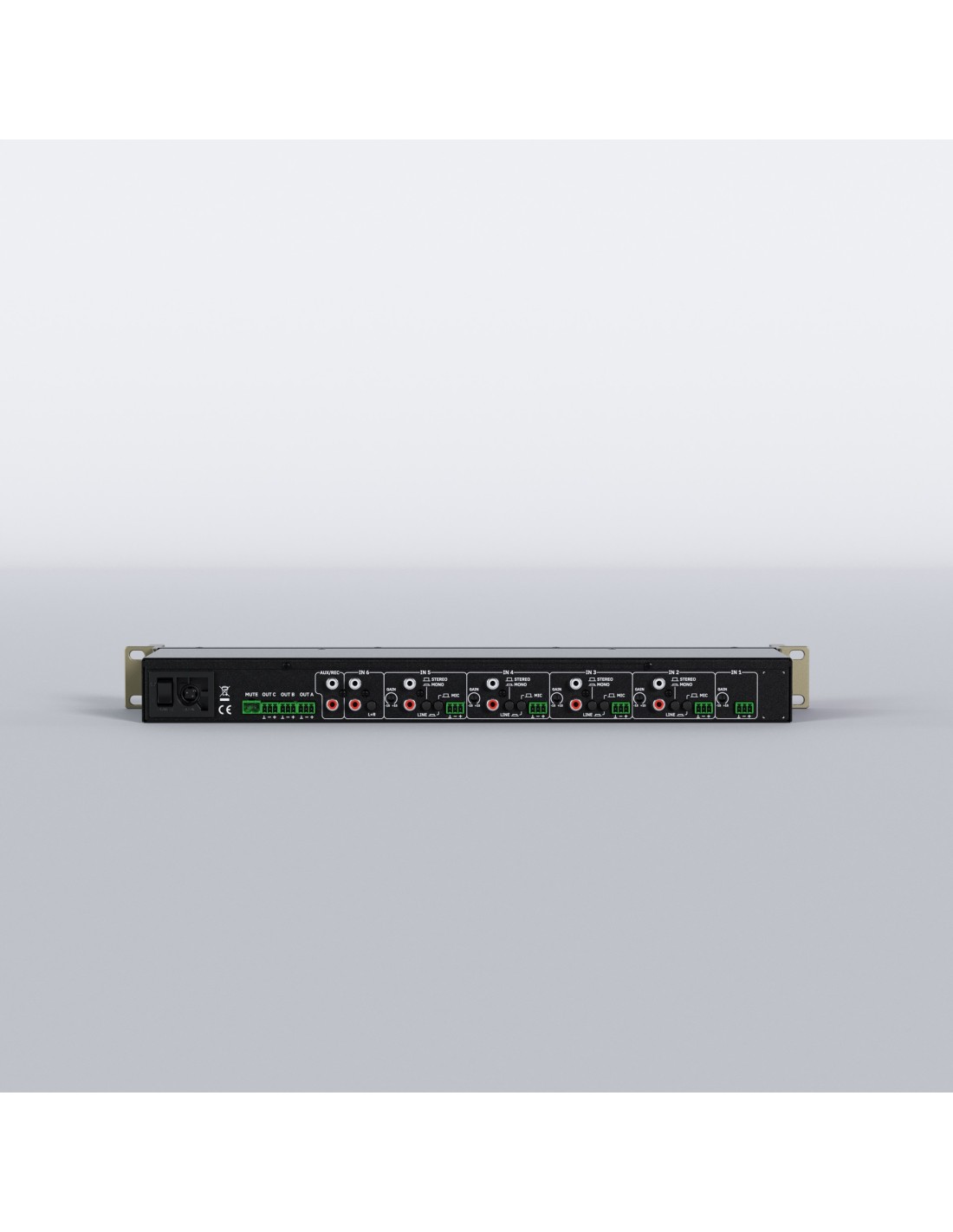

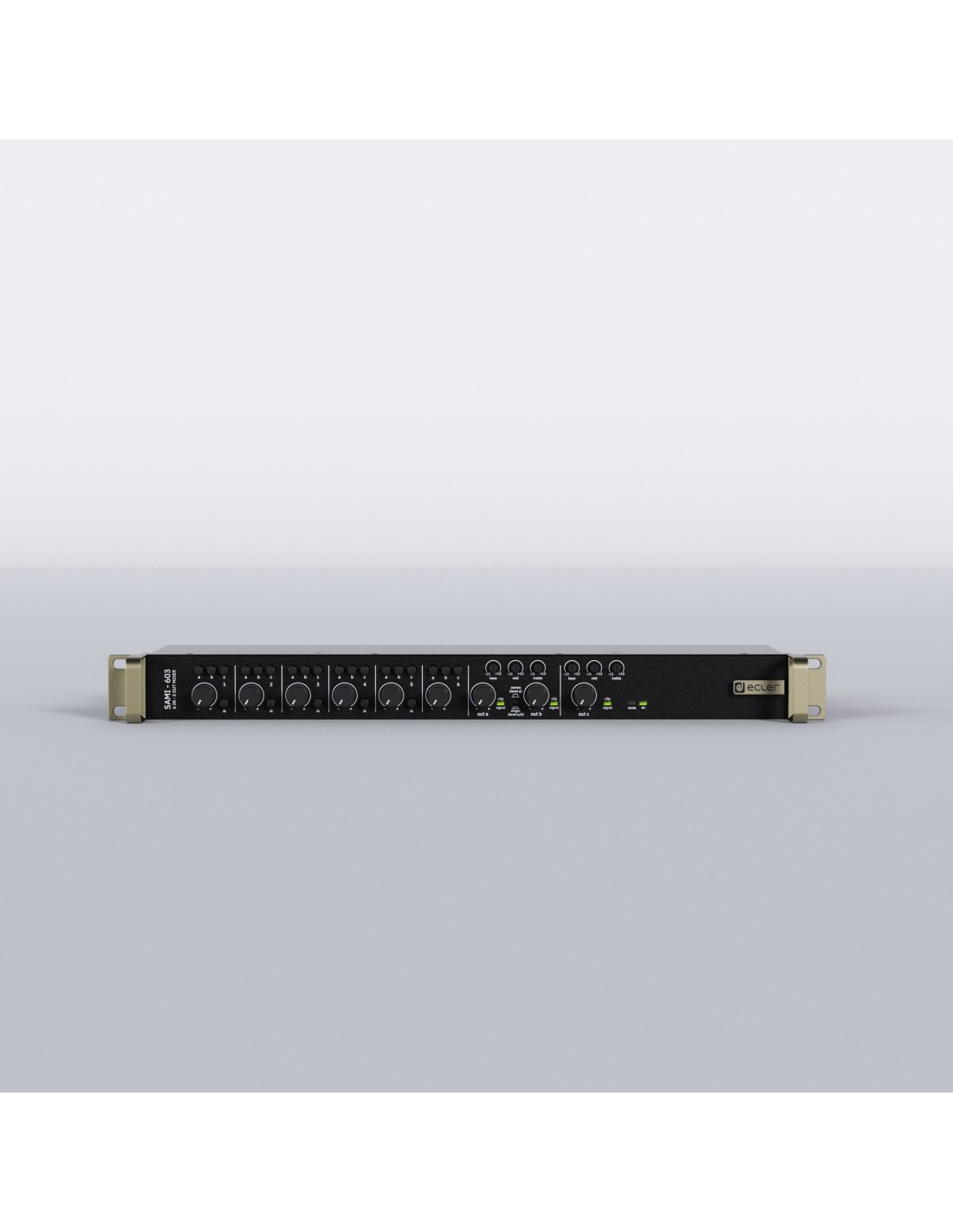

ANALOGUE STEREO MIXER | 6x3 | 1U rack
SAMI-603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE Stereo inputs + 1 LINE Stereo input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono.
Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.
- Connection type
- MIC: 3-pin Euroblock
LINE: RCA
Main: 3-pin Euroblock
AUX/REC: RCA - Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
- Included accessories
- ±17.5VDC multi-plug PSU, EuroBlocks,
Rubber Foot, Mini Jumpers - Dimensions
- 482.5 x 44 x 153.7 mm / 19 x 1.73 x 6.05 in (WxHxD)
- Weight
- 2 kg / 4.41 lb
- Shipping dimensions
- 560 x 60 x 295 mm / 22.05 x 2.36 x 11.61 in (WxHxD)
- Shipping weight
- 2.7 kg / 5.95 lb
- Frequency response
- LINE: 10Hz-50kHz -1dB
MIC BAL: 10Hz-30kHz -1dB - Number of input ports
- 4, MIC/LINE
1, MIC
1, LINE STEREO - Input sensitivity
- LINE 2-5: 0dB
LINE 6: 0dB/-6dB (internally selectable)
MIC 1-5 BAL: -35dB - CMRR
- MIC: 60dB @ 1 kHz
- Number of output ports
- 1 main mix output
1 main mono output
1 AUX/REC output - Output impedance
- OUT: 600Ω
AUX/REC: 10kΩ - GPIs
- MUTE control port NO/NC
- AC mains requirement
- 100-240 V @ 50-60Hz (External PSU: 17.5VDC)
- AC mains connector
- IEC inlet connector
- Power consumption
- 13.9VA / 6.3W
- Control Buttons
- Power ON, Talkover, LINE/MIC, L+R (input), Gain knob, Volume knob, Output destination switches, STEREO (level a)/Single (level a/b), MONO/STEREO
- Status Indicators
- Power ON LED, MUTE LED, SP/CLIP LEVEL LED
- Power supply
- ±17.5VDC External PSU
- Input impedance
- LINE 2-5: 50kΩ
LINE 6: 50kΩ
MIC 1-5 BAL: 1kΩ - THD + Noise
- LINE: 0.005%
MIC BAL: 0.04% - Cooling
- Passive
- Tone control
- 2 x 3-way tone control (For section A/B and C)
- Signal Noise Ratio
- LINE: 100dB
MIC BAL: 85dB - Tone Frequency Cut
- BASS: 100Hz ±15dB
MID: 2kHz ±15dB
TREBLE: 10kHz ±15dB - Talkover
- TIME: 2 seconds
EFFECT: -30dB - Phantom voltage
- +18VDC
- Input sensitivity adjust
- MIC/LINE: ±15dB
- Output type
- 1 STEREO/2 MONO main mix output
1 MONO main mix output
1 STEREO AUX/REC - Nominal output level
- OUT: 0dB/+6dB (internally selectable)
AUX/REC: 0dB/+6dB (follows MAIN OUT, when AUX OUTPOST)
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
MIC: 3-pin Euroblock
LINE: RCA Main: 3-pin Euroblock AUX/REC: RCA |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
90% HR |
| Included accessories |
±17.5VDC multi-plug PSU, EuroBlocks,
Rubber Foot, Mini Jumpers |
| Dimensions |
482.5 x 44 x 153.7 mm / 19 x 1.73 x 6.05 in (WxHxD) |
| Weight |
2 kg / 4.41 lb |
| Shipping dimensions |
560 x 60 x 295 mm / 22.05 x 2.36 x 11.61 in (WxHxD) |
| Shipping weight |
2.7 kg / 5.95 lb |
POWERED
| Signal Noise Ratio |
LINE: 100dB
MIC BAL: 85dB |
|---|
MICS
| Output impedance |
OUT: 600Ω
AUX/REC: 10kΩ |
|---|
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz (External PSU: 17.5VDC) |
|---|---|
| AC mains connector |
IEC inlet connector |
| Power consumption |
13.9VA / 6.3W |
| Power supply |
±17.5VDC External PSU |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
4, MIC/LINE
1, MIC
1, LINE STEREO |
|---|---|
| Phantom voltage |
+18VDC |
| Input sensitivity adjust |
MIC/LINE: ±15dB |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
1 main mix output
1 main mono output
1 AUX/REC output |
|---|---|
| Output type |
1 STEREO/2 MONO main mix output
1 MONO main mix output
1 STEREO AUX/REC |
| Nominal output level |
OUT: 0dB/+6dB (internally selectable)
AUX/REC: 0dB/+6dB (follows MAIN OUT, when AUX OUTPOST) |
REMOTE CONTROL CONNECTIONS
| GPIs |
MUTE control port NO/NC |
|---|
TECHNOLOGIES
| Cooling |
Passive |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
LINE 2-5: 0dB
LINE 6: 0dB/-6dB (internally selectable)
MIC 1-5 BAL: -35dB |
|---|
MONITORING AND CONTROL
| Tone control |
2 x 3-way tone control (For section A/B and C) |
|---|
DEVICE CONTROL
| Control Buttons |
Power ON, Talkover, LINE/MIC, L+R (input), Gain knob, Volume knob, Output destination switches, STEREO (level a)/Single (level a/b), MONO/STEREO |
|---|---|
| Status Indicators |
Power ON LED, MUTE LED, SP/CLIP LEVEL LED |
| Tone Frequency Cut |
BASS: 100Hz ±15dB
MID: 2kHz ±15dB
TREBLE: 10kHz ±15dB |
| Talkover |
TIME: 2 seconds
EFFECT: -30dB |
LINE INPUTS
| CMRR |
MIC: 60dB @ 1 kHz |
|---|---|
| Input impedance |
LINE 2-5: 50kΩ
LINE 6: 50kΩ
MIC 1-5 BAL: 1kΩ |
LINE OUTPUTS
| Frequency response |
LINE: 10Hz-50kHz -1dB
MIC BAL: 10Hz-30kHz -1dB |
|---|---|
| THD + Noise |
LINE: 0.005%
MIC BAL: 0.04% |
