eCOMPACT4BT
CECOMPACT4BT
Available
4-ch | Bluetooth® | analogue mixer

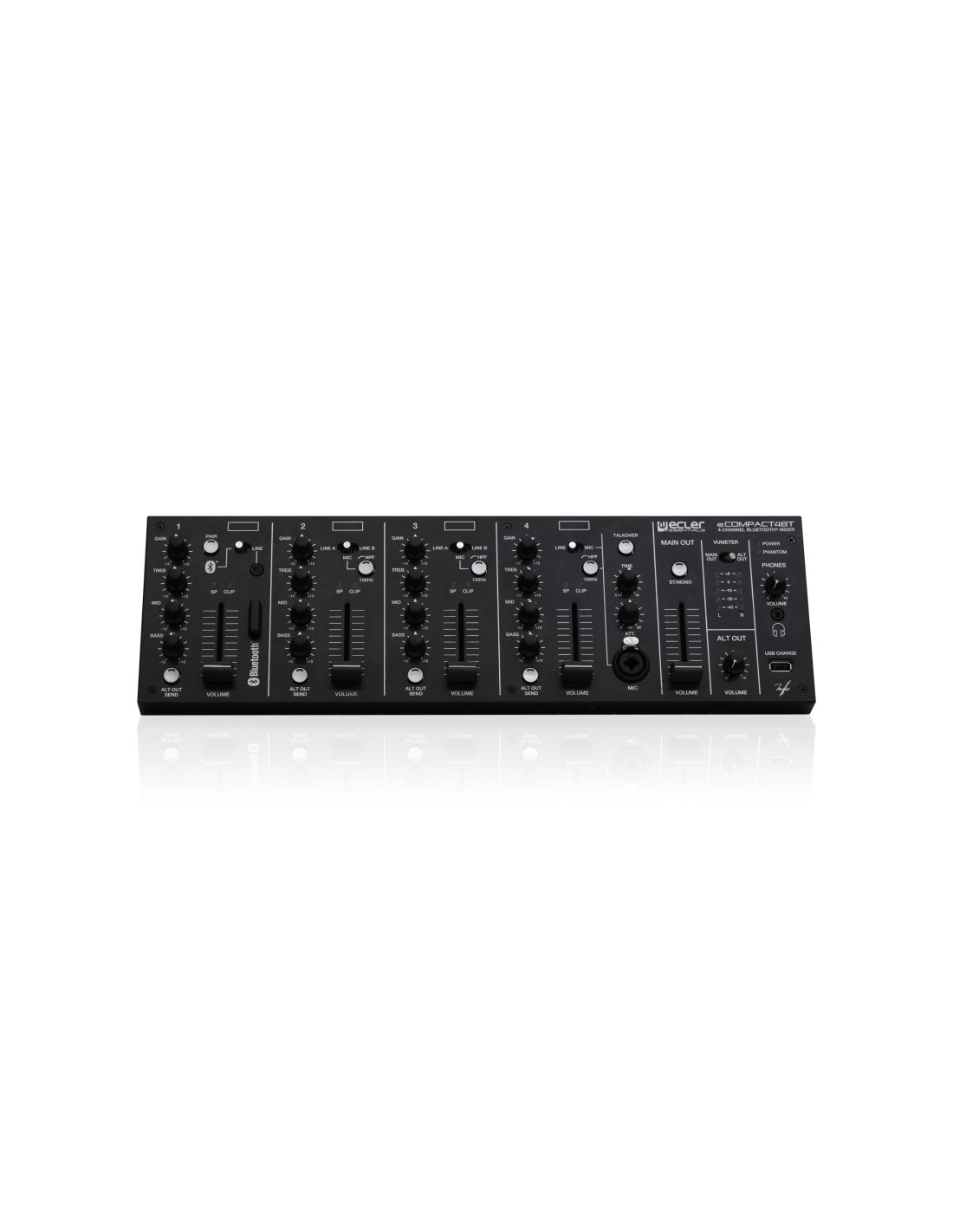

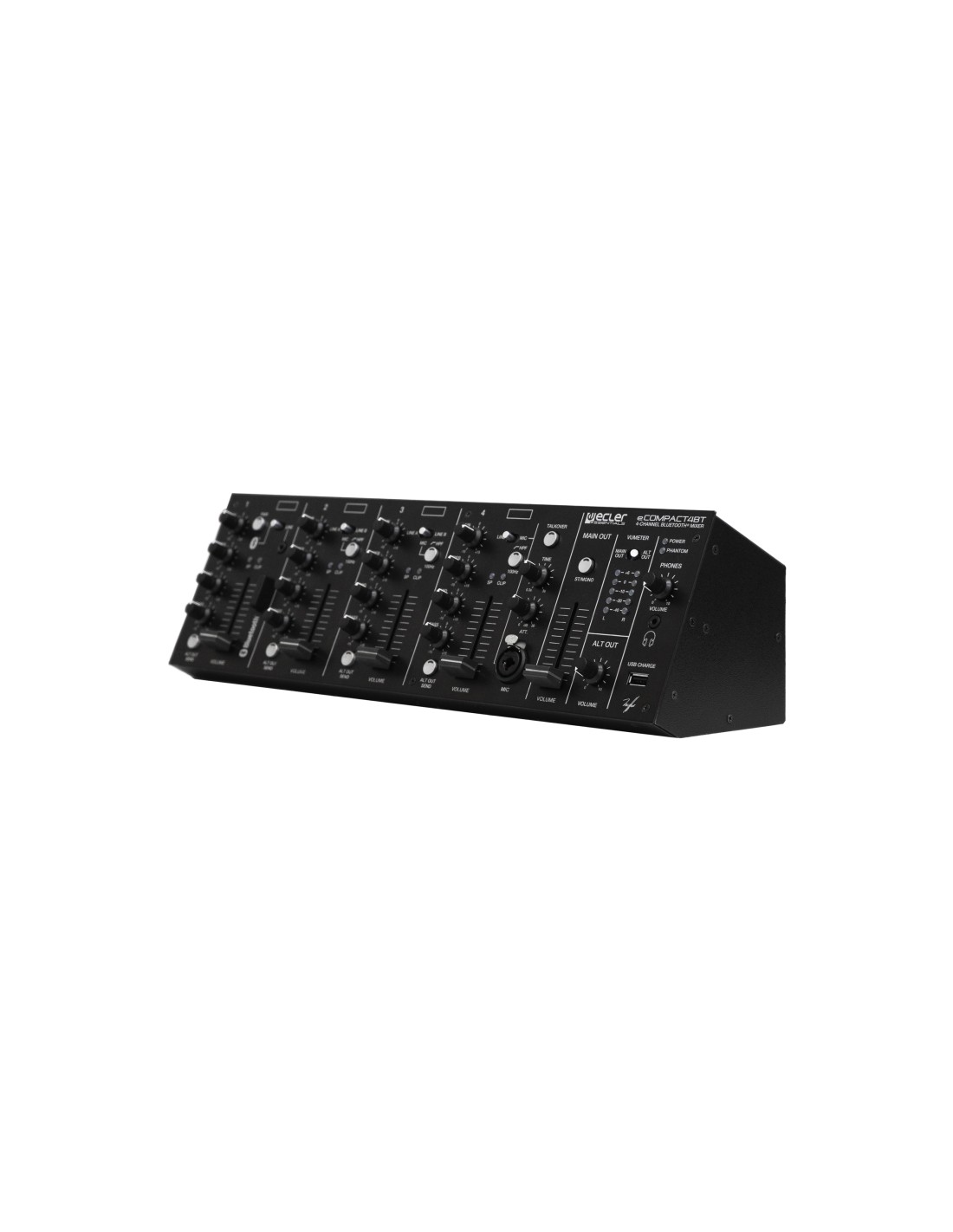

eCOMPACT4BT is a desktop and 19" rackmount 4-channel mixer with Bluetooth® for professional installation. Simple to operate, suitable for both experienced and novice users.
Features 4 microphone inputs, 6 stereo line inputs, USB charging port, Bluetooth® wireless connection and a mini-jack input for external devices. All microphone inputs have a switchable high-pass filter. 3-band tone control and ALT Send (sub-mix channel) on all channels.

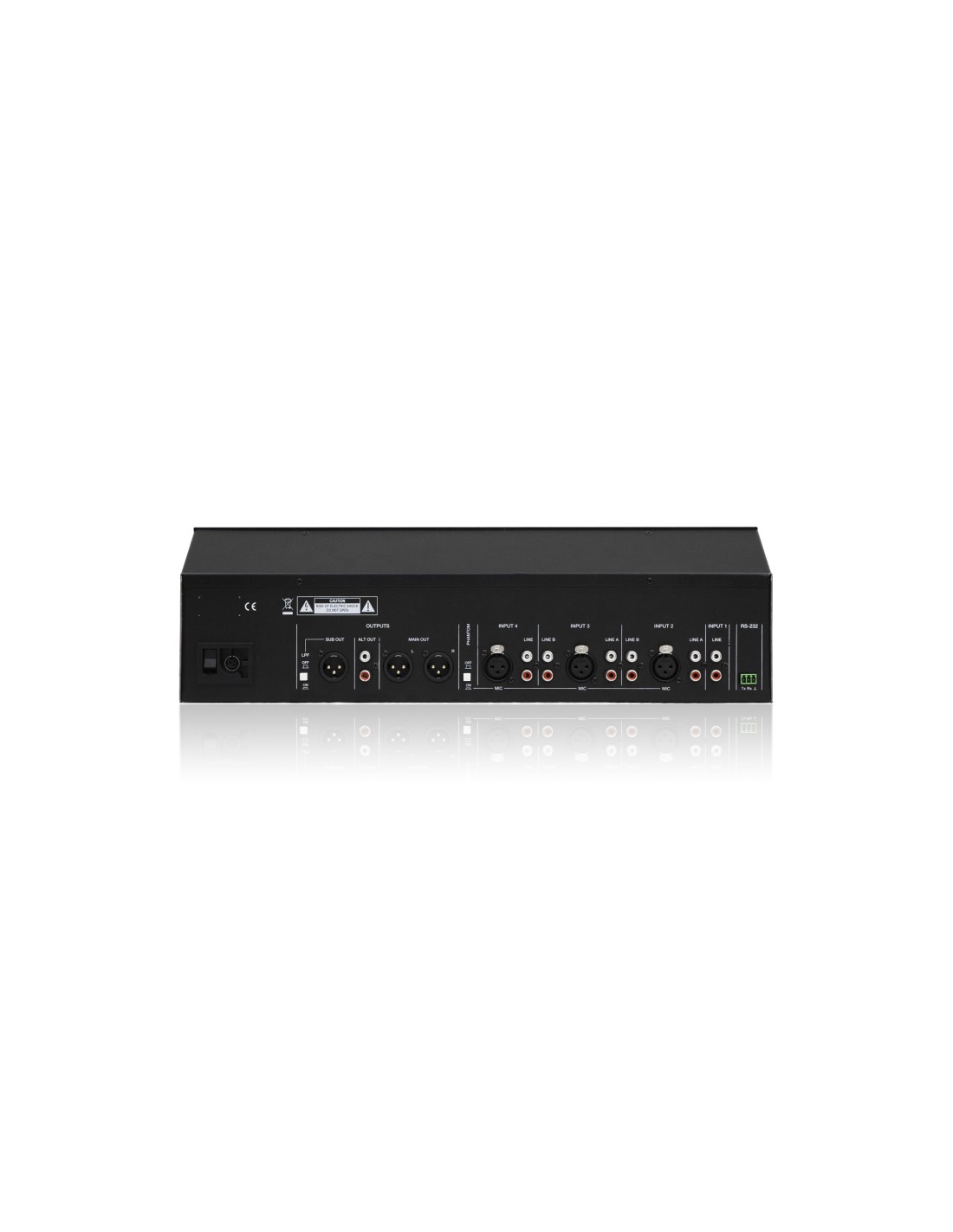

- Connection type
- LINE: RCA
1 COMBO MIC (Front panel)
Main: XLR
Sub: XLR
Alt: RCA - Installation options

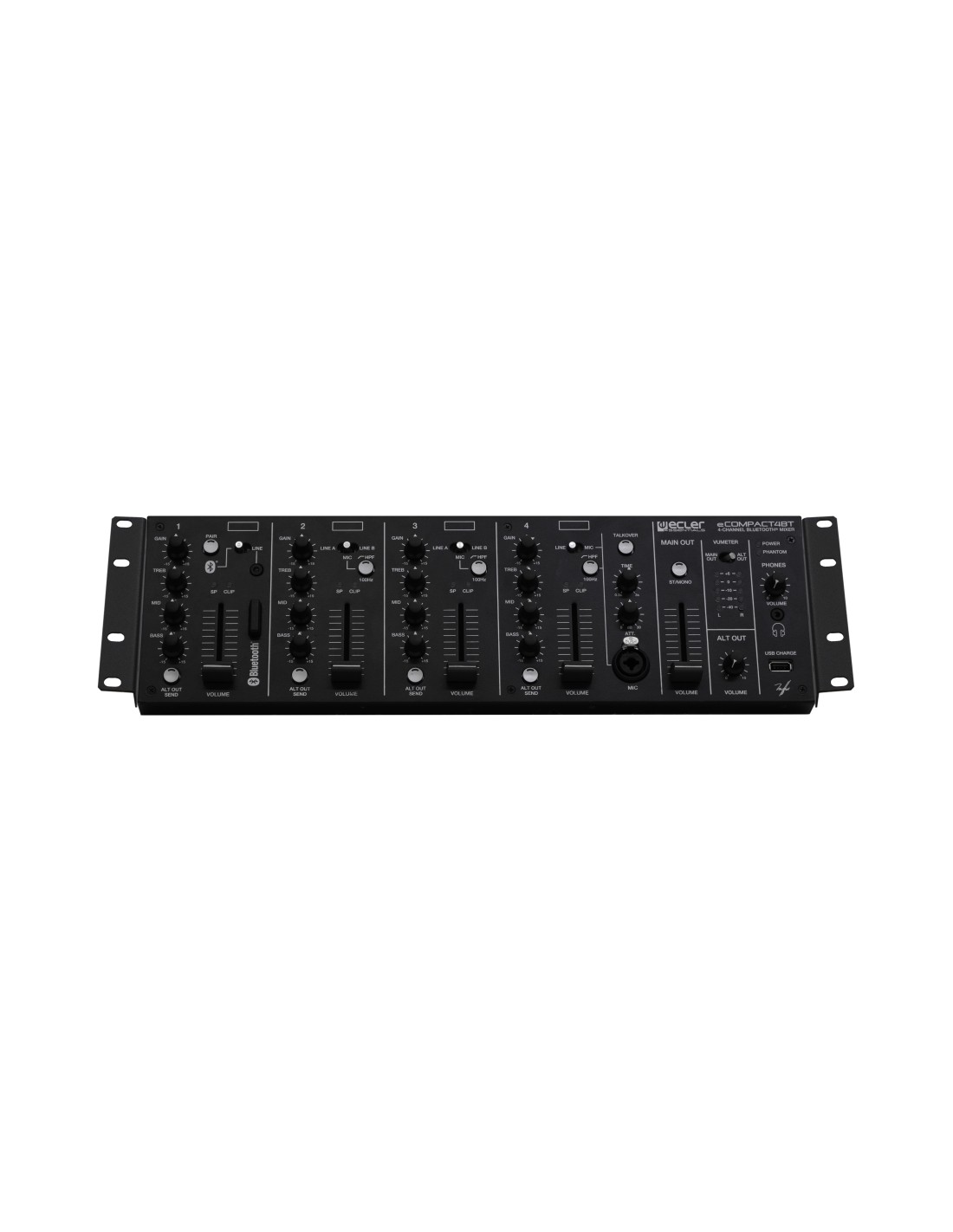

- Desktop, 19" rack format (3RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Optional accessories
- Rack-mount accessory (3URMKIT)
- Dimensions
- 440 x 132 x 125 mm / 17.32 x 5.2 x 4.92 in. (WxHxD)
- Weight
- 3.0 kg / 6.61 lb
- Shipping dimensions
- TBC
- Shipping weight
- TBC
- Status
- New
- EAN code
- 8435071307277
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Number of input ports
- 4 channels:
4 MIC ports
6 ST LINE ports - Input sensitivity
- LINE, LINE A, LINE B: 0dBV
MICRO (BAL): -35dBV
AUX INPUT IN1: -10dBV
BT INPUT: -10dBVFS - CMRR
- BAL INPUTS 75dB @ 1kHz
BAL INPUTS >75dB @ 1kHz - Number of output ports
- 3: MAIN OUT, SUB OUT, ALT OUT
- Output impedance
- TBC
- AC mains requirement
- 100-240 VAC + External PSU 17.5VDC
- AC mains connector
- DC power supply connector
- Power consumption
- 15 W
- Control Buttons
- Input selection, ALT OUT send, PAIR, HPF switches, talkover, main out ST/MONO, POWER ON switch, LPF switch, PHANTOM
- Status Indicators
- SP, CLIP, main OUT - ALT OUT vumeter, POWER LED, PHANTOM LED, talkover
- Power supply

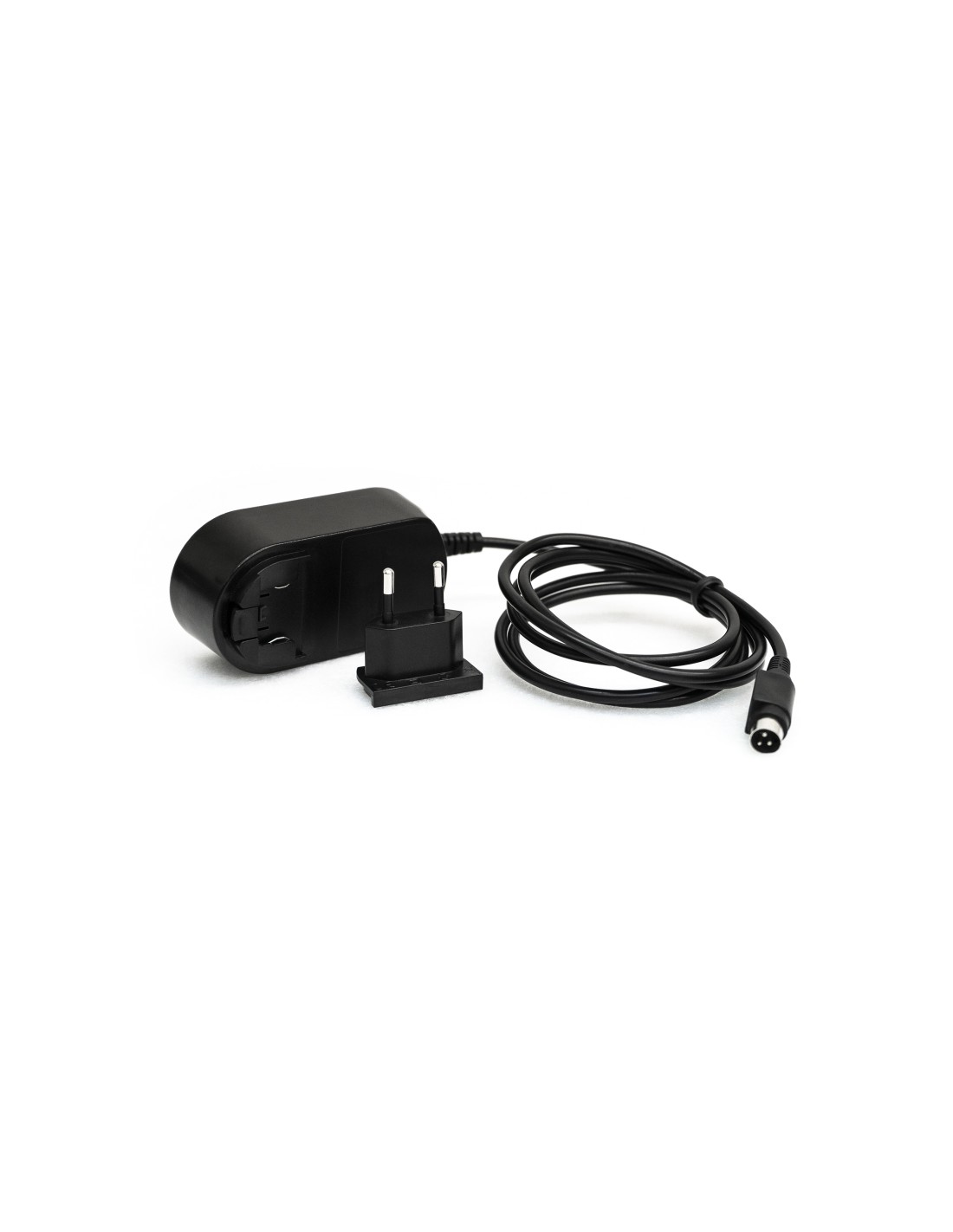

- External power supply
- Phantom power
- +48VDC, externally selectable
- Input impedance
- LINE, LINE A, LINE B: 50kΩ
MICRO (BAL): 1kΩ
AUX INPUT IN1: 316Ω
LINE, LINE A, LINE B: 50kΩ
MICRO (BAL): <1kΩ
AUX INPUT IN1: 316Ω - THD + Noise
- LINE: 0,03%
MICRO: 0,06%
AUX: 0,03%
BT INPUT: 0,05% - Tone control
- 3-way tone control
- THD + Noise
- LINE: 0,03%
MICRO: 0,06%
AUX: 0,03%
BT INPUT: 0,05%
LINE: <0,03%
MICRO: <0,06%
AUX: <0,03%
BT INPUT: <0,05% - Max output level
- TBC
- Headphones
- ST, mini-jack (200mW)
- Channels
- TBC
- Tone Frequency Cut
- BASS 100Hz, ± 15dB
MID 2kHz, ± 15dB
TREBLE 10kHz, ± 15dB - Talkover
- Yes
- Phantom voltage
- +48VDC, externally selectable
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
LINE: RCA
1 COMBO MIC (Front panel) Main: XLR Sub: XLR Alt: RCA |
|---|---|
| Installation options |
Desktop, 19" rack format (3RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Optional accessories |
Rack-mount accessory (3URMKIT) |
| Dimensions |
440 x 132 x 125 mm / 17.32 x 5.2 x 4.92 in. (WxHxD) |
| Weight |
3.0 kg / 6.61 lb |
| Shipping dimensions |
TBC |
| Shipping weight |
TBC |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071307277 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
MICS
| Output impedance |
TBC |
|---|
ELECTRICAL
| AC mains requirement |
100-240 VAC + External PSU 17.5VDC |
|---|---|
| AC mains connector |
DC power supply connector |
| Power consumption |
15 W |
| Power supply |
External power supply |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
4 channels:
4 MIC ports
6 ST LINE ports |
|---|---|
| Phantom voltage |
+48VDC, externally selectable |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
3: MAIN OUT, SUB OUT, ALT OUT |
|---|
ANALOGUE MONITOR PORTS
| Headphones |
ST, mini-jack (200mW) |
|---|---|
| Channels |
TBC |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
LINE, LINE A, LINE B: 0dBV
MICRO (BAL): -35dBV
AUX INPUT IN1: -10dBV
BT INPUT: -10dBVFS |
|---|---|
| THD + Noise |
LINE: <0,03%
MICRO: <0,06%
AUX: <0,03%
BT INPUT: <0,05% LINE: 0,03% MICRO: 0,06% AUX: 0,03% BT INPUT: 0,05% |
MONITORING AND CONTROL
| Tone control |
3-way tone control |
|---|
DEVICE CONTROL
| Control Buttons |
Input selection, ALT OUT send, PAIR, HPF switches, talkover, main out ST/MONO, POWER ON switch, LPF switch, PHANTOM |
|---|---|
| Status Indicators |
SP, CLIP, main OUT - ALT OUT vumeter, POWER LED, PHANTOM LED, talkover |
| Tone Frequency Cut |
BASS 100Hz, ± 15dB
MID 2kHz, ± 15dB
TREBLE 10kHz, ± 15dB |
| Talkover |
Yes |
MIC INPUTS
| Phantom power |
+48VDC, externally selectable |
|---|
LINE INPUTS
| CMRR |
BAL INPUTS >75dB @ 1kHz BAL INPUTS 75dB @ 1kHz |
|---|---|
| Input impedance |
LINE, LINE A, LINE B: 50kΩ
MICRO (BAL): <1kΩ
AUX INPUT IN1: 316Ω LINE, LINE A, LINE B: 50kΩ MICRO (BAL): 1kΩ AUX INPUT IN1: 316Ω |
LINE OUTPUTS
| THD + Noise |
LINE: 0,03%
MICRO: 0,06%
AUX: 0,03%
BT INPUT: 0,05% |
|---|---|
| Max output level |
TBC |
